Bolt-On Brake Kits



(8) Brake Kits Available

Forged Superlite 4R Big Brake Front Brake Kit (Race)
Pistons: 4
Rotor Diameter: 13.06
Caliper Mount: Radial
Min. Wheel Diameter: 17

Forged Superlite 4R Big Brake Front Brake Kit (Race) Description

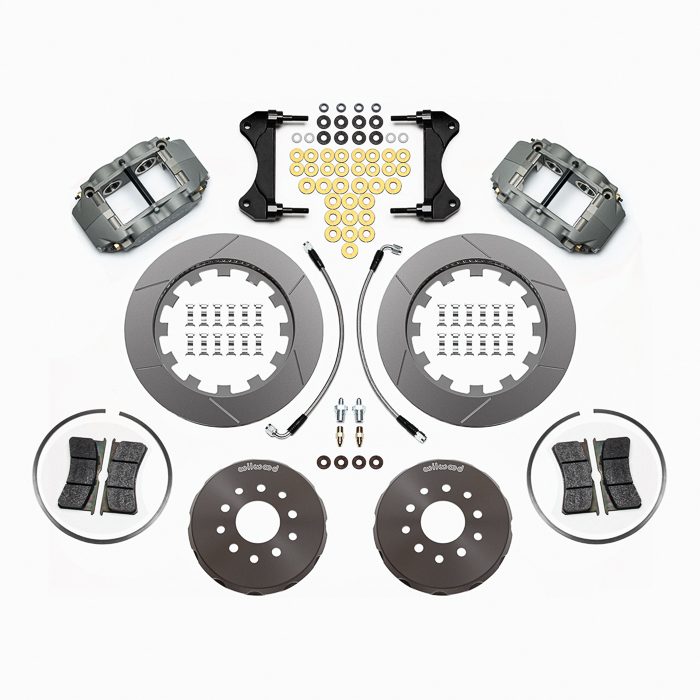

This kit is configured for dedicated road racing on all 1998-2002 Camaros and Firebirds, and any 1993-97 models that have been upgraded with 1998-02 spindles. The four piston FSL4R/ST calipers used in this kit feature a forged aluminum body with a Type III Mil-Spec hard anodized, medium gray color finish. Hard anodizing provides superior wear resistance in the piston bores, and high resistance to abrasion and corrosion throughout. Thermlock® pistons are used to reduce heat transfer from the pads to increase fade resistance, and to extend service life by decreasing temperatures in the caliper body, fluid, and seals. Internal damper springs and controlled retraction, high-temperature piston seals assure consistent pedal height from start to finish. Caliper piston volumes are matched for full compatibility with the OE power brake booster and master cylinder, and are easily configured with manual brake conversions and balance bar pedals using appropriately sized master cylinders. Spec37 alloy GT competition series 13.06” diameter directional vane rotors provide high cooling efficiency with rugged durability and thermal stability in sustained high heat competition. Unsprung and rotating weight are minimized with forged aluminum hats for mounting the rotors to the OE hubs. Mounting brackets, including all premium grade fasteners, secure the calipers to the spindles in the stock location, without the need for modifications. This championship proven system is completed with high temperature, high friction, endurance race compound pads selected specifically by application. Stainless steel braided flexlines are included in each kit to complete the installation.
Note 1. Road Race kits contain high temperature racing pads. Extended low temperature use will cause premature rotor and pad wear. Note 2. Kit may fit some 17" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
This kit fits the following vehicles:
Chevrolet Camaro 1993-1997 Chevrolet Camaro 1998-2002 Pontiac Firebird 1998-2002
Ordering Information for Forged Superlite 4R Big Brake Front Brake Kit (Race)

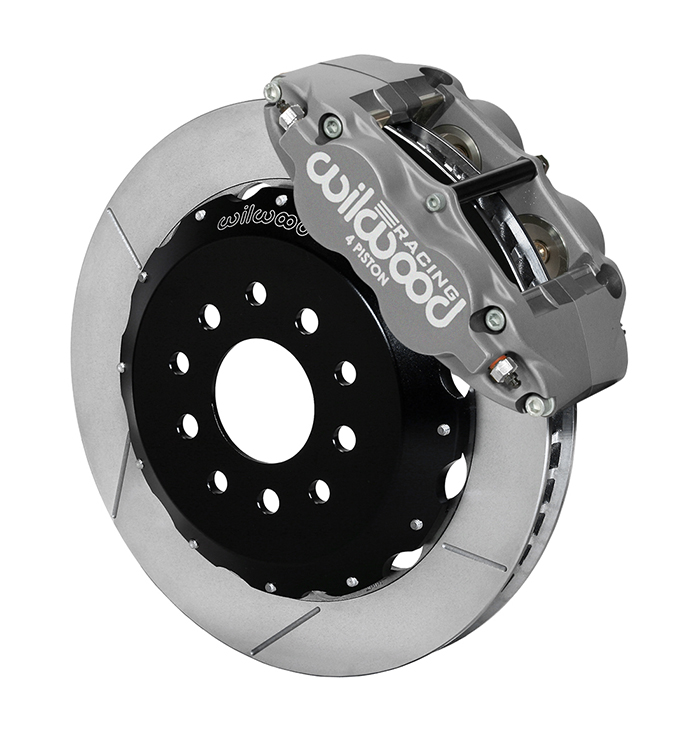

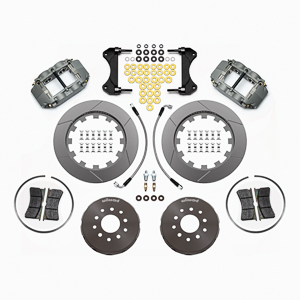

Item No 140-14074
Info Details
Caliper Color Type III Ano
Rotor Slotted
Line Kit 220-6746 *
Price $2,027.19
Purchase
Call (805) 388-1188

Forged Superlite 4R Big Brake Front Brake Kit (Race)
Pistons: 4
Rotor Diameter: 13.06
Caliper Mount: Radial
Min. Wheel Diameter: 17

Forged Superlite 4R Big Brake Front Brake Kit (Race) Description

This kit is configured for dedicated road racing on all 1998-2002 Camaros and Firebirds, and any 1993-97 models that have been upgraded with 1998-02 spindles racing in categories that do not allow slotted face rotors. The four piston FSL4R/ST calipers used in this kit feature a forged aluminum body with a Type III Mil-Spec hard anodized, medium gray color finish. Hard anodizing provides superior wear resistance in the piston bores, and high resistance to abrasion and corrosion throughout. Thermlock® pistons are used to reduce heat transfer from the pads to increase fade resistance, and to extend service life by decreasing temperatures in the caliper body, fluid, and seals. Internal damper springs and controlled retraction, high-temperature piston seals assure consistent pedal height from start to finish. Caliper piston volumes are matched for full compatibility with the OE power brake booster and master cylinder, and are easily configured with manual brake conversions and balance bar pedals using appropriately sized master cylinders. Spec37 alloy HD competition series 13.06” diameter directional vane rotors provide high cooling efficiency with rugged durability and thermal stability in sustained high heat competition. Unsprung and rotating weight are minimized with forged aluminum hats for mounting the rotors to the OE hubs. Mounting brackets, including all premium grade fasteners, secure the calipers to the spindles in the stock location, without the need for modifications. This championship proven system is completed with high temperature, high friction, endurance race compound pads selected specifically by application. Stainless steel braided flexlines are included in each kit to complete the installation.
Note 1. Road Race kits contain high temperature racing pads. Extended low temperature use will cause premature rotor and pad wear. Note 2. Kit may fit some 17" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
This kit fits the following vehicles:
Chevrolet Camaro 1993-1997 Chevrolet Camaro 1998-2002 Pontiac Firebird 1998-2002
Ordering Information for Forged Superlite 4R Big Brake Front Brake Kit (Race)
Item No 140-14075
Info Details
Caliper Color Type III Ano
Rotor Plain
Line Kit 220-6746 *
Price $2,002.00
Purchase
Call (805) 388-1188

Forged Superlite 4R Big Brake Front Brake Kit (Race)
Pistons: 4
Rotor Diameter: 12.88
Caliper Mount: Radial
Min. Wheel Diameter: 17

Forged Superlite 4R Big Brake Front Brake Kit (Race) Description

This kit is configured for dedicated road racing on all models of the 1994-2004 Mustang, or any 1979-93 model that has been updated to use 1994-95 model SN95 type spindles. The four piston FSL4R/ST calipers used in this kit feature a forged aluminum body with a Type III Mil-Spec hard anodized, medium gray color finish. Hard anodizing provides superior wear resistance in the piston bores, and high resistance to abrasion and corrosion throughout. Thermlock® pistons are used to reduce heat transfer from the pads to increase fade resistance, and to extend service life by decreasing temperatures in the caliper body, fluid, and seals. Internal damper springs and controlled retraction, high-temperature piston seals assure consistent pedal height from start to finish. Caliper piston volumes are matched for full compatibility with the OE power brake booster and master cylinder, and are easily configured with manual brake conversions and balance bar pedals using appropriately sized master cylinders. Spec37 alloy GT competition series 12.88” diameter directional vane rotors provide high cooling efficiency with rugged durability and thermal stability in sustained high heat competition. Unsprung and rotating weight are minimized with forged aluminum hats for mounting the rotors to the OE hubs. Mounting brackets, including all premium grade fasteners, secure the calipers to the spindles in the stock location, without the need for modifications. This championship proven system is completed with high temperature, high friction, endurance race compound pads selected specifically by application. Stainless steel braided flexlines are included in each kit to complete the installation.
Note 1. Road Race kits contain high temperature racing pads. Extended low temperature use will cause premature rotor and pad wear. Note 2. Kit may fit some 17" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
This kit fits the following vehicles:
Ford Mustang 1994-2004 Ford Mustang 1999-2000 Ford Mustang 2001 Ford Mustang 2003-2004
Ordering Information for Forged Superlite 4R Big Brake Front Brake Kit (Race)

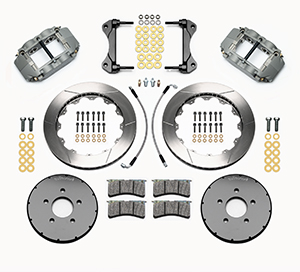

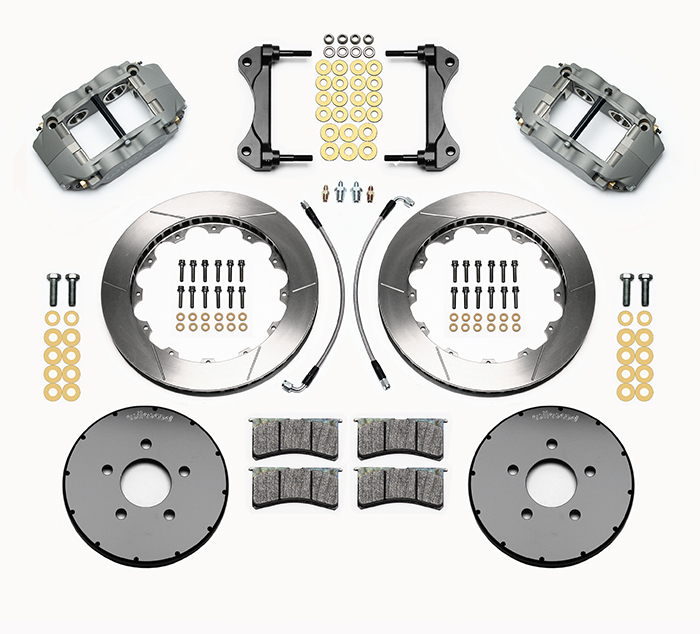

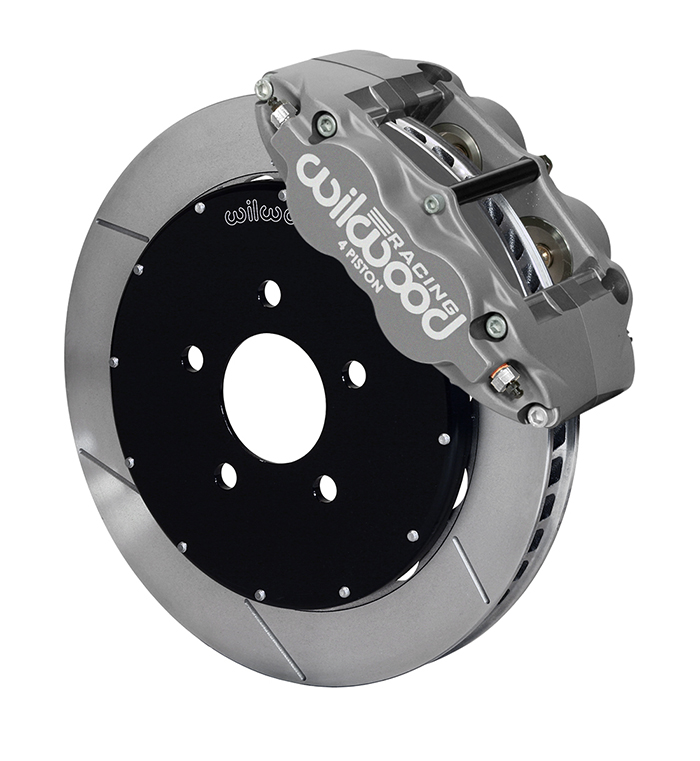

Item No 140-14113
Info Details
Caliper Color Type III Ano
Rotor Slotted
Line Kit 220-6458 *
Price $2,107.00
Purchase
Call (805) 388-1188

Forged Superlite 4R Big Brake Front Brake Kit (Race)
Pistons: 4
Rotor Diameter: 12.88
Caliper Mount: Radial
Min. Wheel Diameter: 17

Forged Superlite 4R Big Brake Front Brake Kit (Race) Description

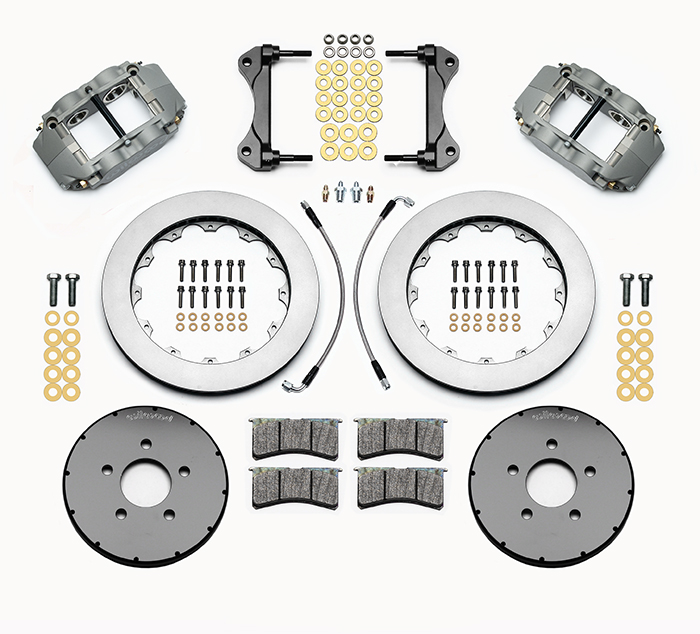

Kits in this competition group are configured for use in production category road racing that allow brake upgrades, but limit modifications to four-piston calipers and 12.88” rotors. FSL4R/ST Type III anodize finish calipers use Thermlock pistons to resist fade and extend service life by reducing the heat transfer into the caliper from the pads. HD series directional vane rotors provide high cooling efficiency and durability mounted to the hubs with forged aluminum GT hats. Kits also include high temperature race compound pads, stainless steel flexlines, and premium grade hardware for installation in 17” and larger wheels.
Note 1. Road Race kits contain high temperature racing pads. Extended low temperature use will cause premature rotor and pad wear. Note 2. Kit may fit some 17" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
This kit fits the following vehicles:
Ford Mustang 1994-2004 Ford Mustang 1999-2000 Ford Mustang 2001 Ford Mustang 2003-2004
Ordering Information for Forged Superlite 4R Big Brake Front Brake Kit (Race)

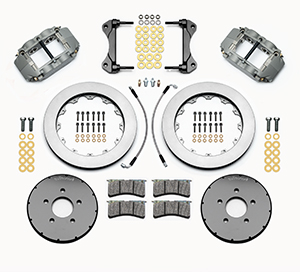

Item No 140-14114
Info Details
Caliper Color Type III Ano
Rotor Slotted
Line Kit 220-6458 *
Price $2,082.00
Purchase
Call (805) 388-1188

Forged Superlite 4R Big Brake Front Brake Kit (Race)
Pistons: 4
Rotor Diameter: 12.19
Caliper Mount: Radial
Min. Wheel Diameter: 15

Forged Superlite 4R Big Brake Front Brake Kit (Race) Description

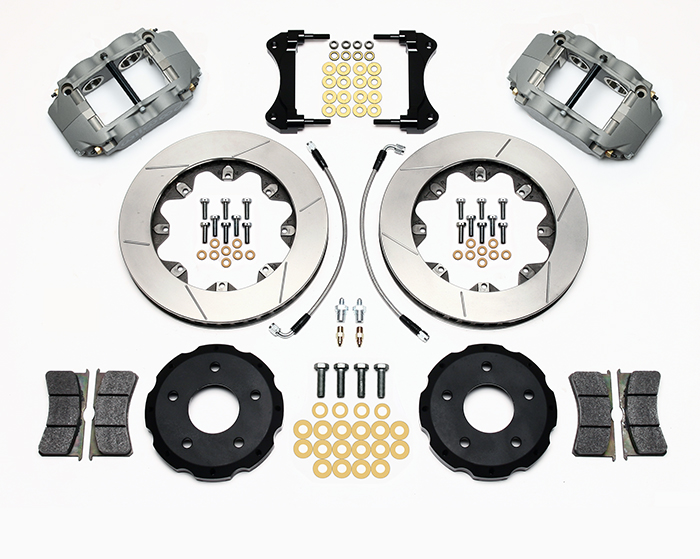

This kit is configured for dedicated road racing on all models of the 1998-2002 Camaro and Firebird. The four piston FSL4R/ST calipers used in this kit feature a forged aluminum body with a Type III Mil-Spec hard anodized, medium gray color finish. Hard anodizing provides superior wear resistance in the piston bores, and high resistance to abrasion and corrosion throughout. Thermlock® pistons are used to reduce heat transfer from the pads to increase fade resistance, and to extend service life by decreasing temperatures in the caliper body, fluid, and seals. Internal damper springs and controlled retraction, high-temperature piston seals assure consistent pedal height from start to finish. Caliper piston volumes are matched for full compatibility with the OE power brake booster and master cylinder, and are easily configured with manual brake conversions and balance bar pedals using appropriately sized master cylinders. Spec37 alloy GT competition series 12.19” diameter directional vane rotors provide high cooling efficiency with rugged durability and thermal stability in sustained high heat competition. Unsprung and rotating weight are minimized by using forged aluminum rotor mounting hats for mounting on the factory hubs. Mounting brackets, including all premium grade fasteners, secure the calipers in the stock location, with minor modifications to the spindle for bracket clearance. Details of the required modifications are illustrated on page 4 of assembly instructions. This championship proven system is completed with high temperature, high friction, endurance race compound pads selected specifically by application. Stainless steel braided flexlines are included in each kit to complete the installation.
Note 1. Road Race kits contain high temperature racing pads. Extended low temperature use will cause premature rotor and pad wear. Note 2. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
This kit fits the following vehicles:
Chevrolet Camaro 1993-1997 Chevrolet Camaro 1998-2002 Pontiac Firebird 1998-2002
Ordering Information for Forged Superlite 4R Big Brake Front Brake Kit (Race)
Item No 140-10691
Info Details
Caliper Color Type III Ano
Rotor Slotted
Line Kit 220-6746 *
Price $1,988.00
Purchase
Call (805) 388-1188

Forged Superlite 4R Big Brake Front Brake Kit (Race)
Pistons: 4
Rotor Diameter: 12.19
Caliper Mount: Radial
Min. Wheel Diameter: 15

Forged Superlite 4R Big Brake Front Brake Kit (Race) Description

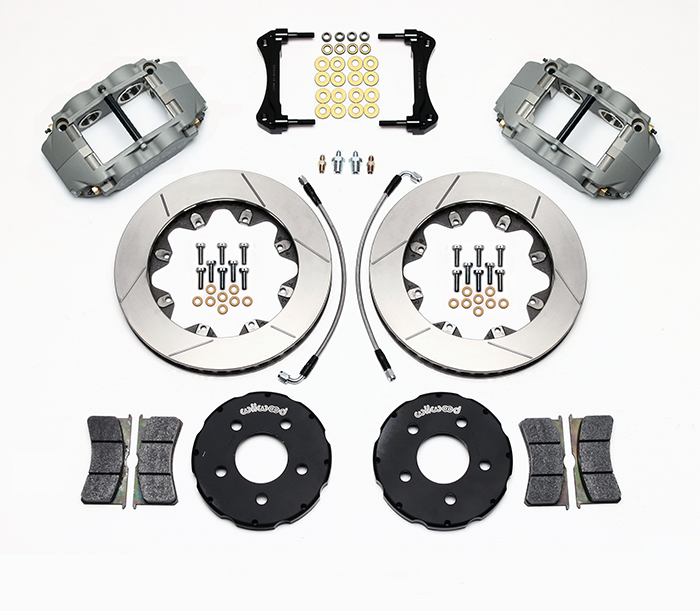

This kit is configured for dedicated road racing on all models of the 1994-2004 Mustang, or any 1979-93 model that has been updated to use 1994-95 model SN95 type spindles. The four piston FSL4R/ST calipers used in this kit feature a forged aluminum body with a Type III Mil-Spec hard anodized, medium gray color finish. Hard anodizing provides superior wear resistance in the piston bores, and high resistance to abrasion and corrosion throughout. Thermlock® pistons are used to reduce heat transfer from the pads to increase fade resistance, and to extend service life by decreasing temperatures in the caliper body, fluid, and seals. Internal damper springs and controlled retraction, high-temperature piston seals assure consistent pedal height from start to finish. Caliper piston volumes are matched for full compatibility with the OE power brake booster and master cylinder, and are easily configured with manual brake conversions and balance bar pedals using appropriately sized master cylinders. Spec37 alloy GT competition series 12.19” diameter directional vane rotors provide high cooling efficiency with rugged durability and thermal stability in sustained high heat competition. Unsprung and rotating weight are minimized by using forged aluminum rotor mounting hats for mounting on the factory hubs. Mounting brackets, including all premium grade fasteners, secure the calipers in the stock location, with minor modifications to the spindle for bracket clearance. Details of the required modifications are illustrated on page 4 of assembly instructions. This championship proven system is completed with high temperature, high friction, endurance race compound pads selected specifically by application. Stainless steel braided flexlines are included in each kit to complete the installation.
Note 1. Road Race kits contain high temperature racing pads. Extended low temperature use will cause premature rotor and pad wear. Note 2. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
This kit fits the following vehicles:
Ford Mustang 1994-2004 Ford Mustang 1999-2000 Ford Mustang 2001 Ford Mustang 2003-2004
Ordering Information for Forged Superlite 4R Big Brake Front Brake Kit (Race)

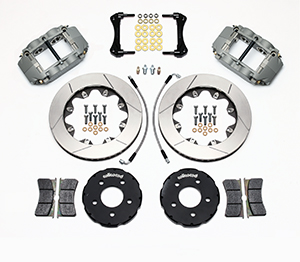

Item No 140-10692
Info Details
Caliper Color Type III Ano
Rotor Slotted
Line Kit 220-6458 *
Price $1,988.00
Purchase
Call (805) 388-1188

Forged Superlite 4R Big Brake Front Brake Kit (Race)
Pistons: 4
Rotor Diameter: 12.19
Caliper Mount: Radial
Min. Wheel Diameter: 15

Forged Superlite 4R Big Brake Front Brake Kit (Race) Description

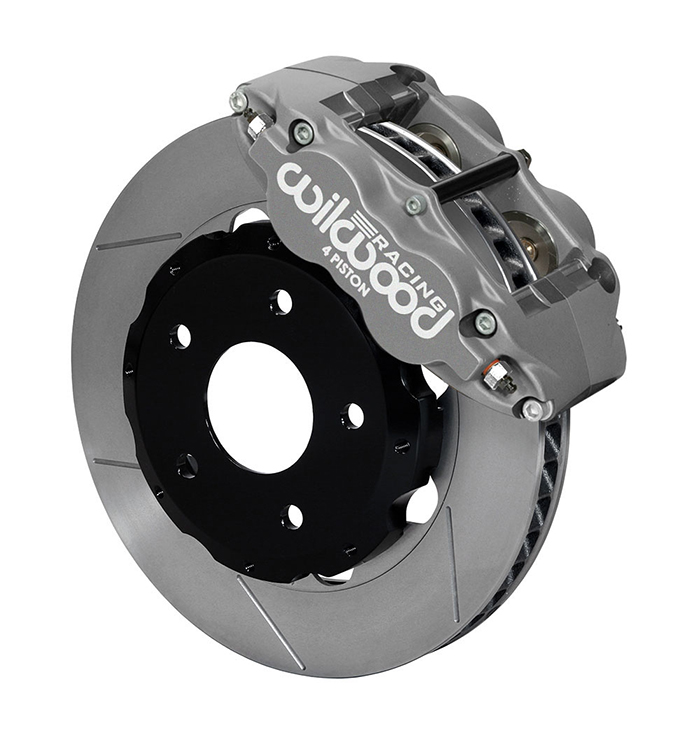

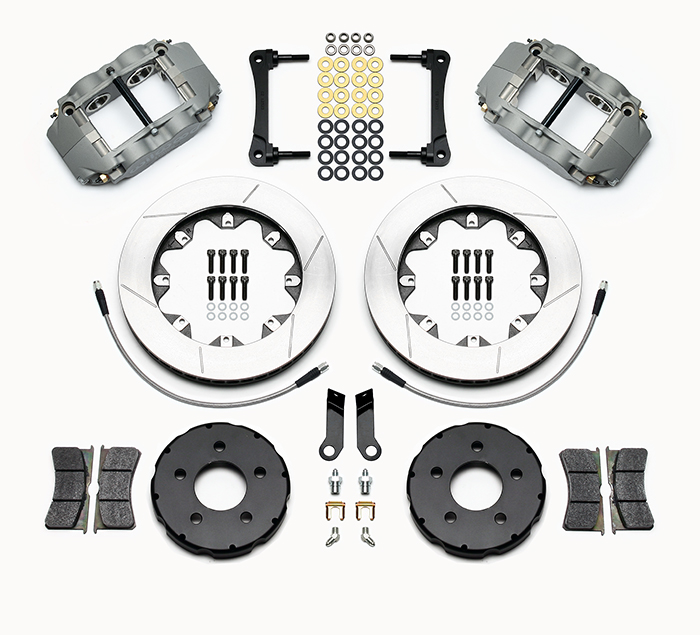

This kit is configured for dedicated road racing on all models of the 2005-2014 Mustang. The four piston FSL4R/ST calipers used in this kit feature a forged aluminum body with a Type III Mil-Spec hard anodized, medium gray color finish. Hard anodizing provides superior wear resistance in the piston bores, and high resistance to abrasion and corrosion throughout. Thermlock® pistons are used to reduce heat transfer from the pads to increase fade resistance, and to extend service life by decreasing temperatures in the caliper body, fluid, and seals. Internal damper springs and controlled retraction, high-temperature piston seals assure consistent pedal height from start to finish. Caliper piston volumes are matched for full compatibility with the OE power brake booster and master cylinder, and are easily configured with manual brake conversions and balance bar pedals using appropriately sized master cylinders. Spec37 alloy GT competition series 12.19” diameter directional vane rotors provide high cooling efficiency with rugged durability and thermal stability in sustained high heat competition. Unsprung and rotating weight are minimized by using forged aluminum rotor mounting hats for mounting on the factory hubs. Mounting brackets, including all premium grade fasteners, secure the calipers in the stock location, with some modification of the spindle for bracket clearance. Details of the required modifications are illustrated on page 4 of assembly instructions. This championship proven system is completed with high temperature, high friction, endurance race compound pads selected specifically by application. Stainless steel braided flexlines are included in each kit to complete the installation.
Note 1. Road Race kits contain high temperature racing pads. Extended low temperature use will cause premature rotor and pad wear. Note 2. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
This kit fits the following vehicles:
Ford Mustang 2005-2013 Ford Mustang 2007-2009 Ford Mustang 2007-2014 Ford Mustang 2008 Ford Mustang 2011-2012 Ford Mustang 2012-2013 Ford Mustang 2014
Ordering Information for Forged Superlite 4R Big Brake Front Brake Kit (Race)
Item No 140-12508
Info Details
Caliper Color Type III Ano
Rotor Slotted
Line Kit 220-9111 *
Price $1,988.00
Purchase
Call (805) 388-1188

Forged Superlite 4R Big Brake Front Brake Kit (Race)
Pistons: 4
Rotor Diameter: 12.19
Caliper Mount: Radial
Min. Wheel Diameter: 15

Forged Superlite 4R Big Brake Front Brake Kit (Race) Description

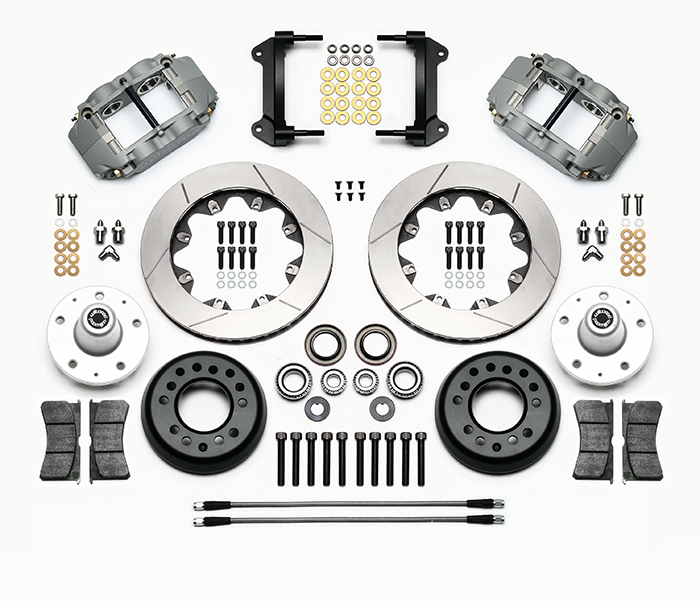

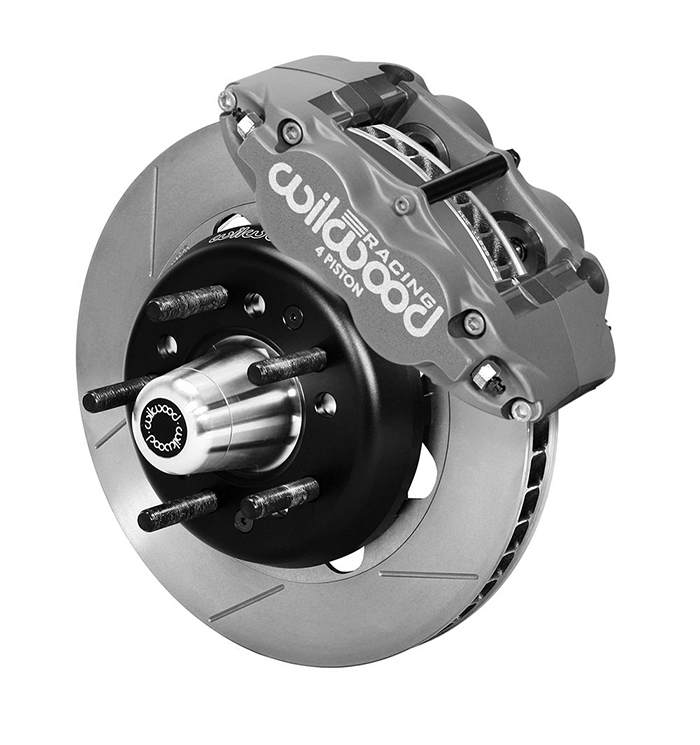

This kit is configured for dedicated road racing on all 1982-92 Camaros and Firebirds using the OE factory single piston caliper spindles that have been modified to accept the Wilwood caliper brackets. The four piston FSL4R/ST calipers used in this kit feature a forged aluminum body with a Type III Mil-Spec hard anodized, medium gray color finish. Hard anodizing provides superior wear resistance in the piston bores, and high resistance to abrasion and corrosion throughout. Thermlock® pistons are used to reduce heat transfer from the pads to increase fade resistance, and to extend service life by decreasing temperatures in the caliper body, fluid, and seals. Internal damper springs and controlled retraction, high-temperature piston seals assure consistent pedal height from start to finish. Caliper piston volumes are matched for full compatibility with the OE power brake booster and master cylinder, and are easily configured with manual brake conversions and balance bar pedals using appropriately sized master cylinders. Spec37 alloy GT competition series 12.19” diameter directional vane rotors provide high cooling efficiency with rugged durability and thermal stability in sustained high heat competition. Unsprung and rotating weight are minimized using forged aluminum hubs and rotor mounting hats for assembly onto the spindles. Mounting brackets, including all premium grade fasteners, secure the calipers in the stock location, after the required spindle modifications have been completed. A detailed illustration of the required modifications can be found on page 2 of the assembly instructions. This championship proven system is completed with high temperature, high friction, endurance race compound pads selected specifically by application. Stainless steel braided flexlines are included in each kit to complete the installation.
Note 1. Road Race kits contain high temperature racing pads. Extended low temperature use will cause premature rotor and pad wear. Note 2. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase. Note 3. 1988-1992: Front kits fit OE Single piston caliper spindles only. Note 4. Requires modifications to original spindle
This kit fits the following vehicles:
Chevrolet Camaro 1982-1987 Chevrolet Camaro 1988-1992 Pontiac Firebird 1982-1987 Pontiac Firebird 1988-1992
Ordering Information for Forged Superlite 4R Big Brake Front Brake Kit (Race)
Item No 140-12518
Info Details
Caliper Color Type III Ano
Rotor Slotted
Line Kit 220-8307 *
Price $2,275.00
Purchase
Call (805) 388-1188
