Bolt-On Brake Kits

(1) Brake Kits Available

Forged Superlite 6R Big Brake Front Brake Kit (Race)
Pistons: 6
Rotor Diameter: 12.88
Caliper Mount: Radial
Min. Wheel Diameter: 17

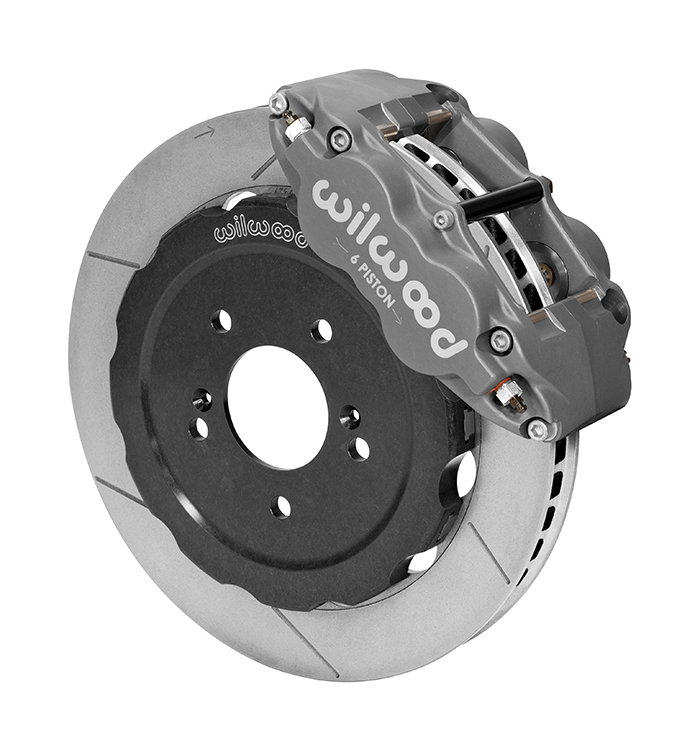

Forged Superlite 6R Big Brake Front Brake Kit (Race)

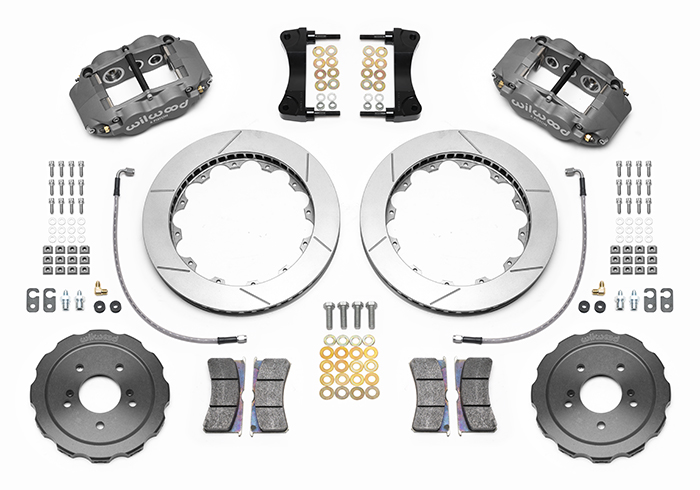

Forged Superlite 6R Big Brake Front Brake Kit (Race) Parts Forged Superlite 6R Big Brake Front Brake Kit (Race) Parts Zoom Image

View Custom Caliper Colors

Forged Superlite 6R Big Brake Front Brake Kit (Race) Description

This kit is configured for unrestricted category road racing on all models of the 2000-2009 Honda S2000 using 17” or larger diameter wheels. the six piston FSL6R/ST calipers used in this kit feature a forged aluminum body with a Type III Mil-Spec hard anodized, medium gray color finish. Hard anodizing provides superior wear resistance in the piston bores, and high resistance to abrasion and corrosion throughout. Thermlock® pistons are used to reduce heat transfer from the pads to increase fade resistance, and to extend service life by decreasing temperatures in the caliper body, fluid, and seals. Internal damper springs and controlled retraction, high-temperature piston seals assure consistent pedal height from start to finish. Caliper piston volumes are matched for full compatibility with the OE power brake booster and master cylinder, and are easily configured with manual brake conversions and balance bar pedals using appropriately sized master cylinders. Spec37 alloy GT competition series 12.88” diameter directional vane rotors are dynamically mounted to the OE hubs with weight saving forged aluminum hats. Unsprung and rotating weight are minimized while providing high cooling efficiency and rugged durability with thermal stability in sustained high heat competition. Mounting brackets, including all premium grade fasteners, secure the calipers to the spindles in the stock location, without the need for modifications. This championship proven system is completed with high temperature, high friction, endurance race compound pads selected specifically by application. Stainless steel braided flexlines are included in each kit to complete the installation.
Note 1. Road Race kits contain high temperature racing pads. Extended low temperature use will cause premature rotor and pad wear. Note 2. Kit may fit some 17" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
This kit fits the following vehicles:
Honda S2000 2000-2009
Ordering Information for Forged Superlite 6R Big Brake Front Brake Kit (Race)
Item No 140-14965
Info Details
Caliper Color Type III Anodize
Rotor Slotted
Line Kit 220-10841 *
Price $2,701.11
Call (805) 388-1188
