Bolt-On Brake Kits



(4) Brake Kits Available

Forged Narrow Superlite 6R Big Brake Front Brake Kit (6 x 5.50 Hub and Rotor)
Pistons: 6
Rotor Diameter: 12.19
Caliper Mount: Radial
Min. Wheel Diameter: 15

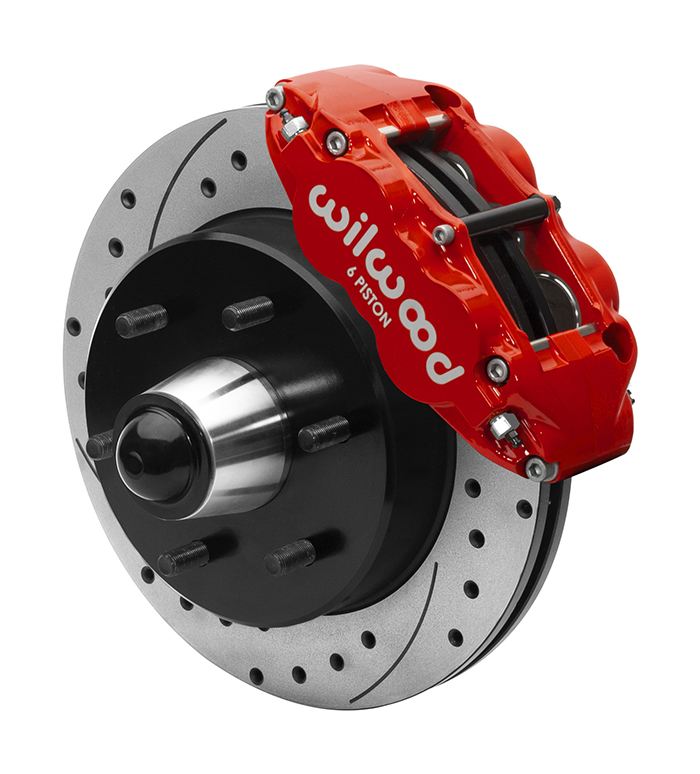

Forged Narrow Superlite 6R Big Brake Front Brake Kit (6 x 5.50 Hub and Rotor) Forged Narrow Superlite 6R Big Brake Front Brake Kit (6 x 5.50 Hub and Rotor) Zoom Image

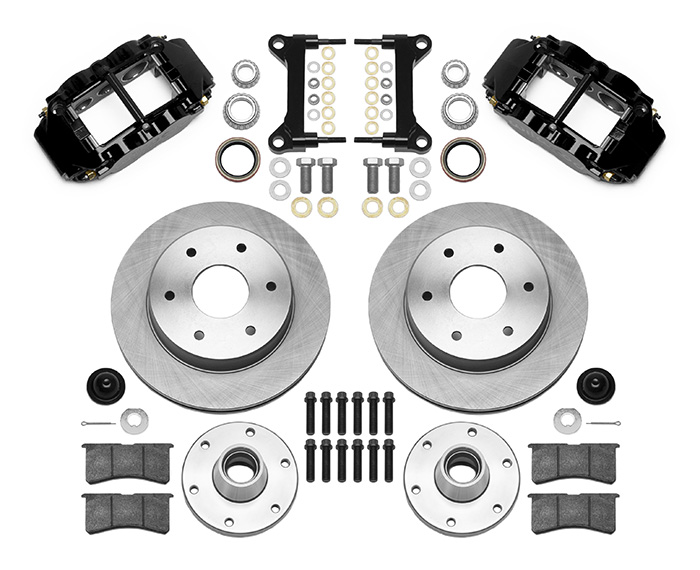

Forged Narrow Superlite 6R Big Brake Front Brake Kit (6 x 5.50 Hub and Rotor) Parts Forged Narrow Superlite 6R Big Brake Front Brake Kit (6 x 5.50 Hub and Rotor) Parts Zoom Image


View Custom Caliper Colors

Forged Narrow Superlite 6R Big Brake Front Brake Kit (6 x 5.50 Hub and Rotor) Description

The unsurpassed braking capacity of the Forged Narrow Superlite 6R six-piston caliper serves as the base of this 12.19” big rotor kit for the popular 1963 thru 1987 Chevrolet & GM C10 / C15 Trucks with Wilwood's new 1 Piece Iron Drop Pro Spindles. SL6 kits are engineered application specific for simplified installation and full compatibility with OE master cylinder output and ABS functions where used. Big brake kits provide increased brake capacity and complimentary style with wheel, tire, and suspension upgrades. Optional caliper finishes and rotor designs simplify personalizing the style and braking requirements of any application. This kit contains hubs with a 6 x 5.50” bolt circle.
Note 1. Brake kits require Wilwood C10 1 Piece Iron Pro Drop Spindles to fit. Will not fit original equipment spindles.
This kit fits the following vehicles:
Chevrolet Blazer 1970-1982 Chevrolet C10 1975-1986 Chevrolet C10 Panel 1963-1967 Chevrolet C10 Pickup 1963-1974 Chevrolet C10 Suburban 1967-1986 Chevrolet R10 Pickup 1987 Chevrolet R10 Suburban 1987 Chevrolet Suburban 1963-1966 GMC 1000 1966 GMC 1000 Series 1963-1965 GMC C15 1975-1978 GMC C15 Suburban 1975-1978 GMC C15/C1500 Suburban 1967-1974 GMC C1500 Pickup 1967-1986 GMC C1500 Suburban 1979-1986 GMC Jimmy 1970-1982 GMC R1500 Pickup 1987 GMC R1500 Suburban 1987 GMC Suburban 1963-1966 Wilwood GM C10 Iron ProSpindle 1963-1970 Wilwood GM C10 Iron ProSpindle 1971-1987
Ordering Information for Forged Narrow Superlite 6R Big Brake Front Brake Kit (6 x 5.50 Hub and Rotor)
Item No 140-15944
Info *New* Details
Caliper Color Black Powder Coat
Rotor Plain
Line Kit Multiple Line Kits *
Price $1,203.99
Purchase
Call (805) 388-1188
Item No 140-15944-D
Info *New* Details
Caliper Color Black Powder Coat
Rotor Drilled & Slotted
Line Kit Multiple Line Kits *
Price $1,315.99
Purchase
Call (805) 388-1188
Item No 140-15944-DR
Info *New* Details
Caliper Color Red Powder Coat
Rotor Drilled & Slotted
Line Kit Multiple Line Kits *
Price $1,315.99
Purchase
Call (805) 388-1188
Item No 140-15944-R
Info *New* Details
Caliper Color Red Powder Coat
Rotor Plain
Line Kit Multiple Line Kits *
Price $1,203.99
Purchase
Call (805) 388-1188





All images shown are for illustrative purposes only. Actual product received may be different than what is portrayed on the web site.
Wilwood makes every effort to maintain our web site to ensure the accuracy of prices and product information. However, product information and prices are subject to change without notice. Please call (805) 388-1188 before ordering to verify current prices and product information.
