Front Brake Kit – Part No: 140-11743
Call (805) 388-1188
Dynapro Radial Big Brake Front Brake Kit (Hub)
Prod #: 140-11743
Price: $1,573.58

*Line Kit Needed


220-11863
$76.95
Front Brake Kit — 140-11743


Kit Contents

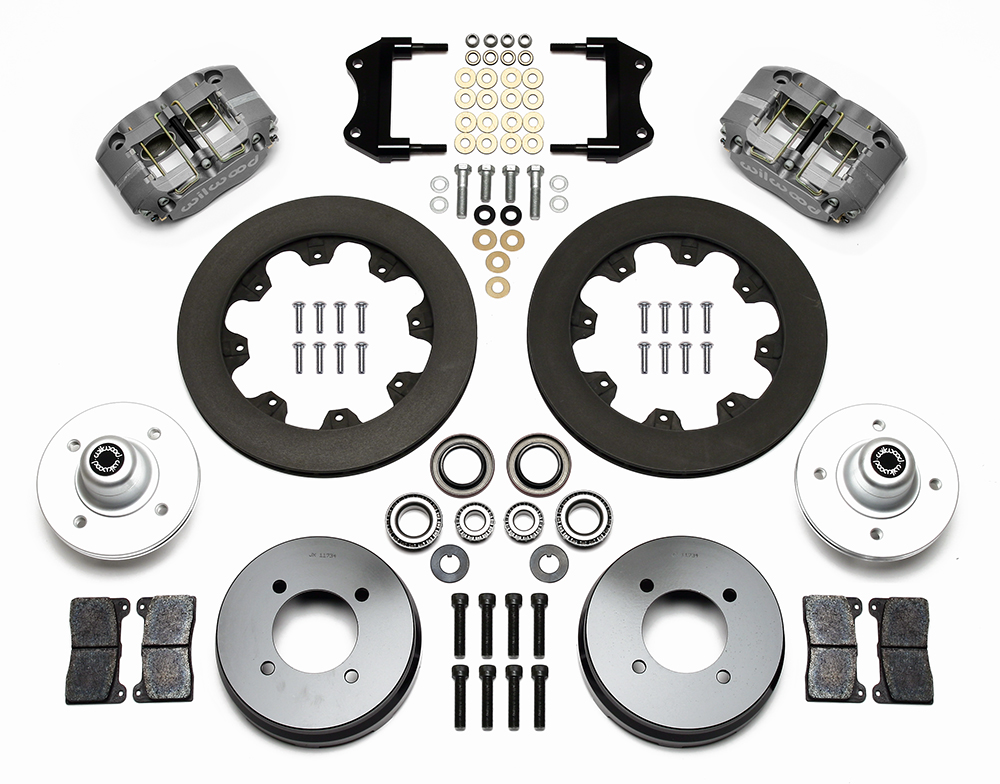

Wilwood Dynapro Radial Big Brake Front Brake Kit (Hub) Parts Laid Out - Type III Anodize Caliper - Plain Face Rotor Wilwood Dynapro Radial Big Brake Front Brake Kit (Hub) Parts Laid Out - Type III Anodize Caliper - Plain Face Rotor Zoom Image


View Custom Caliper Colors

Kit Summary
Spindle Type: Factory Disc Spindle
Mount Type: Radial
Caliper Type: 4 - Type III Anodize
Rotor Diameter: 11.75
Min Wheel Diameter Req'd*: 15
*This Brake Kit may fit 15-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram
UPC Number
UPC 889545013900

WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Applicable to Brake Pads Only

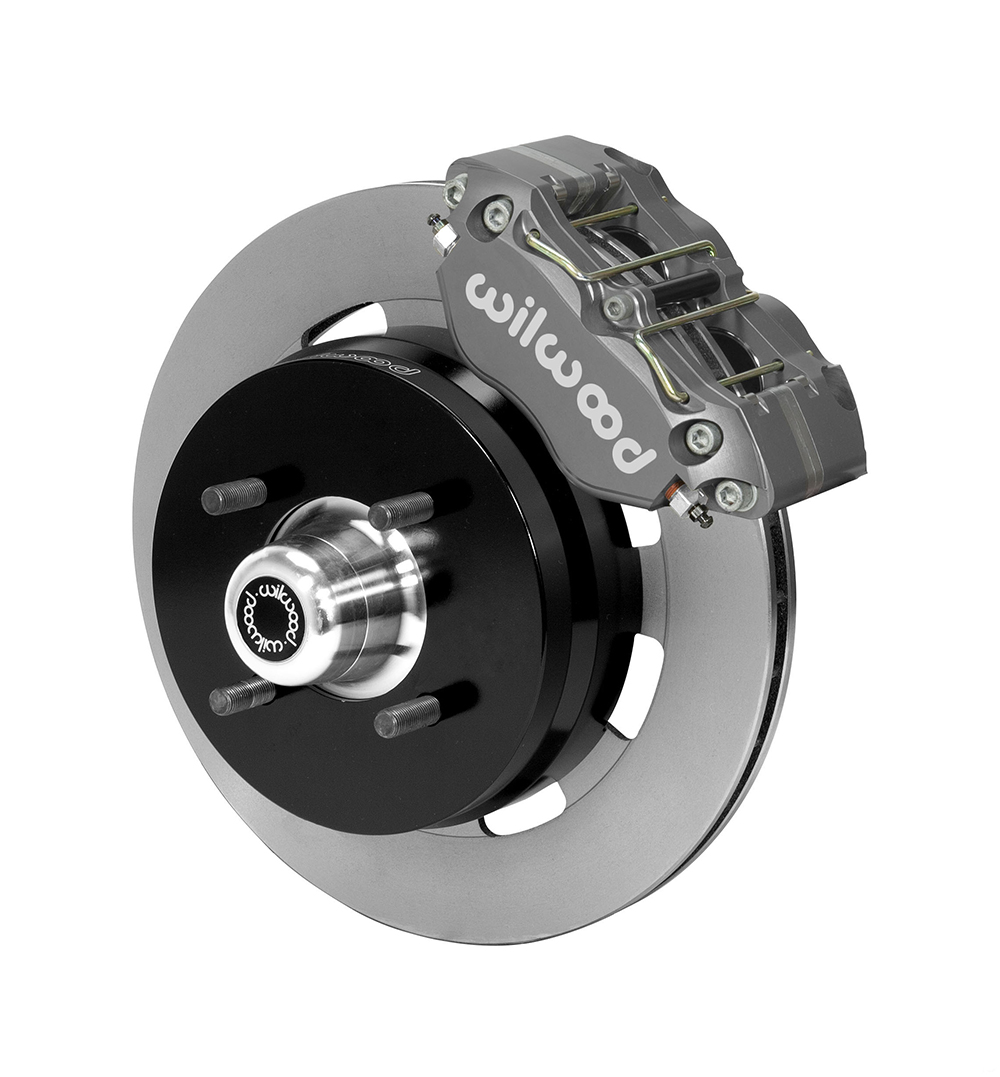

Dynapro Radial Big Brake Front Brake Kit (Hub)

Radial mounting provides secure and accurate installation of the Forged Billet Narrow DynaPro four piston caliper with large diameter rotors for this group of rear wheel drive sport compacts. These kits are the perfect compliment to wheel, tire, and suspension upgrades on daily drivers &, competition vehicles. This kit is engineered specific for 64-67 Sunbeam Tiger to maintain full compatibility with the OE spindle. Forged aluminum 4 bolt hubs and hats round out the assembly. Optional caliper finishes and rotor designs provide choices that enable the builder to personalize the style and optimize brake performance.


Fitment & Installation Details

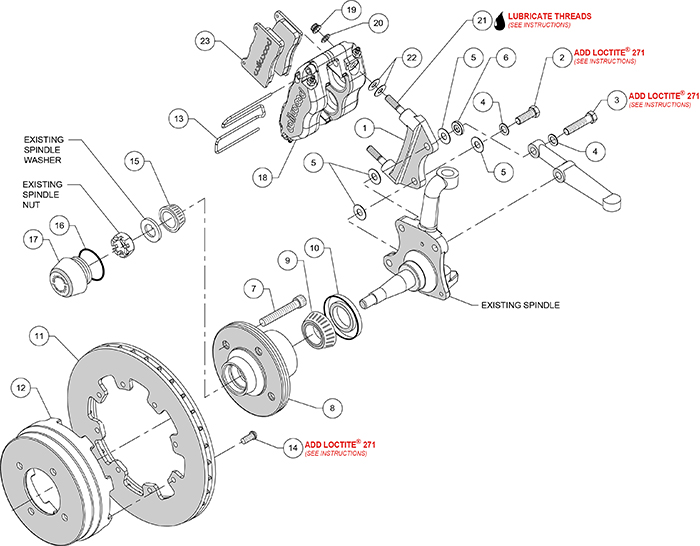

Dynapro Radial Big Brake Front Brake Kit (Hub) Assembly Schematic

Dynapro Radial Big Brake Front Brake Kit (Hub) Assembly Schematic Dynapro Radial Big Brake Front Brake Kit (Hub) Assembly Schematic Zoom Image


Compatible Vehicles for this Brake Kit
BRAKE KIT:   Dynapro Radial Big Brake Front Brake Kit (Hub)
SPINDLE TYPE:
Factory Disc Spindle;
This Brake Kit is Compatible with the Following Vehicle Makes: Sunbeam

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.

View All Vehicles
lookup vehicles
Caution
Caution THIS BRAKE KIT HAS A HUB OFFSET OF:
This Hub Offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle
NOTE: Check "Figure 2. Wheel Clearance Diagram" in the installation Instructions below to verify you have adequate wheel clearance for this kit.

Wheel Clearance Assembly Instructions

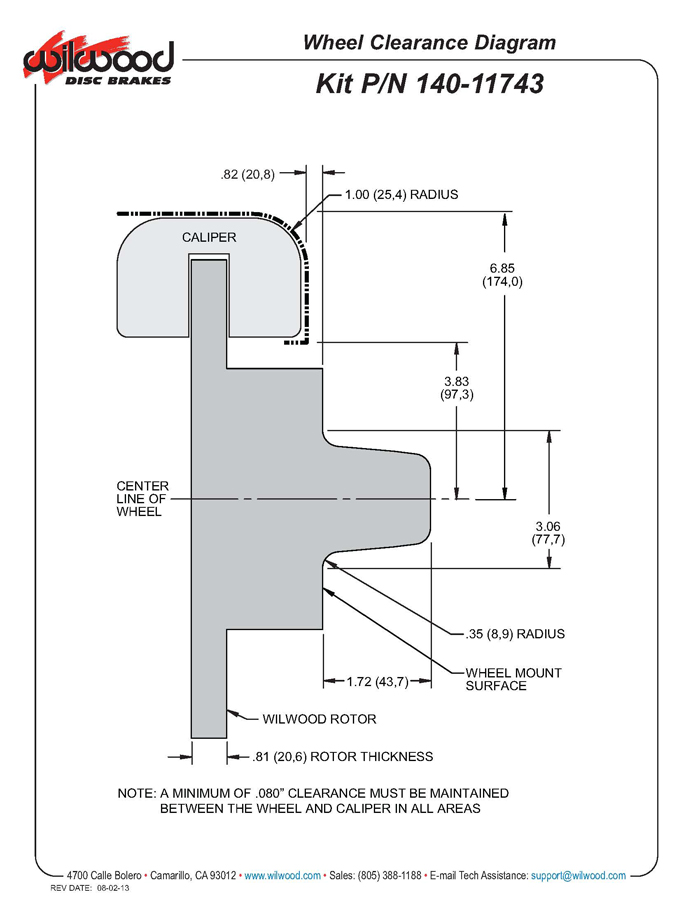

Wheel Clearance Diagram Wheel Clearance Diagram Zoom Image



Assembly Instructions
Notes
1. Kit contains 11.75" diameter rotor, 15" or larger wheels may be required for fitment. Check wheel clearance diagram in kit installation instructions before purchase.




Kit Components & Specifications
Calipers
Left Hand - Part No: 120-10000
Right Hand - Part No: 120-10000
Type: Narrow Dynapro Radial Mount
Finish Color: Type III Anodize
Piston Count: 4
Piston 1 Bore (in): 1.75
Piston 2 Bore (in): 1.75
Piston Area (In²): 4.80
Piston Type: Stainless
Mount Type: Radial
Brake Pad Plate: 7812
Brake Pad Area (In²): 6.36
Brake Pad Volume (In³): 2.1
Pad Compound: BP-10

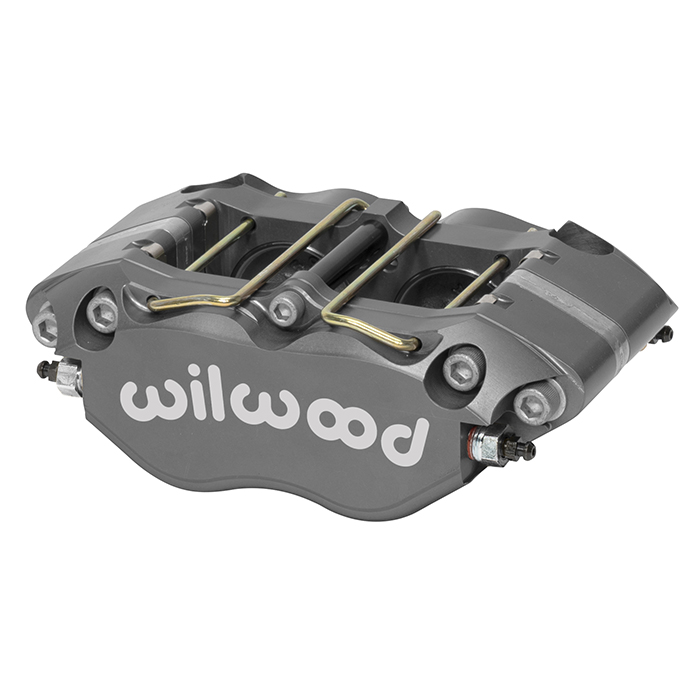

Narrow Dynapro Radial Mount Caliper - Type III Anodize Narrow Dynapro Radial Mount Caliper - Type III Anodize Zoom Image
Rotors
Left Hand - Part No: 160-5841
Right Hand - Part No: 160-5841
Type: Ultralite HP 32
Style: Plain Face
Surface Finish: Plain
Material: Iron
Outside Diameter (in): 11.75
Width (in): 0.81
Vane Count: 32 V
Design Type: ULHP
Bedded: No
Dynamically Balanced: No
Ultralite HP 32  - Iron - Plain Ultralite HP 32 - Iron - Plain Zoom Image

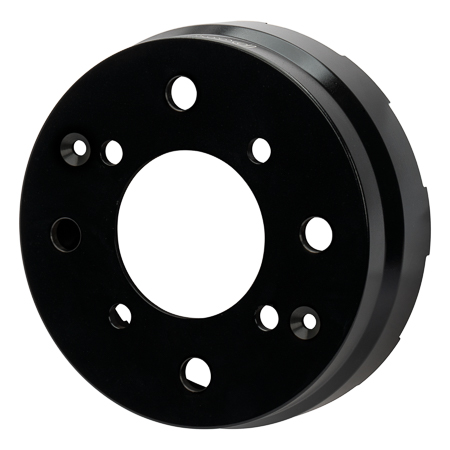

Rotor Hats
Hat - Part No: 170-11734
Type: Big Brake Hat - Straight Bell
Material: Aluminum
Finish Color: Black E-Coat
Hat Offset Dimension (in): 2.120
Bolt Circle 1: 4 x 4.25
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1: 0.450
Stud Diameter - BC 2: 0.000
Stud Diameter - BC 3: 0.000

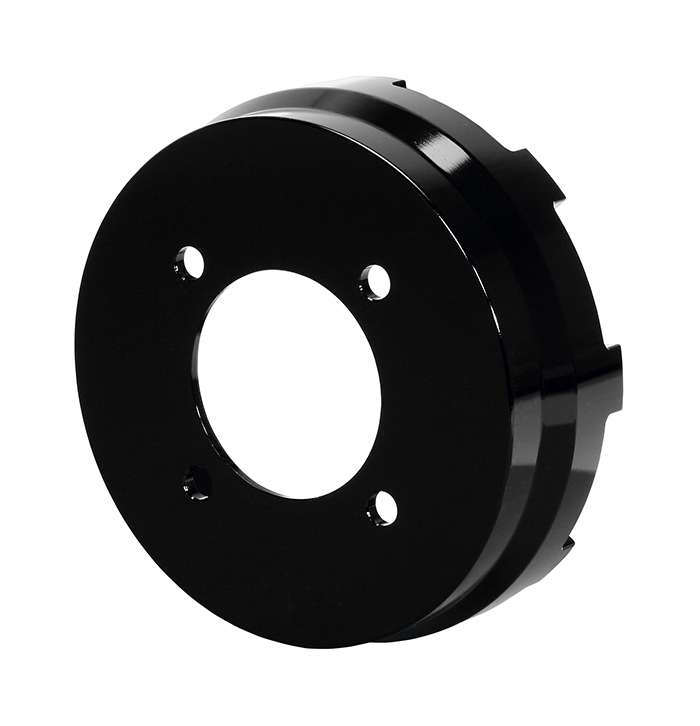

Big Brake Hat - Straight Bell - Aluminum - Black E-Coat Big Brake Hat - Straight Bell - Aluminum - Black E-Coat Zoom Image
Hubs
Hub - Part No:
Type:
Material:
Finish Color:
Mount Style:
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:

Parts & Accessories
Caliper Parts
O-ring Kit: 130-2655
Replacement Dustboot: N-A
Replacement Piston 1: 200-7528
Replacement Piston 2: 200-7528
Replacement Piston 3: N-A
Replacement Piston 4: N-A
CrossOver O-Ring Kit: 130-10540
Crossover Tube: N-A
Self-Bleeder Tube: N-A
Bridge Bolt Kit: 230-10118
Wear Plate - Left Hand: 300-5876
Wear Plate - Right Hand: 300-5876
Pad Retainer: 300-9636
Bleed Screw Kit: 220-0627
*Brake Lines Needed
Front Line Kit:
220-11863
Hat
Bolt Kit: 230-0526
Hub
Bolt Kit:
