Front Brake Kit – Part No: 140-11899-D
Call (805) 388-1188
Forged Dynapro 6 Big Brake Front Brake Kit (Hat)
Prod #: 140-11899-D
Price: $1,007.99
Front Brake Kit — 140-11899-D

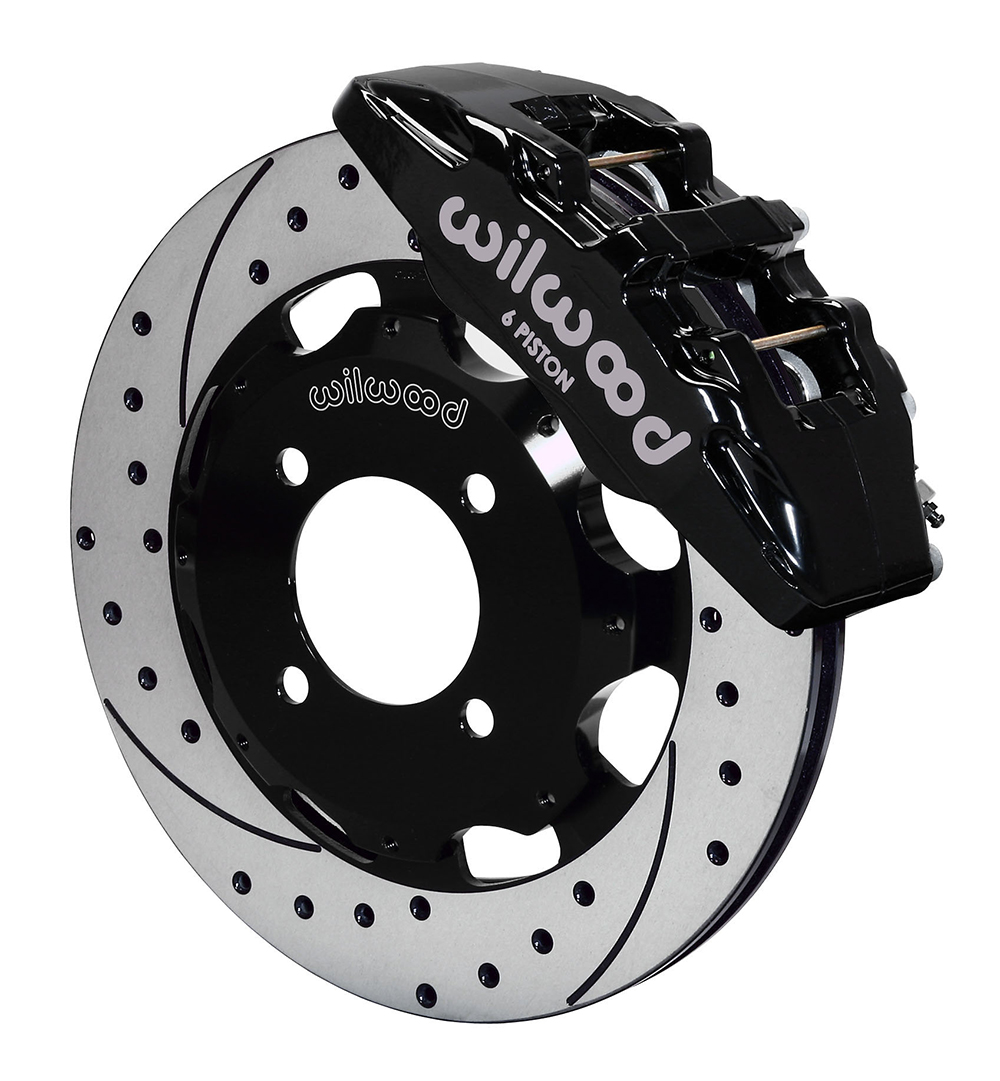

Wilwood Forged Dynapro 6 Big Brake Front Brake Kit (Hat) - Black Powder Coat Caliper - SRP Drilled & Slotted Rotor Wilwood Forged Dynapro 6 Big Brake Front Brake Kit (Hat) - Black Powder Coat Caliper - SRP Drilled & Slotted Rotor Zoom Image

Kit Contents

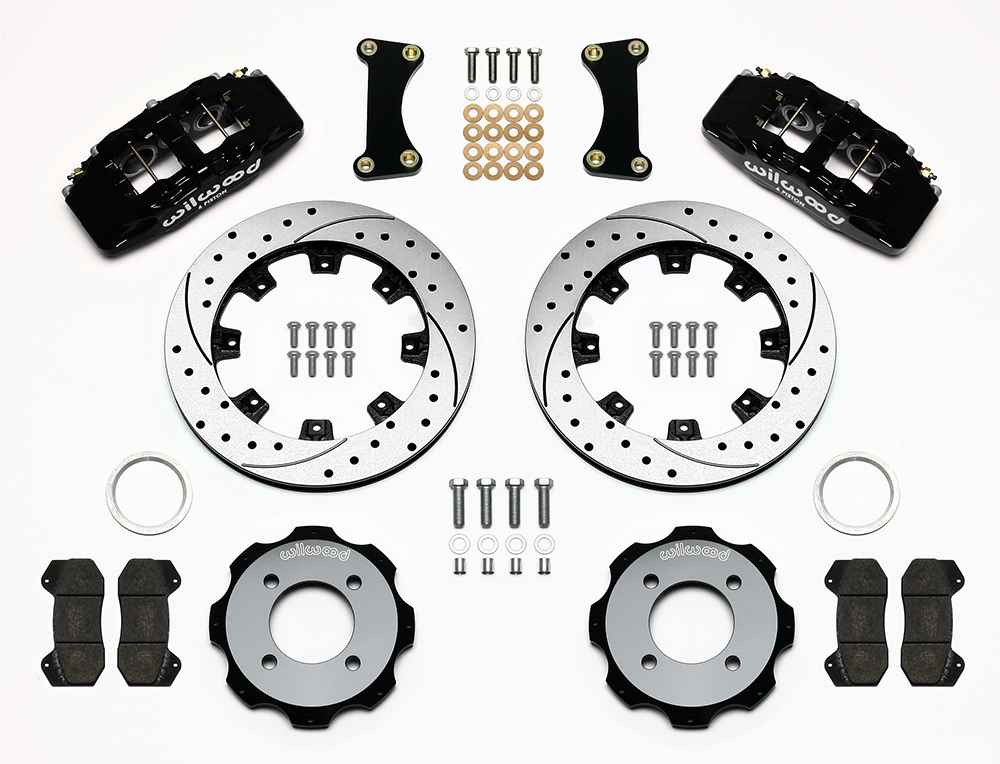

Wilwood Forged Dynapro 6 Big Brake Front Brake Kit (Hat) Parts Laid Out - Black Powder Coat Caliper - SRP Drilled & Slotted Rotor Wilwood Forged Dynapro 6 Big Brake Front Brake Kit (Hat) Parts Laid Out - Black Powder Coat Caliper - SRP Drilled & Slotted Rotor Zoom Image


View Custom Caliper Colors

Kit Summary
Spindle Type: Factory Disc Spindle
Mount Type: Lug
Caliper Type: 6 - Black Powder Coat
Rotor Diameter: 12.19
Min Wheel Diameter Req'd*: 15
*This Brake Kit may fit 15-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram
UPC Number
UPC 889545014303

WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Applicable to Brake Pads Only


Forged Dynapro 6 Big Brake Front Brake Kit (Hat)

The enhanced brake capacity and pad performance of the DynaPro 6 forged billet six-piston caliper is combined with 12.19” diameter rotors for this group of front wheel drive sport compact kits. These kits are the perfect compliment to wheel, tire, and suspension upgrades on daily drivers, competition vehicles, and custom styled show machines. Each kit is engineered vehicle specific to maintain full compatibility with the OE master cylinder output and factory ABS functions. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.

Ford Fiesta Front Disc Brake Install

Fitment & Installation Details


Forged Dynapro 6 Big Brake Front Brake Kit (Hat) Assembly Schematic

Forged Dynapro 6 Big Brake Front Brake Kit (Hat) Assembly Schematic Forged Dynapro 6 Big Brake Front Brake Kit (Hat) Assembly Schematic Zoom Image


Compatible Vehicles for this Brake Kit
BRAKE KIT:   Forged Dynapro 6 Big Brake Front Brake Kit (Hat)
SPINDLE TYPE:
Factory Disc Spindle;
This Brake Kit is Compatible with the Following Vehicle Makes: Ford

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.

View All Vehicles
lookup vehicles
Caution
Caution THIS BRAKE KIT HAS A HUB OFFSET OF:
This Hub Offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle
NOTE: Check "Figure 2. Wheel Clearance Diagram" in the installation Instructions below to verify you have adequate wheel clearance for this kit.

Wheel Clearance Assembly Instructions

Wheel Clearance Diagram Wheel Clearance Diagram Zoom Image



Assembly Instructions
Notes





Kit Components & Specifications
Calipers
Left Hand - Part No: 120-13435-BK
Right Hand - Part No: 120-13434-BK
Type: Dynapro 6
Finish Color: Black Powder Coat
Piston Count: 6
Piston 1 Bore (in): 1.62
Piston 2 Bore (in): 1.12
Piston 3 Bore (in): 1.12
Piston Area (In²): 4.04
Piston Type: Stainless
Mount Type: Lug
Brake Pad Plate: 6712
Brake Pad Area (In²): 7.3
Brake Pad Volume (In³): 2.4
Pad Compound: BP-10
Dynapro 6 Caliper - Black Powder Coat Dynapro 6 Caliper - Black Powder Coat Zoom Image
Rotors
Left Hand - Part No: 160-7104-BK
Right Hand - Part No: 160-7103-BK
Type: SRP Drilled Rotor
Style: SRP Drilled & Slotted
Surface Finish: Black Electro Coat
Material: Iron
Outside Diameter (in): 12.19
Width (in): 0.81
Vane Count: 32 V
Design Type: SRP-BLK
Bedded: No
Dynamically Balanced: No
SRP Drilled Rotor - Iron - Black Electro Coat SRP Drilled Rotor - Iron - Black Electro Coat Zoom Image
Rotor Hats
Hat - Part No: 170-11902
Type: Drag Hat - Shallow Offset
Material: Aluminum
Finish Color: Black E-Coat
Hat Offset Dimension (in): 0.600
Bolt Circle 1: 4 x 4.25
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1: 0.520
Stud Diameter - BC 2: 0.000
Stud Diameter - BC 3: 0.000
Drag Hat - Shallow Offset - Aluminum - Black E-Coat Drag Hat - Shallow Offset - Aluminum - Black E-Coat Zoom Image
Hubs
Hub - Part No:
Type:
Material:
Finish Color:
Mount Style:
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:

Parts & Accessories
Caliper Parts
O-ring Kit: 130-5972
Replacement Dustboot: N-A
Replacement Piston 1: 200-7520
Replacement Piston 2: 200-8439
Replacement Piston 3: 200-8439
Replacement Piston 4: N-A
CrossOver O-Ring Kit: 130-10540
Crossover Tube: N-A
Self-Bleeder Tube: N-A
Bridge Bolt Kit: N-A
Wear Plate - Left Hand: 300-9707
Wear Plate - Right Hand: 300-9707
Pad Retainer: N-A
Bleed Screw Kit: 220-0627
*Brake Lines Needed
Front Line Kit:
220-11906
Hat
Bolt Kit: 230-12120
Hub
Bolt Kit:
