Front Brake Kit – Part No: 140-12282
Call (805) 388-1188
Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub and 1PC Rotor)
Prod #: 140-12282
Price: $1,343.99
Front Brake Kit — 140-12282

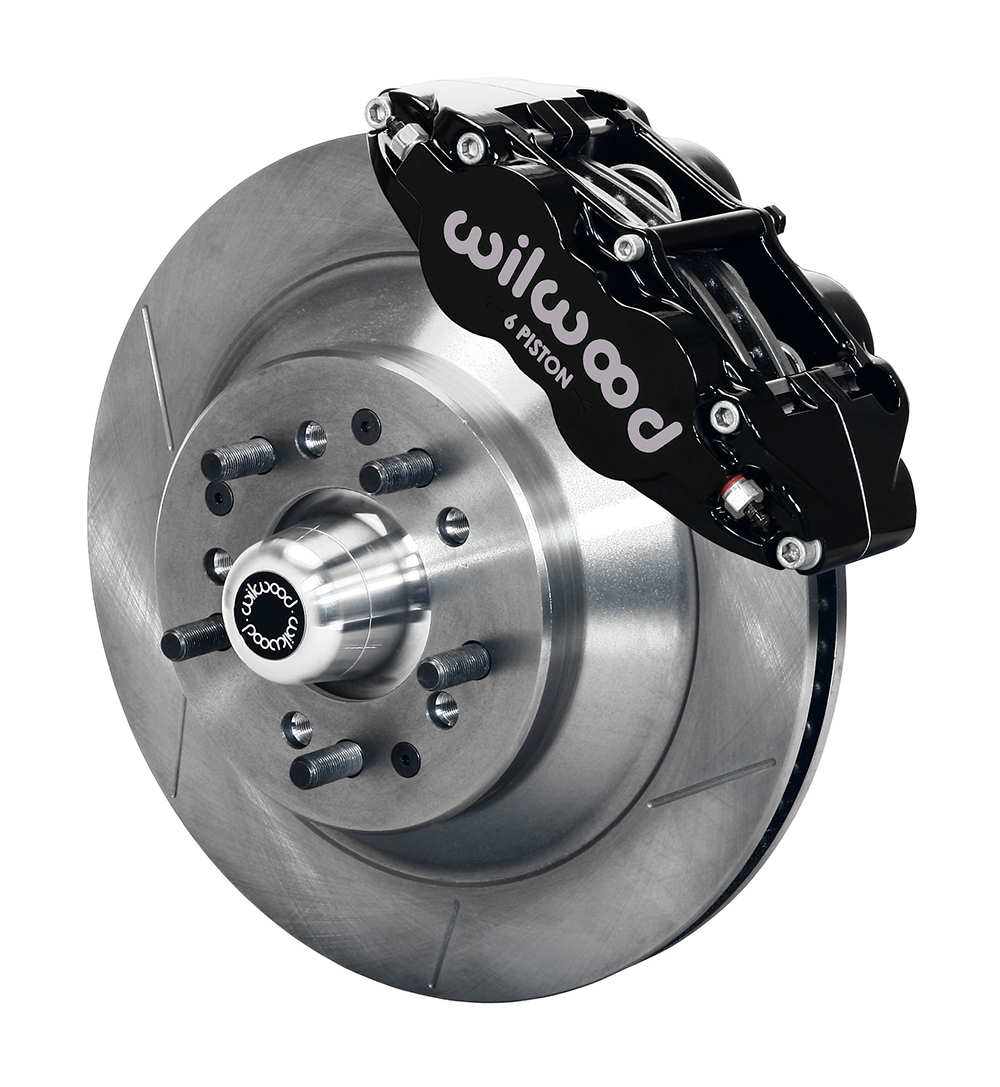

Wilwood Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub and 1PC Rotor) - Black Powder Coat Caliper - GT Slotted Rotor Wilwood Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub and 1PC Rotor) - Black Powder Coat Caliper - GT Slotted Rotor Zoom Image

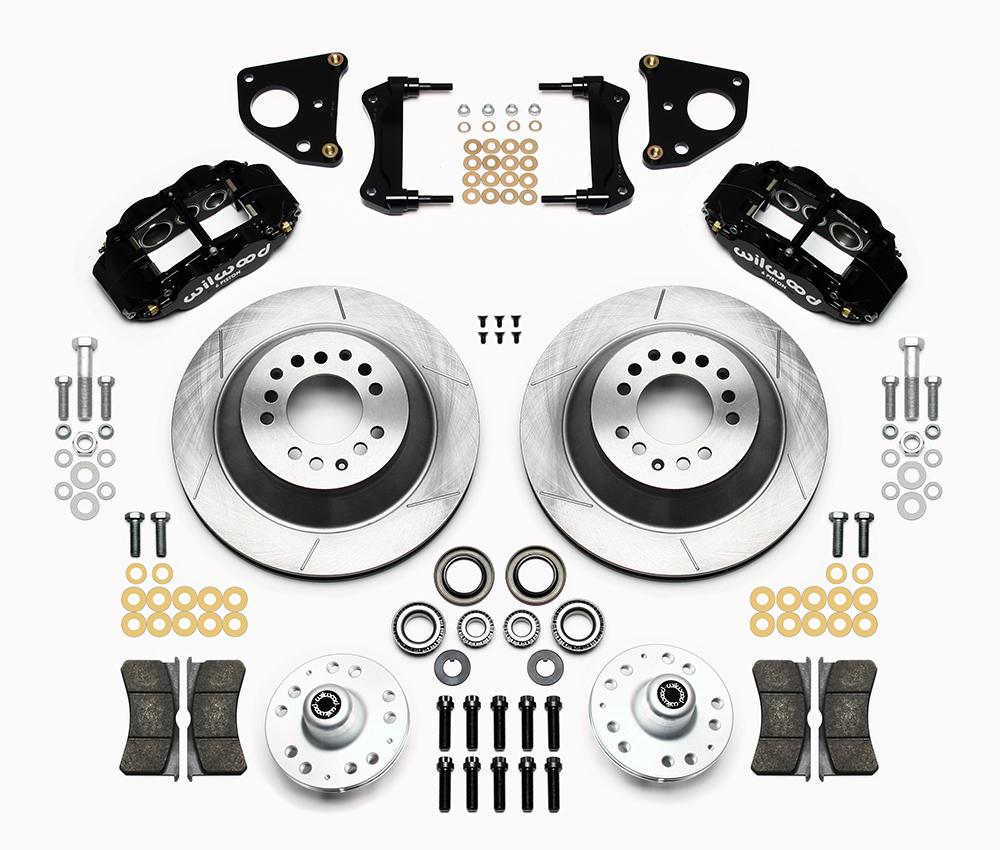

Kit Contents
Wilwood Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub and 1PC Rotor) Parts Laid Out - Black Powder Coat Caliper - GT Slotted Rotor Wilwood Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub and 1PC Rotor) Parts Laid Out - Black Powder Coat Caliper - GT Slotted Rotor Zoom Image


View Custom Caliper Colors

Kit Summary
OE Hub Offset: +.13
(Increase / Decrease Track Width)
Spindle Type: Factory Drum Spindle
Mount Type: Radial
Caliper Type: 6 - Black Powder Coat
Rotor Diameter: 12.88
Min Wheel Diameter Req'd*: 17
*This Brake Kit may fit 17-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram
UPC Number
UPC 889545015997

WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Applicable to Brake Pads Only


Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub and 1PC Rotor)

FNSL6R Billet Forged six-piston calipers with 12.88" diameter, 1 piece rotor and hats kits deliver the cost effective combination for braking power and style in this group of kits engineered for traditional non-ABS spindles on American muscle cars and vintage rods. Built exclusively for 17” and larger wheels, FNSL6 kits enhance tire and suspension upgrades on all types of custom show and high performance dual-purpose street and track machines. A full range of options for caliper finishes and rotor designs are guaranteed to catch the eye of the most discriminating enthusiast while providing optimized brake performance for every individual application.


Fitment & Installation Details


Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub and 1PC Rotor) Assembly Schematic

Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub and 1PC Rotor) Assembly Schematic Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub and 1PC Rotor) Assembly Schematic Zoom Image


Compatible Vehicles for this Brake Kit
BRAKE KIT:   Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub and 1PC Rotor)
SPINDLE TYPE:
Factory Drum Spindle ;
This Brake Kit is Compatible with the Following Vehicle Makes: Dodge Plymouth

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.

View All Vehicles
lookup vehicles
Caution
Caution THIS BRAKE KIT HAS A HUB OFFSET OF: +.13
This Hub Offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle
NOTE: Check "Figure 2. Wheel Clearance Diagram" in the installation Instructions below to verify you have adequate wheel clearance for this kit.

Wheel Clearance Assembly Instructions

Wheel Clearance Diagram Wheel Clearance Diagram Zoom Image



Assembly Instructions
Notes





Kit Components & Specifications
Calipers
Left Hand - Part No: 120-11781-BK
Right Hand - Part No: 120-11780-BK
Type: Forged Narrow Superlite 6R
Finish Color: Black Powder Coat
Piston Count: 6
Piston 1 Bore (in): 1.62
Piston 2 Bore (in): 1.12
Piston 3 Bore (in): 1.12
Piston Area (In²): 4.04
Piston Type: Stainless
Mount Type: Radial
Brake Pad Plate: 7416
Brake Pad Area (In²): 8.2
Brake Pad Volume (In³): 3.8
Pad Compound: BP-10
Forged Narrow Superlite 6R Caliper - Black Powder Coat Forged Narrow Superlite 6R Caliper - Black Powder Coat Zoom Image
Rotors
Left Hand - Part No: 160-12191
Right Hand - Part No: 160-12191
Type: GT 32 Straight Vane
Style: GT Slotted
Surface Finish: Plain
Material: Iron
Outside Diameter (in): 12.88
Width (in): 1.10
Vane Count: 34 V
Design Type: ULHPS
Bedded: No
Dynamically Balanced: Yes
GT 32 Straight Vane - Iron - Plain GT 32 Straight Vane - Iron - Plain Zoom Image
Rotor Hats
Hat - Part No:
Type:
Material:
Finish Color:
Hat Offset Dimension (in):
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:
Hubs
Hub - Part No: 270-12281
Type: Hub - Hat Mount
Material: Aluminum
Finish Color: Bare
Mount Style: Hat
Bolt Circle 1: 5 x 4.50
Bolt Circle 2: 5 x 4.75
Bolt Circle 3:
Stud Diameter - BC 1: 1/2-20
Stud Diameter - BC 2: 1/2-20
Stud Diameter - BC 3:
Hub - Hat Mount - Aluminum - Bare Hub - Hat Mount - Aluminum - Bare Zoom Image

Parts & Accessories
Caliper Parts
O-ring Kit: 130-5972
Replacement Dustboot: N-A
Replacement Piston 1: 200-7520
Replacement Piston 2: 200-8439
Replacement Piston 3: 200-8439
Replacement Piston 4: N-A
CrossOver O-Ring Kit: 130-10540
Crossover Tube: N-A
Self-Bleeder Tube: N-A
Bridge Bolt Kit: 230-7710
Wear Plate - Left Hand: 300-6596
Wear Plate - Right Hand: 300-6595
Pad Retainer: N-A
Bleed Screw Kit: 220-0627
*Brake Lines Needed
Front Line Kit:
220-8307
Hat
Bolt Kit:
Hub
Bolt Kit: 230-7032
