Front Brake Kit – Part No: 140-12576
Call (805) 388-1188
Forged Narrow Superlite 4R Big Brake Front Brake Kit (Hat)
Prod #: 140-12576
Price: $1,007.94
*NOTE: Brake Line Kit Needed.
220-12763 $83.26
Front Brake Kit — 140-12576

Kit Summary
Spindle Type: Factory Disc Spindle
Mount Type: Radial
Caliper Type: 4 - Black Powder Coat
Rotor Diameter: 12.19
Min Wheel Diameter Req'd*: 16
*This Brake Kit may fit 16-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram
UPC Number
UPC 889545016994

WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Applicable to Brake Pads Only

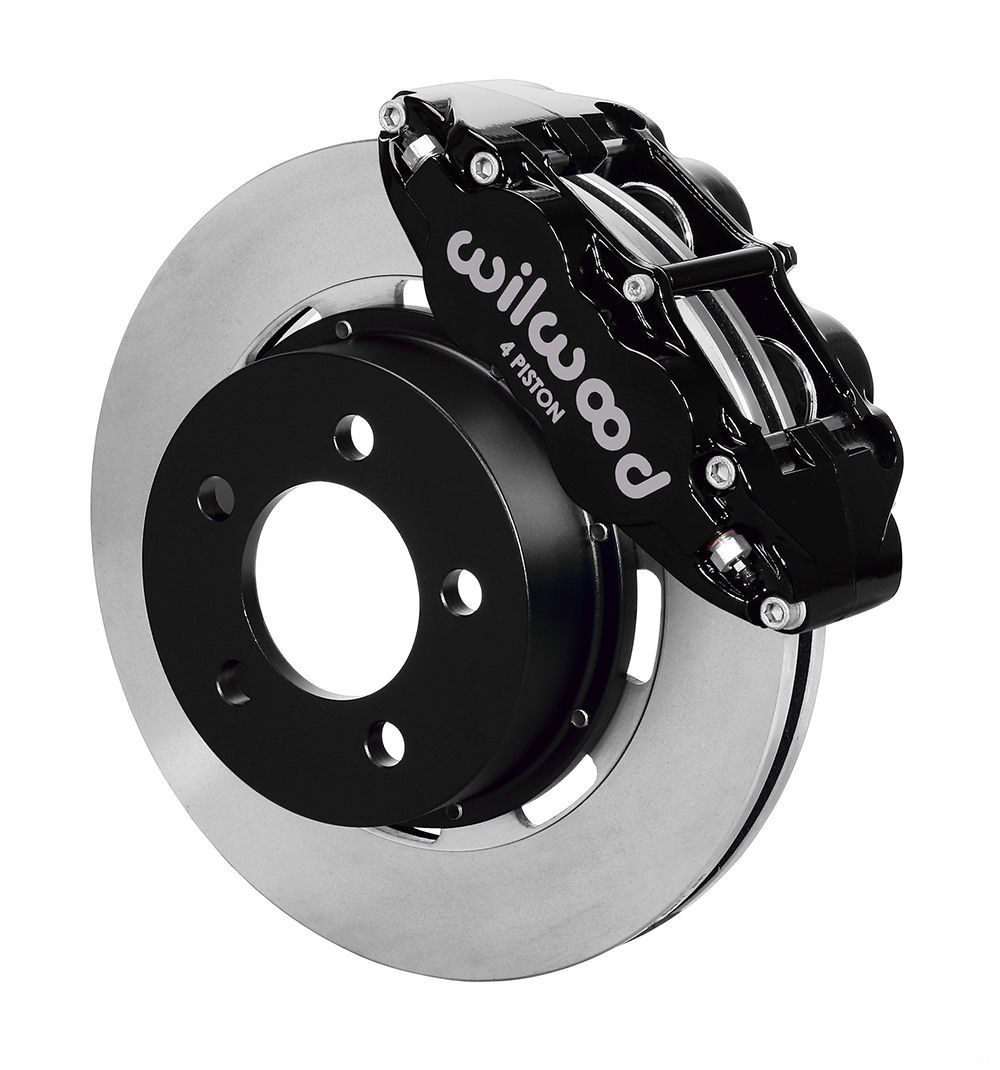

Forged Narrow Superlite 4R Big Brake Front Brake Kit (Hat)

The unsurpassed braking capacity of the Forged Narrow Superlite 4R four-piston caliper serves as the base of this 12.19” big rotor kit for these popular 84-89 Jeep YJ model vehicles (including Cherokee, Comanche, Wrangler and Wagoneer). Kits also can be fitted to select 1990 to 2006 YJ & TJ vehicles if retrofitted to the earlier 84-89 YJ spindle. SL4 kits are engineered application specific for simplified installation and full compatibility with OE master cylinder output and ABS functions where used. Big brake kits provide increased brake capacity and complimentary style with wheel, tire, and suspension upgrades. Optional caliper finishes and rotor designs simplify personalizing the style and braking requirements of any application.


Fitment & Installation Details


Forged Narrow Superlite 4R Big Brake Front Brake Kit (Hat) Assembly Schematic


Compatible Vehicles for this Brake Kit
BRAKE KIT:   Forged Narrow Superlite 4R Big Brake Front Brake Kit (Hat)
SPINDLE TYPE:
Factory Disc Spindle;
This Brake Kit is Compatible with the Following Vehicle Makes: Jeep

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.

View All Vehicles
lookup vehicles
Caution
Caution THIS BRAKE KIT HAS AN HUB OFFSET OF:
This Hub Offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle
NOTE: Check "Figure 2. Wheel Clearance Diagram" in the installation Instructions below to verify you have adequate wheel clearance for this kit.

Wheel Clearance Assembly Instructions




Assembly Instructions
Notes
1. Kit will fit 1990 thru 2006 YJ & TJ Series vehicles with conversion to 87-89 YJ Series spindles.

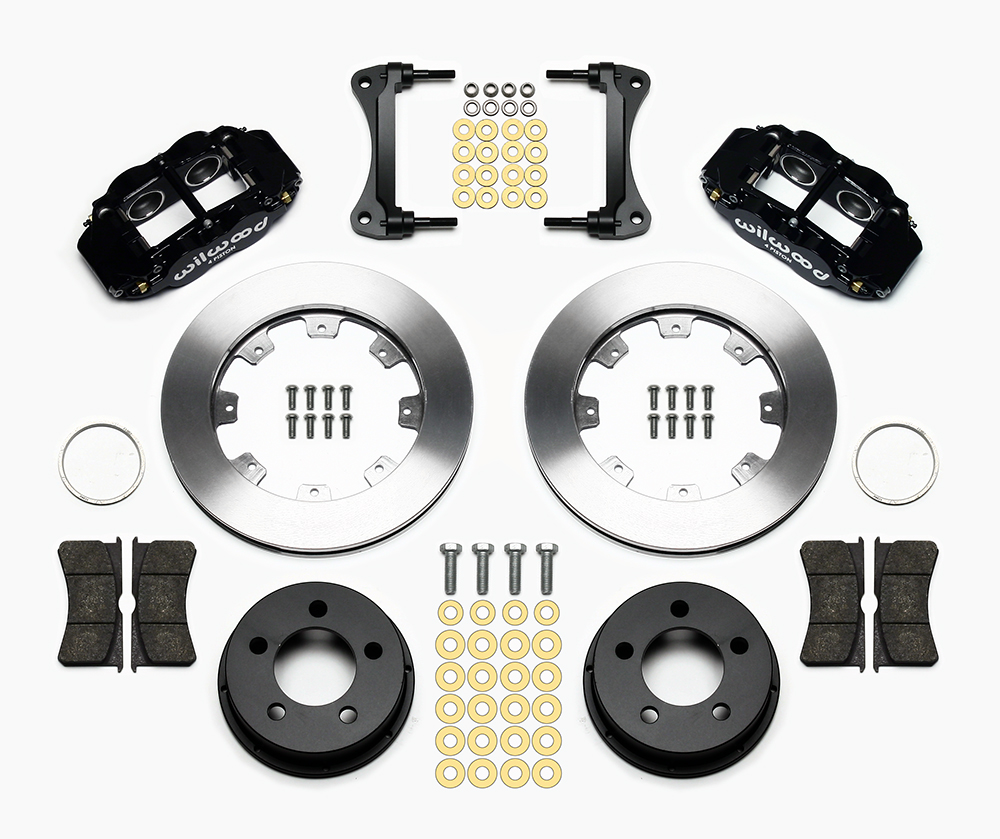

Kit Components & Specifications
Calipers
Left Hand - Part No: 120-11784-BK
Right Hand - Part No: 120-11784-BK
Type: Forged Narrow Superlite 4R
Finish Color: Black Powder Coat
Piston Count: 4
Piston Area (In²): 4.80
Piston Type: Stainless
Mount Type: Radial
Brake Pad Plate: 7416
Brake Pad Area (In²): 8.2
Brake Pad Volume (In³): 3.8
Pad Compound: BP-10
Rotors
Left Hand - Part No: 160-11862
Right Hand - Part No: 160-11862
Type: Ultralite HP 32
Style: Plain Face
Surface Finish: Plain
Material: Iron
Outside Diameter (in): 12.19
Width (in): 1.1
Vane Count: 32 V
Design Type: ULHP
Bedded: No
Dynamically Balanced: No
Rotor Hats
Hat - Part No: 170-12575
Type: Drag Hat - Standard
Material: Aluminum
Finish Color: Black E-Coat
Hat Offset Dimension (in): 1.68
Bolt Circle 1: 5 X 4.50
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1: 0.63
Stud Diameter - BC 2: 0
Stud Diameter - BC 3: 0
Hubs
Hub - Part No:
Type:
Material:
Finish Color:
Mount Style:
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:

Parts & Accessories
Caliper Parts
O-ring Kit: 130-2655
Replacement Dustboot: N-A
Replacement Piston 1: 200-7528
Replacement Piston 2: 200-7528
Replacement Piston 3: N-A
Replacement Piston 4: N-A
CrossOver O-Ring Kit: 130-10540
Crossover Tube: N-A
Self-Bleeder Tube: N-A
Bridge Bolt Kit: 230-7710
Wear Plate - Left Hand: 300-6596
Wear Plate - Right Hand: 300-6595
Pad Retainer: N-A
Bleed Screw Kit: 220-0627
Brake Lines
Front Line Kit:
220-12763
Hat
Bolt Kit: 230-0233D
Hub
Bolt Kit:
