Forged Narrow Superlite 4R Big Brake Front Brake Kit (Hat)
Prod #: 140-13330-R
Price: $1,881.59
Front Brake Kit — 140-13330-R

Wilwood Forged Narrow Superlite 4R Big Brake Front Brake Kit (Hat) - Red Powder Coat Caliper - GT Slotted Rotor Wilwood Forged Narrow Superlite 4R Big Brake Front Brake Kit (Hat) - Red Powder Coat Caliper - GT Slotted Rotor Zoom Image

Kit Contents

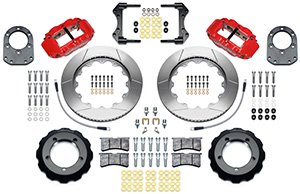

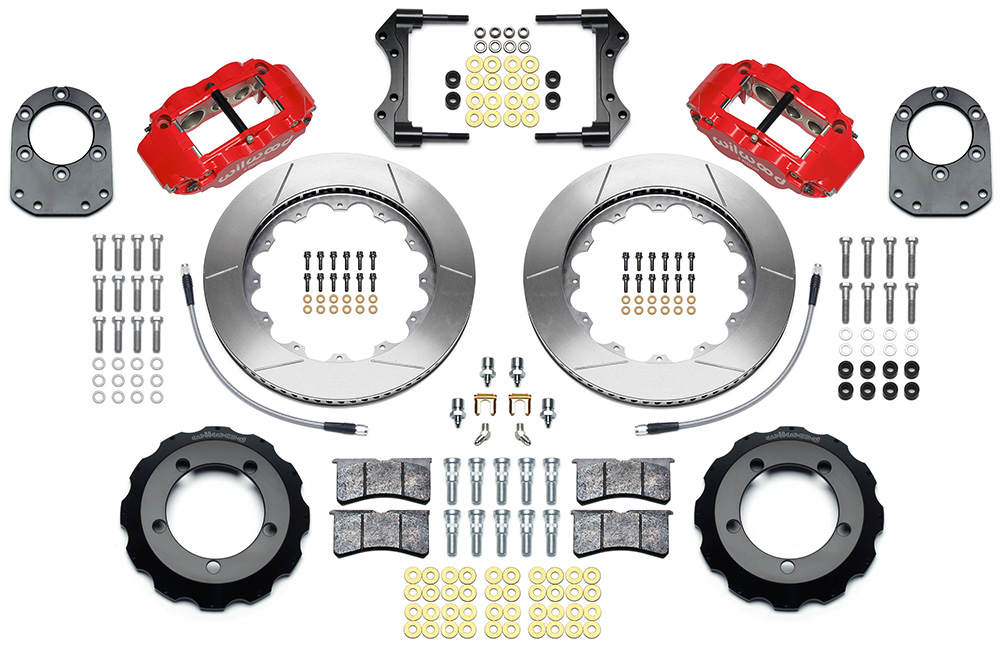

Wilwood Forged Narrow Superlite 4R Big Brake Front Brake Kit (Hat) Parts Laid Out - Red Powder Coat Caliper - GT Slotted Rotor Wilwood Forged Narrow Superlite 4R Big Brake Front Brake Kit (Hat) Parts Laid Out - Red Powder Coat Caliper - GT Slotted Rotor Zoom Image


View Custom Caliper Colors

Kit Summary
OE Hub Offset: +.00
(Increase / Decrease Track Width)
Spindle Type: Factory Disc Spindle
Mount Type: Radial
Caliper Type: 4 - Red Powder Coat
Rotor Diameter: 14.00
Min Wheel Diameter Req'd*: 18
*This Brake Kit may fit 18-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram
UPC Number
UPC 889545019957

WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Applicable to Brake Pads Only


Forged Narrow Superlite 4R Big Brake Front Brake Kit (Hat)

The unsurpassed braking capacity of the Forged Narrow Superlite 4R four-piston caliper serves as the basis of these 12.88” or 14.00” inch big rotor kits for the popular Ford Bronco vehicles. SL4R kits are engineered application specific to these vehicles, providing simplified installation. Each kit is engineered vehicle specific and utilizes the existing hub assembly. Big brake kits offer increased brake capacity and complimentary style with wheel, tire, and suspension upgrades. Optional caliper finishes and rotor designs simplify personalizing the style and braking requirements of any application.


Fitment & Installation Details


Forged Narrow Superlite 4R Big Brake Front Brake Kit (Hat) Assembly Schematic

Forged Narrow Superlite 4R Big Brake Front Brake Kit (Hat) Assembly Schematic Forged Narrow Superlite 4R Big Brake Front Brake Kit (Hat) Assembly Schematic Zoom Image


Compatible Vehicles for this Brake Kit
BRAKE KIT:   Forged Narrow Superlite 4R Big Brake Front Brake Kit (Hat)
SPINDLE TYPE:
Factory Disc Spindle;
This Brake Kit is Compatible with the Following Vehicle Makes: Ford

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.

View All Vehicles
lookup vehicles
Caution
Caution THIS BRAKE KIT HAS A HUB OFFSET OF: +.00
This Hub Offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle
NOTE: Check "Figure 2. Wheel Clearance Diagram" in the installation Instructions below to verify you have adequate wheel clearance for this kit.

Wheel Clearance Assembly Instructions

Wheel Clearance Diagram Wheel Clearance Diagram Zoom Image



Assembly Instructions
Notes
1. Kit will not work with GM Disc Brake / Spindle components.




Kit Components & Specifications
Calipers
Left Hand - Part No: 120-12501-RD
Right Hand - Part No: 120-12501-RD
Type: Forged Narrow Superlite 4R
Finish Color: Red Powder Coat
Piston Count: 4
Piston 1 Bore (in): 1.75
Piston 2 Bore (in): 1.75
Piston Area (In²): 4.80
Piston Type: Stainless
Mount Type: Radial
Brake Pad Plate: 7416
Brake Pad Area (In²): 8.2
Brake Pad Volume (In³): 3.8
Pad Compound: BP-10
Forged Narrow Superlite 4R Caliper - Red Powder Coat Forged Narrow Superlite 4R Caliper - Red Powder Coat Zoom Image
Rotors
Left Hand - Part No: 160-8399
Right Hand - Part No: 160-8398
Type: GT 72 Curved Vane
Style: GT Slotted
Surface Finish: Plain
Material: Spec-37 Iron
Outside Diameter (in): 14.00
Width (in): 1.25
Vane Count: 72 CV
Design Type: GT
Bedded: No
Dynamically Balanced: Yes
GT 72 Curved Vane - Spec-37 Iron - Plain GT 72 Curved Vane - Spec-37 Iron - Plain Zoom Image
Rotor Hats
Hat - Part No: 170-13314
Type: Big Brake Hat - Short Offset
Material: Aluminum
Finish Color: Black E-Coat
Hat Offset Dimension (in): 1.000
Bolt Circle 1: 5 x 5.50
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1: 0.640
Stud Diameter - BC 2: 0.000
Stud Diameter - BC 3: 0.000
Big Brake Hat - Short Offset - Aluminum - Black E-Coat Big Brake Hat - Short Offset - Aluminum - Black E-Coat Zoom Image
Hubs
Hub - Part No:
Type:
Material:
Finish Color:
Mount Style:
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:

Parts & Accessories
Caliper Parts
O-ring Kit: 130-2655
Replacement Dustboot: N-A
Replacement Piston 1: 200-7528
Replacement Piston 2: 200-7528
Replacement Piston 3: N-A
Replacement Piston 4: N-A
CrossOver O-Ring Kit: 130-10540
Crossover Tube: N-A
Self-Bleeder Tube: N-A
Bridge Bolt Kit: 230-7049
Wear Plate - Left Hand: 300-6596
Wear Plate - Right Hand: 300-6595
Pad Retainer: N-A
Bleed Screw Kit: 220-0627
Brake Lines
Front Line Kit:
220-13319
Hat
Bolt Kit: 230-8008
Hub
Bolt Kit:
Products commonly used with this item:
