Front Brake Kit – Part No: 140-13343-DR
Call (805) 388-1188

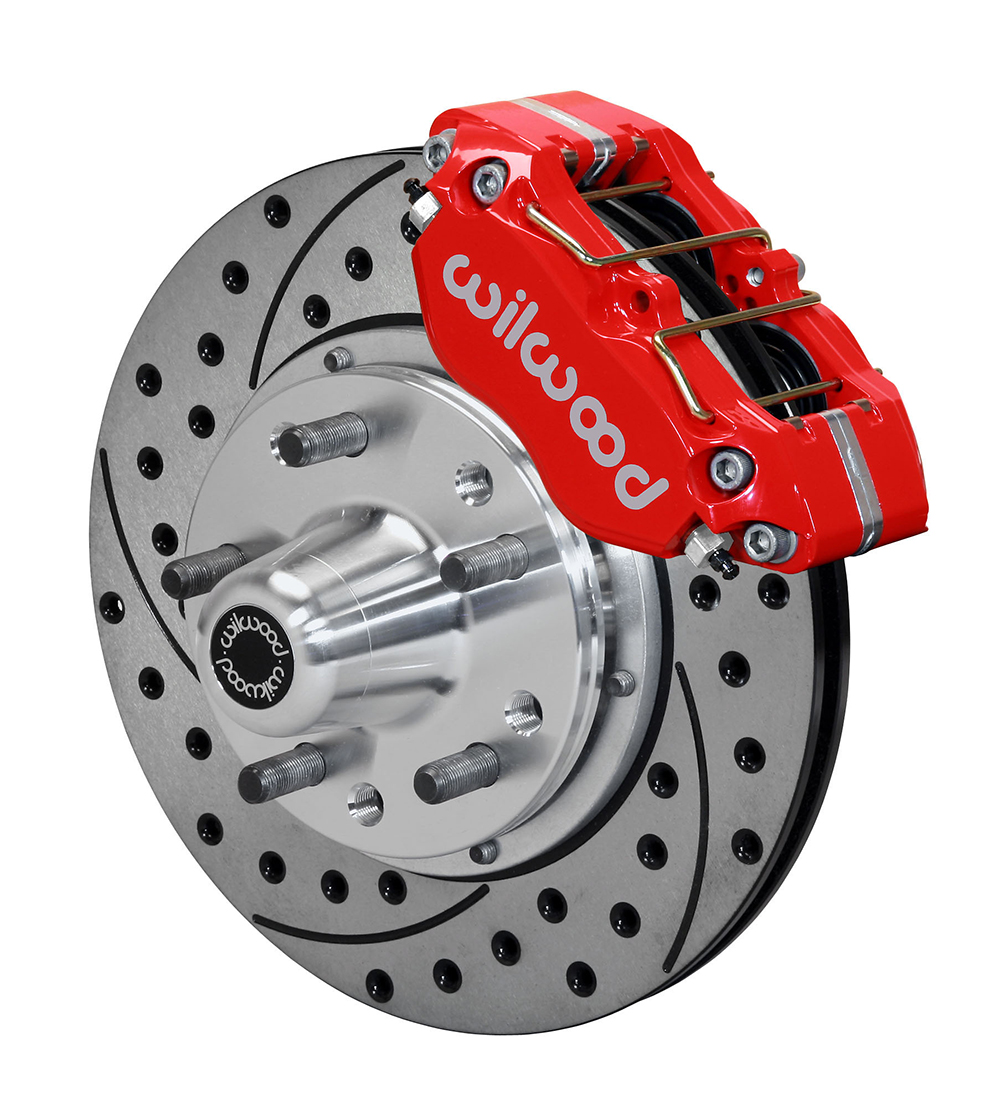

Dynapro Dust-Boot Pro Series Front Brake Kit
Prod #: 140-13343-DR
Price: $1,013.59
*NOTE: Brake Line Kit Needed.
220-12168 $83.26
Front Brake Kit — 140-13343-DR

Kit Summary
OE Hub Offset: +.09
(Increase / Decrease Track Width)
Spindle Type: Factory Drum Spindle Factory Disc Spindle
Mount Type: Lug
Caliper Type: 4 - Red Powder Coat
Rotor Diameter: 11
Min Wheel Diameter Req'd*: 14

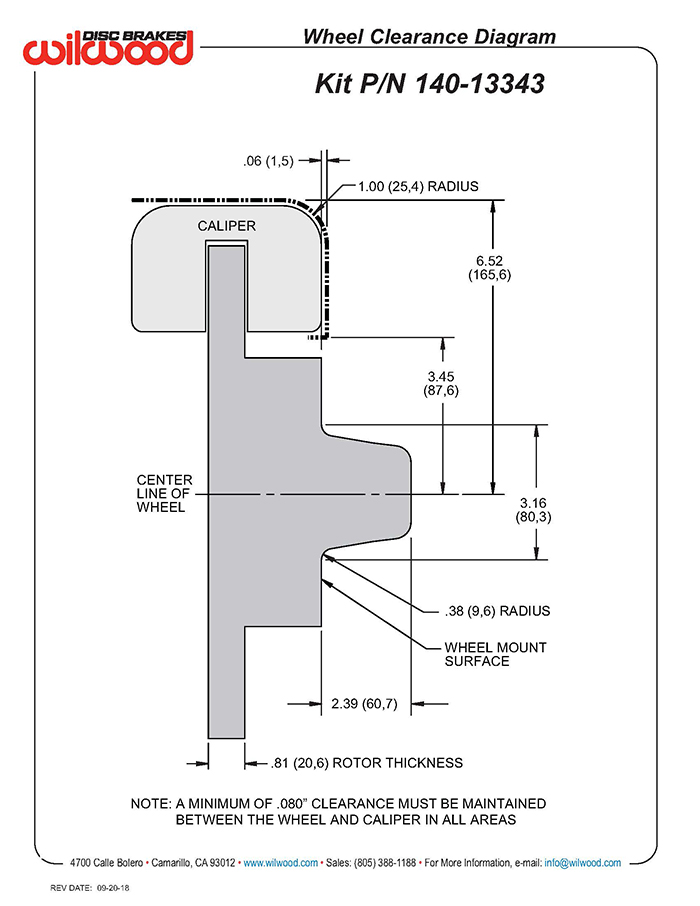

*This Brake Kit may fit 14-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram

Dynapro Dust-Boot Pro Series Front Brake Kit

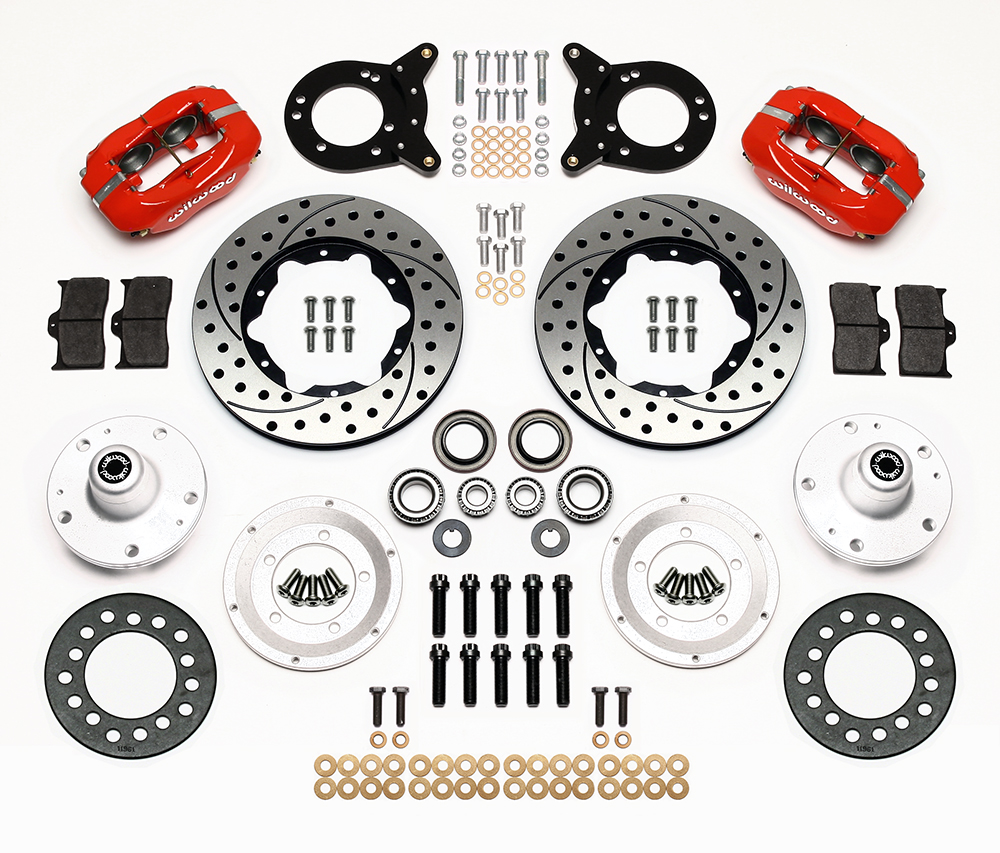

Wilwood's new limited offset DP-DB Pro-Series Front Hub Kits offer disc brake upgrade solutions for OEM spindles. We have completely redesigned our Pro Series line of brake kits using a larger 11" rotor and new forged aluminum hubs with the express purpose of maintaining the factory wheel position. Based on the venerable forged billet Dynapro Dust Boot caliper, these kits were developed for applications or locations that require or prefer a dust-booted piston. Dust-booted aluminum pistons provide added protection against road or track born dirt and debris on low to intermediate temperature range applications that may also operate in harsh environments. Most vehicle applications require no modifications for installation, and provide plenty of clearance inside popular 15" wheels. FDL Pro-Series kits can be used with either manual or power boost master cylinders. Kits come complete with calipers, rotors, hub assembly, brackets and hardware. Kit installation requires purchase of additional brake lines shown below.


Fitment & Installation Details

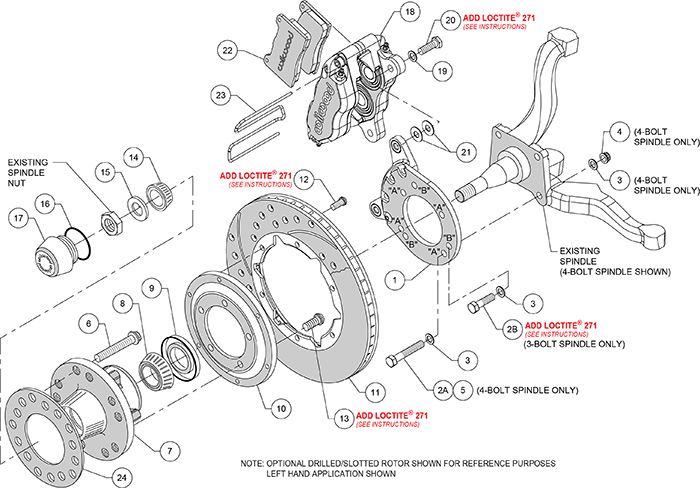

Dynapro Dust-Boot Pro Series Front Brake Kit Assembly Schematic


Compatible Vehicles for this Brake Kit
BRAKE KIT:   Dynapro Dust-Boot Pro Series Front Brake Kit
SPINDLE TYPE:
Factory Drum Spindle ; Factory Disc Spindle;
This Brake Kit is Compatible with the Following Vehicle Makes: Ford Mercury

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.

View All Vehicles
lookup vehicles
Caution
Caution THIS BRAKE KIT HAS AN HUB OFFSET OF: +.09
This Hub Offset will move the wheels inward or outward from the fenderby this amount on each side of the vehicle

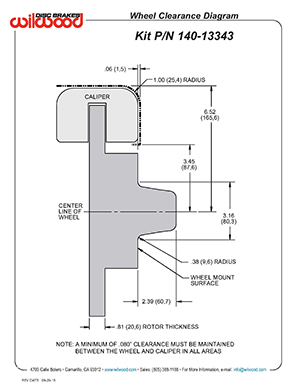

NOTE: Check "Figure 2. Wheel Clearance Diagram" in the installation Instructions below to verify you have adequate wheel clearance for this kit.

Wheel Clearance Assembly Instructions




Assembly Instructions
Notes





Kit Components & Specifications
Calipers
Left Hand - Part No: 120-11482-RD
Right Hand - Part No: 120-11482-RD
Type: Dynapro Dust Boot
Finish Color: Red Powder Coat
Piston Count: 4
Piston Area (In²): 4.80
Piston Type: Aluminum
Mount Type: Lug
Brake Pad Plate: 7812
Brake Pad Area (In²): 6.36
Brake Pad Volume (In³): 2.1
Pad Compound: BP-10
Rotors
Left Hand - Part No: 160-7100-BK
Right Hand - Part No: 160-7099-BK
Type: SRP Drilled Rotor
Style: SRP Drilled & Slotted
Surface Finish: Black Electro Coat
Material: Iron
Outside Diameter (in): 11
Width (in): 0.81
Vane Count: 30 V
Design Type: SRP-BLK
Bedded: No
Dynamically Balanced: No
Rotor Hats
Hat - Part No:
Type:
Material:
Finish Color:
Hat Offset Dimension (in):
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:
Hubs
Hub - Part No: 270-11058
Type: Hub - Vented Rotor Offset
Material: Aluminum
Finish Color: Bare
Mount Style: Adapter
Bolt Circle 1: 5 x 4.50
Bolt Circle 2: 5 x 4.75
Bolt Circle 3:
Stud Diameter - BC 1: 1/2-20
Stud Diameter - BC 2: 1/2-20
Stud Diameter - BC 3:

Parts & Accessories
Caliper Parts
O-ring Kit: 130-2655
Replacement Dustboot: 210-7210
Replacement Piston 1: 200-11484
Replacement Piston 2: 200-11484
Replacement Piston 3: N-A
Replacement Piston 4: N-A
CrossOver O-Ring Kit: 130-10540
Crossover Tube: N-A
Self-Bleeder Tube: N-A
Bridge Bolt Kit: N-A
Wear Plate - Left Hand: 300-5875
Wear Plate - Right Hand: 300-5875
Pad Retainer: 300-9636
Bleed Screw Kit: 220-0627
Brake Lines
Front Line Kit:
220-12168
Hat
Bolt Kit:
Hub
Bolt Kit:
