Classic Series Dynalite Front Brake Kit
Prod #: 140-13476-R
Price: $744.79
Front Brake Kit — 140-13476-R

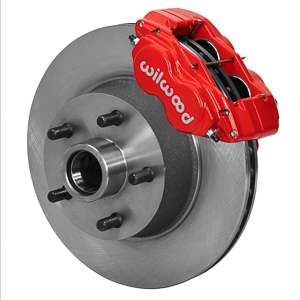

Wilwood Classic Series Dynalite Front Brake Kit - Red Powder Coat Caliper - Plain Face Rotor Wilwood Classic Series Dynalite Front Brake Kit - Red Powder Coat Caliper - Plain Face Rotor Zoom Image

Kit Contents

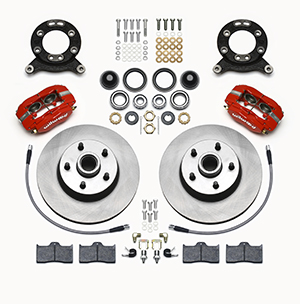

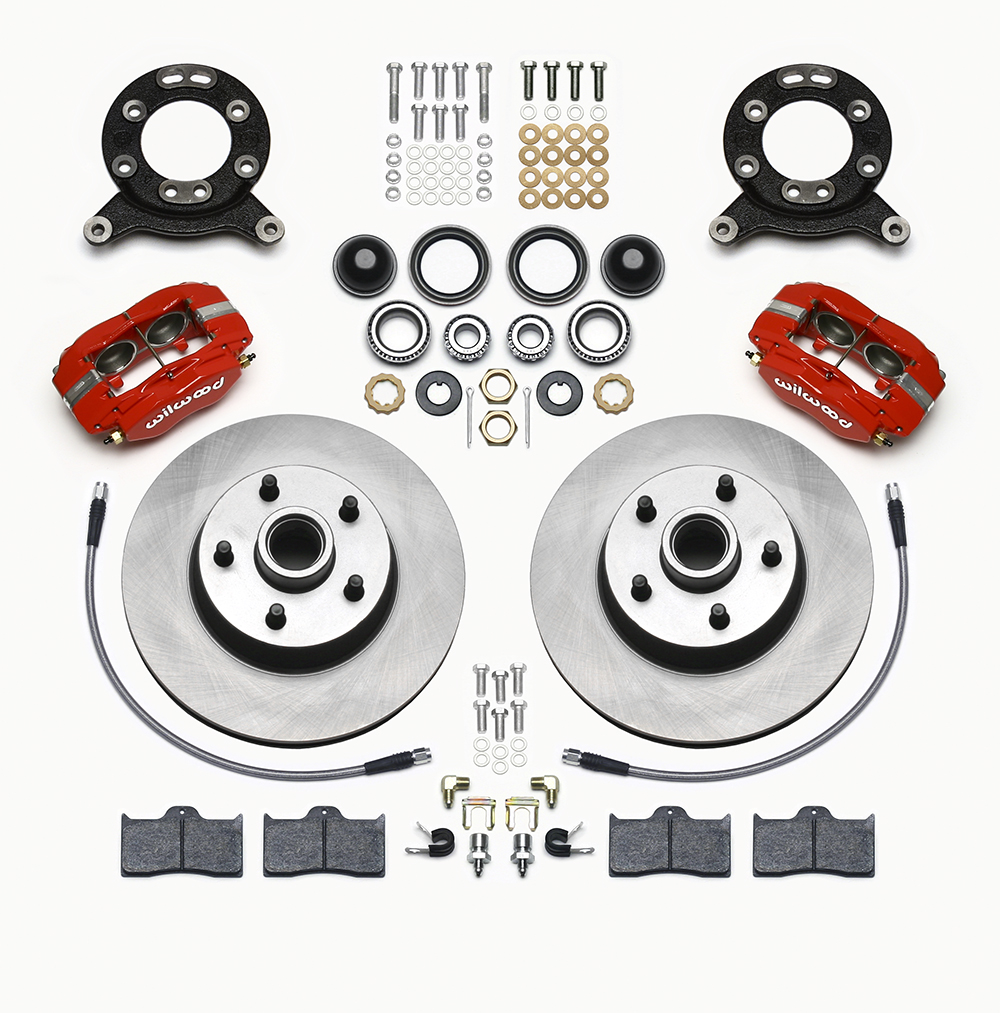

Wilwood Classic Series Dynalite Front Brake Kit Parts Laid Out - Red Powder Coat Caliper - Plain Face Rotor Wilwood Classic Series Dynalite Front Brake Kit Parts Laid Out - Red Powder Coat Caliper - Plain Face Rotor Zoom Image


View Custom Caliper Colors

Kit Summary
OE Hub Offset: .00
(Increase / Decrease Track Width)
Spindle Type: Factory Disc Spindle Factory Drum Spindle
Mount Type: Lug
Caliper Type: 4 - Red Powder Coat
Rotor Diameter: 11.30
Min Wheel Diameter Req'd*: 14
*This Brake Kit may fit 14-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram
UPC Number
UPC 889545020496

WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Applicable to Brake Pads Only


Classic Series Dynalite Front Brake Kit

Wilwood's Classic Series front disc brake kits for 1965 to 1969 Ford Mustangs offer disc brake upgrade solutions for OEM drum or disc spindles. These kits feature the FDL-M four piston forged aluminum caliper and 11.30" diameter x 0.94” thick one-piece rotors. The FDL-M caliper is a modified version of the time-tested Forged Dynalite caliper, and provides the greatest amount of wheel clearance of any four piston caliper in its size class. The OEM style one-piece cast iron rotors with integrated hubs simplify installation while providing superb dimensional stability and wear resistance. These versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver or the most discriminating show enthusiast. Intended vehicle applications require no modifications for installation, and clear most 14" OEM disc brake wheels. Kits will not fit OEM drum brake wheels. Classic Series FDL-M kits can be used with either manual or power boost master cylinders, and come complete with calipers, rotors, brackets, hardware, flex lines and detailed installation instructions.

How Wilwood Brakes Are Made

Fitment & Installation Details

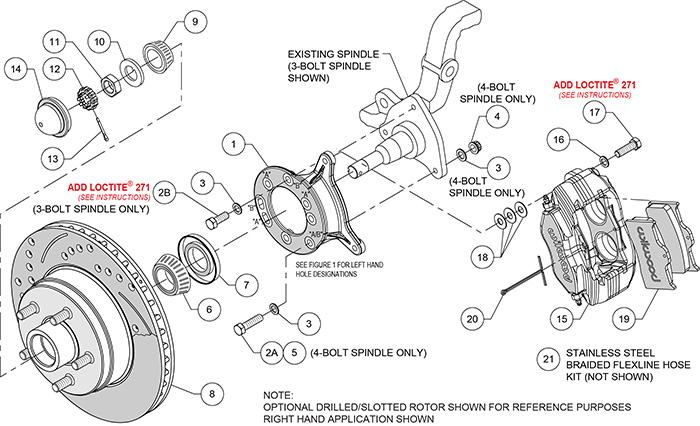

Classic Series Dynalite Front Brake Kit Assembly Schematic

Classic Series Dynalite Front Brake Kit Assembly Schematic Classic Series Dynalite Front Brake Kit Assembly Schematic Zoom Image


Compatible Vehicles for this Brake Kit
BRAKE KIT:   Classic Series Dynalite Front Brake Kit
SPINDLE TYPE:
Factory Disc Spindle; Factory Drum Spindle ;
This Brake Kit is Compatible with the Following Vehicle Makes: Ford Mercury

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.

View All Vehicles
lookup vehicles
Caution
Caution THIS BRAKE KIT HAS A HUB OFFSET OF: .00
This Hub Offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle
NOTE: Check "Figure 2. Wheel Clearance Diagram" in the installation Instructions below to verify you have adequate wheel clearance for this kit.

Wheel Clearance Assembly Instructions

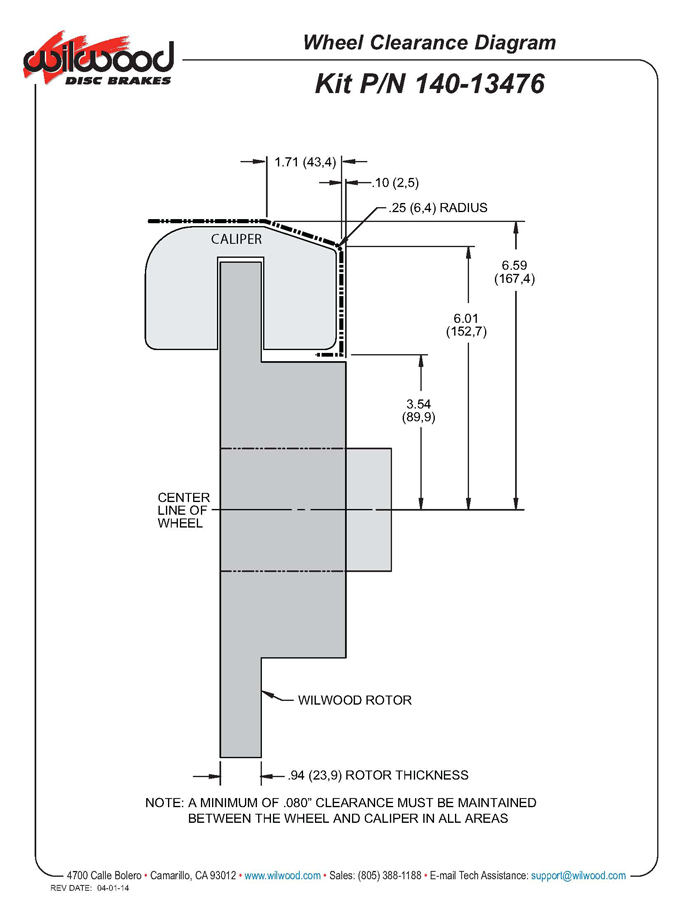

Wheel Clearance Diagram Wheel Clearance Diagram Zoom Image



Assembly Instructions
Notes





Kit Components & Specifications
Calipers
Left Hand - Part No: 120-13551-RD
Right Hand - Part No: 120-13551-RD
Type: Forged Dynalite-M
Finish Color: Red Powder Coat
Piston Count: 4
Piston 1 Bore (in): 1.75
Piston 2 Bore (in): 1.75
Piston Area (In²): 4.80
Piston Type: Stainless
Mount Type: Lug
Brake Pad Plate: 7112
Brake Pad Area (In²): 6.36
Brake Pad Volume (In³): 2.1
Pad Compound: BP-10
Forged Dynalite-M Caliper - Red Powder Coat Forged Dynalite-M Caliper - Red Powder Coat Zoom Image
Rotors
Left Hand - Part No: 160-14321
Right Hand - Part No: 160-14321
Type: 1 PC Hub and Rotor
Style: Plain Face
Surface Finish: Plain
Material: Iron
Outside Diameter (in): 11.29
Width (in): 0.94
Vane Count: Vented
Design Type: ULHP
Bedded: No
Dynamically Balanced: No

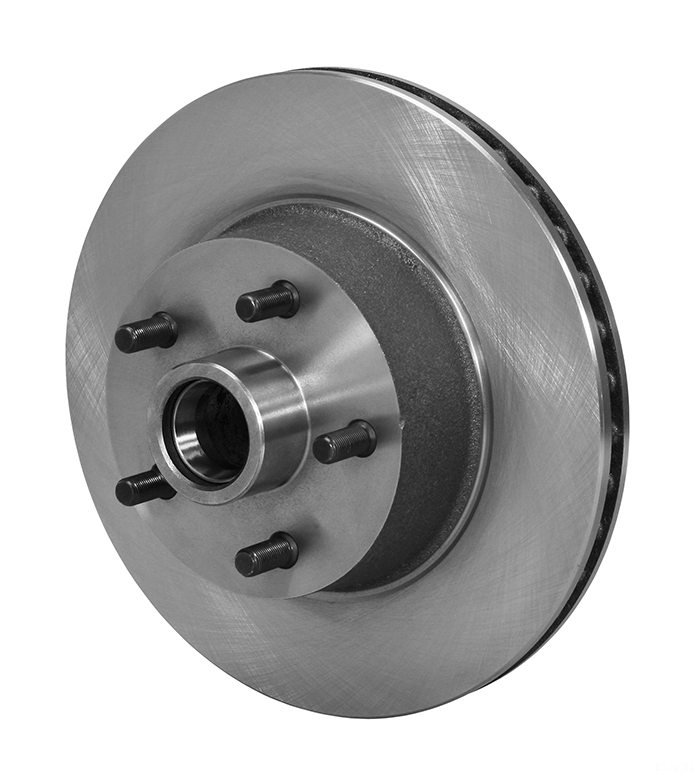

1 PC Hub and Rotor - Iron - Plain 1 PC Hub and Rotor - Iron - Plain Zoom Image
