TX6R Big Brake Truck Front Brake Kit
Prod #: 140-13867-C
Price: $2,954.50
Front Brake Kit — 140-13867-C


Kit Contents

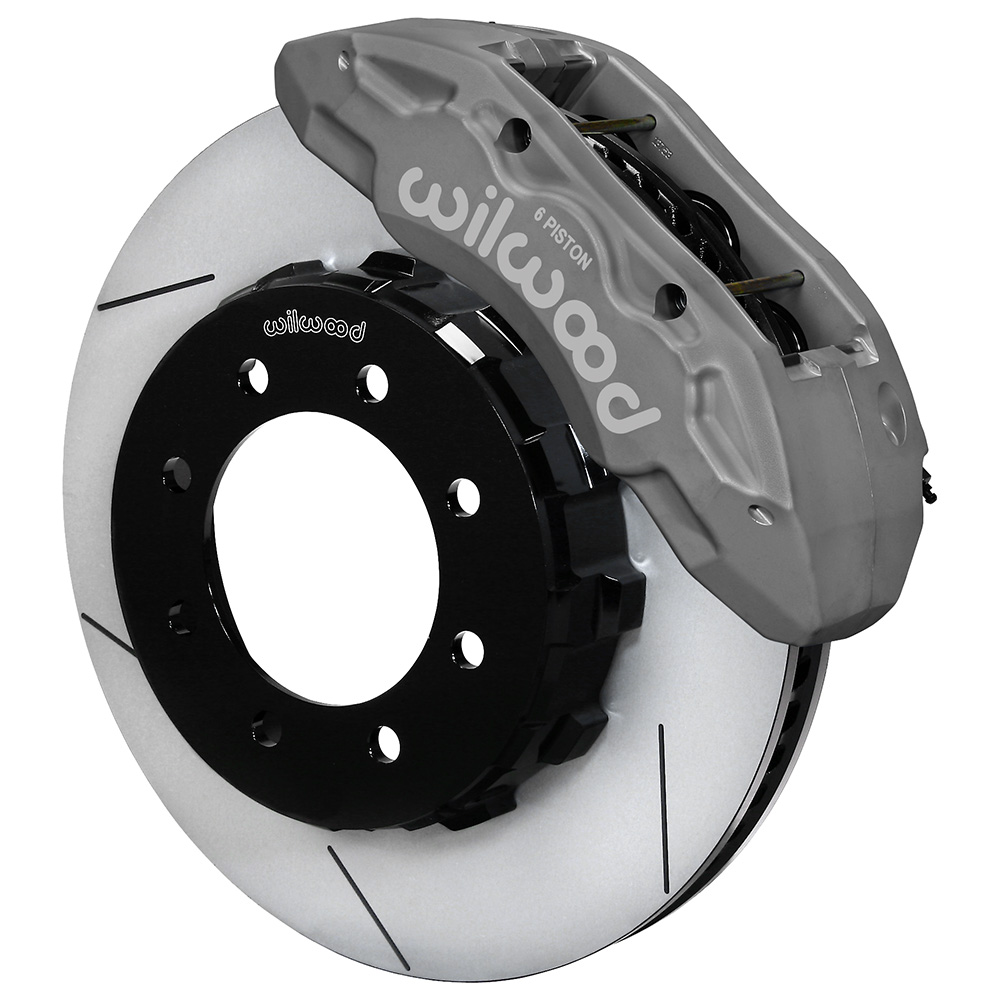

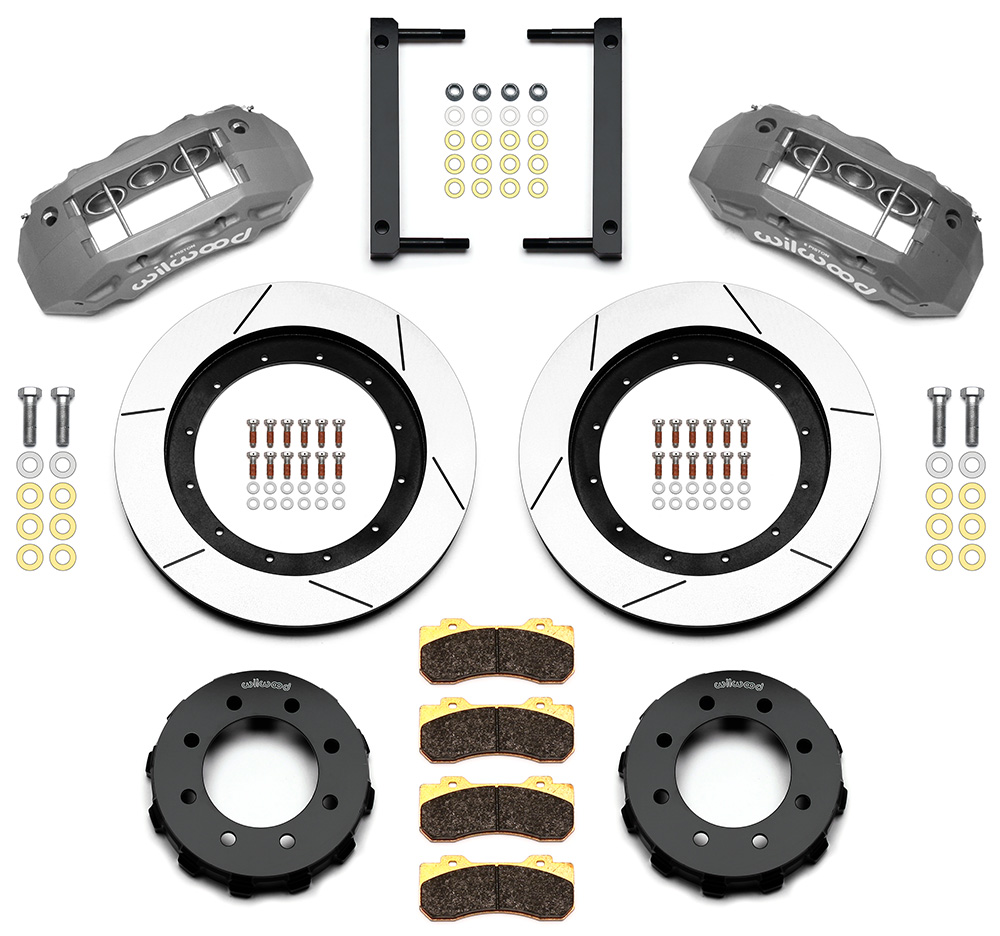

Wilwood TX6R Big Brake Truck Front Brake Kit Parts Laid Out - Type III Anodize Caliper - GT Slotted Rotor Wilwood TX6R Big Brake Truck Front Brake Kit Parts Laid Out - Type III Anodize Caliper - GT Slotted Rotor Zoom Image


View Custom Caliper Colors

Kit Summary
Spindle Type: Factory Disc Spindle
Mount Type: Radial
Caliper Type: 6 - Type III Anodize
Rotor Diameter: 16.00
Min Wheel Diameter Req'd*: 20
*This Brake Kit may fit 20-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram
UPC Number
UPC 889545071344

WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Applicable to Brake Pads Only


TX6R Big Brake Truck Front Brake Kit

Wilwood’s Tactical Extreme TX6R Big Brake kits are ultimate in braking performance for Truck, SUV and Armored Vehicles. Using TX6R radial mount six-piston calipers and massive 15.00” to 16.00” GT-60 directional vane Spec-37 alloy rotors, these kits deliver consistent stopping power and extreme duty durability under sustained high heat with this ready to bolt-on kit. The calipers are volume matched for compatibility with original equipment power brake system output. Kits include radial mount caliper brackets, and all the necessary hardware to complete the installation. Braided stainless steel flex lines will need to be purchased for some applications.
