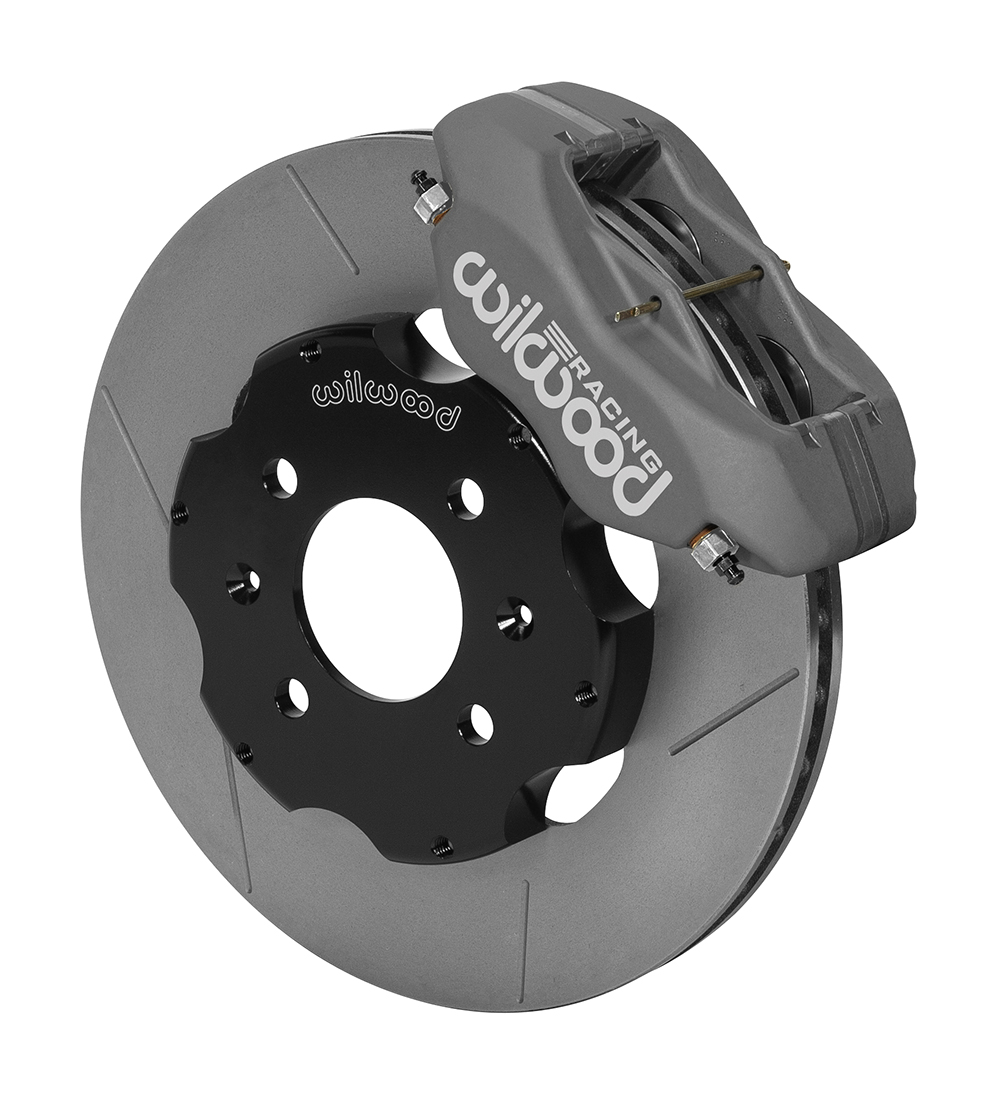

Forged Dynalite Big Brake Front Brake Kit (Race)
Prod #: 140-14304
Price: $1,174.60

Front Brake Kit — 140-14304

Kit Summary
Spindle Type: Factory Disc Spindle
Mount Type: Lug
Caliper Type: 4 - Type III Ano
Rotor Diameter: 11.00
Min Wheel Diameter Req'd*: 15
*This Brake Kit may fit 15-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram
UPC Number
UPC 889545078909

WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Applicable to Brake Pads Only


Forged Dynalite Big Brake Front Brake Kit (Race)

This kit is configured for dedicated road racing on the various Honda Civics, CRX’s and Del Sols that are equipped with the small bearing hubs and OE spindles that originally used the 240mm / 9.45” diameter rotors. It requires 15” wheels designed with additional inside clearance to accommodate the larger than stock brake package. The four piston FDL/ST calipers used in this kit feature a forged aluminum body with a Type III Mil-Spec hard anodized, medium gray color finish. Hard anodizing provides superior wear resistance in the piston bores, and high resistance to abrasion and corrosion throughout. Thermlock® pistons are used to reduce heat transfer from the pads to increase fade resistance, and to extend service life by decreasing temperatures in the caliper body, fluid, and seals. Internal damper springs and controlled retraction, high-temperature piston seals assure consistent pedal height from start to finish. Caliper piston volumes are sized for compatibility with OE power brake boosters equipped with the larger 15/16” to 1.00” bore master cylinders, and are easily configured with manual brake conversions and balance bar pedals using appropriately sized master cylinders. Spec37 alloy, GT competition series 11.00” diameter 72 vane rotors are mounted to the OE hubs with weight saving forged aluminum hats. Unsprung and rotating weight are minimized while providing high cooling efficiency and rugged durability with thermal stability in sustained high heat competition. Mounting brackets, including all premium grade fasteners, secure the calipers in the stock location, with minor modifications to the caliper mount lugs on the spindles as detailed in figure 2 on page 3 of the installation guide. This race winning system is completed with high temperature, high friction, endurance compound race pads selected specifically by application. Stainless steel braided flexlines are included in each kit to complete the installation.


Fitment & Installation Details

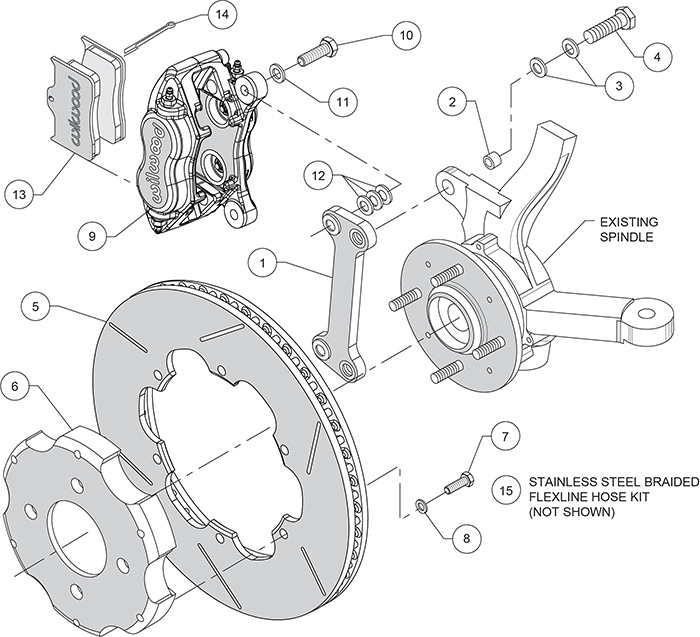

Forged Dynalite Big Brake Front Brake Kit (Race) Assembly Schematic



Compatible Vehicles for this Brake Kit
BRAKE KIT:   Forged Dynalite Big Brake Front Brake Kit (Race)
SPINDLE TYPE:
Factory Disc Spindle;
This Brake Kit is Compatible with the Following Vehicle Makes: Honda

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.

View All Vehicles
lookup vehicles
Caution
Caution THIS BRAKE KIT HAS A HUB OFFSET OF:
This Hub Offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle

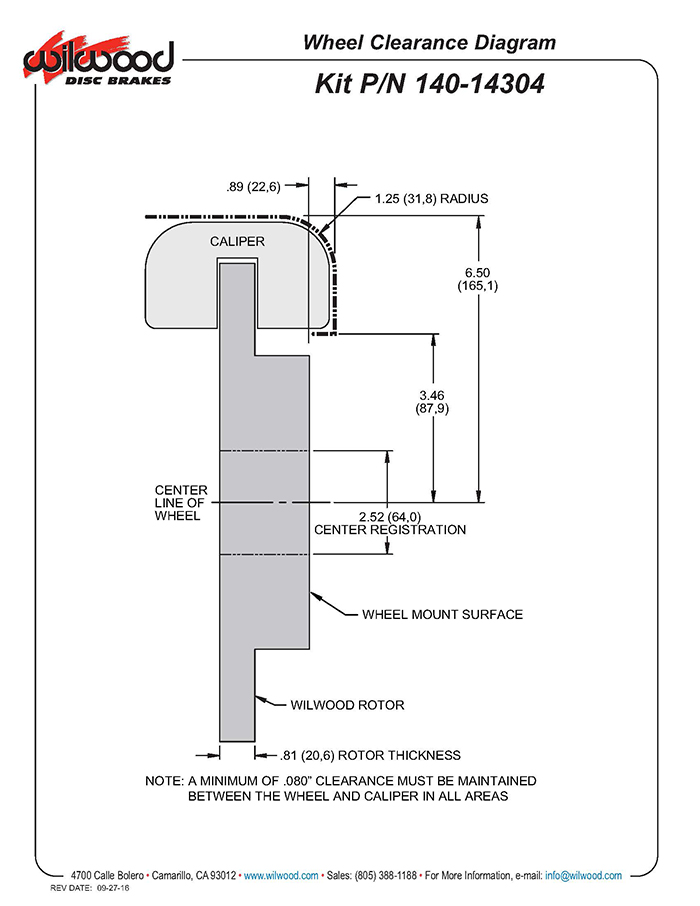

NOTE: Check "Figure 2. Wheel Clearance Diagram" in the installation Instructions below to verify you have adequate wheel clearance for this kit.

Wheel Clearance Assembly Instructions




Assembly Instructions
Notes
1. Road Race kits contain high temperature racing pads. Extended low temperature use will cause premature rotor and pad wear.
2. This Brake Kit requires 15-inch wheels with additional inside clearance to accommodate the larger than stock brake package. Please refer to the wheel clearance diagram for requirements.
3. This kit requires spindles from vehicles originally equipped with 240mm (9.45") diameter rotors.

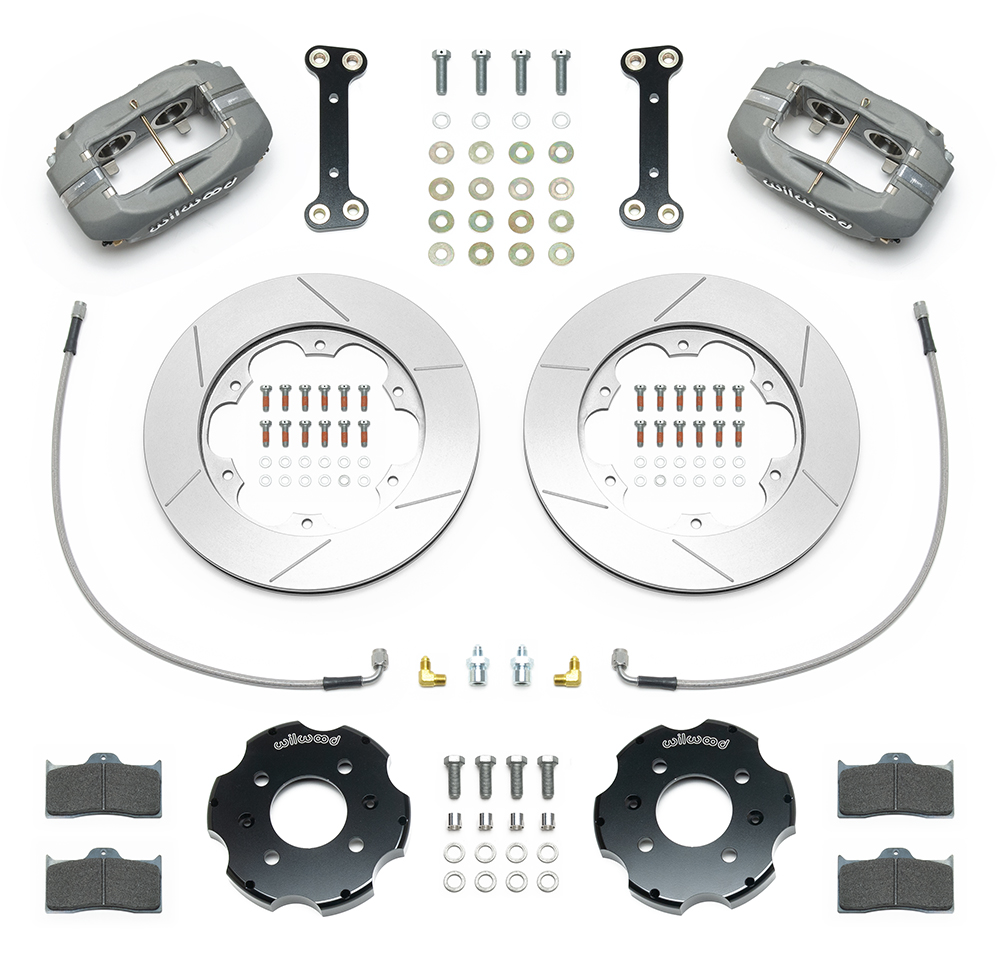

Kit Components & Specifications

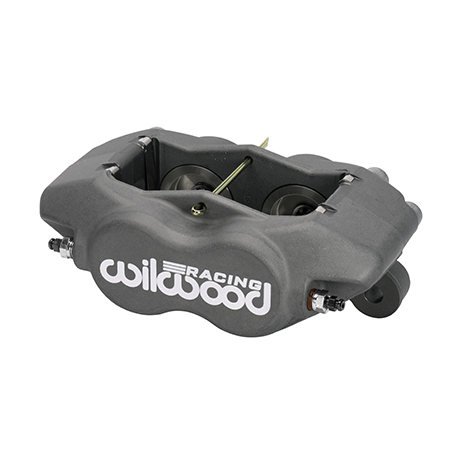

Calipers
Left Hand - Part No: 120-14303
Right Hand - Part No: 120-14303
Type: Forged Dynalite-ST
Finish Color: Type III Ano
Piston Count: 4
Piston 1 Bore (in): 1.62
Piston 2 Bore (in): 1.62
Piston Area (In²): 4.12
Piston Type: Thermlock
Mount Type: Lug
Brake Pad Plate: 7112
Brake Pad Area (In²): 6.36
Brake Pad Volume (In³): 2.1
Pad Compound: BP-30
Rotors
Left Hand - Part No: 160-12892
Right Hand - Part No: 160-12892
Type: GT 72 Straight Vane
Style: GT Slotted
Surface Finish: Plain
Material: Spec-37 Iron
Outside Diameter (in): 11.00
Width (in): 0.81
Vane Count: 72 V
Design Type: GT
Bedded: No
Dynamically Balanced: No
Rotor Hats
Hat - Part No: 170-8643
Type: Drag Hat - Shallow Offset
Material: Aluminum
Finish Color: Black E-Coat
Hat Offset Dimension (in): 0.660
Bolt Circle 1: 4 x 3.93
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1: 0.500
Stud Diameter - BC 2: 0.000
Stud Diameter - BC 3: 0.000
Hubs
Hub - Part No:
Type:
Material:
Finish Color:
Mount Style:
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:

Parts & Accessories
Caliper Parts
O-ring Kit: 130-4346
Replacement Dustboot: N-A
Replacement Piston 1: 200-9615
Replacement Piston 2: 200-9615
Replacement Piston 3: N-A
Replacement Piston 4: N-A
CrossOver O-Ring Kit: 130-10540
Crossover Tube: N-A
Self-Bleeder Tube: N-A
Bridge Bolt Kit: N-A
Wear Plate - Left Hand: 300-5875
Wear Plate - Right Hand: 300-5875
Pad Retainer: 180-0055
Bleed Screw Kit: 220-0627
Brake Lines
Front Line Kit:
220-6419
Hat
Bolt Kit: 230-12176
Hub
Bolt Kit:
