Front Brake Kit – Part No: 140-14342
Call (805) 388-1188
Powerlite Front Dirt Modified Brake Kit
Prod #: 140-14342
Price: $445.96

Front Brake Kit — 140-14342

Kit Summary
Spindle Type: Factory Disc Spindle
Mount Type: Radial
Caliper Type: 4 - Type III Ano
Rotor Diameter: 11.75
Min Wheel Diameter Req'd*: 15
*This Brake Kit may fit 15-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram
UPC Number
UPC 889545079319

WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Applicable to Brake Pads Only

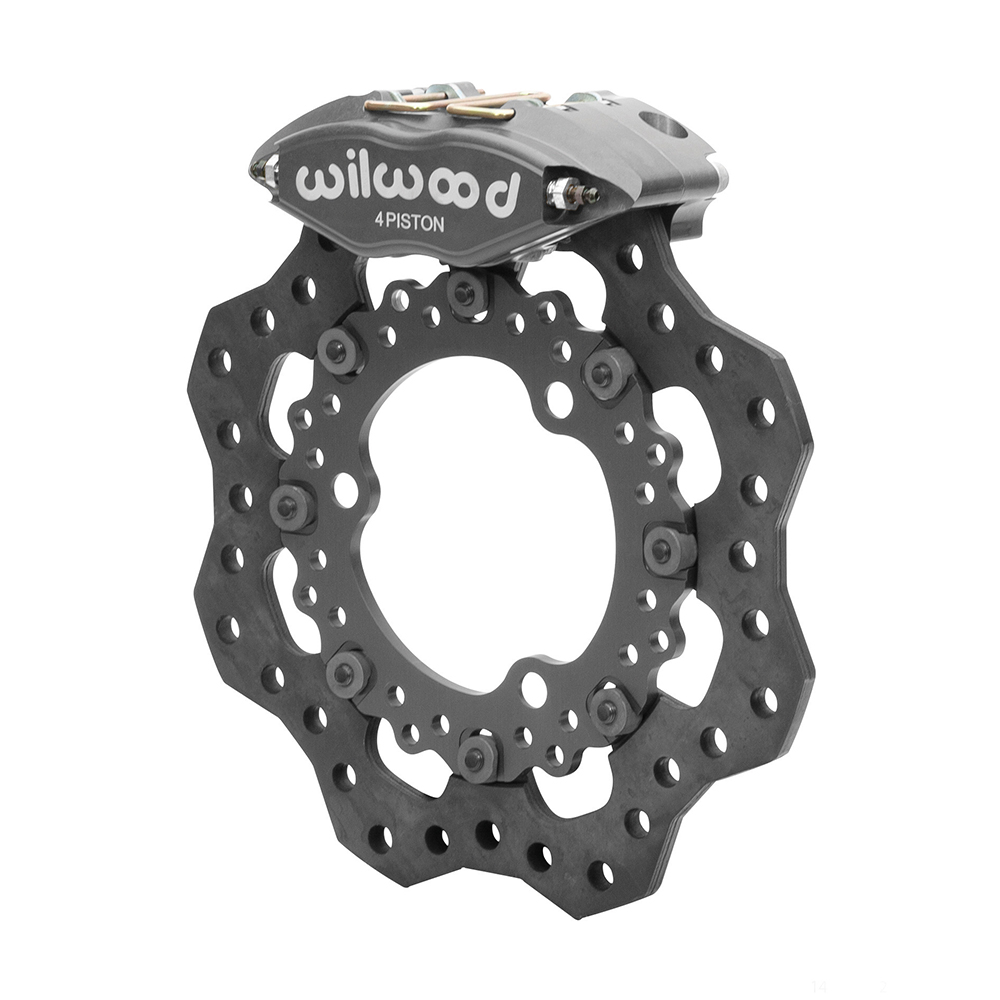

Powerlite Front Dirt Modified Brake Kit

One of the most extreme braking kits available for Dirt Modified is Wilwood's Powerlite Front Brake Kit. It showcases our stress-flow forged aluminum Powerlite 4-piston radial mount caliper with a Type-III Anodized finish. At only 2.8 pounds it is lightweight yet extremely durable in high-temperature conditions with stainless steel pistons and a total area of 2.46 square inches pushing on five square inches of our BP-40 competition pads, the newest favorite choice for DIRT racers. The drilled steel scalloped 0.35" wide rotor and adapter shed more weight while providing the perfect surface for precision braking power. The Powerlite caliper also features quick-clips to accommodate easy pad access for fast changes without removing the caliper.


Fitment & Installation Details

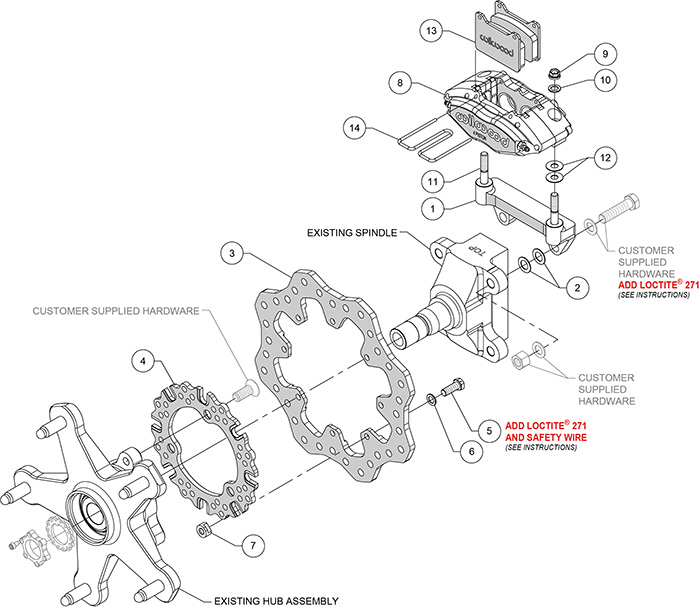

Powerlite Front Dirt Modified Brake Kit Assembly Schematic



Compatible Vehicles for this Brake Kit
BRAKE KIT:   Powerlite Front Dirt Modified Brake Kit
SPINDLE TYPE:
Factory Disc Spindle;
This Brake Kit is Compatible with the Following Vehicle Makes: N.E. Dirt Modified

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.

View All Vehicles
lookup vehicles
Caution
Caution THIS BRAKE KIT HAS A HUB OFFSET OF:
This Hub Offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle
NOTE: Check "Figure 2. Wheel Clearance Diagram" in the installation Instructions below to verify you have adequate wheel clearance for this kit.

Wheel Clearance Assembly Instructions




Assembly Instructions
Notes

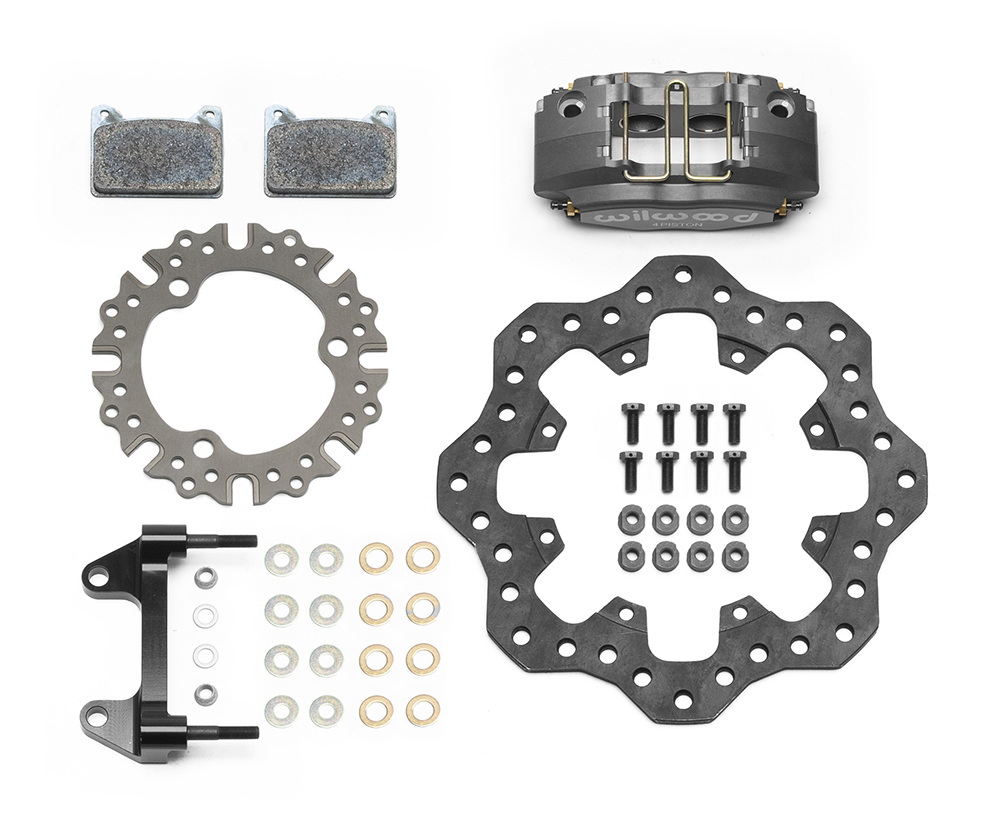

Kit Components & Specifications

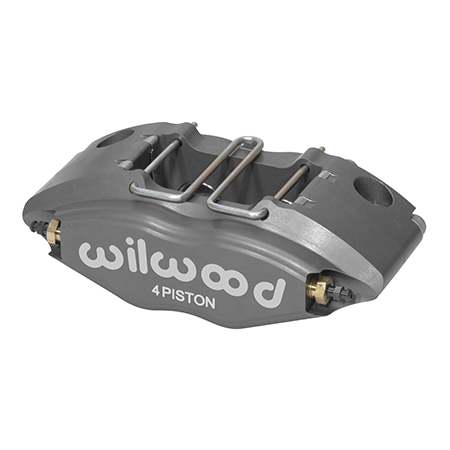

Calipers
Left Hand - Part No: 120-8725
Right Hand - Part No: 120-8725
Type: Powerlite
Finish Color: Type III Ano
Piston Count: 4
Piston 1 Bore (in): 1.25
Piston 2 Bore (in): 1.25
Piston Area (In²): 2.46
Piston Type: Stainless
Mount Type: Radial
Brake Pad Plate: 7912
Brake Pad Area (In²): 5
Brake Pad Volume (In³): 1.8
Pad Compound: BP-40
Rotors
Left Hand - Part No: 160-9772
Right Hand - Part No: 160-9772
Type: Drilled Steel / Iron
Style: Drilled
Surface Finish: Black Oxide
Material: Steel
Outside Diameter (in): 11.75
Width (in): 0.35
Vane Count: Solid
Design Type: Steel Scalloped
Bedded: No
Dynamically Balanced: No
Rotor Hats
Hat - Part No:
Type:
Material:
Finish Color:
Hat Offset Dimension (in):
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:
Hubs
Hub - Part No:
Type:
Material:
Finish Color:
Mount Style:
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:

Parts & Accessories
Caliper Parts
O-ring Kit: 130-2479
Replacement Dustboot: N-A
Replacement Piston 1: 200-8730
Replacement Piston 2: 200-8730
Replacement Piston 3: N-A
Replacement Piston 4: N-A
CrossOver O-Ring Kit: 130-10540
Crossover Tube: N-A
Self-Bleeder Tube: N-A
Bridge Bolt Kit: N-A
Wear Plate - Left Hand: 300-5875
Wear Plate - Right Hand: 300-5875
Pad Retainer: 300-8697
Bleed Screw Kit: 220-6069
*Brake Lines Needed
Hat
Bolt Kit:
Hub
Bolt Kit:
