Front Brake Kit – Part No: 140-14482
Call (805) 388-1188
AERO6 Big Brake Front Brake Kit (Race)
Prod #: 140-14482
Price: $2,673.99

Front Brake Kit — 140-14482

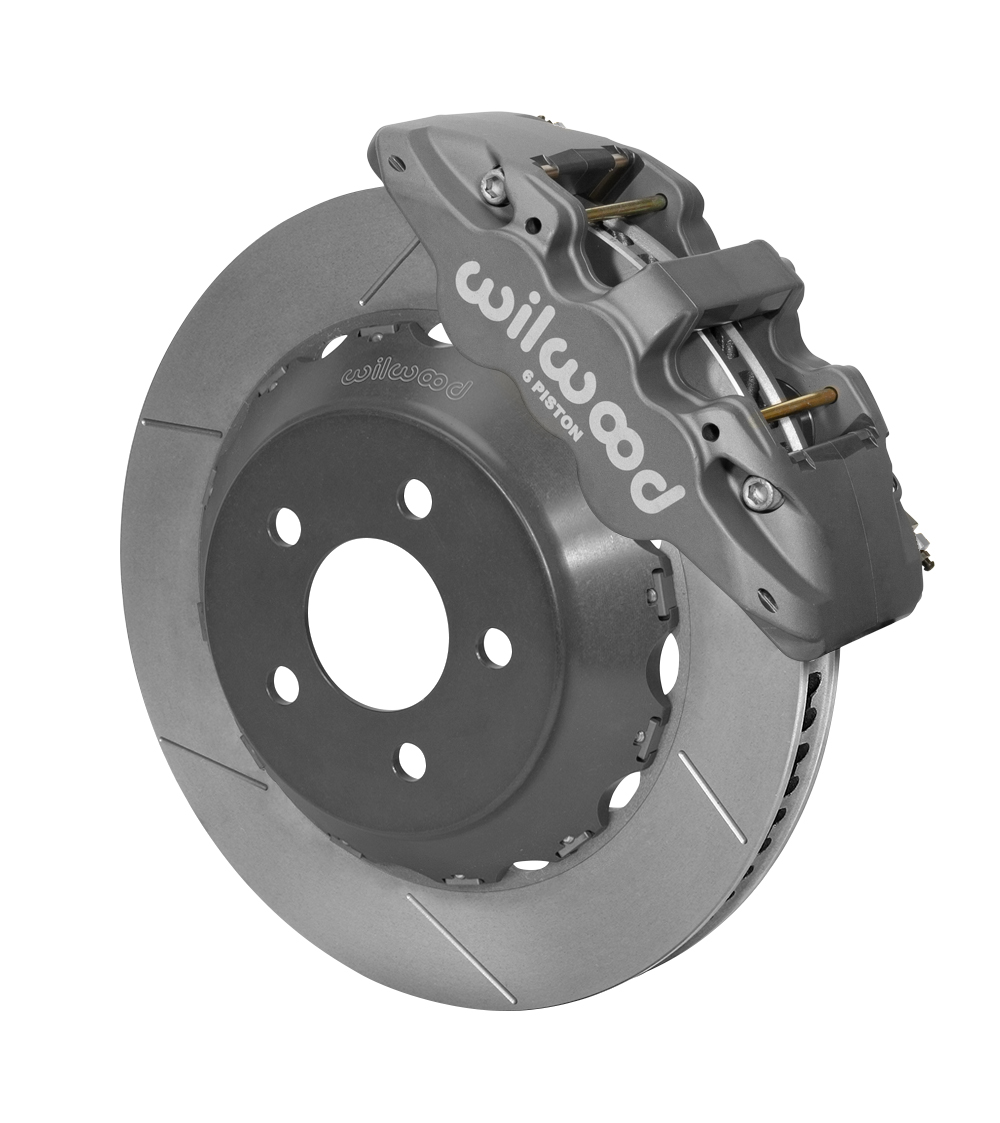

Wilwood AERO6 Big Brake Front Brake Kit (Race) - Type III Ano Caliper - GT Slotted Rotor Wilwood AERO6 Big Brake Front Brake Kit (Race) - Type III Ano Caliper - GT Slotted Rotor Zoom Image

Kit Contents

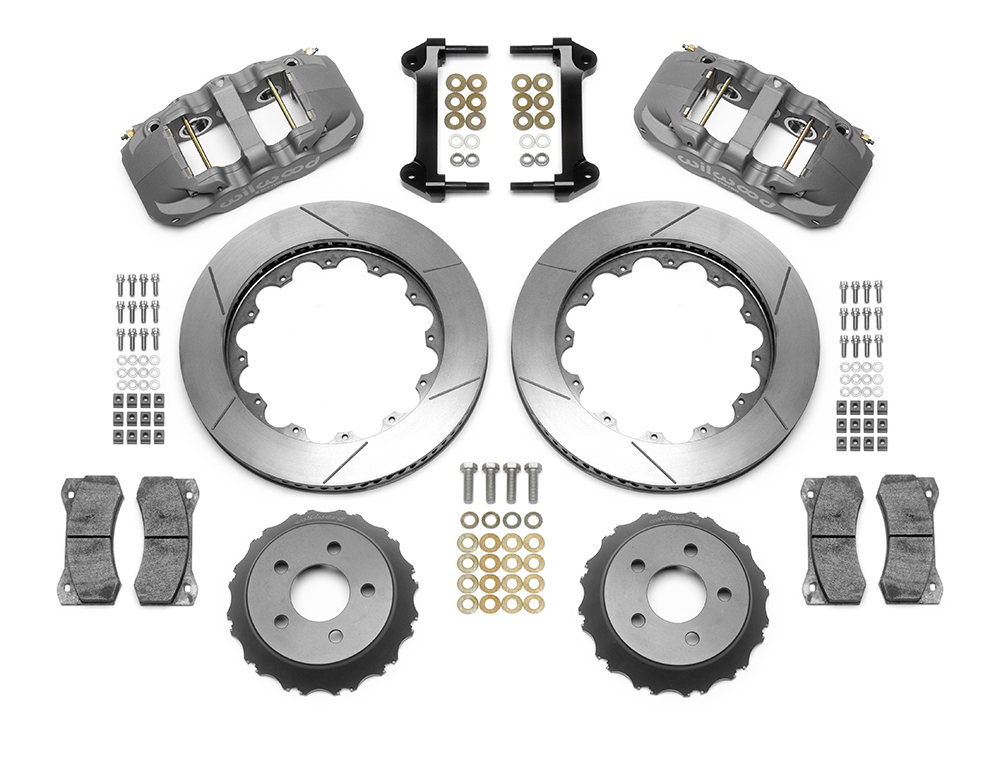

Wilwood AERO6 Big Brake Front Brake Kit (Race) Parts Laid Out - Type III Ano Caliper - GT Slotted Rotor Wilwood AERO6 Big Brake Front Brake Kit (Race) Parts Laid Out - Type III Ano Caliper - GT Slotted Rotor Zoom Image


View Custom Caliper Colors

Kit Summary
Spindle Type: Factory Disc Spindle
Mount Type: Radial
Caliper Type: 6 - Type III Ano
Rotor Diameter: 14.00
Min Wheel Diameter Req'd*: 18
*This Brake Kit may fit 18-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram
UPC Number
UPC 889545090246

WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Applicable to Brake Pads Only


AERO6 Big Brake Front Brake Kit (Race)

This kit is configured for dedicated road racing on all base, Eco-Boost and standard production GT model 2015-2018 Mustangs, when 14.00” / 355mm rotors are required by rules, or preferred for weight savings. The AERO6R/ST six piston calipers used in this kit feature a forged aluminum body with a Type III Mil-Spec, medium gray color hard anodized finish. Hard anodizing provides superior wear resistance in the piston bores, and high resistance to abrasion and corrosion throughout. This latest model of the AERO6R/ST calipers features a wider than standard body that accepts 20mm thick pads to add volume for longer service life. Thermlock® pistons are used to reduce heat transfer from the pads to increase fade resistance, and to extend service life by decreasing temperatures in the caliper body, fluid, and seals. Internal damper springs and controlled retraction, high-temperature piston seals assure consistent pedal height from start to finish. Caliper piston volumes are matched for full compatibility with the OE master cylinder output and ABS controls. The calipers are also fully compatible with manual brake conversions to balance bar pedals using appropriately sized master cylinders. Spec37 alloy GT series 14.00” diameter directional vane rotors are dynamically mounted to the OE hubs with weight saving forged aluminum hats. As is with the calipers, the hats are hard anodized for superior wear resistance and extended service life at the load bearing surfaces. Mounting brackets, including all premium grade fasteners, secure the calipers to the spindles in the stock location with no modifications required. This championship proven system is completed with high temperature, high friction, race compound pads selected specifically by application. Stainless steel braided flexlines are required for installation and must be purchased separately based on the model year.


Fitment & Installation Details


AERO6 Big Brake Front Brake Kit (Race) Assembly Schematic

AERO6 Big Brake Front Brake Kit (Race) Assembly Schematic AERO6 Big Brake Front Brake Kit (Race) Assembly Schematic Zoom Image


Compatible Vehicles for this Brake Kit
BRAKE KIT:   AERO6 Big Brake Front Brake Kit (Race)
SPINDLE TYPE:
Factory Disc Spindle;
This Brake Kit is Compatible with the Following Vehicle Makes: Ford

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.

View All Vehicles
lookup vehicles
Caution
Caution THIS BRAKE KIT HAS A HUB OFFSET OF:
This Hub Offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle
NOTE: Check "Figure 2. Wheel Clearance Diagram" in the installation Instructions below to verify you have adequate wheel clearance for this kit.

Wheel Clearance Assembly Instructions

Wheel Clearance Diagram Wheel Clearance Diagram Zoom Image



Assembly Instructions
Notes
1. Road Race kits contain high temperature racing pads. Extended low temperature use will cause premature rotor and pad wear.
2. Kit may fit some 18" wheels. Check wheel clearance diagram in kit installation instructions before purchase.



Kit Components & Specifications
Calipers
Left Hand - Part No: 120-13302
Right Hand - Part No: 120-13301
Type: AERO6
Finish Color: Type III Ano
Piston Count: 6
Piston 1 Bore (in): 1.75
Piston 2 Bore (in): 1.38
Piston 3 Bore (in): 1.38
Piston Area (In²): 5.40
Piston Type: Thermlock
Mount Type: Radial
Brake Pad Plate: 6620
Brake Pad Area (In²): 11.1
Brake Pad Volume (In³): 6.6
Pad Compound: BP-30
AERO6 Caliper - Type III Ano AERO6 Caliper - Type III Ano Zoom Image
Rotors
Left Hand - Part No: 160-8399
Right Hand - Part No: 160-8398
Type: GT 72 Curved Vane
Style: GT Slotted
Surface Finish: Plain
Material: Spec-37 Iron
Outside Diameter (in): 14.00
Width (in): 1.25
Vane Count: 72 CV
Design Type: GT
Bedded: No
Dynamically Balanced: Yes
GT 72 Curved Vane - Spec-37 Iron - Plain GT 72 Curved Vane - Spec-37 Iron - Plain Zoom Image
Rotor Hats
Hat - Part No: 170-14293
Type: Big Brake Dynamic Hat - Flared Bell
Material: Aluminum
Finish Color: Type III Anodize
Hat Offset Dimension (in): 1.380
Bolt Circle 1: 5 x 4.50
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1: 0.630
Stud Diameter - BC 2: 0.000
Stud Diameter - BC 3: 0.000
Big Brake Dynamic Hat - Flared Bell - Aluminum - Type III Anodize Big Brake Dynamic Hat - Flared Bell - Aluminum - Type III Anodize Zoom Image
Hubs
Hub - Part No:
Type:
Material:
Finish Color:
Mount Style:
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:

Parts & Accessories
Caliper Parts
O-ring Kit: 130-3084
Replacement Dustboot: N-A
Replacement Piston 1: 200-7551
Replacement Piston 2: 200-7554
Replacement Piston 3: 200-7554
Replacement Piston 4: N-A
CrossOver O-Ring Kit: N-A
Crossover Tube: N-A
Self-Bleeder Tube: N-A
Bridge Bolt Kit: N-A
Wear Plate - Left Hand: 300-5876
Wear Plate - Right Hand: 300-5876
Pad Retainer: N-A
Bleed Screw Kit: 220-0627
Brake Lines
Front Line Kit:
220-13912
Hat
Bolt Kit: 230-6656
Hub
Bolt Kit:
