Front Brake Kit – Part No: 140-14557
Call (805) 388-1188
AERO6 Big Brake Front Brake Kit (Race)
Prod #: 140-14557
Price: $1,869.00

*Line Kit Needed


220-8176
$69.39
*Line Kit Needed


220-9100
$66.61
Front Brake Kit — 140-14557

Kit Summary
Spindle Type: Factory Disc Spindle
Mount Type: Radial
Caliper Type: 6 - Black Anodize
Rotor Diameter: 14.00
Min Wheel Diameter Req'd*: 18
*This Brake Kit may fit 18-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram
UPC Number
UPC 889545081046

WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Applicable to Brake Pads Only

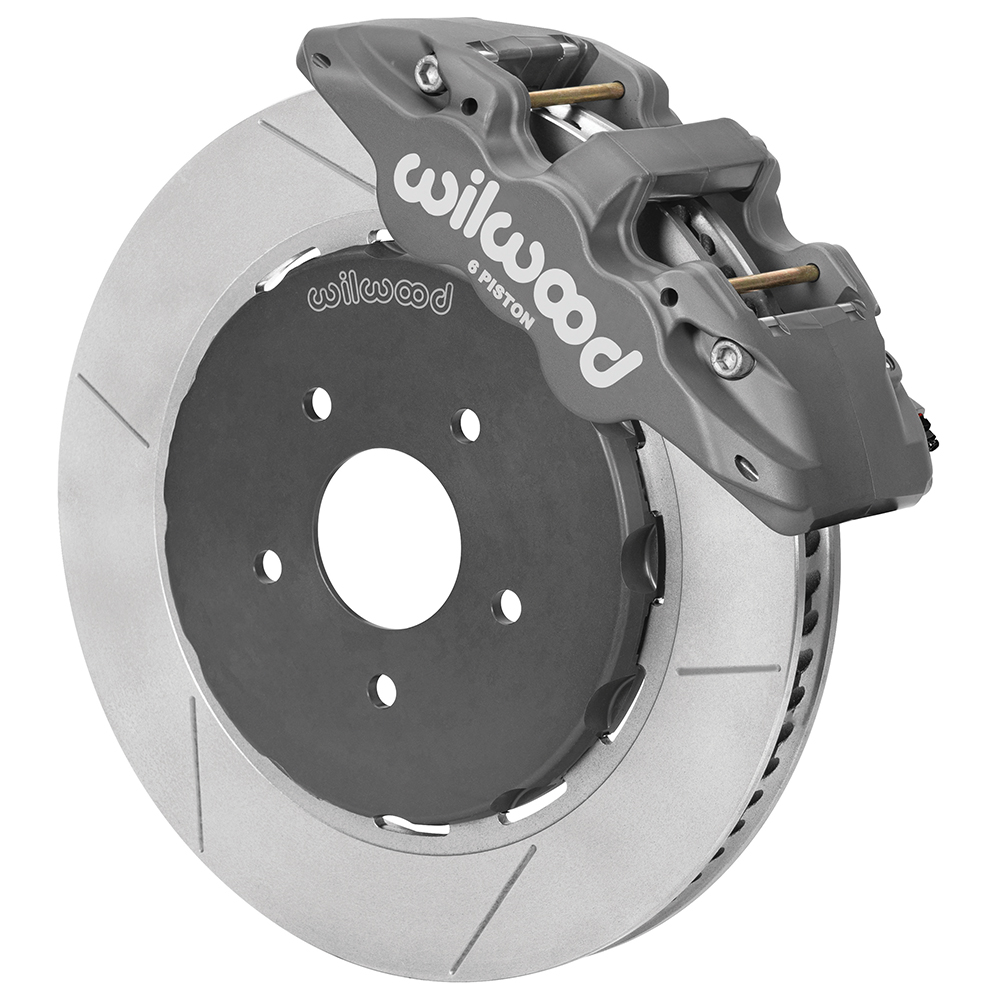

AERO6 Big Brake Front Brake Kit (Race)

AERO6R six piston radial mount calipers are coupled with the high cooling capacity of 14.00" Spec37 GT series directional vane rotors to provide consistent, high response braking for spec category road course cars, intermediate level track event cars, and all levels of auto-cross. This version of the AERO6R caliper uses a forged aluminum body with a black anodized finish, and a wider than standard body that accepts 20mm thick pads to add volume for longer service life. Stainless steel pistons provide corrosion free, long wearing service life with reduced heat transfer as compared to the aluminum and steel pistons used in many OE calipers. Internal damper springs and controlled retraction, high-temperature piston seals assure consistent pedal height from start to finish. Caliper piston volumes are matched for full compatibility with the OE master cylinder output and ABS controls. The calipers are also fully compatible with manual brake conversions to balance bar pedals using appropriately sized master cylinders. Spec37 alloy GT series directional vane rotors are mounted to the OE hubs with weight saving forged aluminum hats. Mounting brackets, including all premium grade fasteners, secure the calipers to the uprights in the stock location with no modifications required. This system is completed with high temperature, high friction, race compound pads selected specifically by application for exceptional driver control, especially when DOT rated tires are in play, or the absence of additional down force aero-body work can marginalize traction. Installation requires the separate purchase of the stainless steel braided flexline kit that must be ordered according to the model year.


Fitment & Installation Details

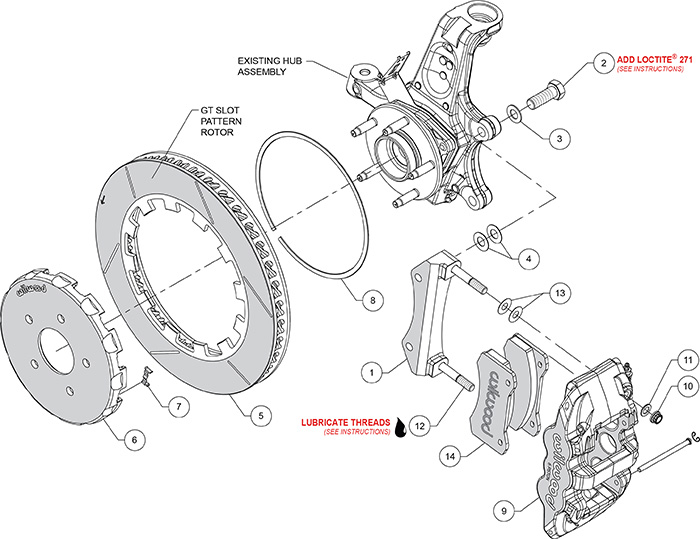

AERO6 Big Brake Front Brake Kit (Race) Assembly Schematic



Compatible Vehicles for this Brake Kit
BRAKE KIT:   AERO6 Big Brake Front Brake Kit (Race)
SPINDLE TYPE:
Factory Disc Spindle;
This Brake Kit is Compatible with the Following Vehicle Makes: Art Morrison ATS / Speedtech Cadillac Chevrolet Factory Five Racing

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.

View All Vehicles
lookup vehicles
Caution
Caution THIS BRAKE KIT HAS A HUB OFFSET OF:
This Hub Offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle

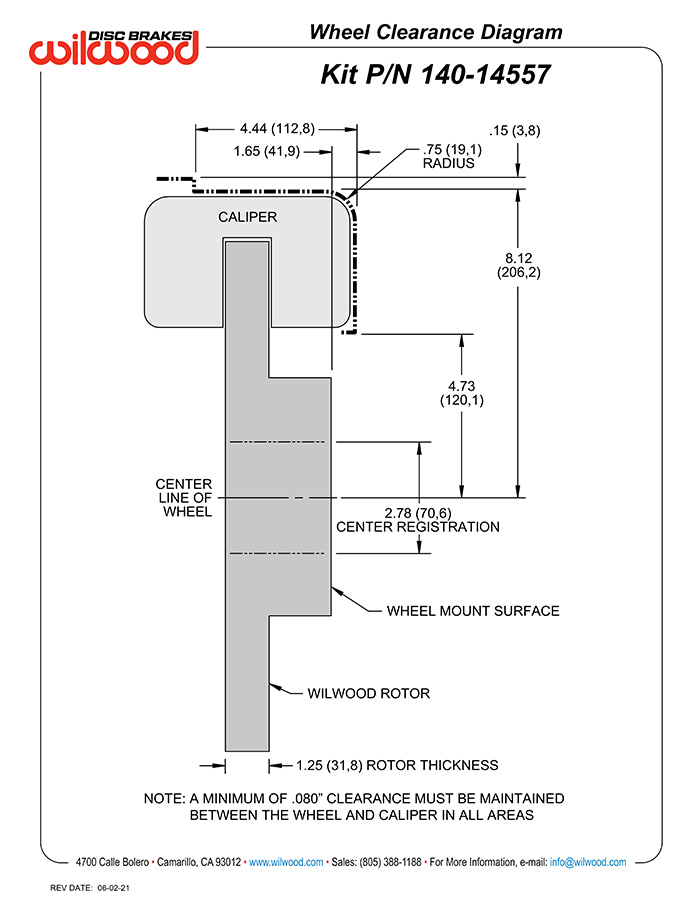

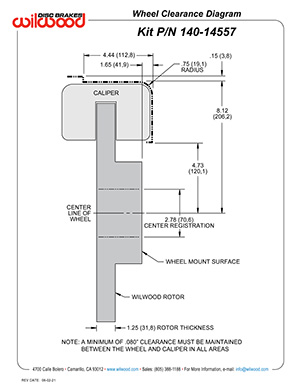

NOTE: Check "Figure 2. Wheel Clearance Diagram" in the installation Instructions below to verify you have adequate wheel clearance for this kit.

Wheel Clearance Assembly Instructions




Assembly Instructions
Notes
1. Road Race kits contain high temperature racing pads. Extended low temperature use will cause premature rotor and pad wear.
2. Kit may fit some 18" wheels. Check wheel clearance diagram in kit installation instructions before purchase.

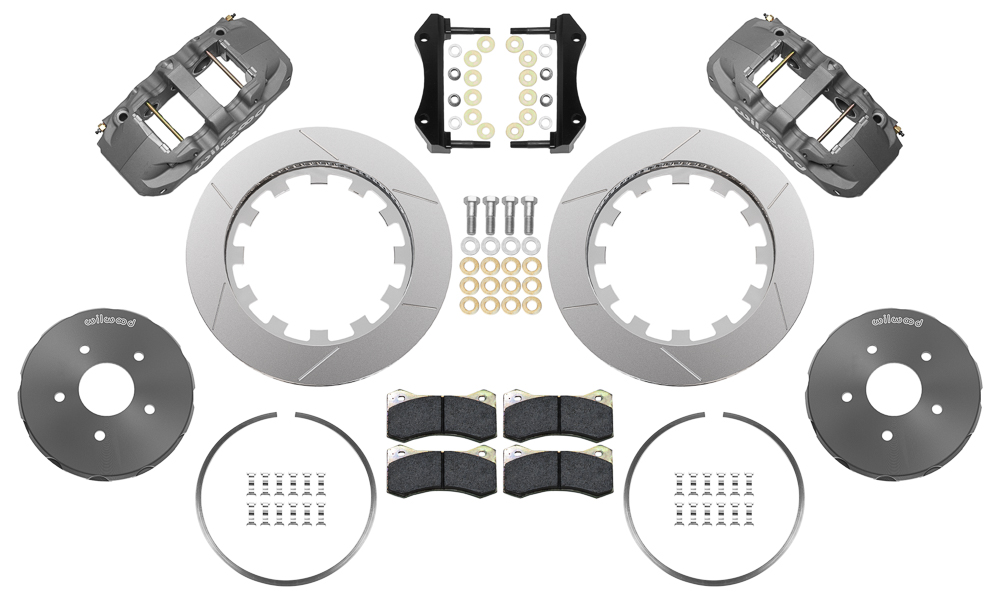

Kit Components & Specifications

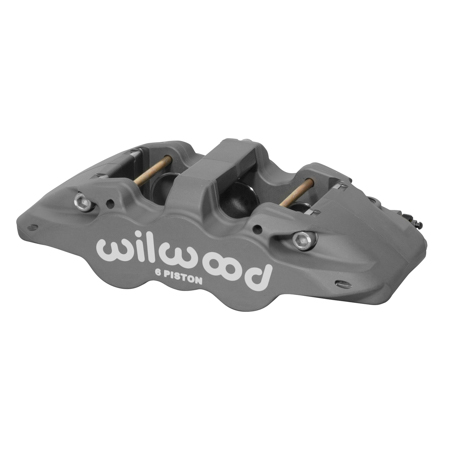

Calipers
Left Hand - Part No: 120-13292
Right Hand - Part No: 120-13291
Type: AERO6
Finish Color: Black Anodize
Piston Count: 6
Piston 1 Bore (in): 1.62
Piston 2 Bore (in): 1.12
Piston 3 Bore (in): 1.12
Piston Area (In²): 4.04
Piston Type: Stainless
Mount Type: Radial
Brake Pad Plate: 6620
Brake Pad Area (In²): 11.1
Brake Pad Volume (In³): 6.6
Pad Compound: BP-30

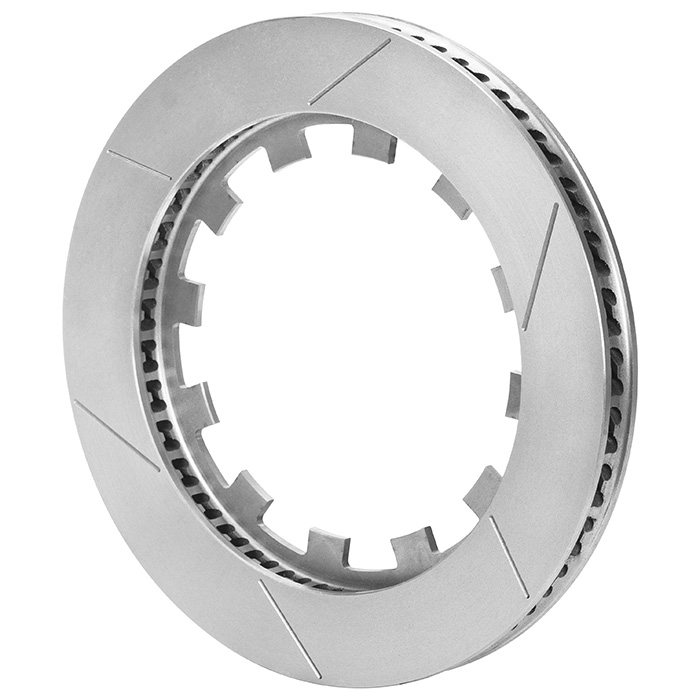

Rotors
Left Hand - Part No: 160-8399
Right Hand - Part No: 160-8398
Type: GT 72 Curved Vane
Style: GT Slotted
Surface Finish: Plain
Material: Spec-37 Iron
Outside Diameter (in): 14.00
Width (in): 1.25
Vane Count: 72 CV
Design Type: GT
Bedded: No
Dynamically Balanced: Yes

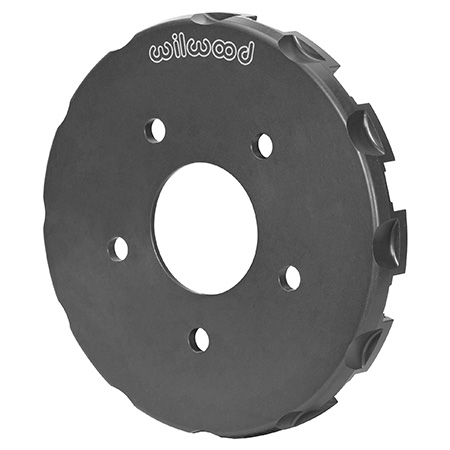

Rotor Hats
Hat - Part No: 170-8919
Type: Big Brake Hat - Short Offset
Material: Aluminum
Finish Color: Black E-Coat
Hat Offset Dimension (in): 0.290
Bolt Circle 1: 5 x 4.50
Bolt Circle 2: 5 x 4.75
Bolt Circle 3:
Stud Diameter - BC 1: 0.520
Stud Diameter - BC 2: 0.520
Stud Diameter - BC 3: 0.000
Hubs
Hub - Part No:
Type:
Material:
Finish Color:
Mount Style:
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:

Parts & Accessories
Caliper Parts
O-ring Kit: 130-5972
Replacement Dustboot: N-A
Replacement Piston 1: 200-7519
Replacement Piston 2: 200-7513
Replacement Piston 3: 200-7513
Replacement Piston 4: N-A
CrossOver O-Ring Kit: N-A
Crossover Tube: N-A
Self-Bleeder Tube: N-A
Bridge Bolt Kit: N-A
Wear Plate - Left Hand: 300-5876
Wear Plate - Right Hand: 300-5876
Pad Retainer: N-A
Bleed Screw Kit: 220-0627
*Brake Lines Needed
Front Line Kit:
Front Line Kit:
220-8176
220-9100
Hat
Bolt Kit: 230-8008
Hub
Bolt Kit:
