Forged Dynalite Pro Series Front Brake Kit
Prod #: 140-15020-D
Price: $1,511.99
Front Brake Kit — 140-15020-D

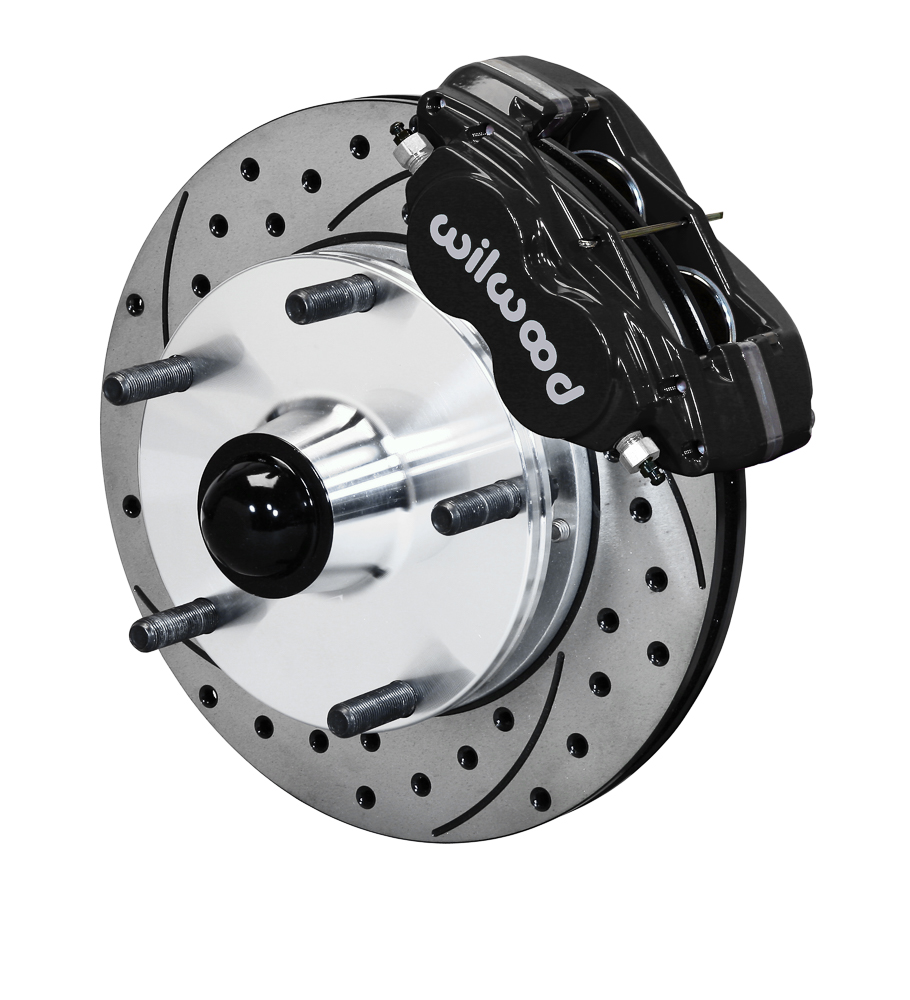

Wilwood Forged Dynalite Pro Series Front Brake Kit - Type III Ano Caliper - SRP Drilled & Slotted Rotor Wilwood Forged Dynalite Pro Series Front Brake Kit - Type III Ano Caliper - SRP Drilled & Slotted Rotor Zoom Image

Kit Contents

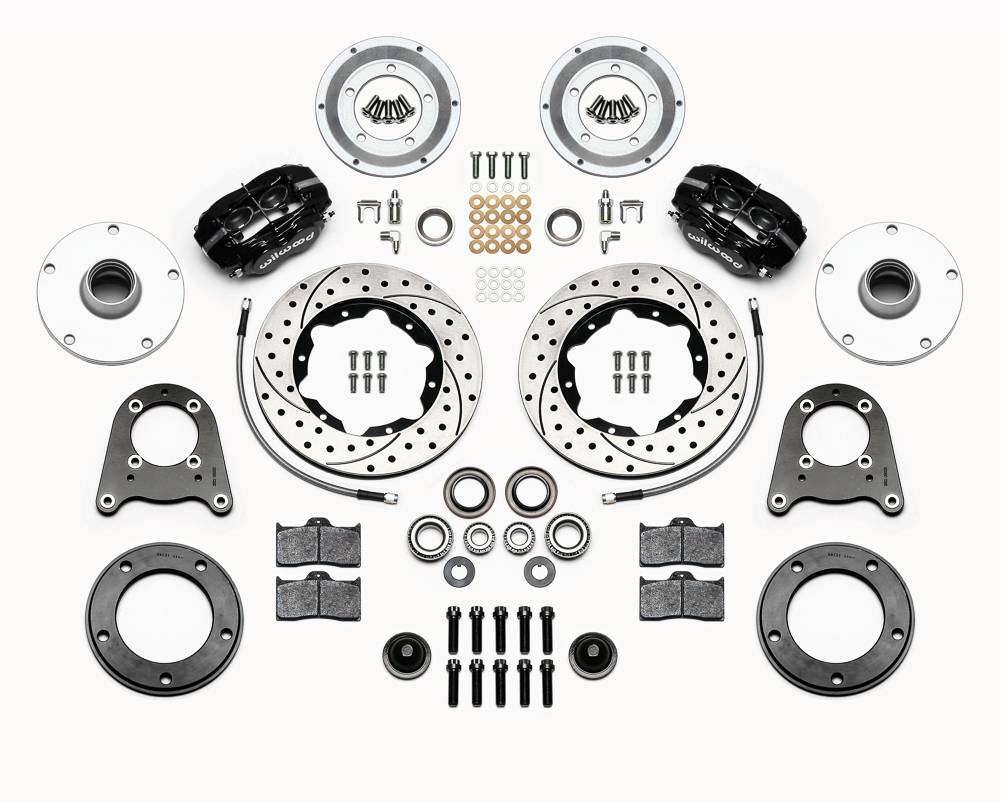

Wilwood Forged Dynalite Pro Series Front Brake Kit Parts Laid Out - Type III Ano Caliper - SRP Drilled & Slotted Rotor Wilwood Forged Dynalite Pro Series Front Brake Kit Parts Laid Out - Type III Ano Caliper - SRP Drilled & Slotted Rotor Zoom Image


View Custom Caliper Colors

Kit Summary
OE Hub Offset: +.38
(Increase / Decrease Track Width)
Spindle Type: Factory Drum Spindle
Mount Type: Lug
Caliper Type: 4 - Type III Ano
Rotor Diameter: 10.75
Min Wheel Diameter Req'd*: 14
*This Brake Kit may fit 14-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram
UPC Number
UPC 889545074185

WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Applicable to Brake Pads Only


Forged Dynalite Pro Series Front Brake Kit

Wilwood's new Pro-Series Front Hub Kits for 1950-1955 MG-TD/TF, offer disc brake upgrade solutions for OEM Drum spindles. Featuring a large 10.75" x 0.81” rotor and forged aluminum hub assembly The FDL-M caliper is a modified version of the time-tested Forged Dynalite caliper, and provides the greatest amount of wheel clearance of any four piston caliper in its size. This kits require no modifications for installation, and provide plenty of clearance inside popular 14" to 15” wheels. FDL-M Pro-Series kits can be used with either manual or power boost master cylinders.


Fitment & Installation Details


Forged Dynalite Pro Series Front Brake Kit Assembly Schematic

Forged Dynalite Pro Series Front Brake Kit Assembly Schematic Forged Dynalite Pro Series Front Brake Kit Assembly Schematic Zoom Image


Compatible Vehicles for this Brake Kit
BRAKE KIT:   Forged Dynalite Pro Series Front Brake Kit
SPINDLE TYPE:
Factory Drum Spindle ;
This Brake Kit is Compatible with the Following Vehicle Makes: MG

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.

View All Vehicles
lookup vehicles
Caution
Caution THIS BRAKE KIT HAS A HUB OFFSET OF: +.38
This Hub Offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle
NOTE: Check "Figure 2. Wheel Clearance Diagram" in the installation Instructions below to verify you have adequate wheel clearance for this kit.

Wheel Clearance Assembly Instructions

Wheel Clearance Diagram Wheel Clearance Diagram Zoom Image



Assembly Instructions
Notes
1. Kit will not fit OEM knock off style wheels. Will require 5 lug pattern wheels.




Kit Components & Specifications
Calipers
Left Hand - Part No: 120-13744
Right Hand - Part No: 120-13744
Type: Forged Dynalite-M
Finish Color: Type III Ano
Piston Count: 4
Piston 1 Bore (in): 1.75
Piston 2 Bore (in): 1.75
Piston Area (In²): 4.80
Piston Type: Stainless
Mount Type: Lug
Brake Pad Plate: 7112
Brake Pad Area (In²): 6.36
Brake Pad Volume (In³): 2.1
Pad Compound: BP-10
Forged Dynalite-M Caliper - Type III Ano Forged Dynalite-M Caliper - Type III Ano Zoom Image
Rotors
Left Hand - Part No: 160-7098-BK
Right Hand - Part No: 160-7097-BK
Type: SRP Drilled Rotor
Style: SRP Drilled & Slotted
Surface Finish: Black Electro Coat
Material: Iron
Outside Diameter (in): 10.75
Width (in): 0.81
Vane Count: 30 V
Design Type: SRP-BLK
Bedded: No
Dynamically Balanced: No
SRP Drilled Rotor - Iron - Black Electro Coat SRP Drilled Rotor - Iron - Black Electro Coat Zoom Image
Rotor Hats
Hat - Part No:
Type:
Material:
Finish Color:
Hat Offset Dimension (in):
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:
Hubs
Hub - Part No: 270-15012
Type: Hub - Vented Rotor Offset
Material: Aluminum
Finish Color: Bare
Mount Style: Adapter
Bolt Circle 1: 5 x 5.31
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1: 1/2-20
Stud Diameter - BC 2:
Stud Diameter - BC 3:
Hub - Vented Rotor Offset - Aluminum - Bare Hub - Vented Rotor Offset - Aluminum - Bare Zoom Image

Parts & Accessories
Caliper Parts
O-ring Kit: 130-2655
Replacement Dustboot: N-A
Replacement Piston 1: 200-7528
Replacement Piston 2: 200-7528
Replacement Piston 3: N-A
Replacement Piston 4: N-A
CrossOver O-Ring Kit: 130-10540
Crossover Tube: N-A
Self-Bleeder Tube: N-A
Bridge Bolt Kit: N-A
Wear Plate - Left Hand: 300-5875
Wear Plate - Right Hand: 300-5875
Pad Retainer: 180-0056
Bleed Screw Kit: 220-0627
Brake Lines
Front Line Kit:
220-15157
Hat
Bolt Kit:
Hub
Bolt Kit:
