Front Brake Kit – Part No: 140-15175-D
Call (805) 388-1188

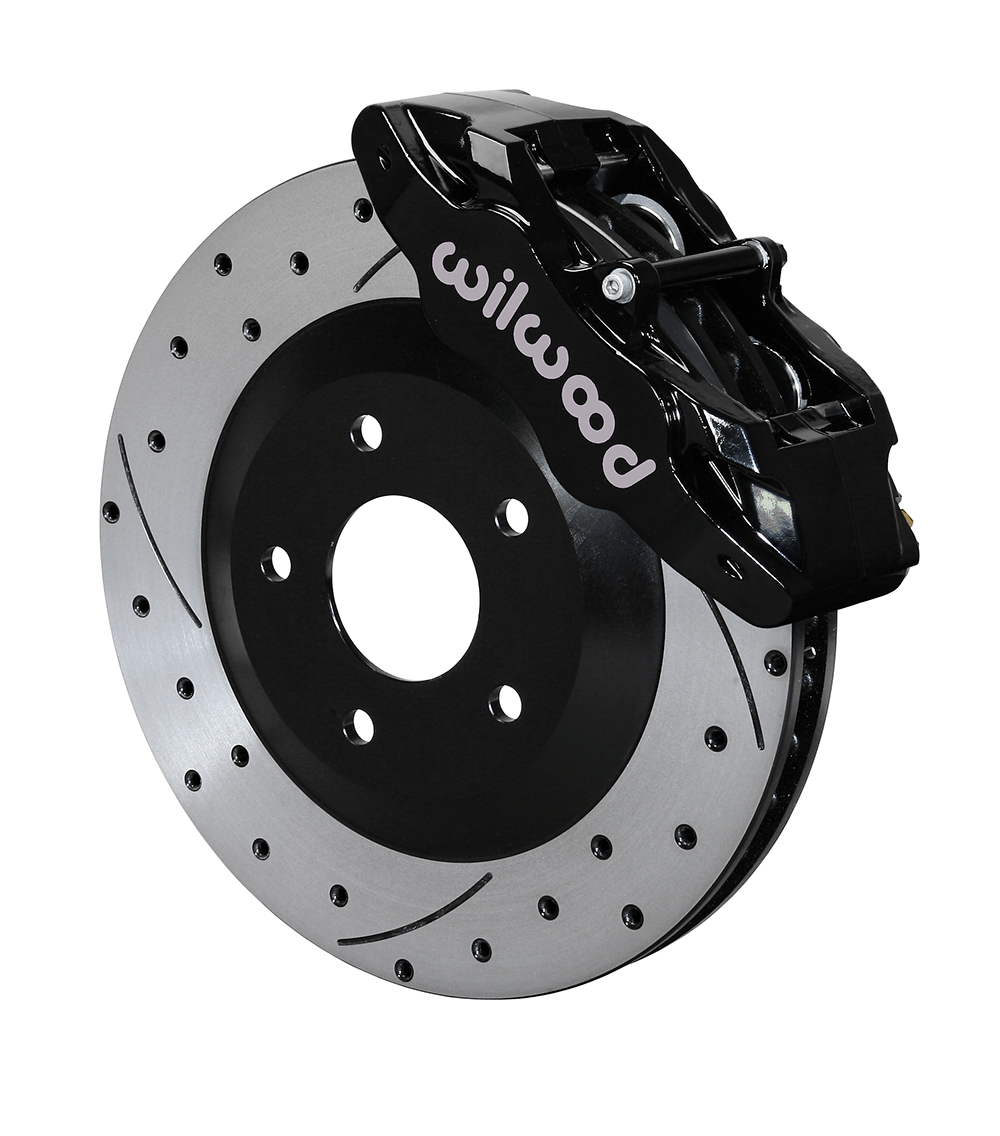

SLC56 Front Replacement Caliper and Rotor Kit
Prod #: 140-15175-D
Price: $895.93
*NOTE: Brake Line Kit Needed.
220-8021 $80.50
220-15194 $88.83
Front Brake Kit — 140-15175-D

Kit Summary
Spindle Type: Factory Disc Spindle
Mount Type: Lug
Caliper Type: 4 - Black Powder Coat
Rotor Diameter: 12.8
Min Wheel Diameter Req'd*: 17
*This Brake Kit may fit 17-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram
UPC Number
UPC 889545075106

WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Applicable to Brake Pads Only


SLC56 Front Replacement Caliper and Rotor Kit

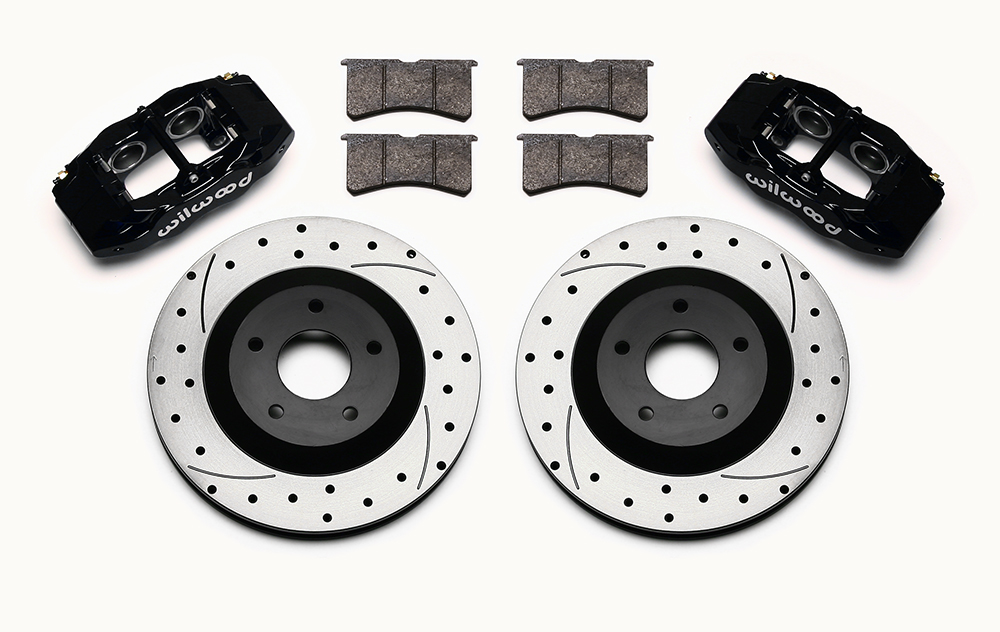

SLC56 front caliper, pad, and rotor kits are engineered as high performance street and custom show replacements for Corvettes and hot rods using Corvette suspension. These kits combine the high-tech styling and superior performance of the SLC56 calipers, 12.8” diameter SRP series dimpled and slotted e-coat rotors, and the positive response, long wear, high fade resistance, and easy clean properties of the BP-10 compound Smart Pads. These kits bolt directly to the front spindle of any model C5 or C6 from 1997-2013, without the need for additional brackets or adapters.


Fitment & Installation Details


SLC56 Front Replacement Caliper and Rotor Kit Assembly Schematic


Compatible Vehicles for this Brake Kit
BRAKE KIT:   SLC56 Front Replacement Caliper and Rotor Kit
SPINDLE TYPE:
Factory Disc Spindle;
This Brake Kit is Compatible with the Following Vehicle Makes: Chevrolet

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.

View All Vehicles
lookup vehicles
Caution
Caution THIS BRAKE KIT HAS AN HUB OFFSET OF:
This Hub Offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle
NOTE: Check "Figure 2. Wheel Clearance Diagram" in the installation Instructions below to verify you have adequate wheel clearance for this kit.

Wheel Clearance Assembly Instructions




Assembly Instructions
Notes
1. Kit fits 97-2004 C5 all, 2005-2013 C6 Base Models w/ 12.80 diameter front rotor.
2. SLC56 caliper kits have been checked to clear Z06 model wheels. All other OE and aftermarket wheels should be checked for proper clearance. . Wheel spacers may be required on some applications.



Kit Components & Specifications
Calipers
Left Hand - Part No: 120-13915-BK
Right Hand - Part No: 120-13915-BK
Type: SLC56
Finish Color: Black Powder Coat
Piston Count: 4
Piston Area (In²): 4.12
Piston Type: Stainless
Mount Type: Lug
Brake Pad Plate: 7416
Brake Pad Area (In²): 8.2
Brake Pad Volume (In³): 3.8
Pad Compound: BP-10
Rotors
Left Hand - Part No: 160-14043-BK
Right Hand - Part No: 160-14042-BK
Type: SRP Drilled Rotor & Hat
Style: SRP Dimpled & Slotted
Surface Finish: Black Electro Coat
Material: Iron
Outside Diameter (in): 12.8
Width (in): 1.25
Vane Count: Vented
Design Type: SRP-BLK
Bedded: No
Dynamically Balanced: No
Rotor Hats
Hat - Part No:
Type:
Material:
Finish Color:
Hat Offset Dimension (in):
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:
Hubs
Hub - Part No:
Type:
Material:
Finish Color:
Mount Style:
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:

Parts & Accessories
Caliper Parts
O-ring Kit: 130-4346
Replacement Dustboot: N-A
Replacement Piston 1: 200-7520
Replacement Piston 2: 200-7520
Replacement Piston 3: N-A
Replacement Piston 4: N-A
CrossOver O-Ring Kit: 130-10540
Crossover Tube: N-A
Self-Bleeder Tube: N-A
Bridge Bolt Kit: N-A
Wear Plate - Left Hand: 300-6595
Wear Plate - Right Hand: 300-6596
Pad Retainer: N-A
Bleed Screw Kit: 220-0627
Brake Lines
Front Line Kit:
Front Line Kit:
220-8021
220-15194
Hat
Bolt Kit:
Hub
Bolt Kit:
