Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hat)
Prod #: 140-15304-R
Price: $1,814.39
Front Brake Kit — 140-15304-R

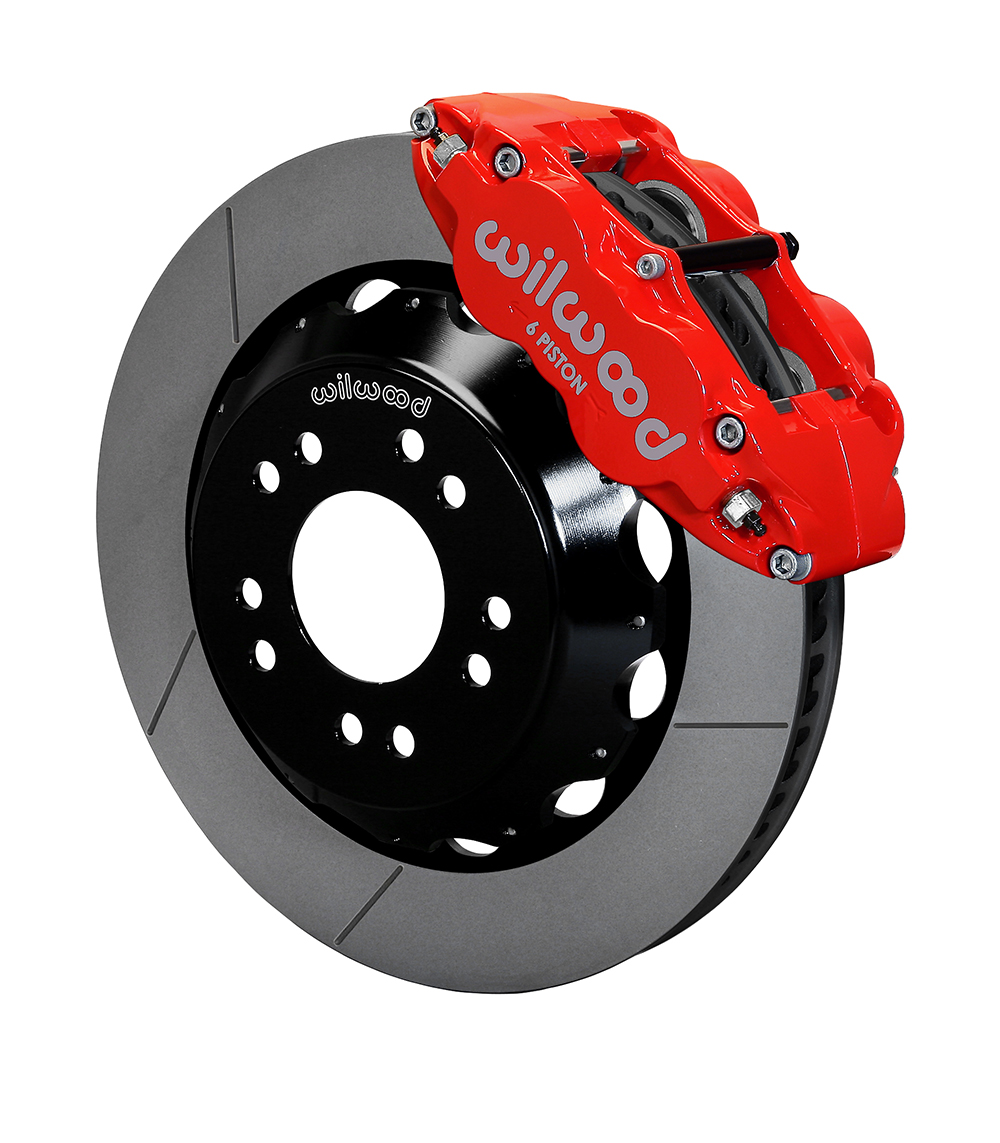

Wilwood Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hat) - Red Powder Coat Caliper - GT Slotted Rotor Wilwood Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hat) - Red Powder Coat Caliper - GT Slotted Rotor Zoom Image

Kit Contents

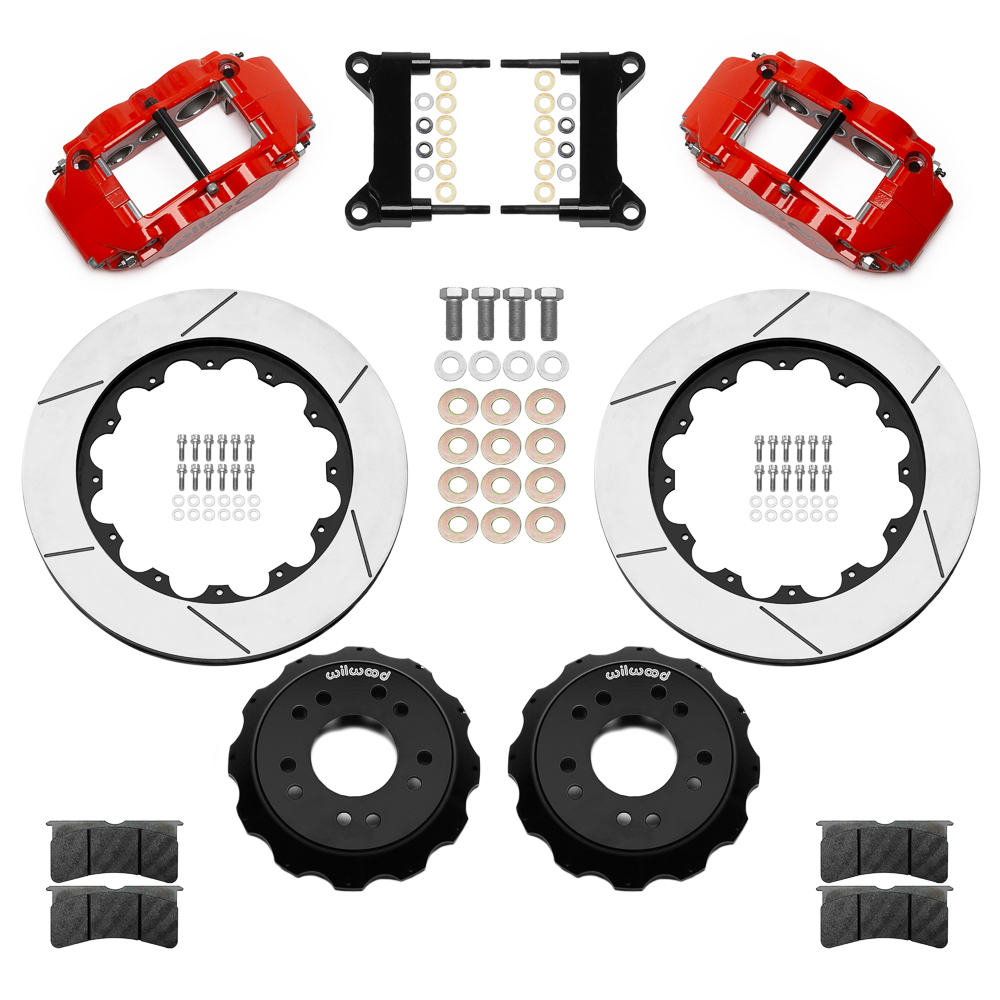

Wilwood Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hat) Parts Laid Out - Red Powder Coat Caliper - GT Slotted Rotor Wilwood Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hat) Parts Laid Out - Red Powder Coat Caliper - GT Slotted Rotor


View Custom Caliper Colors

Kit Summary
Spindle Type: Drop Spindle
Mount Type: Radial
Caliper Type: 6 - Red Powder Coat
Rotor Diameter: 14.00
Min Wheel Diameter Req'd*: 18
*This Brake Kit may fit 18-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram
UPC Number
UPC 889545077476

WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Applicable to Brake Pads Only


Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hat)

The unsurpassed braking capacity of the Forged Narrow Superlite 6R six-piston caliper serves as the base of this group of 13”-14” big rotor kits for he popular 1963 thru 1987 Chevrolet & GM C10 / C15 Trucks with Wilwood's new Modular Drop Pro Spindles. FNSL6R kits are engineered application specific for simplified installation and full compatibility with OE master cylinder output and ABS functions where used. Big brake kits provide increased brake capacity and complimentary style with wheel, tire, and suspension upgrades on show trucks and high performance street or track applications. Optional caliper finishes and rotor designs simplify personalizing the style and braking requirements of any application.


Fitment & Installation Details


Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hat) Assembly Schematic

Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hat) Assembly Schematic Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hat) Assembly Schematic Zoom Image


Compatible Vehicles for this Brake Kit
BRAKE KIT:   Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hat)
SPINDLE TYPE:
Drop Spindle;
This Brake Kit is Compatible with the Following Vehicle Makes: Chevrolet GMC Wilwood

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.
