Front Brake Kit – Part No: 140-15318
Call (805) 388-1188

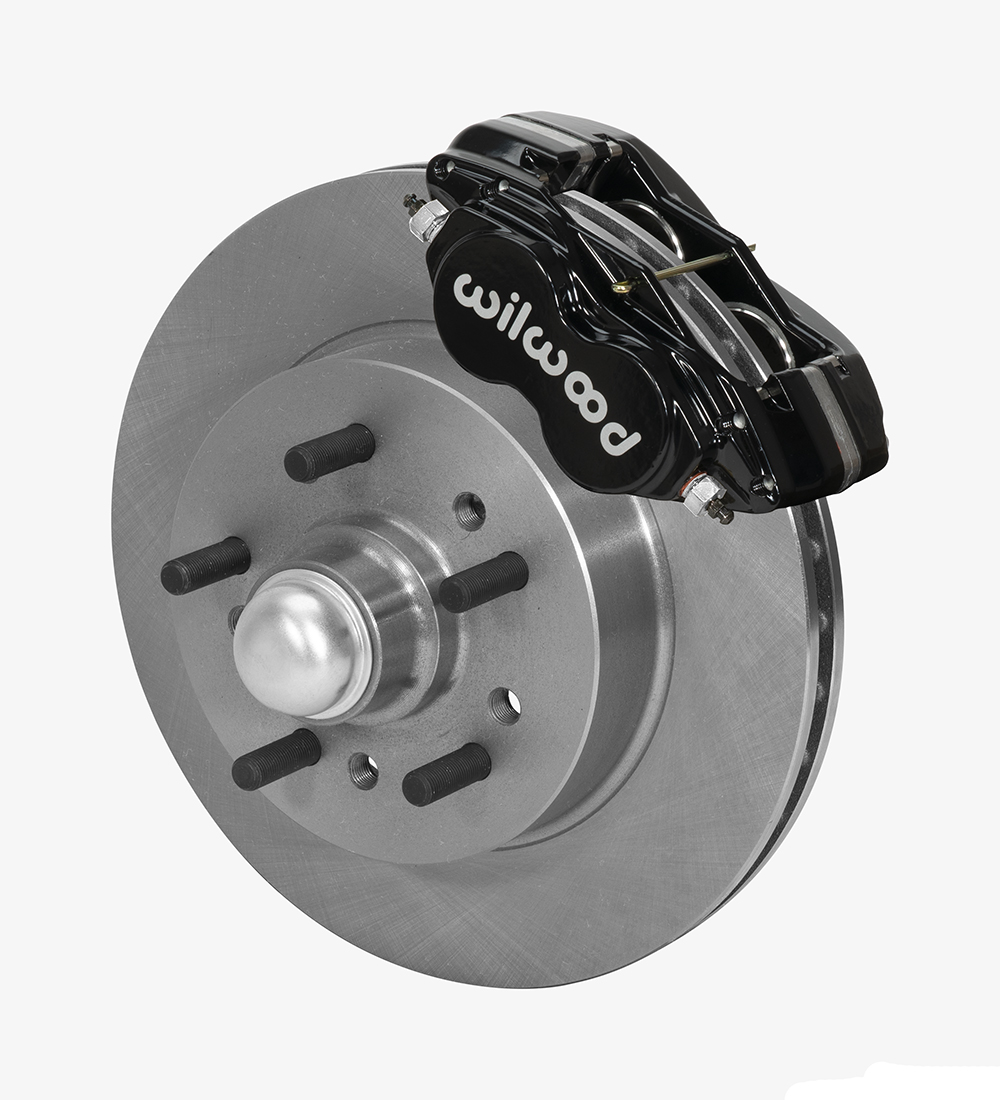

Classic Series Dynalite Front Brake Kit
Prod #: 140-15318
Price: $671.99
Front Brake Kit — 140-15318

Kit Summary
Spindle Type: Drop Spindle
Mount Type: Lug
Caliper Type: 4 - Black Powder Coat
Rotor Diameter: 11.50
Min Wheel Diameter Req'd*: 15
*This Brake Kit may fit 15-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram
UPC Number
UPC 889545086034

WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Applicable to Brake Pads Only


Classic Series Dynalite Front Brake Kit

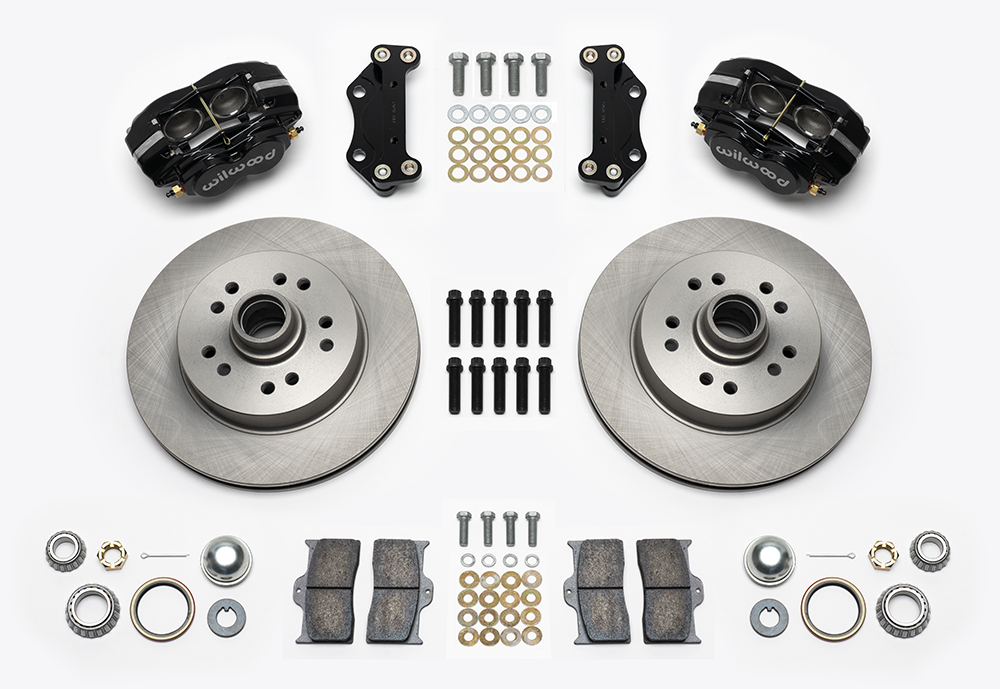

Wilwood's Classic Series front disc brake kits for Classic Performance Products GM Tri-5, 55-57 full size drop spindle offer easy and effective disc brake upgrade solutions for these aftermarket spindles. These kits feature the FDL-M four piston forged aluminum caliper and 11.50" diameter x 1.00” thick one-piece rotors. The FDL-M caliper is a modified version of the time-tested Forged Dynalite caliper, and provides the greatest amount of wheel clearance of any four piston caliper in its size class. The OEM style one-piece cast iron rotors with integrated hubs simplify installation while providing superb dimensional stability and wear resistance. These versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver or the most discriminating show enthusiast. Intended vehicle applications require no modifications for installation, and clear most OEM 15" disc brake wheels. Classic Series FDL-M kits can be used with either manual or power boost master cylinders, and come complete with calipers, rotors, brackets, hardware and detailed installation instructions. Kit requires purchase of additional brake line kit shown below.


Fitment & Installation Details


Classic Series Dynalite Front Brake Kit Assembly Schematic



Compatible Vehicles for this Brake Kit
BRAKE KIT:   Classic Series Dynalite Front Brake Kit
SPINDLE TYPE:
Drop Spindle;
This Brake Kit is Compatible with the Following Vehicle Makes: Chevrolet CPP (Classic Performance Prod)

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.

View All Vehicles
lookup vehicles
Caution
Caution THIS BRAKE KIT HAS A HUB OFFSET OF:
This Hub Offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle
NOTE: Check "Figure 2. Wheel Clearance Diagram" in the installation Instructions below to verify you have adequate wheel clearance for this kit.

Wheel Clearance Assembly Instructions




Assembly Instructions
Notes





Kit Components & Specifications
Calipers
Left Hand - Part No: 120-13551-BK
Right Hand - Part No: 120-13551-BK
Type: Forged Dynalite-M
Finish Color: Black Powder Coat
Piston Count: 4
Piston 1 Bore (in): 1.75
Piston 2 Bore (in): 1.75
Piston Area (In²): 4.80
Piston Type: Stainless
Mount Type: Lug
Brake Pad Plate: 7112
Brake Pad Area (In²): 6.36
Brake Pad Volume (In³): 2.1
Pad Compound: BP-10
Rotors
Left Hand - Part No: 160-15319
Right Hand - Part No: 160-15319
Type: 1 PC Hub and Rotor
Style: Plain Face
Surface Finish: Plain
Material: Iron
Outside Diameter (in): 11.50
Width (in): 1.00
Vane Count: Vented
Design Type: ULHP
Bedded: No
Dynamically Balanced: No
Rotor Hats
Hat - Part No:
Type:
Material:
Finish Color:
Hat Offset Dimension (in):
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:
Hubs
Hub - Part No:
Type:
Material:
Finish Color:
Mount Style:
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:

Parts & Accessories
Caliper Parts
O-ring Kit: 130-2655
Replacement Dustboot: N-A
Replacement Piston 1: 200-7528
Replacement Piston 2: 200-7528
Replacement Piston 3: N-A
Replacement Piston 4: N-A
CrossOver O-Ring Kit: 130-10540
Crossover Tube: N-A
Self-Bleeder Tube: N-A
Bridge Bolt Kit: N-A
Wear Plate - Left Hand: 300-5875
Wear Plate - Right Hand: 300-5875
Pad Retainer: 180-0056
Bleed Screw Kit: 220-0627
*Brake Lines Needed
Front Line Kit:
Front Line Kit:
220-7699
220-8307
Hat
Bolt Kit:
Hub
Bolt Kit:
