SX6R WCCB Carbon-Ceramic Big Brake Front Brake Kit
Prod #: 140-15356-CSICR
Price: $8,959.94
Front Brake Kit — 140-15356-CSICR

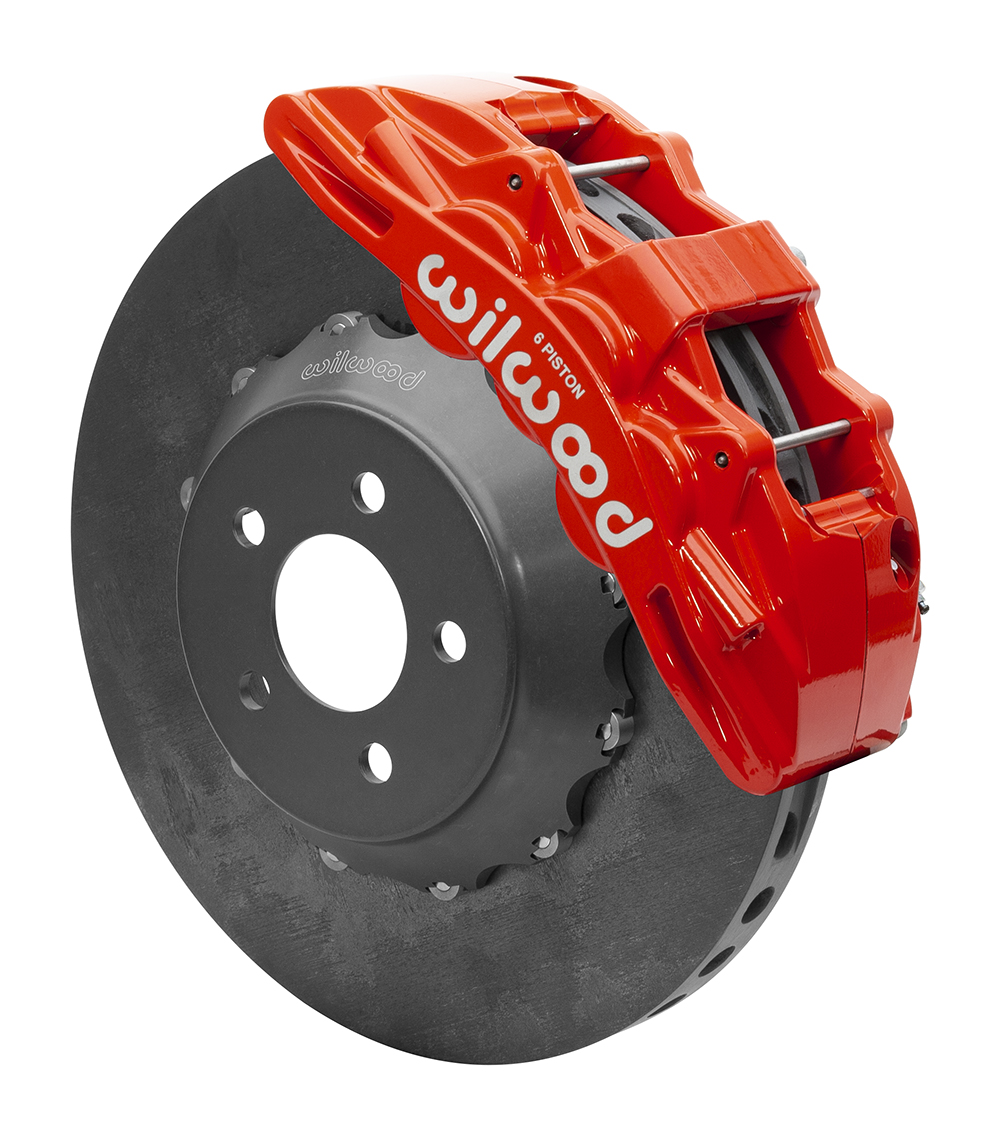

Wilwood SX6R WCCB Carbon-Ceramic Big Brake Front Brake Kit - Red Powder Coat Caliper - Plain Face Rotor Wilwood SX6R WCCB Carbon-Ceramic Big Brake Front Brake Kit - Red Powder Coat Caliper - Plain Face Rotor Zoom Image

Kit Contents

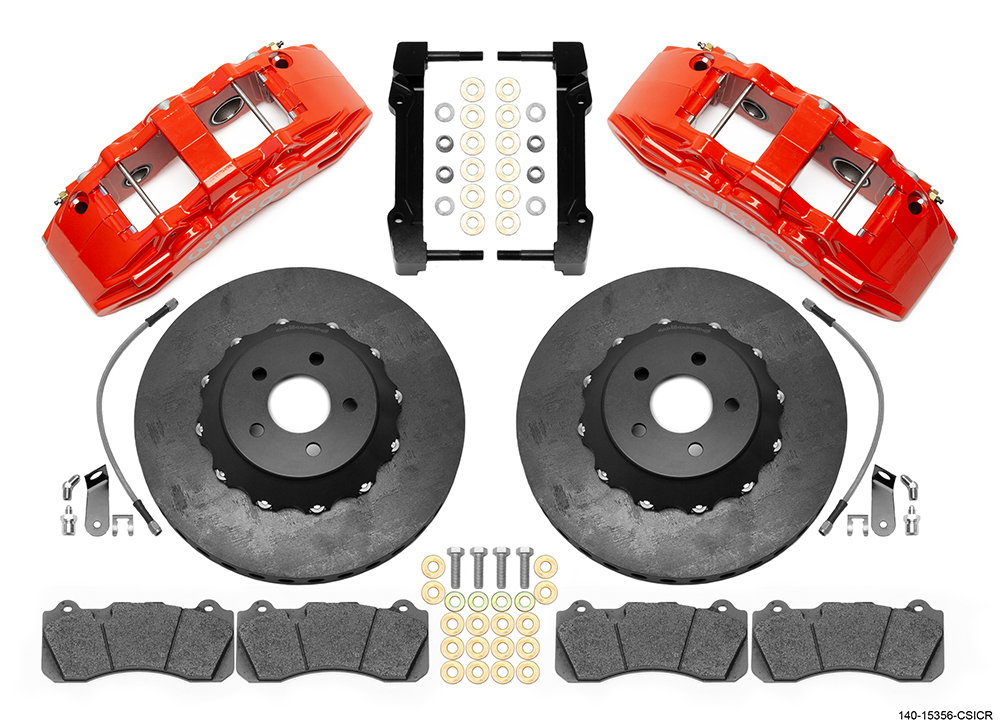

Wilwood SX6R WCCB Carbon-Ceramic Big Brake Front Brake Kit Parts Laid Out - Red Powder Coat Caliper - Plain Face Rotor Wilwood SX6R WCCB Carbon-Ceramic Big Brake Front Brake Kit Parts Laid Out - Red Powder Coat Caliper - Plain Face Rotor Zoom Image


View Custom Caliper Colors

Kit Summary
Spindle Type: Factory Disc Spindle
Mount Type: Radial
Caliper Type: 6 - Red Powder Coat
Rotor Diameter: 15.00
Min Wheel Diameter Req'd*: 19
*This Brake Kit may fit 19-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram
UPC Number
UPC 889545087222

WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Applicable to Brake Pads Only


SX6R WCCB Carbon-Ceramic Big Brake Front Brake Kit

SX6R WCCB Carbon-Ceramic Rotor Front Brake Kits offer an extreme performance upgrade featuring WCCB Carbon-Ceramic Dynamic Mount Rotors with Wilwood’s exclusive Bobbin Mounting System. SX6R WCCB kits are engineered to maximize braking capacity inside custom wheels. These brake kits offer a simple bolt-on installation with minor modifications required to the front spindle only and are fully compatible with ABS and OE master cylinder output. SX6R calipers were designed for the specific purpose of providing high capacity braking with large diameter rotors for extreme duty and race vehicles. It is the largest dual purpose caliper Wilwood has produced, providing big brake performance for dual purpose street and track vehicles. 15.00” WCCB rotors are made from a proprietary blend ceramic matrix composite material commonly known as Carbon-Ceramic and dynamically using Wilwood’s proprietary integrated anti-rattle Bobbin Mounting System. WCCB rotors offer higher thermal conductivity and heat capacity in excess of conventional iron or titanium rotors of similar or even greater weight and have been developed to withstand extreme temperatures with the highest possible degree of resistance against distortion, warping, cracking and wear.


Fitment & Installation Details


SX6R WCCB Carbon-Ceramic Big Brake Front Brake Kit Assembly Schematic

SX6R WCCB Carbon-Ceramic Big Brake Front Brake Kit Assembly Schematic SX6R WCCB Carbon-Ceramic Big Brake Front Brake Kit Assembly Schematic Zoom Image


Compatible Vehicles for this Brake Kit
BRAKE KIT:   SX6R WCCB Carbon-Ceramic Big Brake Front Brake Kit
SPINDLE TYPE:
Factory Disc Spindle;
This Brake Kit is Compatible with the Following Vehicle Makes: Ford

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.

View All Vehicles
lookup vehicles
Caution
Caution THIS BRAKE KIT HAS A HUB OFFSET OF:
This Hub Offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle
NOTE: Check "Figure 2. Wheel Clearance Diagram" in the installation Instructions below to verify you have adequate wheel clearance for this kit.

Wheel Clearance Assembly Instructions

Wheel Clearance Diagram Wheel Clearance Diagram Zoom Image



Assembly Instructions
Notes
1. 14" Rotor




Kit Components & Specifications
Calipers
Left Hand - Part No: 120-14861-RD
Right Hand - Part No: 120-14860-RD
Type: SX6R
Finish Color: Red Powder Coat
Piston Count: 6
Piston 1 Bore (in): 1.75
Piston 2 Bore (in): 1.38
Piston 3 Bore (in): 1.38
Piston Area (In²): 5.40
Piston Type: Stainless
Mount Type: Radial
Brake Pad Plate: D1792
Brake Pad Area (In²): 15.9
Brake Pad Volume (In³): 7.66
Pad Compound: PCM
SX6R Caliper - Red Powder Coat SX6R Caliper - Red Powder Coat Zoom Image
Rotors
Left Hand - Part No: 165-15357
Right Hand - Part No: 165-15357
Type: WCCD Carbon-Ceramic
Style: Plain Face
Surface Finish: Plain
Material: C/SiC
Outside Diameter (in): 15.00
Width (in): 1.25
Vane Count: 36 V
Design Type: C/SiC
Bedded: No
Dynamically Balanced: No
WCCD Carbon-Ceramic - C/SiC - Plain WCCD Carbon-Ceramic - C/SiC - Plain Zoom Image
Rotor Hats
Hat - Part No: 170-12624
Type: Big Brake Dynamic Bobbin Mount Hat - Short Offset
Material: Aluminum
Finish Color: Type III Anodize
Hat Offset Dimension (in): 0.658
Bolt Circle 1: 5 x 4.50
Bolt Circle 2: 5 x 4.75
Bolt Circle 3:
Stud Diameter - BC 1: 0.520
Stud Diameter - BC 2: 0.520
Stud Diameter - BC 3: 0.000
Big Brake Dynamic Bobbin Mount Hat - Short Offset - Aluminum - Type III Anodize Big Brake Dynamic Bobbin Mount Hat - Short Offset - Aluminum - Type III Anodize Zoom Image
Hubs
Hub - Part No:
Type:
Material:
Finish Color:
Mount Style:
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:

Parts & Accessories
Caliper Parts
O-ring Kit: 130-3084
Replacement Dustboot: Call
Replacement Piston 1: 200-7531
Replacement Piston 2: 200-7516
Replacement Piston 3: 200-7516
Replacement Piston 4: N-A
CrossOver O-Ring Kit: N-A
Crossover Tube: N-A
Self-Bleeder Tube: N-A
Bridge Bolt Kit: N-A
Wear Plate - Left Hand: 300-5876
Wear Plate - Right Hand: 300-5876
Pad Retainer: 180-14649
Bleed Screw Kit: 220-0627
Brake Lines
Front Line Kit:
220-13912
Hat
Bolt Kit: Call
Hub
Bolt Kit:
