Front Brake Kit – Part No: 140-15434-CSICR
Call (805) 388-1188

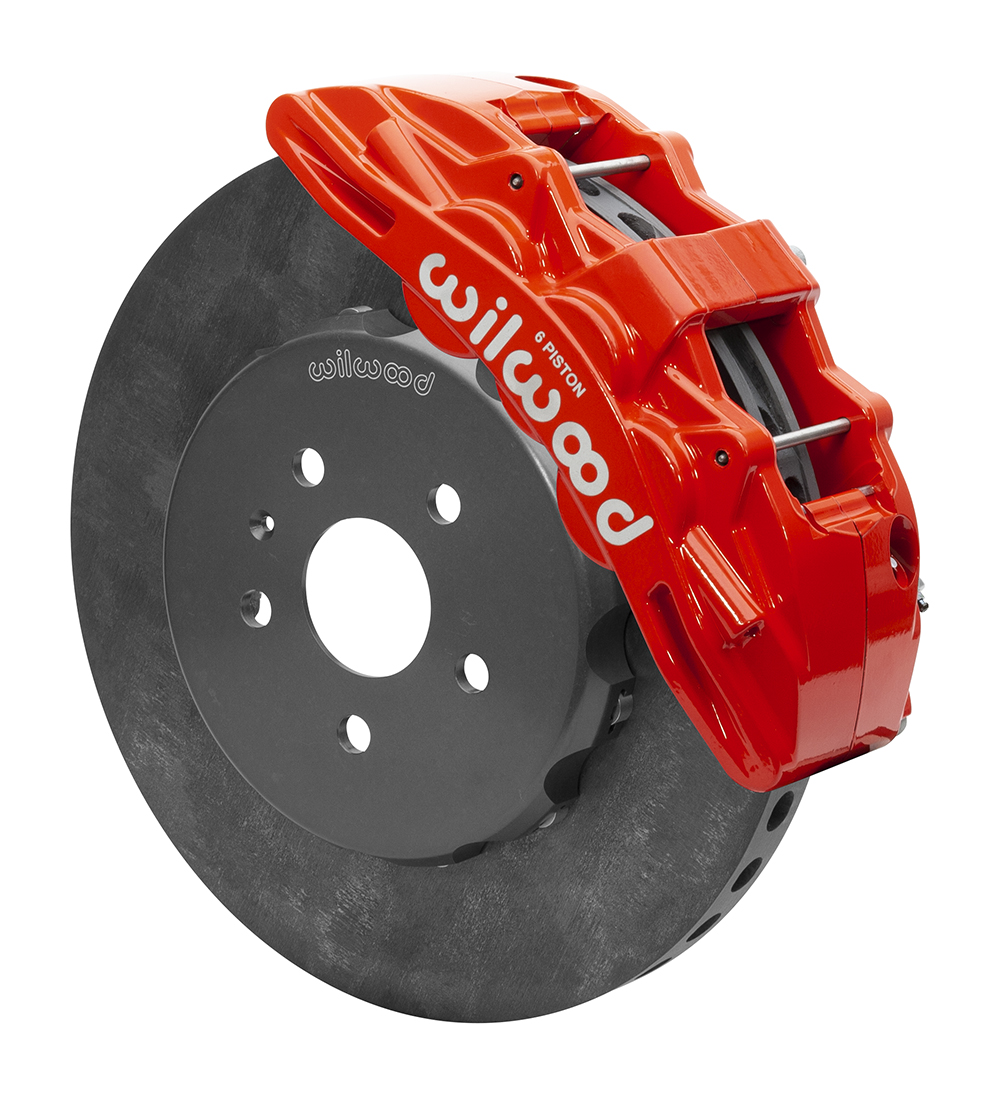

SX6R WCCB Carbon-Ceramic Big Brake Front Brake Kit
Prod #: 140-15434-CSICR
Price: $8,959.94
Front Brake Kit — 140-15434-CSICR

Kit Summary
Spindle Type: Factory Disc Spindle
Mount Type: Radial
Caliper Type: 6 - Red Powder Coat
Rotor Diameter: 15.00
Min Wheel Diameter Req'd*: 19

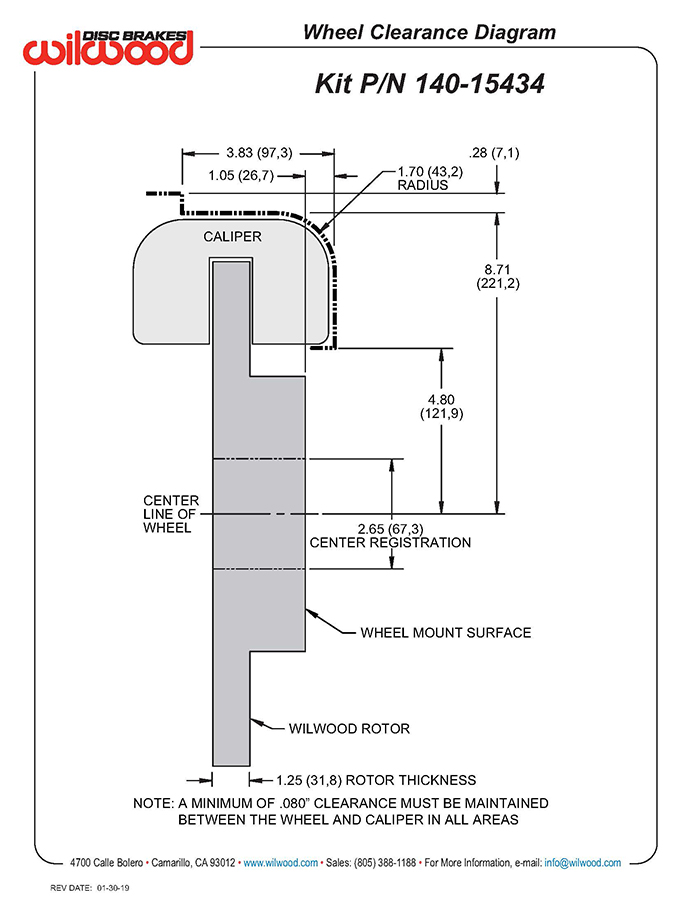

*This Brake Kit may fit 19-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram
UPC Number
UPC 889545089813

WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Applicable to Brake Pads Only


SX6R WCCB Carbon-Ceramic Big Brake Front Brake Kit

SX6R WCCB Carbon-Ceramic Rotor Front Brake Kits offer an extreme performance upgrade featuring WCCB Carbon-Ceramic Dynamic Mount Rotors with Wilwood’s exclusive Bobbin Mounting System. AERO6 WCCB kits are engineered to maximize braking capacity inside custom wheels. These brake kits offer a simple bolt-on installation with minor modifications required to the front spindle only and are fully compatible with ABS and OE master cylinder output. SX6R calipers were designed for the specific purpose of providing high capacity braking with large diameter rotors for extreme duty and race vehicles. It is the largest dual purpose caliper Wilwood has produced, providing big brake performance for dual purpose street and track vehicles.


Fitment & Installation Details

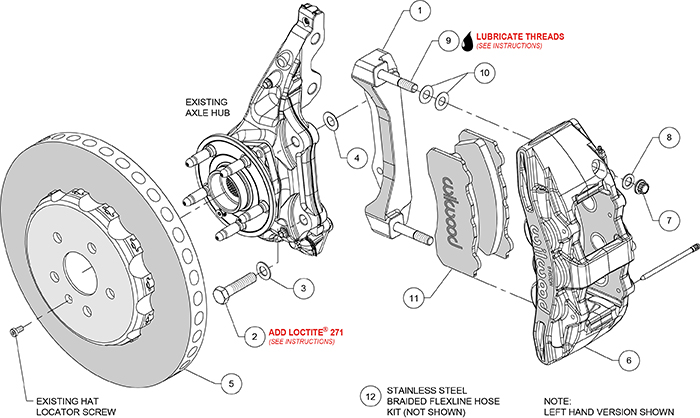

SX6R WCCB Carbon-Ceramic Big Brake Front Brake Kit Assembly Schematic



Compatible Vehicles for this Brake Kit
BRAKE KIT:   SX6R WCCB Carbon-Ceramic Big Brake Front Brake Kit
SPINDLE TYPE:
Factory Disc Spindle;
This Brake Kit is Compatible with the Following Vehicle Makes: Chevrolet

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.

View All Vehicles
lookup vehicles
Caution
Caution THIS BRAKE KIT HAS A HUB OFFSET OF:
This Hub Offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle
NOTE: Check "Figure 2. Wheel Clearance Diagram" in the installation Instructions below to verify you have adequate wheel clearance for this kit.

Wheel Clearance Assembly Instructions




Assembly Instructions
Notes

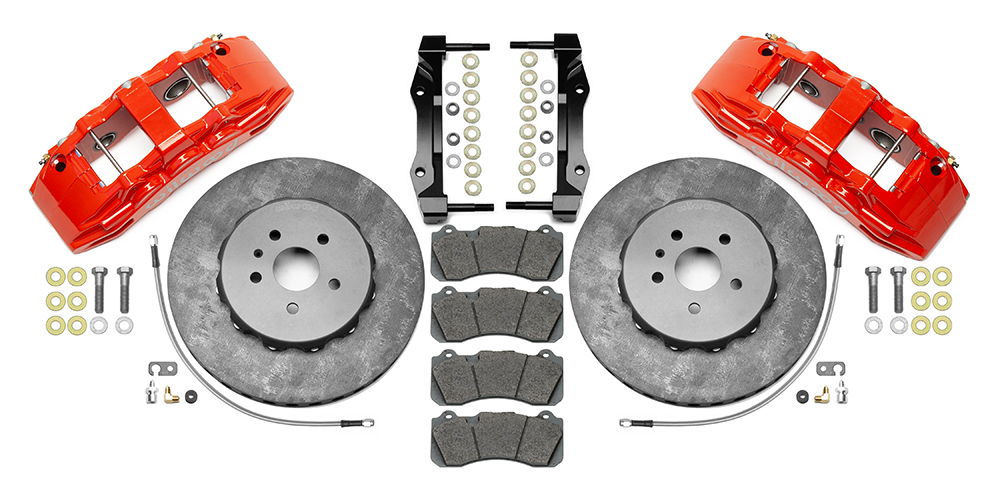

Kit Components & Specifications
Calipers
Left Hand - Part No: 120-14863-RD
Right Hand - Part No: 120-14862-RD
Type: SX6R
Finish Color: Red Powder Coat
Piston Count: 6
Piston 1 Bore (in): 1.62
Piston 2 Bore (in): 1.12
Piston 3 Bore (in): 1.12
Piston Area (In²): 4.04
Piston Type: Stainless
Mount Type: Radial
Brake Pad Plate: D1792
Brake Pad Area (In²): 15.9
Brake Pad Volume (In³): 7.66
Pad Compound: PCM
Rotors
Left Hand - Part No: 165-15433
Right Hand - Part No: 165-15433
Type: WCCD Carbon-Ceramic
Style: Plain Face
Surface Finish: Plain
Material: C/SiC
Outside Diameter (in): 15.00
Width (in): 1.25
Vane Count: 36 V
Design Type: C/SiC
Bedded: No
Dynamically Balanced: No
Rotor Hats
Hat - Part No: 170-15432
Type: Big Brake Dynamic Hat - Flared Bell
Material: Aluminum
Finish Color: Type III Anodize
Hat Offset Dimension (in): 0.910
Bolt Circle 1: 5 x 4.72
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1: 0.640
Stud Diameter - BC 2: 0.000
Stud Diameter - BC 3: 0.000
Hubs
Hub - Part No:
Type:
Material:
Finish Color:
Mount Style:
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:

Parts & Accessories
Caliper Parts
O-ring Kit: 130-5972
Replacement Dustboot: Call
Replacement Piston 1: 200-7519
Replacement Piston 2: 200-7513
Replacement Piston 3: 200-7513
Replacement Piston 4: N-A
CrossOver O-Ring Kit: N-A
Crossover Tube: N-A
Self-Bleeder Tube: N-A
Bridge Bolt Kit: N-A
Wear Plate - Left Hand: 300-5876
Wear Plate - Right Hand: 300-5876
Pad Retainer: 180-14649
Bleed Screw Kit: 220-0627
Brake Lines
Front Line Kit:
220-11382
Hat
Bolt Kit:
Hub
Bolt Kit:
