Front Brake Kit – Part No: 140-15525
Call (805) 388-1188
AERO6 Big Brake Truck Front Brake Kit
Prod #: 140-15525
Price: $2,234.33
Front Brake Kit — 140-15525

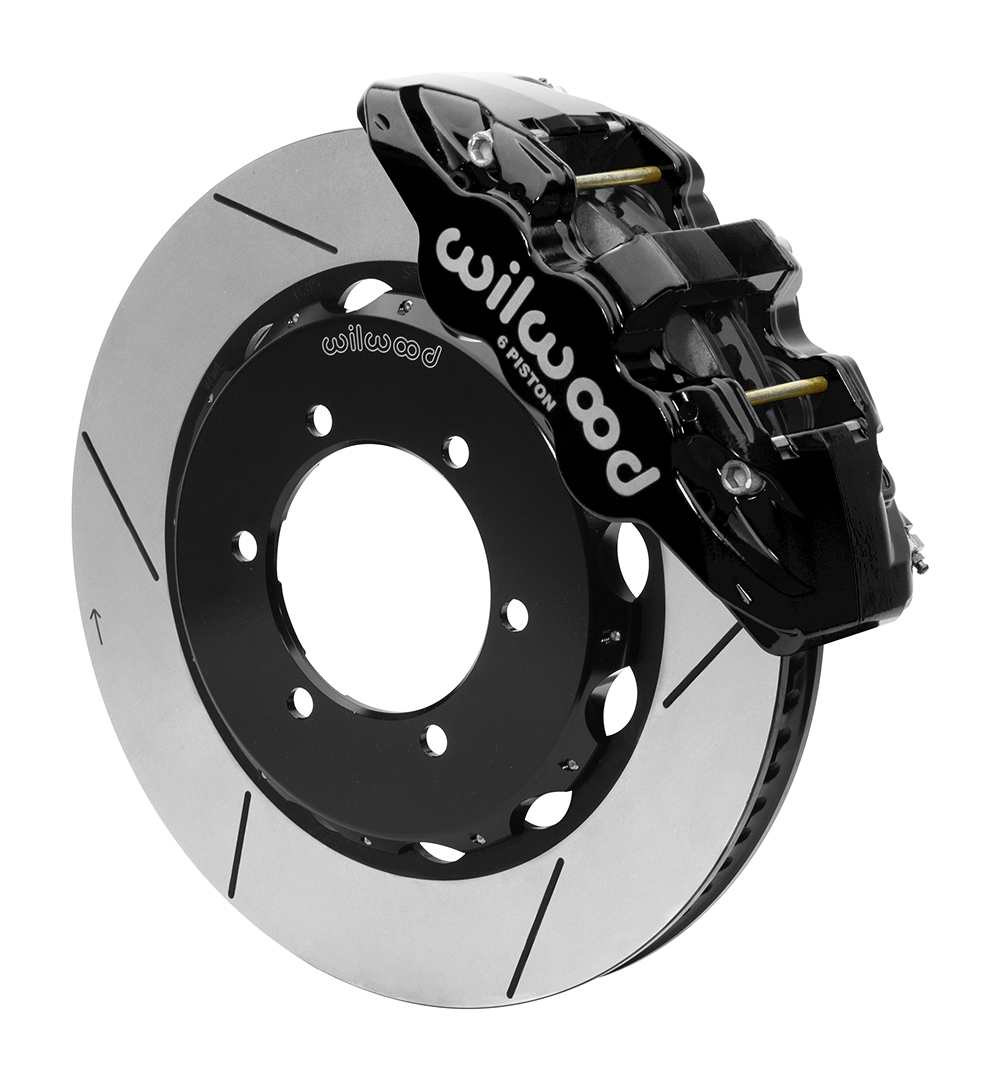

Wilwood AERO6 Big Brake Truck Front Brake Kit - Black Powder Coat Caliper - GT Slotted Rotor Wilwood AERO6 Big Brake Truck Front Brake Kit - Black Powder Coat Caliper - GT Slotted Rotor Zoom Image

Kit Contents

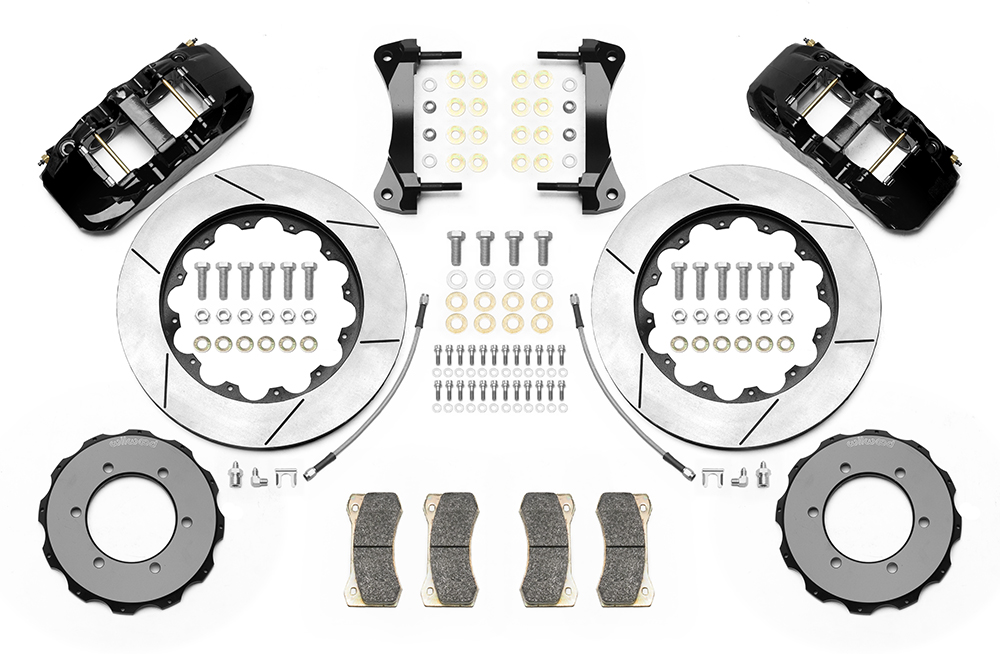

Wilwood AERO6 Big Brake Truck Front Brake Kit Parts Laid Out - Black Powder Coat Caliper - GT Slotted Rotor Wilwood AERO6 Big Brake Truck Front Brake Kit Parts Laid Out - Black Powder Coat Caliper - GT Slotted Rotor Zoom Image


View Custom Caliper Colors

Kit Summary
Spindle Type: Factory Disc Spindle
Mount Type: Radial
Caliper Type: 6 - Black Powder Coat
Rotor Diameter: 14.25
Min Wheel Diameter Req'd*: 18
*This Brake Kit may fit 18-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram
UPC Number
UPC 889545089035

WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Applicable to Brake Pads Only


AERO6 Big Brake Truck Front Brake Kit

AERO6-DS calipers were designed for the specific purpose of providing big capacity braking with large diameter rotors for heavy weight and extreme duty vehicles. For trucks and SUV’s, it provides big stopping power for towing, off-road, and enhanced braking with wheel and tire upgrades. Kits listed for specific vehicles are fully compatible with OE master cylinder output and ABS function. Directional staggered vane 14.25” rotors provide maximum cooling for sustained high heat durability. Aero6 Dust Boot calipers incorporate an exclusive dust wiper seal that further protects the piston bore from dust and corrosion. Kit comes complete with stainless braided flex lines.


Fitment & Installation Details

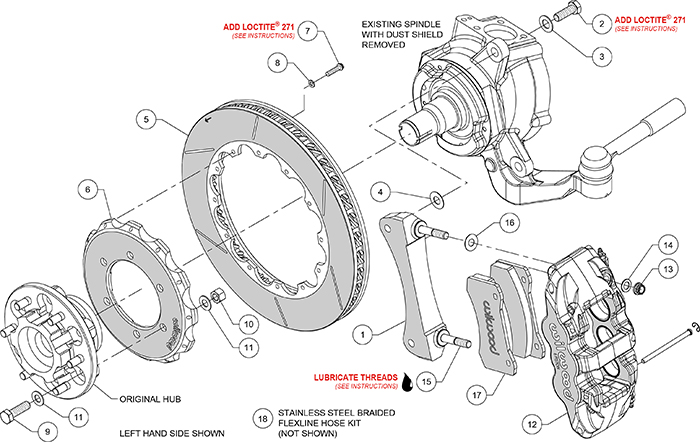

AERO6 Big Brake Truck Front Brake Kit Assembly Schematic

AERO6 Big Brake Truck Front Brake Kit Assembly Schematic AERO6 Big Brake Truck Front Brake Kit Assembly Schematic Zoom Image


Compatible Vehicles for this Brake Kit
BRAKE KIT:   AERO6 Big Brake Truck Front Brake Kit
SPINDLE TYPE:
Factory Disc Spindle;
This Brake Kit is Compatible with the Following Vehicle Makes: Nissan

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.

View All Vehicles
lookup vehicles
Caution
Caution THIS BRAKE KIT HAS A HUB OFFSET OF:
This Hub Offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle
NOTE: Check "Figure 2. Wheel Clearance Diagram" in the installation Instructions below to verify you have adequate wheel clearance for this kit.

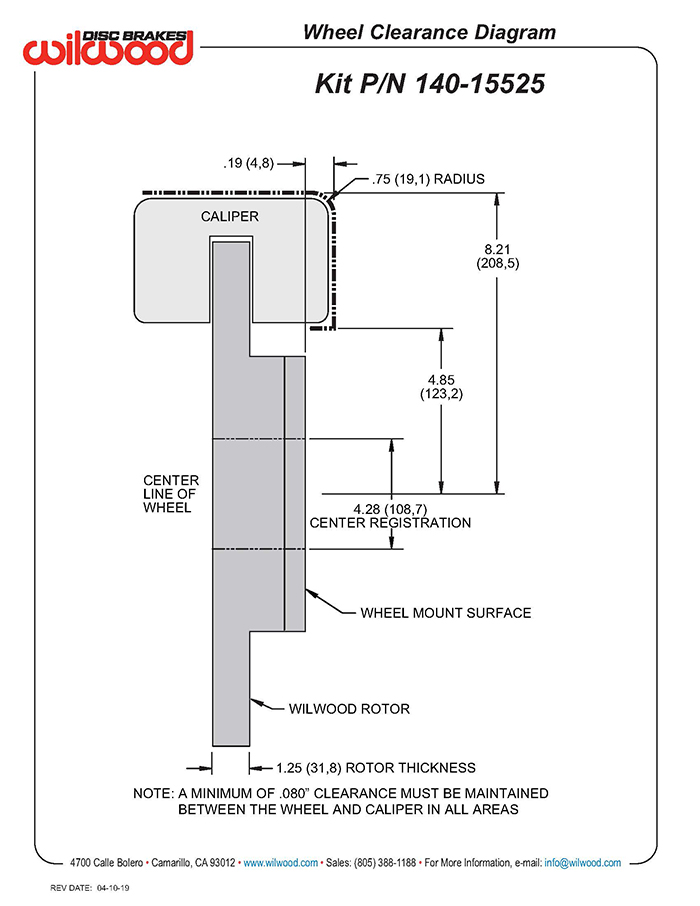

Wheel Clearance Assembly Instructions

Wheel Clearance Diagram Wheel Clearance Diagram Zoom Image



Assembly Instructions
Notes





Kit Components & Specifications
Calipers
Left Hand - Part No: 120-15527-BK
Right Hand - Part No: 120-15526-BK
Type: AERO6-DS
Finish Color: Black Powder Coat
Piston Count: 6
Piston 1 Bore (in): 1.75
Piston 2 Bore (in): 1.62
Piston 3 Bore (in): 1.62
Piston Area (In²): 6.52
Piston Type: Stainless
Mount Type: Radial
Brake Pad Plate: 6617
Brake Pad Area (In²): 11.1
Brake Pad Volume (In³): 5.2
Pad Compound: BP-20
AERO6-DS Caliper - Black Powder Coat AERO6-DS Caliper - Black Powder Coat Zoom Image
Rotors
Left Hand - Part No: 160-11316-GTB
Right Hand - Part No: 160-11315-GTB
Type: GT 72 Curved Vane
Style: GT Slotted
Surface Finish: Black Electro Coat
Material: Spec-37 Iron
Outside Diameter (in): 14.25
Width (in): 1.25
Vane Count: 72 CV
Design Type: GT-BLK
Bedded: No
Dynamically Balanced: Yes
GT 72 Curved Vane - Spec-37 Iron - Black Electro Coat GT 72 Curved Vane - Spec-37 Iron - Black Electro Coat
Rotor Hats
Hat - Part No: 170-15534
Type:
Material:
Finish Color:
Hat Offset Dimension (in):
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:
 -  - - -
Hubs
Hub - Part No:
Type:
Material:
Finish Color:
Mount Style:
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:

Parts & Accessories
Caliper Parts
O-ring Kit: 130-14278
Replacement Dustboot: Call
Replacement Piston 1: 200-7531
Replacement Piston 2: 200-7519
Replacement Piston 3: 200-7519
Replacement Piston 4: N-A
CrossOver O-Ring Kit: N-A
Crossover Tube: N-A
Self-Bleeder Tube: N-A
Bridge Bolt Kit: N-A
Wear Plate - Left Hand: 300-5876
Wear Plate - Right Hand: 300-5876
Pad Retainer: N-A
Bleed Screw Kit: 220-0627
Brake Lines
Front Line Kit:
220-15535
Hat
Bolt Kit:
Hub
Bolt Kit:

Additional related products:




More Details
More Details
More Details
More Details
