Front Brake Kit – Part No: 140-15912-R
Call (805) 388-1188
Forged Dynalite Big Brake Front Brake Kit (Hat)
Prod #: 140-15912-R
Price: $1,000.07
Front Brake Kit — 140-15912-R


Kit Contents

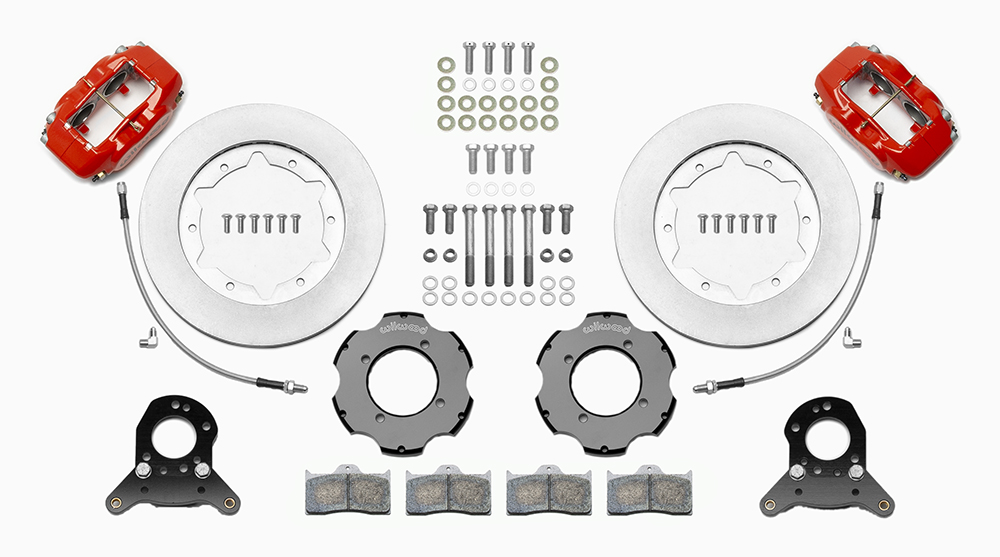

Wilwood Forged Dynalite Big Brake Front Brake Kit (Hat) Parts Laid Out - Red Powder Coat Caliper - Plain Face Rotor Wilwood Forged Dynalite Big Brake Front Brake Kit (Hat) Parts Laid Out - Red Powder Coat Caliper - Plain Face Rotor Zoom Image


View Custom Caliper Colors

Kit Summary
Spindle Type: Factory Disc Spindle
Mount Type: Lug
Caliper Type: 4 - Red Powder Coat
Rotor Diameter: 11.00
Min Wheel Diameter Req'd*: 15
*This Brake Kit may fit 15-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram
UPC Number
UPC 889545093452

WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Applicable to Brake Pads Only

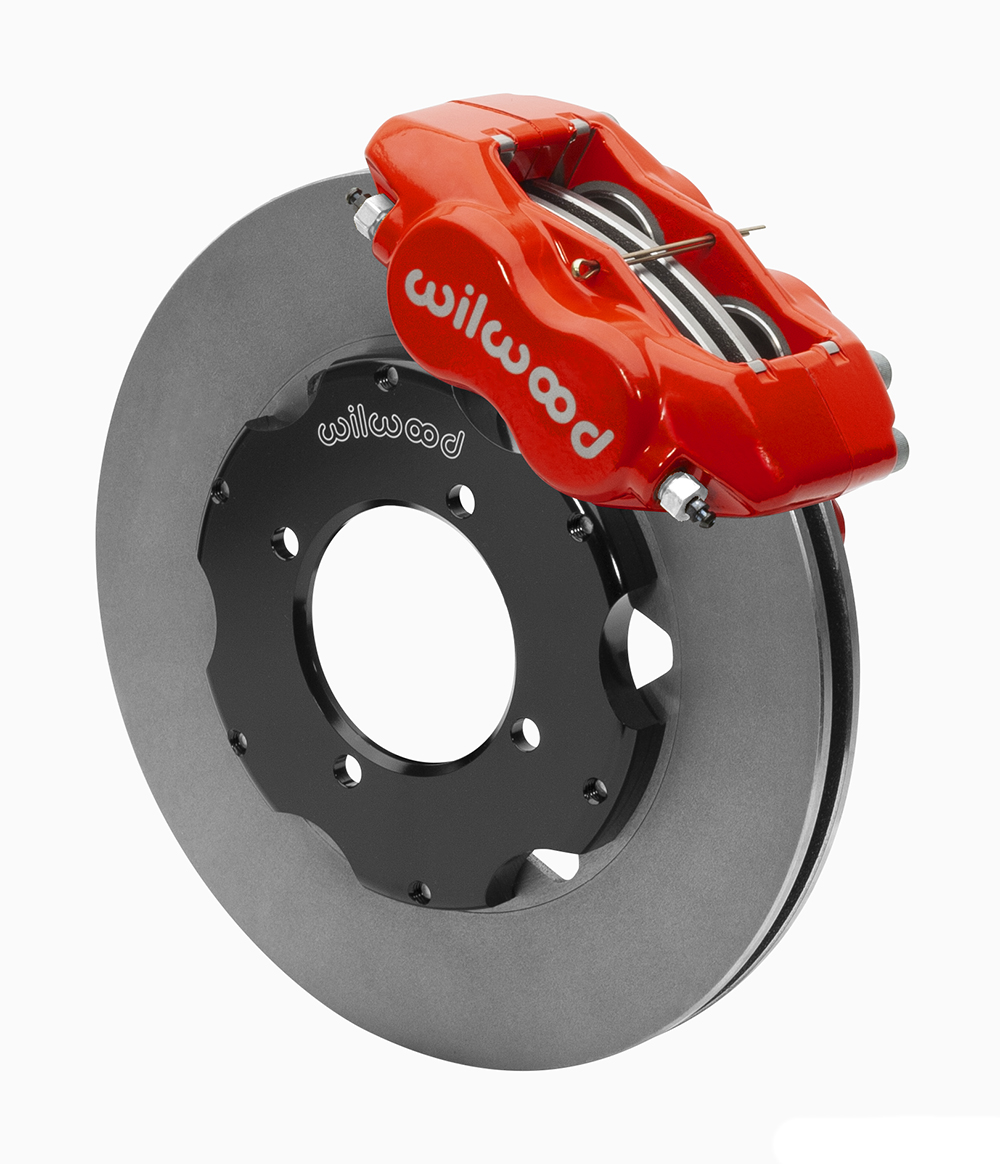

Forged Dynalite Big Brake Front Brake Kit (Hat)

Forged Dynalite ProSeries kits provide high performance, big brake stopping power by combining modern brake technology with high-tech styling to update the brakes on your vintage Triumph. The OE two-piston iron calipers and solid plate one-piece rotors are replaced with forged aluminum, four-piston calipers mounted over larger diameter, certified alloy 30 vane vented iron rotors. The new two-piece rotor assemblies attach the OE hub with weight-saving forged aluminum mounting hats. The calipers feature an increase in effective piston volume to deliver higher clamping power with less pedal effort than stock. The thicker, vented rotor design adds cooling efficiency and durability to extend service life. BP series SmartPads add high response with increased resistance to fade and longer wear over typical OE replacement pads. These kits are a direct bolt-on to the OE spindle, use the OE hubs, and can be used with the optional wire wheel knock-off mounts, with no change in track width and without the need for modifications. Options for caliper colors and rotor styles are available to personalize the look on any car. For the on-track driving enthusiasts, additional track-only fortifications are available on a custom order basis by contacting the technical staff at the factory.

1974 Triumph TR6 Wilwood Dynalite Front Big Brake Install

Fitment & Installation Details


Forged Dynalite Big Brake Front Brake Kit (Hat) Assembly Schematic

Forged Dynalite Big Brake Front Brake Kit (Hat) Assembly Schematic Forged Dynalite Big Brake Front Brake Kit (Hat) Assembly Schematic Zoom Image


Compatible Vehicles for this Brake Kit
BRAKE KIT:   Forged Dynalite Big Brake Front Brake Kit (Hat)
SPINDLE TYPE:
Factory Disc Spindle;
This Brake Kit is Compatible with the Following Vehicle Makes: Triumph

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.

View All Vehicles
lookup vehicles
Caution
Caution THIS BRAKE KIT HAS A HUB OFFSET OF:
This Hub Offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle
NOTE: Check "Figure 2. Wheel Clearance Diagram" in the installation Instructions below to verify you have adequate wheel clearance for this kit.

Wheel Clearance Assembly Instructions

Wheel Clearance Diagram Wheel Clearance Diagram Zoom Image



Assembly Instructions
Notes





Kit Components & Specifications
Calipers
Left Hand - Part No: 120-13842-RD
Right Hand - Part No: 120-13842-RD
Type: Forged Dynalite Internal
Finish Color: Red Powder Coat
Piston Count: 4
Piston 1 Bore (in): 1.62
Piston 2 Bore (in): 1.62
Piston Area (In²): 4.12
Piston Type: Stainless
Mount Type: Lug
Brake Pad Plate: 7112
Brake Pad Area (In²): 6.36
Brake Pad Volume (In³): 2.1
Pad Compound: BP-10
Forged Dynalite Internal Caliper - Red Powder Coat Forged Dynalite Internal Caliper - Red Powder Coat Zoom Image
Rotors
Left Hand - Part No: 160-5840
Right Hand - Part No: 160-5840
Type: Ultralite HP 30
Style: Plain Face
Surface Finish: Plain
Material: Iron
Outside Diameter (in): 11.00
Width (in): 0.81
Vane Count: 30 V
Design Type: ULHP
Bedded: No
Dynamically Balanced: No
Ultralite HP 30  - Iron - Plain Ultralite HP 30 - Iron - Plain Zoom Image
Rotor Hats
Hat - Part No: 170-15920
Type: Big Brake Hat - Short Offset
Material: Aluminum
Finish Color: Black E-Coat
Hat Offset Dimension (in): 0.725
Bolt Circle 1: 4 x 4.00
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1: 0.390
Stud Diameter - BC 2: 0.000
Stud Diameter - BC 3: 0.000
Big Brake Hat - Short Offset - Aluminum - Black E-Coat Big Brake Hat - Short Offset - Aluminum - Black E-Coat Zoom Image
Hubs
Hub - Part No:
Type:
Material:
Finish Color:
Mount Style:
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:

Parts & Accessories
Caliper Parts
O-ring Kit: 130-4346
Replacement Dustboot: N-A
Replacement Piston 1: 200-7520
Replacement Piston 2: 200-7520
Replacement Piston 3: N-A
Replacement Piston 4: N-A
CrossOver O-Ring Kit: 130-10540
Crossover Tube: N-A
Self-Bleeder Tube: N-A
Bridge Bolt Kit: N-A
Wear Plate - Left Hand: 300-5875
Wear Plate - Right Hand: 300-5875
Pad Retainer: 180-0055
Bleed Screw Kit: 220-0627
Brake Lines
Front Line Kit:
220-15921
Hat
Bolt Kit: 230-12121
Hub
Bolt Kit:

Additional related products:




More Details
More Details
More Details
More Details
