AERO6 Big Brake Lug Drive Front Brake Kit (Race)
Prod #: 140-16202
Price: $3,628.37

*Line Kit Needed


220-8176
$80.15
*Line Kit Needed


220-9100
$76.95
Front Brake Kit — 140-16202

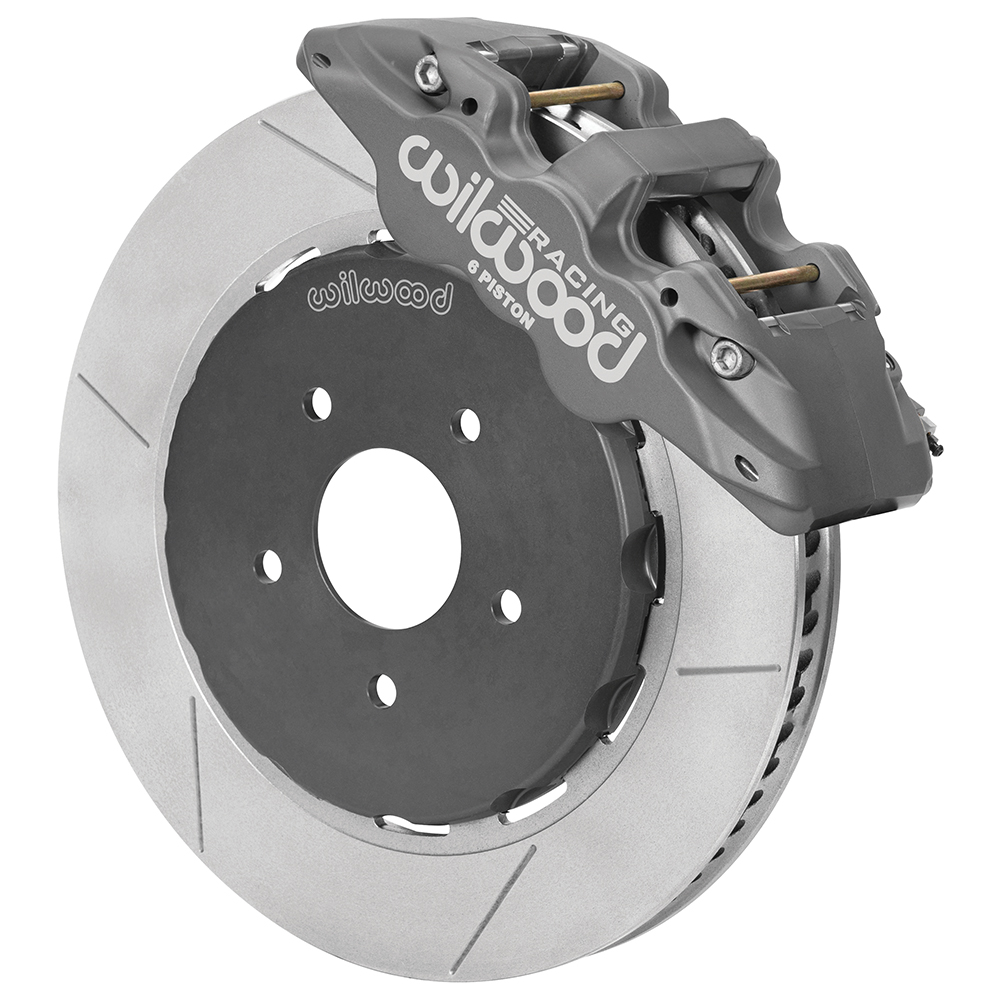

Wilwood AERO6 Big Brake Lug Drive Front Brake Kit (Race) - Type III Ano Caliper - GT Slotted Rotor Wilwood AERO6 Big Brake Lug Drive Front Brake Kit (Race) - Type III Ano Caliper - GT Slotted Rotor Zoom Image

Kit Contents

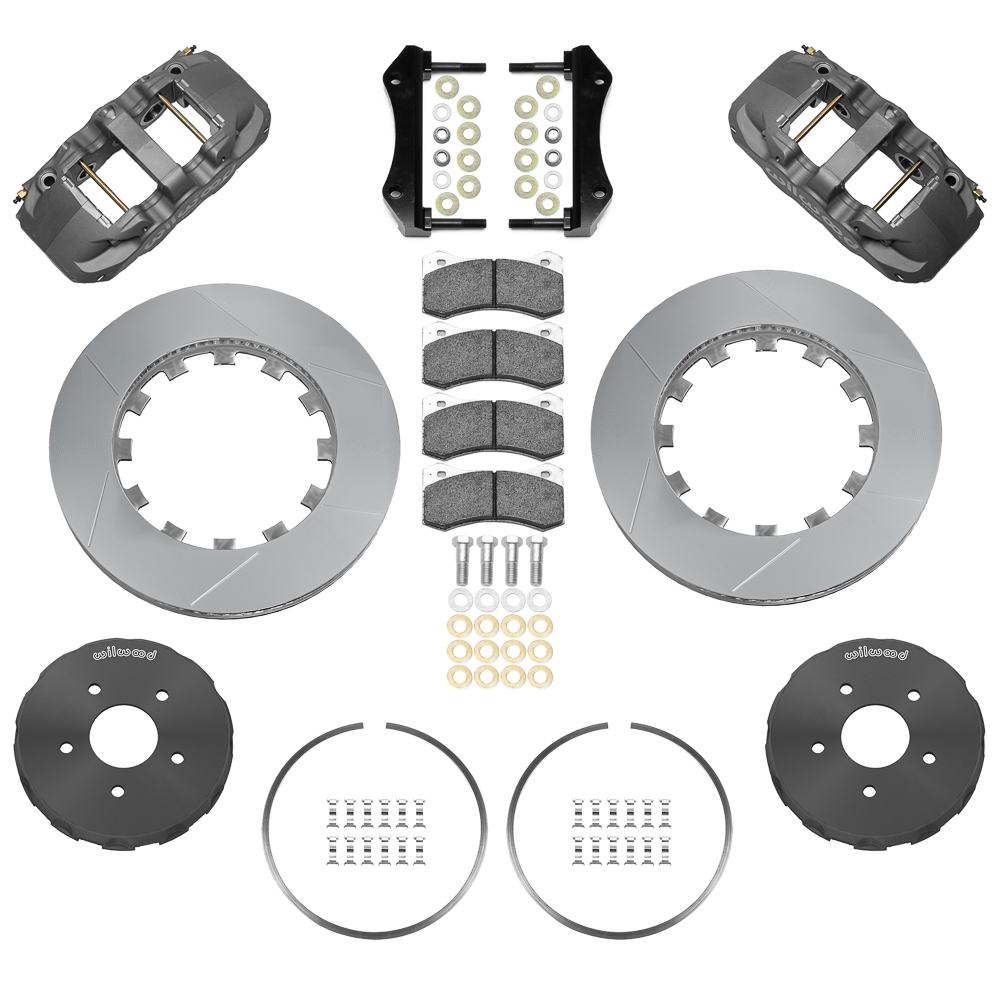

Wilwood AERO6 Big Brake Lug Drive Front Brake Kit (Race) Parts Laid Out - Type III Ano Caliper - GT Slotted Rotor Wilwood AERO6 Big Brake Lug Drive Front Brake Kit (Race) Parts Laid Out - Type III Ano Caliper - GT Slotted Rotor Zoom Image


View Custom Caliper Colors

Kit Summary
Spindle Type: Factory Disc Spindle
Mount Type: Radial
Caliper Type: 6 - Type III Ano
Rotor Diameter: 14.00
Min Wheel Diameter Req'd*: 18
*This Brake Kit may fit 18-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram
UPC Number
UPC 889545098624

WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Applicable to Brake Pads Only


AERO6 Big Brake Lug Drive Front Brake Kit (Race)

AERO6R/ST six piston radial mount race calipers are coupled with the high cooling capacity of 14.00" dynamically mounted Spec37 GT directional vane rotors to provide the ultimate brake package for unrestricted road race competition. AERO6R/ST calipers use a forged aluminum body and feature a Type III Mil-Spec, medium gray color hard anodized finish. Hard anodizing provides superior wear resistance in the piston bores, and high resistance to abrasion and corrosion throughout. This latest model of the AERO6R/ST calipers features a wider than standard body that accepts 20mm thick pads to add volume for longer service life. Thermlock® pistons are used to reduce heat transfer from the pads to increase fade resistance, and extend service life with decreased temperatures in the caliper body, fluid, and seals. Internal damper springs and controlled retraction, high-temperature piston seals assure consistent pedal height from start to finish. Caliper piston volumes are matched for full compatibility with the OE master cylinder output and ABS controls. The calipers are also fully compatible with manual brake conversions to balance bar pedals using appropriately sized master cylinders. Spec37 alloy GT series directional vane rotors are dynamically mounted using our new Lug Drive mounting system to forged aluminum hats. As is with the calipers, the hats are hard anodized for superior wear resistance and extended service life at the load bearing surfaces. Mounting brackets, including all premium grade fasteners, secure the calipers to the uprights in the stock location with no modifications required. This championship proven system is completed with high temperature, high friction, race compound pads selected specifically by application. Installation requires the separate purchase of the stainless steel braided flexline kit that must be ordered according to the model year.


Fitment & Installation Details


AERO6 Big Brake Lug Drive Front Brake Kit (Race) Assembly Schematic

AERO6 Big Brake Lug Drive Front Brake Kit (Race) Assembly Schematic AERO6 Big Brake Lug Drive Front Brake Kit (Race) Assembly Schematic Zoom Image


Compatible Vehicles for this Brake Kit
BRAKE KIT:   AERO6 Big Brake Lug Drive Front Brake Kit (Race)
SPINDLE TYPE:
Factory Disc Spindle;
This Brake Kit is Compatible with the Following Vehicle Makes: Art Morrison ATS / Speedtech Cadillac Chevrolet Factory Five Racing

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.

View All Vehicles
lookup vehicles
Caution
Caution THIS BRAKE KIT HAS A HUB OFFSET OF:
This Hub Offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle
NOTE: Check "Figure 2. Wheel Clearance Diagram" in the installation Instructions below to verify you have adequate wheel clearance for this kit.

Wheel Clearance Assembly Instructions

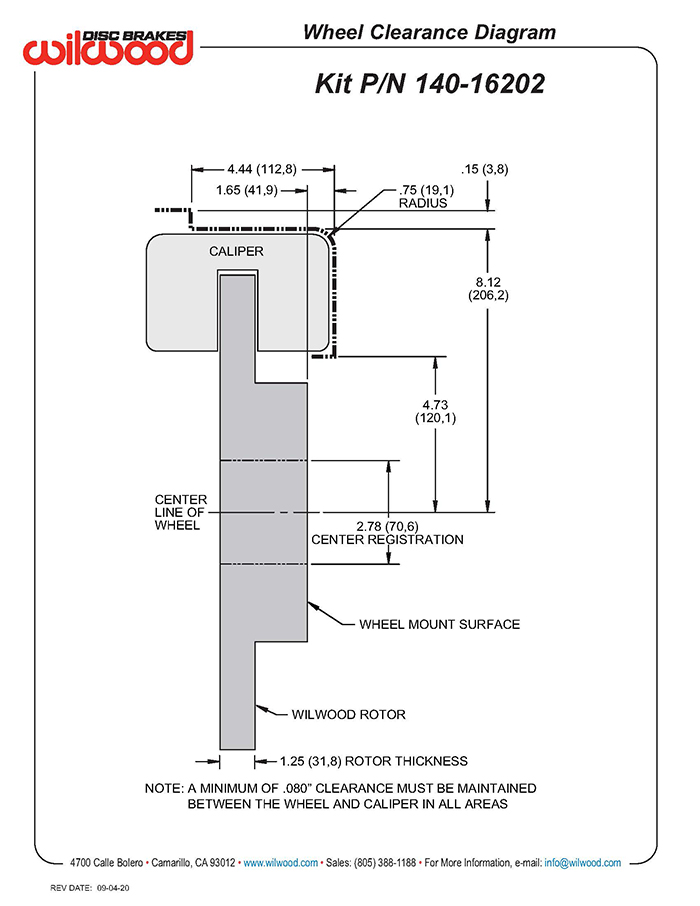

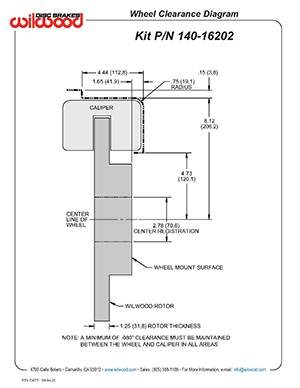

Wheel Clearance Diagram Wheel Clearance Diagram Zoom Image



Assembly Instructions
Notes
1. Road Race kits contain high temperature racing pads. Extended low temperature use will cause premature rotor and pad wear.
2. Kit may fit some 18" wheels. Check wheel clearance diagram in kit installation instructions before purchase.



Kit Components & Specifications
Calipers
Left Hand - Part No: 120-13300
Right Hand - Part No: 120-13299
Type: AERO6
Finish Color: Type III Ano
Piston Count: 6
Piston 1 Bore (in): 1.62
Piston 2 Bore (in): 1.12
Piston 3 Bore (in): 1.12
Piston Area (In²): 4.04
Piston Type: Thermlock
Mount Type: Radial
Brake Pad Plate: 6620
Brake Pad Area (In²): 11.1
Brake Pad Volume (In³): 6.6
Pad Compound: BP-30
AERO6 Caliper - Type III Ano AERO6 Caliper - Type III Ano Zoom Image
Rotors
Left Hand - Part No: 160-15874
Right Hand - Part No: 160-15873
Type: GT 72 Curved Vane
Style: GT Slotted
Surface Finish: Plain
Material: Spec-37 Iron
Outside Diameter (in): 14.00
Width (in): 1.25
Vane Count: 72 CV
Design Type: GT
Bedded: No
Dynamically Balanced: Yes
GT 72 Curved Vane - Spec-37 Iron - Plain GT 72 Curved Vane - Spec-37 Iron - Plain Zoom Image
Rotor Hats
Hat - Part No: 170-16199
Type: Big Brake Dynamic Lug Drive - Short Offset
Material: Aluminum
Finish Color: Type III Anodize
Hat Offset Dimension (in): 0.280
Bolt Circle 1: 5 x 4.75
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1: 0.520
Stud Diameter - BC 2: 0.000
Stud Diameter - BC 3: 0.000
Big Brake Dynamic Lug Drive - Short Offset - Aluminum - Type III Anodize Big Brake Dynamic Lug Drive - Short Offset - Aluminum - Type III Anodize Zoom Image
Hubs
Hub - Part No:
Type:
Material:
Finish Color:
Mount Style:
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:

Parts & Accessories
Caliper Parts
O-ring Kit: 130-5972
Replacement Dustboot: N-A
Replacement Piston 1: 200-7553
Replacement Piston 2: 200-7556
Replacement Piston 3: 200-7556
Replacement Piston 4: N-A
CrossOver O-Ring Kit: N-A
Crossover Tube: N-A
Self-Bleeder Tube: N-A
Bridge Bolt Kit: N-A
Wear Plate - Left Hand: 300-5876
Wear Plate - Right Hand: 300-5876
Pad Retainer: N-A
Bleed Screw Kit: 220-0627
*Brake Lines Needed
Front Line Kit:
Front Line Kit:
220-8176
220-9100
Hat
Bolt Kit: 300-14913
Hub
Bolt Kit:

Additional related products:




More Details
More Details
More Details
More Details






All images shown are for illustrative purposes only. Actual product received may be different than what is portrayed on the web site.
Wilwood makes every effort to maintain our web site to ensure the accuracy of prices and product information. However, product information and prices are subject to change without notice. Please call (805) 388-1188 before ordering to verify current prices and product information.
