Front Brake Kit – Part No: 140-9013-D
Call (805) 388-1188

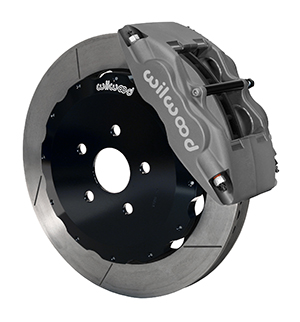

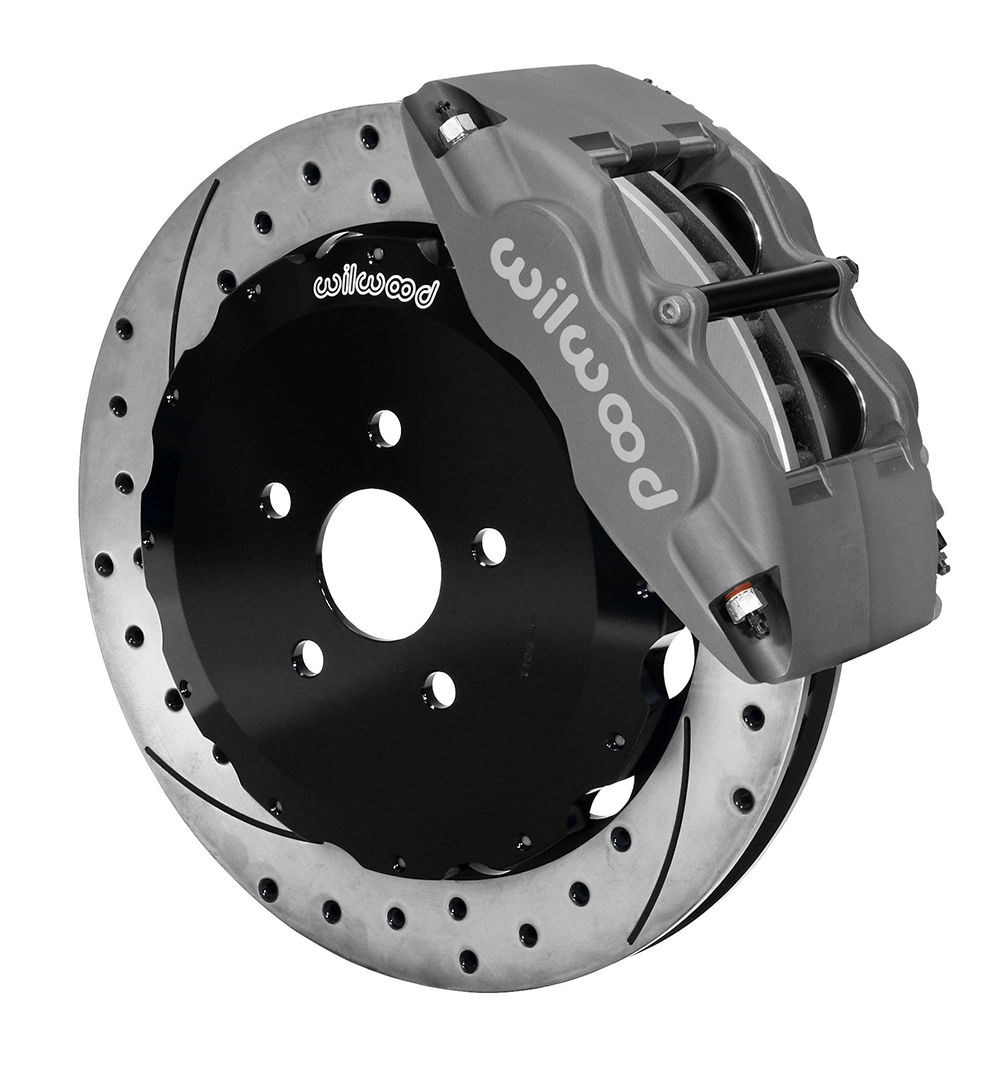

Forged Superlite 4 Big Brake Front Brake Kit (Hat)
Prod #: 140-9013-D
Price: $1,310.39
*NOTE: Brake Line Kit Needed.
220-9365 $88.83
Front Brake Kit — 140-9013-D

Kit Summary
Spindle Type: Factory Disc Spindle
Mount Type: Lug
Caliper Type: 4 - Type III Ano
Rotor Diameter: 12.88
Min Wheel Diameter Req'd*: 17
*This Brake Kit may fit 17-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram
UPC Number
UPC 889545030334

WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Applicable to Brake Pads Only


Forged Superlite 4 Big Brake Front Brake Kit (Hat)

The big pad capacity of the forged Superlite four piston caliper is combined with oversized rotors for this unique group of specialized application kits. The roots of the forged Superlite are deep in competition. It is a track proven performer. But the FSL is far from one dimensional. Lug mounting and a full range of piston sizes give the FSL widespread adaptability for applications with unique mounting and piston volume requirements. Options for caliper finish and rotor design provide the opportunity to configure these kits for high-tech style with full capability for extreme duty use on the street or at the track.


Fitment & Installation Details

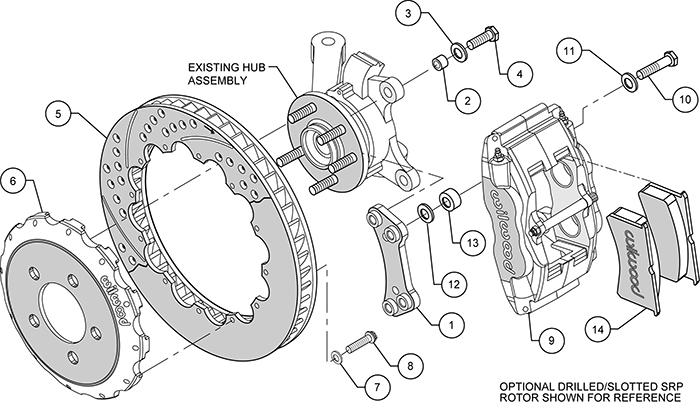

Forged Superlite 4 Big Brake Front Brake Kit (Hat) Assembly Schematic


Compatible Vehicles for this Brake Kit
BRAKE KIT:   Forged Superlite 4 Big Brake Front Brake Kit (Hat)
SPINDLE TYPE:
Factory Disc Spindle;
This Brake Kit is Compatible with the Following Vehicle Makes: Scion

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.

View All Vehicles
lookup vehicles
Caution
Caution THIS BRAKE KIT HAS AN HUB OFFSET OF:
This Hub Offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle

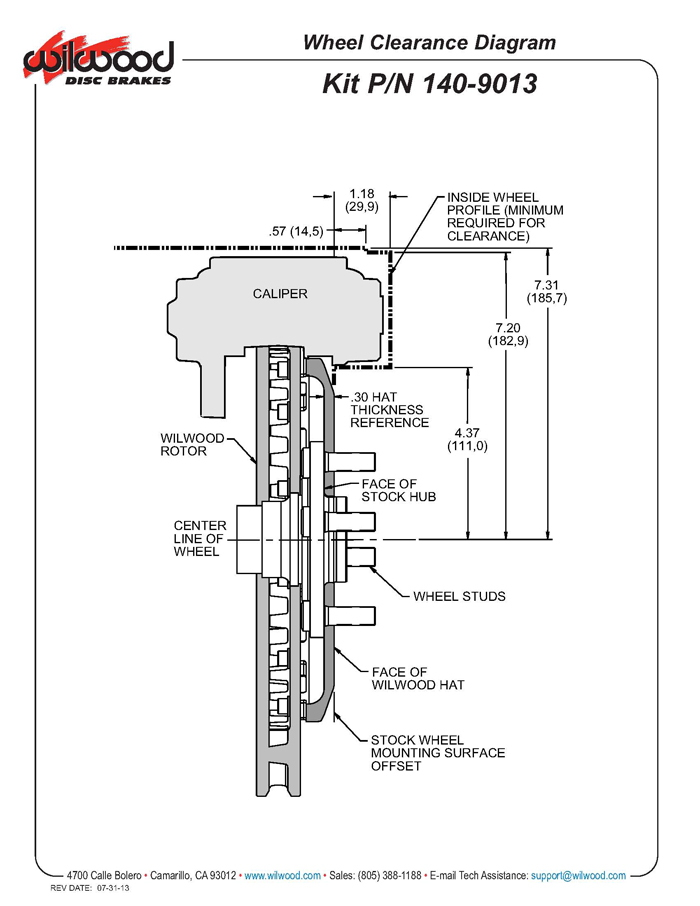

NOTE: Check "Figure 2. Wheel Clearance Diagram" in the installation Instructions below to verify you have adequate wheel clearance for this kit.

Wheel Clearance Assembly Instructions




Assembly Instructions
Notes

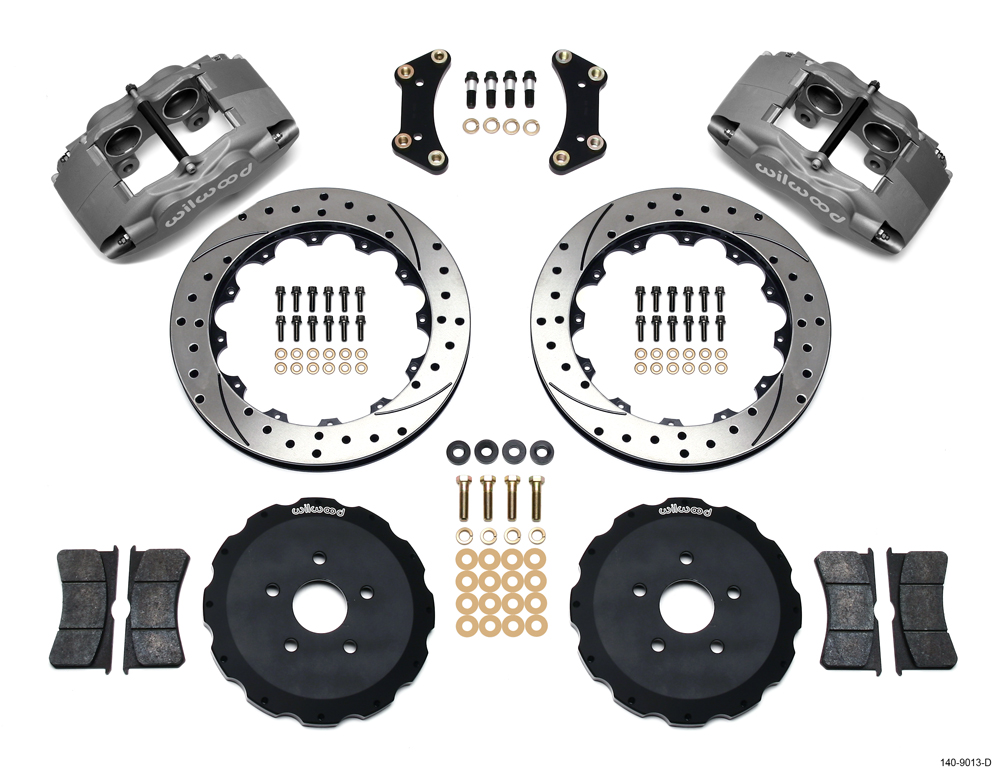

Kit Components & Specifications
Calipers
Left Hand - Part No: 120-11131
Right Hand - Part No: 120-11131

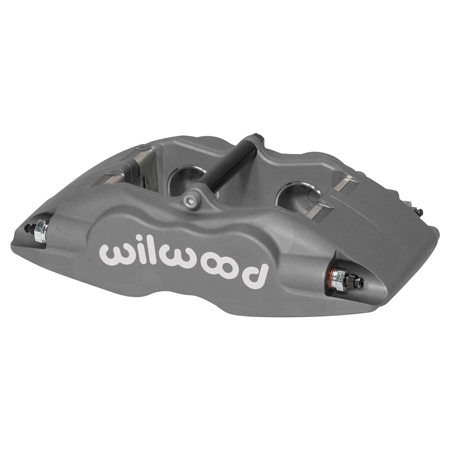

Type: Forged Superlite Internal
Finish Color: Type III Ano
Piston Count: 4
Piston Area (In²): 4.12
Piston Type: Stainless
Mount Type: Lug
Brake Pad Plate: 7416
Brake Pad Area (In²): 8.2
Brake Pad Volume (In³): 4.9
Pad Compound: BP-10
Rotors
Left Hand - Part No: 160-13544-BK
Right Hand - Part No: 160-13543-BK
Type: SRP Drilled Rotor
Style: SRP Drilled & Slotted
Surface Finish: Black Electro Coat
Material: Spec-37 Iron
Outside Diameter (in): 12.88
Width (in): 1.1
Vane Count: 48 CV
Design Type: SRP-BLK
Bedded: No
Dynamically Balanced: Yes
Rotor Hats
Hat - Part No: 170-9011
Type: Big Brake Hat - Short Offset
Material: Aluminum
Finish Color: Black E-Coat
Hat Offset Dimension (in): 0.71
Bolt Circle 1: 5 x 3.93
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1: 0.52
Stud Diameter - BC 2: 0
Stud Diameter - BC 3: 0
Hubs
Hub - Part No:
Type:
Material:
Finish Color:
Mount Style:
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:

Parts & Accessories
Caliper Parts
O-ring Kit: 130-4346
Replacement Dustboot: N-A
Replacement Piston 1: 200-7519
Replacement Piston 2: 200-7519
Replacement Piston 3: N-A
Replacement Piston 4: N-A
CrossOver O-Ring Kit: 130-10540
Crossover Tube: N-A
Self-Bleeder Tube: N-A
Bridge Bolt Kit: 230-7539
Wear Plate - Left Hand: 300-5923
Wear Plate - Right Hand: 300-5922
Pad Retainer: N-A
Bleed Screw Kit: 220-0627
Brake Lines
Front Line Kit:
220-9365
Hat
Bolt Kit: 230-4572
Hub
Bolt Kit:




Follow Wilwood on Facebook Follow Wilwood on Twitter see Wilwood Disc Brakes see Wilwood Disc Brakes
All images shown are for illustrative purposes only. Actual product received may be different than what is portrayed on the web site.
Wilwood makes every effort to maintain our web site to ensure the accuracy of prices and product information. However, product information and prices are subject to change without notice. Please call (805) 388-1188 before ordering to verify current prices and product information.
     Copyright © 2018 Wilwood Engineering, Inc. - All Rights Reserved
