Rear Brake Kit – Part No: 140-10210-R
Call (805) 388-1188

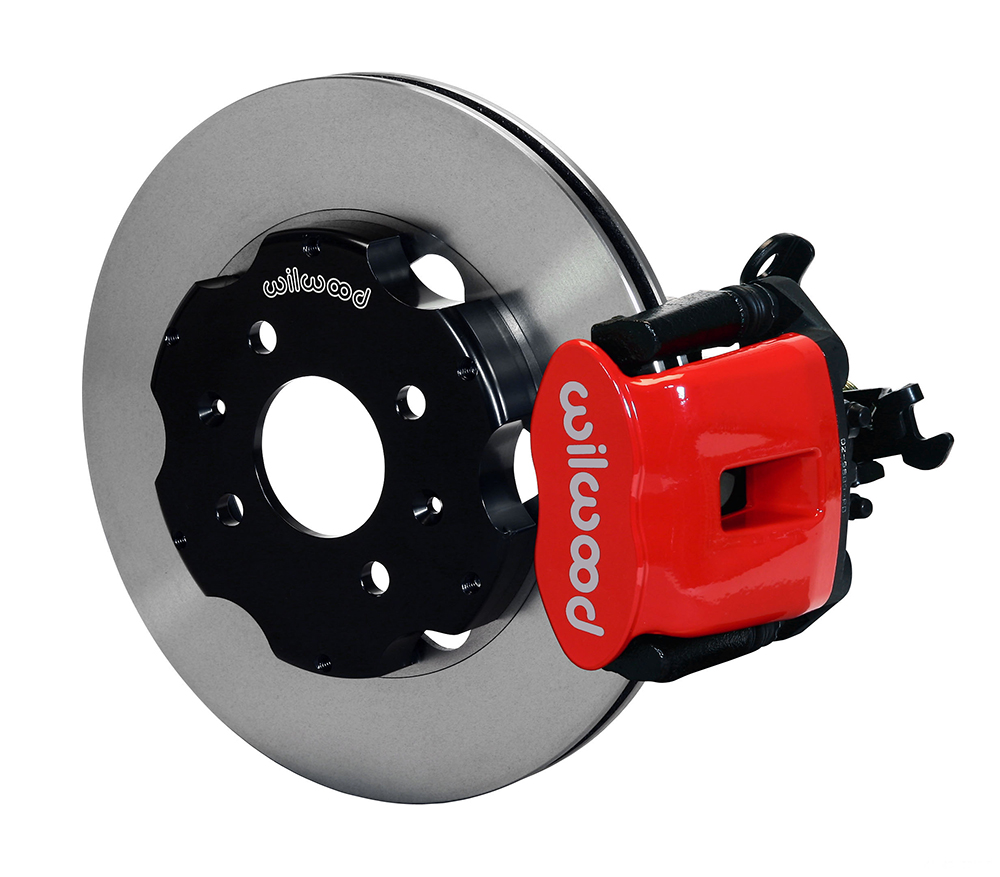

Combination Parking Brake Caliper Rear Brake Kit
Prod #: 140-10210-R
Price: $834.39
*NOTE: Brake Line Kit Needed.
220-10840 $88.83
Rear Brake Kit - Rear Kit

Kit Summary
Rear End Axle: OEM
Axle Offset: 2.71
Mount Type: Radial
Caliper Type: 1 - Red Powder Coat
Rotor Diameter: 11
Min Wheel Diameter Req'd*: 15
*This Brake Kit may fit 15-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram

Combination Parking Brake Caliper Rear Brake Kit

Combination hydro-mechanical Parking Brake calipers use hydraulic pressure from the master cylinder for stopping power, and an internal mechanical lock within the caliper for a parking brake. CPB kits are built primarily for front wheel drive vehicles, and select rear wheel drive axles that are not well suited for internal shoe style parking brakes. The calipers are coupled with oversized two-piece rotor assemblies with aluminum hats and high friction BP-10 compound pads. CPB kits provide the correct balanced brake performance and matching style to compliment front big brake upgrade kits.


Fitment & Installation Details

Combination Parking Brake Caliper Rear Brake Kit Assembly Schematic


Rear End / Axle Housing Flange
Confirm The Configuration!

OEM Flange
Confirm Offset Measurement!

AXLE FLANGE CROSS-SECTION
Search Rear Kits By Rear End/Axle Offset
caution AXLE OFFSET: 2.71
Check the diagram above and verify this measurement. This kit may be available in several different offsets.
Please call Wilwood with any questions: (805) 388-1188

Wheel Clearance Assembly Instructions





Assembly Instructions
Notes
1. For applications with original drum brakes and 2.71 hub offset. (180 x 30mm Drum)




Compatible Vehicles for this Brake Kit

BRAKE KIT:   Combination Parking Brake Caliper Rear Brake Kit

This Brake Kit is Compatible with the Following Vehicle Makes:   Honda

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.

REAR END:   OEM - Rear Kit

AXLE OFFSET:   2.71

For a Complete Listing including ALL Makes, Models and Years, Please click on the Axle Offset.

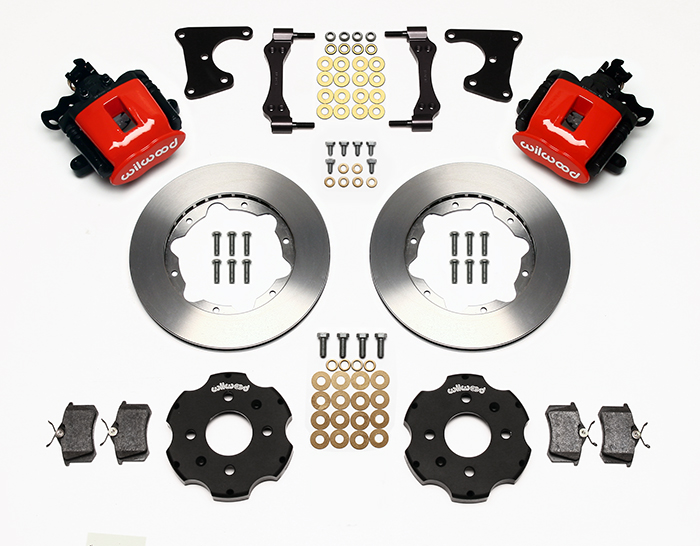

Kit Components & Specifications
Calipers
Left Hand - Part No: 120-9809-RD
Right Hand - Part No: 120-9808-RD
Type: Combination Parking Brake
Finish Color: Red Powder Coat
Piston Count: 1
Piston Area (In²): 1.38
Piston Type: Steel
Mount Type: Radial
Brake Pad Plate: D340
Brake Pad Area (In²): 4
Brake Pad Volume (In³): 1.5
Pad Compound: BP-10
Rotors
Left Hand - Part No: 160-5840
Right Hand - Part No: 160-5840
Type: Ultralite HP 30
Style: Plain Face
Surface Finish: Plain
Material: Iron
Outside Diameter (in): 11
Width (in): 0.81
Vane Count: 30 V
Design Type: ULHP
Bedded: No
Dynamically Balanced: No
Rotor Hats
Hat - Part No: 170-10199
Type: Big Brake Hat - Short Offset
Material: Aluminum
Finish Color: Black E-Coat
Hat Offset Dimension (in): 0.75
Bolt Circle 1: 4 x 3.93
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1: 0.5
Stud Diameter - BC 2: 0
Stud Diameter - BC 3: 0
Hubs
Hub - Part No:
Type:
Material:
Finish Color:
Mount Style:
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:

Parts & Accessories
Caliper Parts
O-ring Kit: Call
Replacement Dustboot: N-A
Replacement Piston 1: Call
Replacement Piston 2: N-A
Replacement Piston 3: N-A
Replacement Piston 4: N-A
CrossOver O-Ring Kit: N-A
Crossover Tube: N-A
Self-Bleeder Tube: N-A
Bridge Bolt Kit: N-A
Wear Plate - Left Hand: N-A
Wear Plate - Right Hand: N-A
Pad Retainer: N-A
Bleed Screw Kit: N-A
Brake Lines
Front Line Kit:
220-10840
Parking Brake Cable: Parking Brake Cable: 330-10966 330-10993
Hat
Bolt Kit: 230-8991
Hub
Bolt Kit:
