Combination Parking Brake Caliper 1Pc Rotor Rear Brake Kit
Prod #: 140-10329
Price: $638.39

*Line Kit Needed


220-10685
$83.28
Rear Brake Kit - Rear Kit

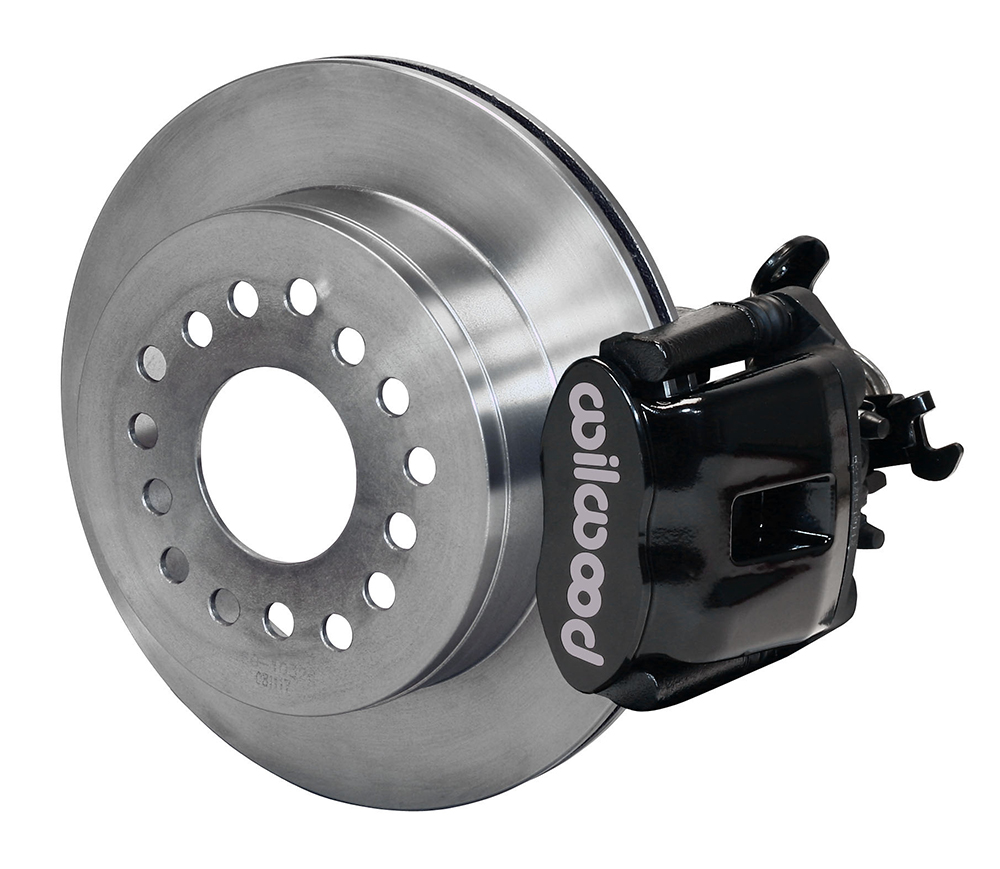

Wilwood Combination Parking Brake Caliper 1Pc Rotor Rear Brake Kit - Black Powder Coat Caliper - Plain Face Rotor Wilwood Combination Parking Brake Caliper 1Pc Rotor Rear Brake Kit - Black Powder Coat Caliper - Plain Face Rotor Zoom Image

Kit Contents

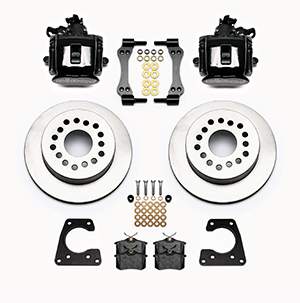

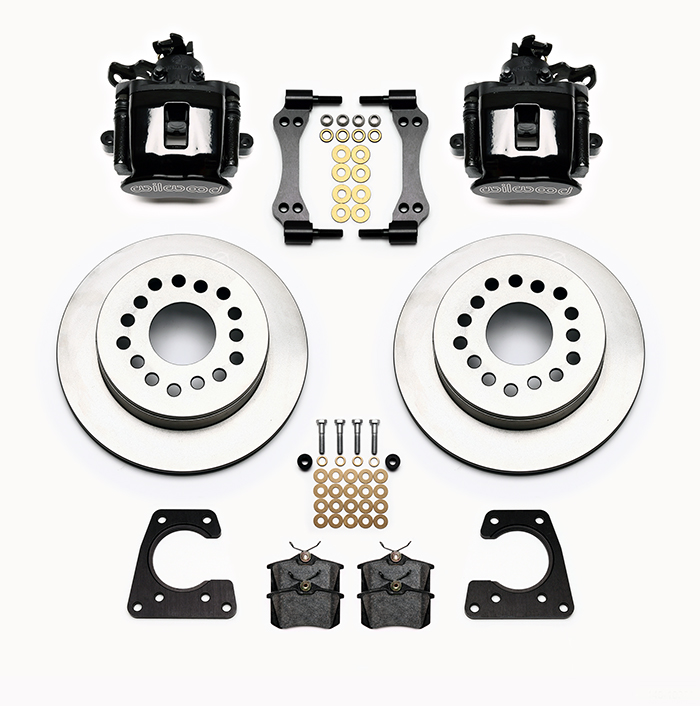

Wilwood Combination Parking Brake Caliper 1Pc Rotor Rear Brake Kit Parts Laid Out - Black Powder Coat Caliper - Plain Face Rotor Wilwood Combination Parking Brake Caliper 1Pc Rotor Rear Brake Kit Parts Laid Out - Black Powder Coat Caliper - Plain Face Rotor Zoom Image


View Custom Caliper Colors

Kit Summary
Rear End Axle: Big Ford New Style
Axle Offset: 2.50
Mount Type: Radial
Caliper Type: 1 - Black Powder Coat
Rotor Diameter: 11.00
Min Wheel Diameter Req'd*: 15
*This Brake Kit may fit 15-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram
UPC Number
UPC 889545009286

WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Applicable to Brake Pads Only


Combination Parking Brake Caliper 1Pc Rotor Rear Brake Kit

Combination hydro-mechanical Parking Brake calipers use hydraulic pressure from the master cylinder for stopping power, and an internal mechanical lock within the caliper for a parking brake. CPB kits are built primarily for select rear wheel drive axles that are not well suited for internal shoe style parking brakes. The calipers are coupled with 11 inch one-piece rotor assemblies with integral hats and high friction BP-10 compound pads. CPB kits provide the correct balanced brake performance and matching style to compliment front big brake upgrade kits.


Fitment & Installation Details

Combination Parking Brake Caliper 1Pc Rotor Rear Brake Kit Assembly Schematic

Combination Parking Brake Caliper 1Pc Rotor Rear Brake Kit Assembly Schematic Combination Parking Brake Caliper 1Pc Rotor Rear Brake Kit Assembly Schematic Zoom Image

Rear End / Axle Housing Flange
Confirm The Configuration!

Big Ford New Style Flange
Confirm Offset Measurement!

Axle Flange Cross-Section
Search Rear Kits By Rear End/Axle Offset
caution AXLE OFFSET: 2.50
Check the diagram above and verify this measurement. This kit may be available in several different offsets.
Please call Wilwood with any questions: (805) 388-1188

Wheel Clearance Assembly Instructions

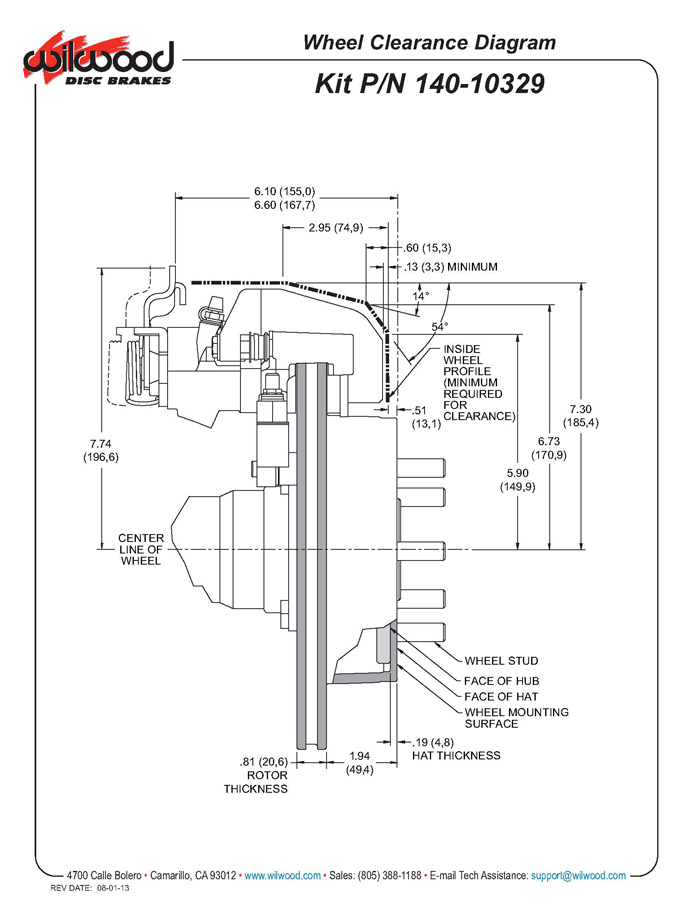

Wheel Clearance Diagram Wheel Clearance Diagram Zoom Image




Assembly Instructions
Notes





Compatible Vehicles for this Brake Kit

BRAKE KIT:   Combination Parking Brake Caliper 1Pc Rotor Rear Brake Kit

This Brake Kit is Compatible with the Following Vehicle Makes:

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.

REAR END:   Big Ford New Style - Rear Kit

AXLE OFFSET:   2.50

For a Complete Listing including ALL Makes, Models and Years, Please click on the Axle Offset.
