Forged Dynalite Rear Parking Brake Kit (Less Calipers)
Prod #: 140-10511-Z
Price: $906.33

Rear Brake Kit - Rear Kit


Kit Contents

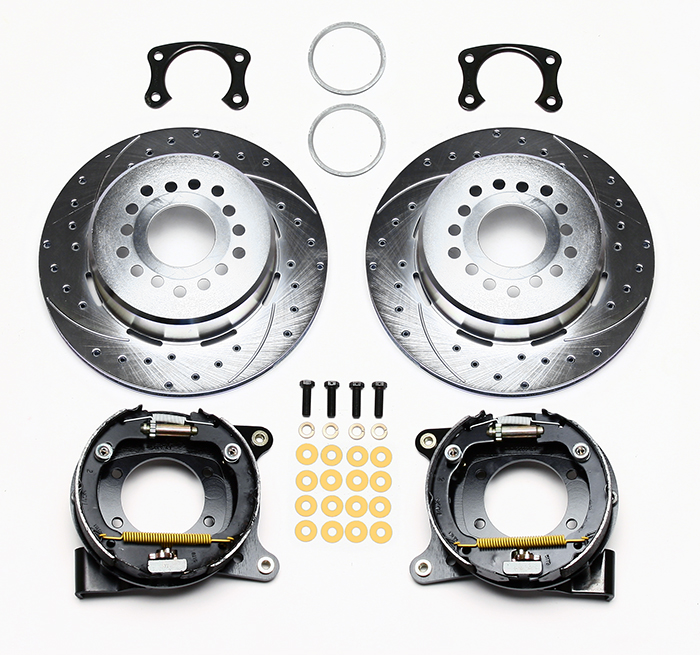

Wilwood Forged Dynalite Rear Parking Brake Kit (Less Calipers) Parts Laid Out - SRP Drilled & Slotted Rotor Wilwood Forged Dynalite Rear Parking Brake Kit (Less Calipers) Parts Laid Out - SRP Drilled & Slotted Rotor Zoom Image



Kit Summary
Rear End Axle: Big Ford New Style
Axle Offset: 2.50
Mount Type:
Caliper Type: 0 - No Calipers Included
Rotor Diameter: 12.19
Min Wheel Diameter Req'd*: 15
*This Brake Kit may fit 15-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram
UPC Number
UPC 889545049084

WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Applicable to Brake Pads Only


Forged Dynalite Rear Parking Brake Kit (Less Calipers)

FDL rear Parking disc kits (less calipers) provide the basis of a ultimate Big Brake solution for custom car rear axles that require a parking brake. 12.19” one-piece rotors and hats, backing plates with internal parking brake components. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Just add your caliper choice to complete. Calipers and brake pads are not supplied in this kit. Please see data sheet for kit contents.


Fitment & Installation Details

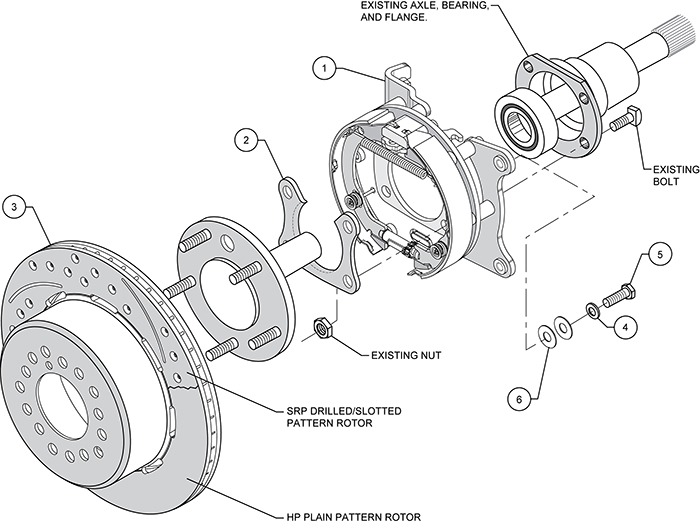

Forged Dynalite Rear Parking Brake Kit (Less Calipers) Assembly Schematic

Forged Dynalite Rear Parking Brake Kit (Less Calipers) Assembly Schematic Forged Dynalite Rear Parking Brake Kit (Less Calipers) Assembly Schematic Zoom Image

Rear End / Axle Housing Flange
Confirm The Configuration!

Big Ford New Style Flange 		Confirm Offset Measurement!

Axle Flange Cross-Section
Search Rear Kits By Rear End/Axle Offset
caution AXLE OFFSET: 2.50
Check the diagram above and verify this measurement. This kit may be available in several different offsets.
Please call Wilwood with any questions: (805) 388-1188

Wheel Clearance Assembly Instructions

Wheel Clearance Diagram Wheel Clearance Diagram Zoom Image
Part 1
Notes
1. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
2. Kit does not contain calipers or brake pads.

Compatible Vehicles for this Brake Kit

BRAKE KIT:   Forged Dynalite Rear Parking Brake Kit (Less Calipers)

This Brake Kit is Compatible with the Following Vehicle Makes:

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.

REAR END:   Big Ford New Style - Rear Kit

AXLE OFFSET:   2.50

For a Complete Listing including ALL Makes, Models and Years, Please click on the Axle Offset.
fitment 1
Offset: 2.50


Kit Components & Specifications
Calipers
Left Hand - Part No:
Right Hand - Part No:
Type:
Finish Color:
Piston Count:
Piston 1 Bore (in):
Piston Area (In²):
Piston Type:
Mount Type:
Brake Pad Plate:
Brake Pad Area (In²):
Brake Pad Volume (In³):
Pad Compound:
Rotors
Left Hand - Part No: 160-9813
Right Hand - Part No: 160-9812
Type: SRP-Z Drilled Rotor & Hat
Style: SRP Drilled & Slotted
Surface Finish: Zinc Plate
Material: Iron
Outside Diameter (in): 12.19
Width (in): 0.81
Vane Count: 32 V
Design Type: SRP
Burnished: No
Dynamically Balanced: No

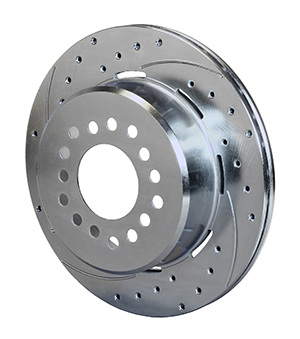

SRP-Z Drilled Rotor & Hat - Iron - Zinc Plate SRP-Z Drilled Rotor & Hat - Iron - Zinc Plate Zoom Image
