Rear Brake Kit – Part No: 140-11739-D
Call (805) 388-1188
Promatrix Rear Replacement Rotor Kit
Prod #: 140-11739-D
Price: $320.13

Rear Brake Kit - Rear Kit


Kit Contents

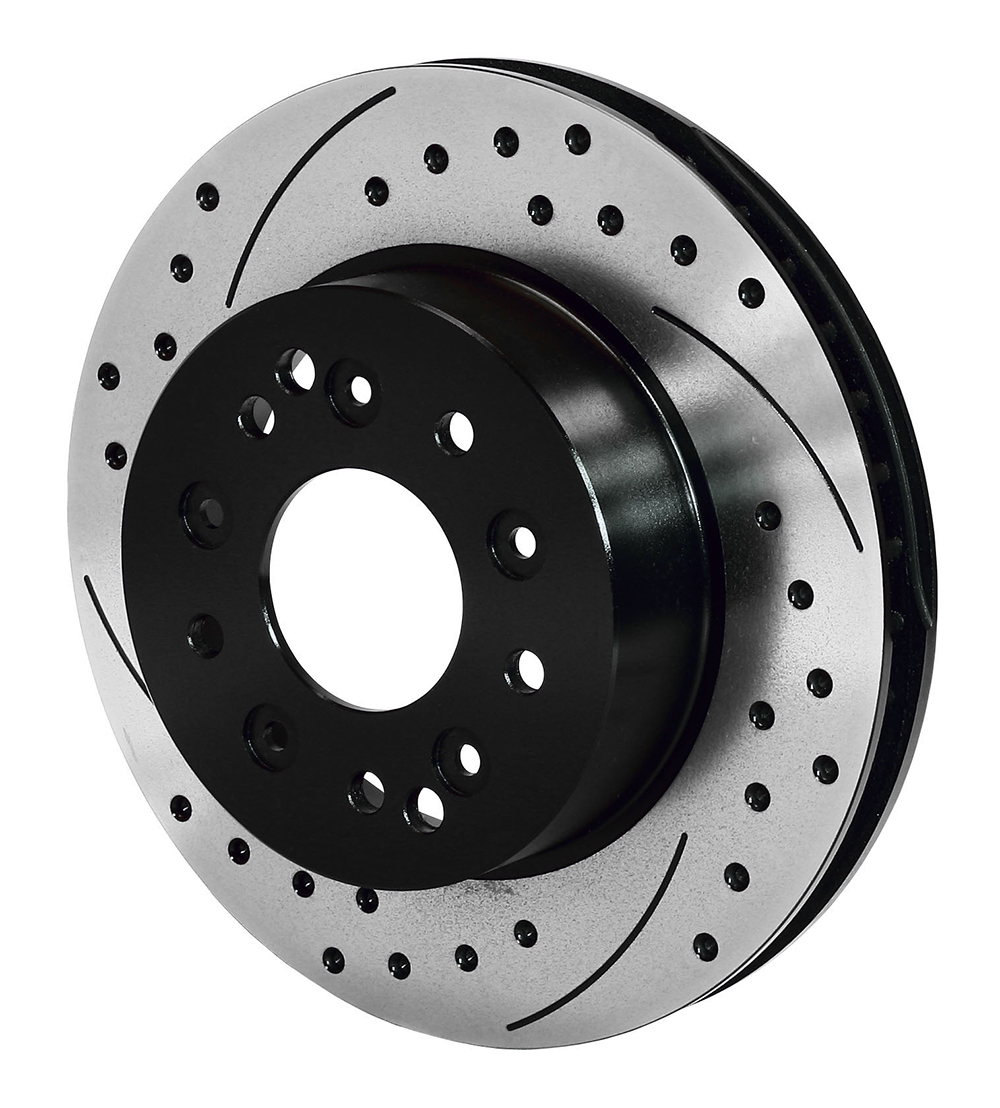

Wilwood Promatrix Rear Replacement Rotor Kit Parts Laid Out - SRP Drilled & Slotted Rotor Wilwood Promatrix Rear Replacement Rotor Kit Parts Laid Out - SRP Drilled & Slotted Rotor Zoom Image



Kit Summary
Rear End Axle: OEM
Axle Offset: 0.00
Mount Type:
Caliper Type: 0 - No Calipers Included
Rotor Diameter: 11.75
Min Wheel Diameter Req'd*: 15
*This Brake Kit may fit 15-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram
UPC Number
UPC 889545013894

WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Applicable to Brake Pads Only


Promatrix Rear Replacement Rotor Kit

ProMatrix Rotor upgrade kits offer measurable brake performance improvements to racers and enthusiasts using the OE factory brake calipers. High performance pad compounds are specially selected to provide increased brake response and higher resistance against fade. One-piece directional vane GT rotor kits provide high temperature durability for the track. SRP drilled and slotted black e-coat rotor kits provide high-tech style with corrosion resistance, durability, and firmer response with reduced deflection under load.


Fitment & Installation Details

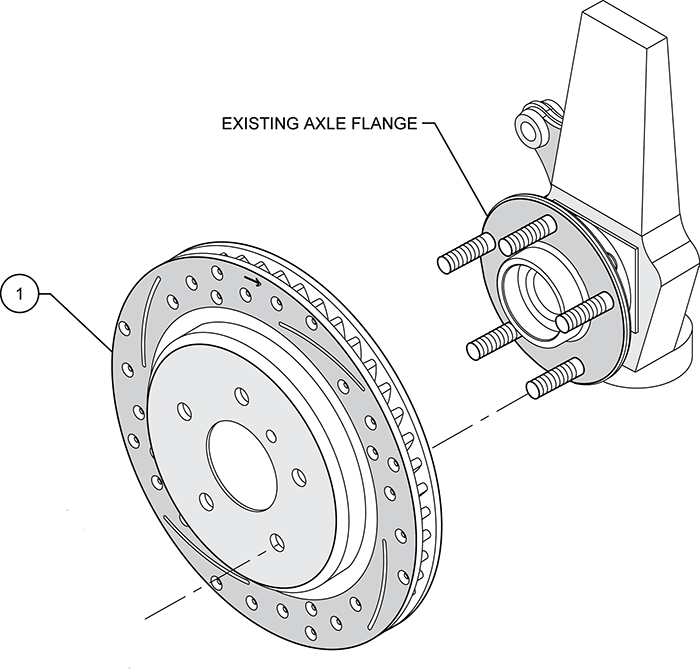

Promatrix Rear Replacement Rotor Kit Assembly Schematic

Promatrix Rear Replacement Rotor Kit Assembly Schematic Promatrix Rear Replacement Rotor Kit Assembly Schematic Zoom Image

Rear End / Axle Housing Flange
Confirm The Configuration!

OEM Flange 		Confirm Offset Measurement!

Axle Flange Cross-Section
Search Rear Kits By Rear End/Axle Offset
caution AXLE OFFSET: 0.00
Check the diagram above and verify this measurement. This kit may be available in several different offsets.
Please call Wilwood with any questions: (805) 388-1188

Wheel Clearance Assembly Instructions

Wheel Clearance Diagram Wheel Clearance Diagram Zoom Image
Part 1
Notes





Compatible Vehicles for this Brake Kit

BRAKE KIT:   Promatrix Rear Replacement Rotor Kit

This Brake Kit is Compatible with the Following Vehicle Makes:   Chevrolet

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.

REAR END:   OEM - Rear Kit

AXLE OFFSET:   0.00

For a Complete Listing including ALL Makes, Models and Years, Please click on the Axle Offset.
fitment 1
Offset: 0.00


Kit Components & Specifications
Calipers
Left Hand - Part No:
Right Hand - Part No:
Type:
Finish Color:
Piston Count:
Piston 1 Bore (in):
Piston Area (In²):
Piston Type:
Mount Type:
Brake Pad Plate:
Brake Pad Area (In²):
Brake Pad Volume (In³):
Pad Compound:
Rotors
Left Hand - Part No: 160-11287-BK
Right Hand - Part No: 160-11288-BK
Type: SRP Drilled Rotor
Style: SRP Drilled & Slotted
Surface Finish: Black Electro Coat
Material: Iron
Outside Diameter (in): 11.75
Width (in): 1.25
Vane Count: Vented
Design Type: SRP-BLK
Bedded: No
Dynamically Balanced: No

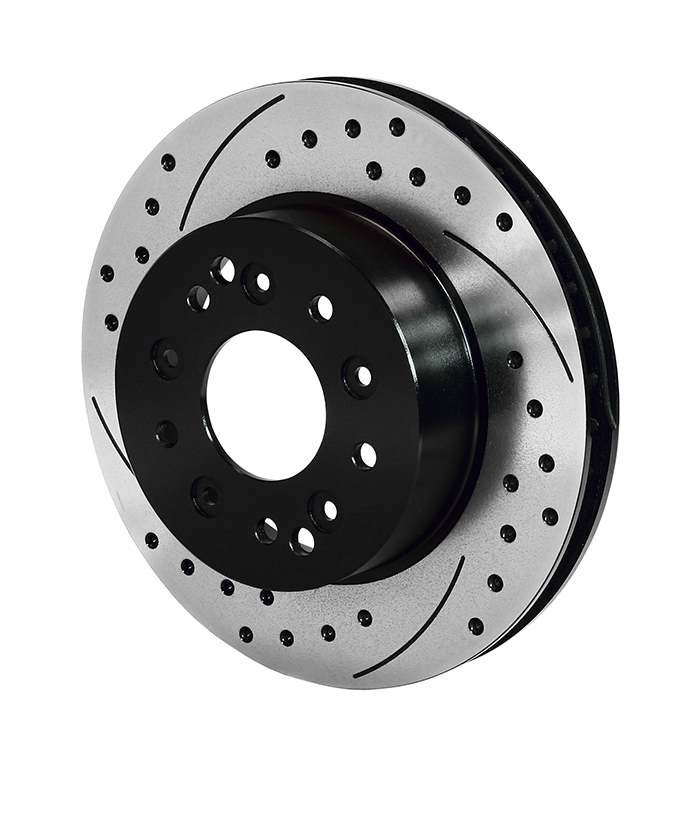

SRP Drilled Rotor - Iron - Black Electro Coat SRP Drilled Rotor - Iron - Black Electro Coat Zoom Image
