Rear Brake Kit – Part No: 140-12064
Call (805) 388-1188
Forged Dynalite-MC4 Rear Parking Brake Kit
Prod #: 140-12064
Price: $1,119.93

*NOTE: Brake Line Kit Needed.
Rear Brake Kit - Rear Kit

Kit Summary
Rear End Axle: OEM
Axle Offset: 0
Mount Type: Lug
Caliper Type: 4 - Black Powder Coat
Rotor Diameter: 11.75
Min Wheel Diameter Req'd*: 15
*This Brake Kit may fit 15-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram
UPC Number
UPC 889545049411

WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Applicable to Brake Pads Only


Forged Dynalite-MC4 Rear Parking Brake Kit

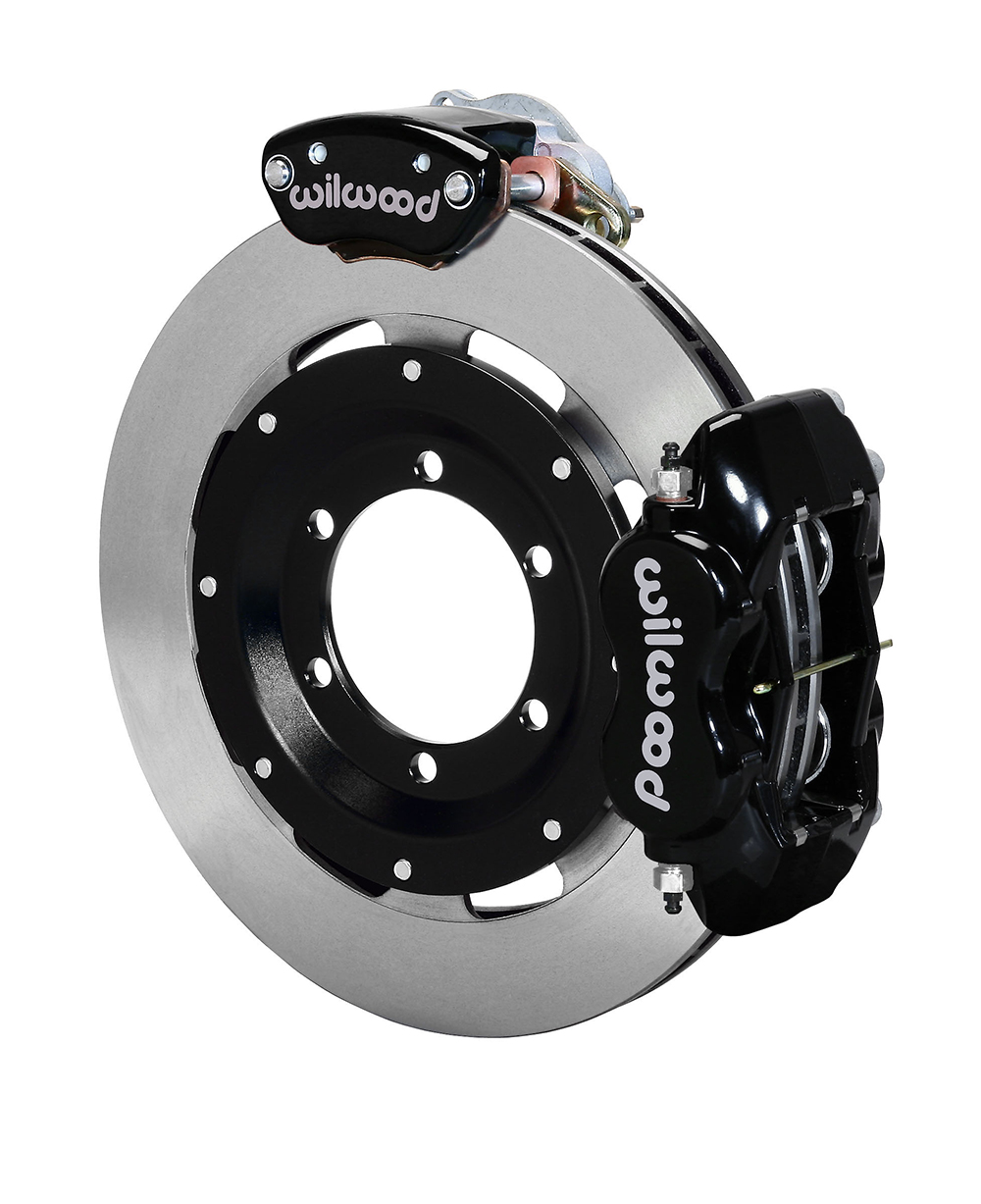

Wilwood’s FDLI/MC-4 Big Brake rear kit for Shelby CSX6000 deliver big brake stopping power with high-tech style. Utilizing the newest version of the Forged Dynalite Caliper (FDLI) with 11.75” diameter, 0.81” thick rotors offer repeatable brake performance for street and competition use. With direct mount rotor adapters for CSX6000 hubs and upright brackets, this kit offers a direct mount, no modification solution for these vehicles. The additional of MC-4 mechanical calipers allow for a fully functioning parking brake with fixed 4 piston main calipers. Included BP10 pads offer high friction and low NVH (Noise, Vibration and Harshness) characteristics, within moderate to medium high temperature ranges.


Fitment & Installation Details

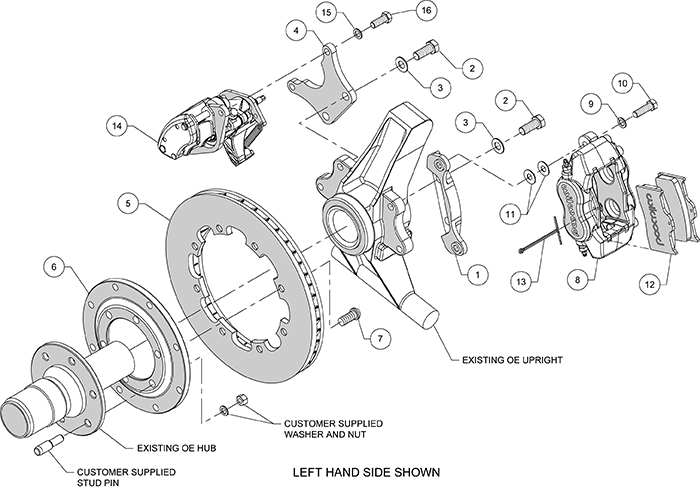

Forged Dynalite-MC4 Rear Parking Brake Kit Assembly Schematic


Rear End / Axle Housing Flange
Confirm The Configuration!

OEM Flange
Confirm Offset Measurement!

AXLE FLANGE CROSS-SECTION
Search Rear Kits By Rear End/Axle Offset
caution AXLE OFFSET: 0
Check the diagram above and verify this measurement. This kit may be available in several different offsets.
Please call Wilwood with any questions: (805) 388-1188

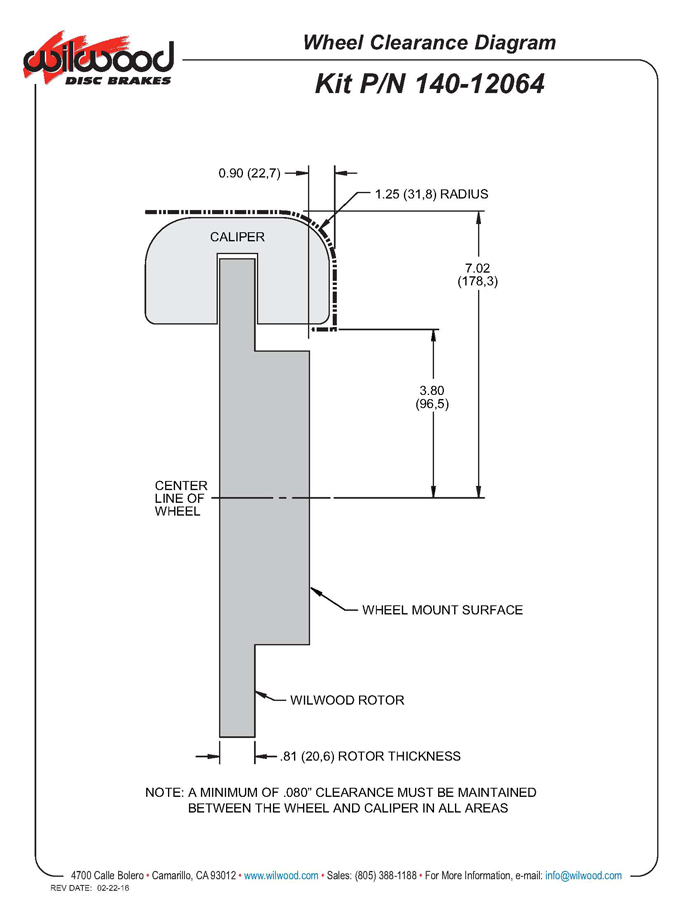

Wheel Clearance Assembly Instructions





Assembly Instructions
Notes





Compatible Vehicles for this Brake Kit

BRAKE KIT:   Forged Dynalite-MC4 Rear Parking Brake Kit

This Brake Kit is Compatible with the Following Vehicle Makes:   Shelby

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.

REAR END:   OEM - Rear Kit

AXLE OFFSET:   0

For a Complete Listing including ALL Makes, Models and Years, Please click on the Axle Offset.


Kit Components & Specifications
Calipers
Left Hand - Part No: 120-13839-BK
Right Hand - Part No: 120-13839-BK
Type: Forged Dynalite Internal
Finish Color: Black Powder Coat
Piston Count: 4
Piston Area (In²): 3.00
Piston Type: Stainless
Mount Type: Lug
Brake Pad Plate: 7112
Brake Pad Area (In²): 6.36
Brake Pad Volume (In³): 2.1
Pad Compound: BP-10
Rotors
Left Hand - Part No: 160-5841
Right Hand - Part No: 160-5841
Type: Ultralite HP 32
Style: Plain Face
Surface Finish: Plain
Material: Iron
Outside Diameter (in): 11.75
Width (in): 0.81
Vane Count: 32 V
Design Type: ULHP
Bedded: No
Dynamically Balanced: No
Rotor Hats
Hat - Part No:
Type:
Material:
Finish Color:
Hat Offset Dimension (in):
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:
Hubs
Hub - Part No:
Type:
Material:
Finish Color:
Mount Style:
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:

Parts & Accessories
Caliper Parts
O-ring Kit: 130-2658
Replacement Dustboot: N-A
Replacement Piston 1: 200-7518
Replacement Piston 2: 200-7518
Replacement Piston 3: N-A
Replacement Piston 4: N-A
CrossOver O-Ring Kit: 130-10540
Crossover Tube: N-A
Self-Bleeder Tube: N-A
Bridge Bolt Kit: N-A
Wear Plate - Left Hand: 300-5875
Wear Plate - Right Hand: 300-5875
Pad Retainer: 180-0055
Bleed Screw Kit: 220-0627
Brake Lines
Parking Brake Cable: 330-12144
Hat
Bolt Kit:
Hub
Bolt Kit:
