Rear Brake Kit – Part No: 140-12101-BK
Call (805) 388-1188
D154 Rear Caliper Kit
Prod #: 140-12101-BK
Price: $413.99
Rear Brake Kit - Rear Kit

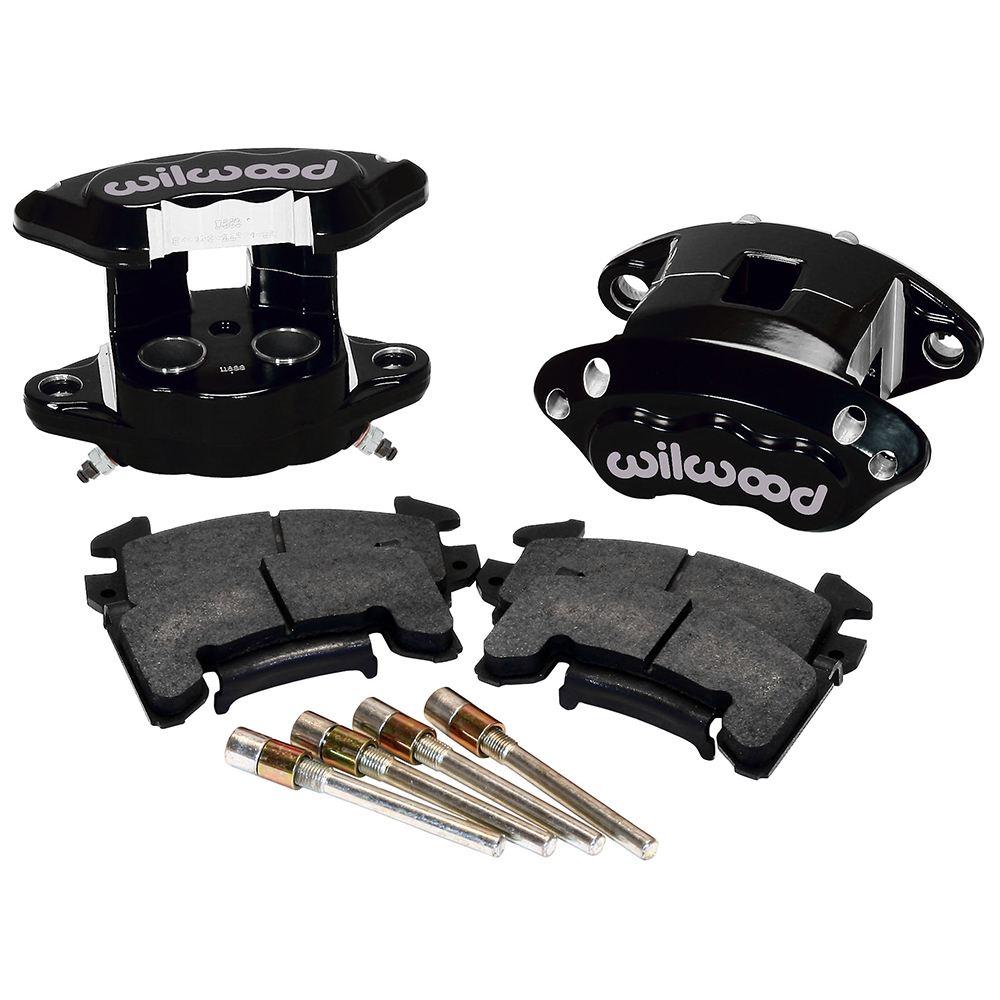

Wilwood D154 Rear Caliper Kit - Black Powder Coat Caliper Wilwood D154 Rear Caliper Kit - Black Powder Coat Caliper Zoom Image

Kit Contents
Wilwood D154 Rear Caliper Kit Parts Laid Out - Black Powder Coat Caliper Wilwood D154 Rear Caliper Kit Parts Laid Out - Black Powder Coat Caliper Zoom Image



Kit Summary
Rear End Axle: OEM
Axle Offset: 0.00
Mount Type: Floating
Caliper Type: 2 - Black Powder Coat
Rotor Diameter:
Min Wheel Diameter Req'd*:
*This Brake Kit may fit -inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram
UPC Number
UPC 889545015157

WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Applicable to Brake Pads Only


D154 Rear Caliper Kit

Wilwood's D154 Rear Caliper Kit offers a matching rear replacement option for our front D154 calipers. It is a direct bolt-on 2-piston replacement for the factory original single piston "Metric" calipers used on many custom application rears. With the added benefit of smaller rear piston sizing (1.96 sq-inches of area) not normally available in OEM calipers, for correct front and rear bias. Forged billet aluminum bodies, stainless steel pistons, and competition style high-temperature seals put an end to the rust, bore pitting, and seal failures that plague the OE caliper design. D154 calipers provide low-maintenance performance and a huge weight savings with high temperature reliability for the street and track. D52 calipers mount in the stock location over stock rotors; use the original style OE D154 brake pads and an OE M10-1.5 banjo bolt brake line mounting. Calipers can be used with most wheels that clear the OE calipers. Kits contain Wilwood’s hardened slide pins and BP-10 high friction pads.


Fitment & Installation Details

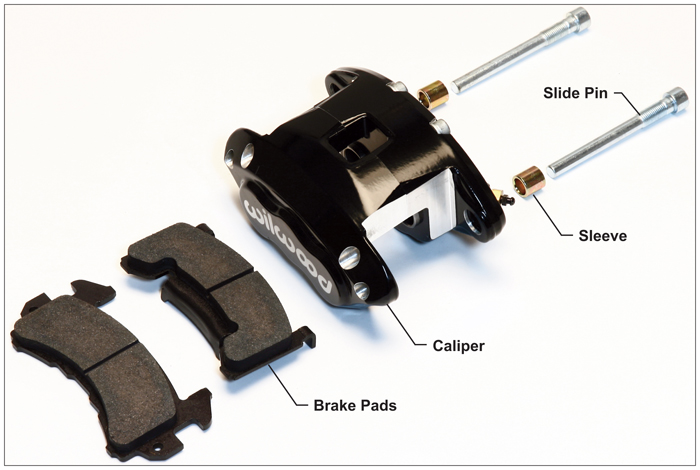

D154 Rear Caliper Kit Assembly Schematic

D154 Rear Caliper Kit Assembly Schematic D154 Rear Caliper Kit Assembly Schematic Zoom Image

Rear End / Axle Housing Flange
Confirm The Configuration!

OEM Flange
Confirm Offset Measurement!

Axle Flange Cross-Section
Search Rear Kits By Rear End/Axle Offset
caution AXLE OFFSET: 0.00
Check the diagram above and verify this measurement. This kit may be available in several different offsets.
Please call Wilwood with any questions: (805) 388-1188

Wheel Clearance Assembly Instructions

Wheel Clearance Diagram Wheel Clearance Diagram Zoom Image




Assembly Instructions
Notes





Compatible Vehicles for this Brake Kit

BRAKE KIT:   D154 Rear Caliper Kit

This Brake Kit is Compatible with the Following Vehicle Makes:

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.

REAR END:   OEM - Rear Kit

AXLE OFFSET:   0.00

For a Complete Listing including ALL Makes, Models and Years, Please click on the Axle Offset.


Kit Components & Specifications
Calipers
Left Hand - Part No: 120-11874-BK
Right Hand - Part No: 120-11874-BK
Type: D154
Finish Color: Black Powder Coat
Piston Count: 2
Piston 1 Bore (in): 1.12
Piston 2 Bore (in): 1.12
Piston Area (In²): 1.98
Piston Type: Stainless
Mount Type: Floating
Brake Pad Plate: D154
Brake Pad Area (In²): 8.7
Brake Pad Volume (In³): 2.9
Pad Compound: BP-10

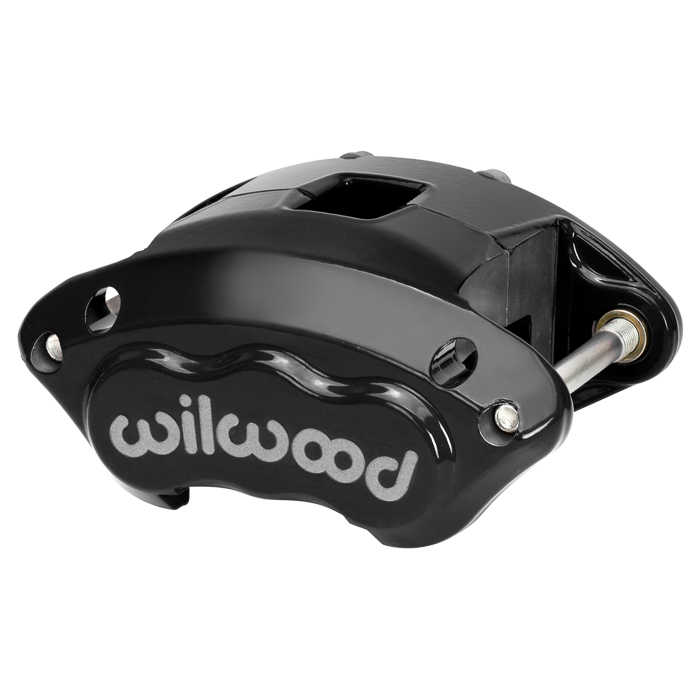

D154 Caliper - Black Powder Coat D154 Caliper - Black Powder Coat Zoom Image
Rotors
Left Hand - Part No:
Right Hand - Part No:
Type:
Style:
Surface Finish:
Material:
Outside Diameter (in):
Width (in):
Vane Count:
Design Type:
Bedded:
Dynamically Balanced:
Rotor Hats
Hat - Part No:
Type:
Material:
Finish Color:
Hat Offset Dimension (in):
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:
Hubs
Hub - Part No:
Type:
Material:
Finish Color:
Mount Style:
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:

Parts & Accessories
Caliper Parts
O-ring Kit: 130-2579
Replacement Dustboot: N-A
Replacement Piston 1: 200-11795
Replacement Piston 2: N-A
Replacement Piston 3: N-A
Replacement Piston 4: N-A
CrossOver O-Ring Kit: N-A
Crossover Tube: N-A
Self-Bleeder Tube: N-A
Bridge Bolt Kit: N-A
Wear Plate - Left Hand: N-A
Wear Plate - Right Hand: N-A
Pad Retainer: N-A
Bleed Screw Kit: 220-0627
Brake Lines
Hat
Bolt Kit:
Hub
Bolt Kit:
