Rear Brake Kit – Part No: 140-12209-D
Call (805) 388-1188
D154 Rear Parking Brake Kit
Prod #: 140-12209-D
Price: $904.39
Rear Brake Kit - Rear Kit

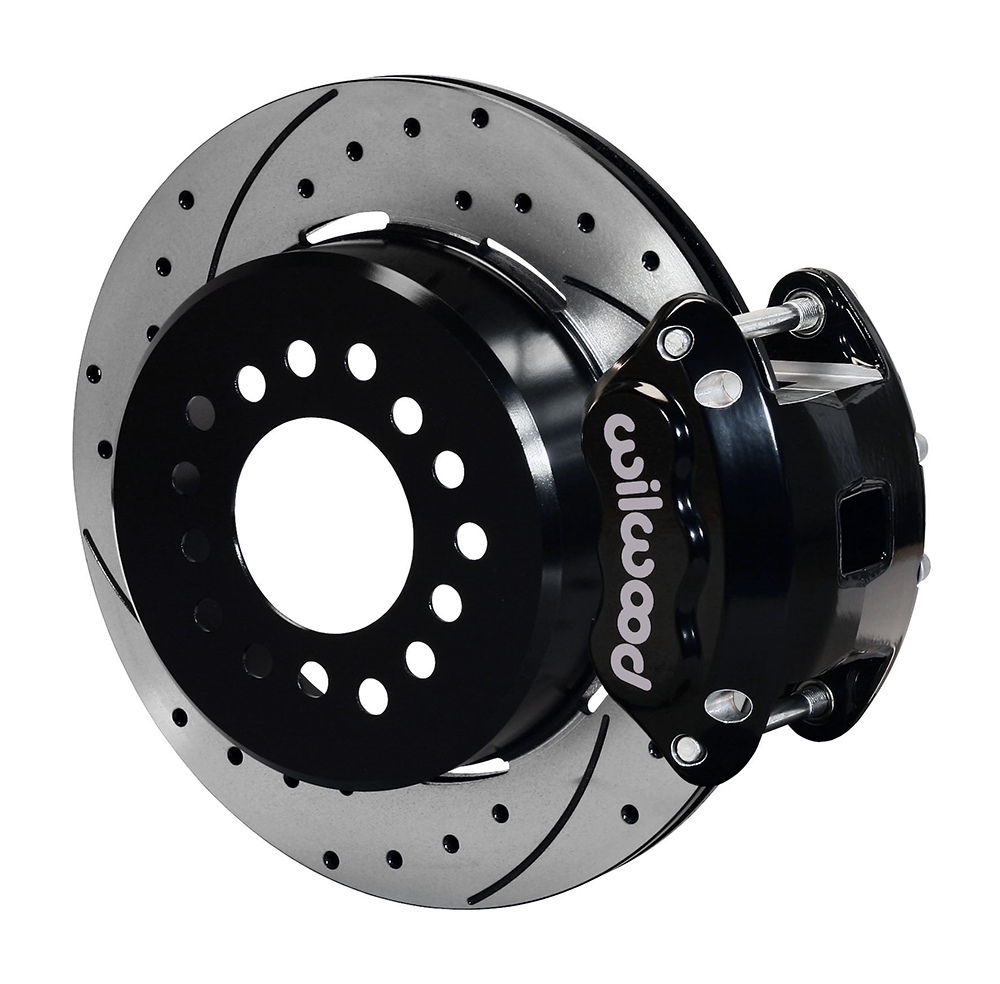

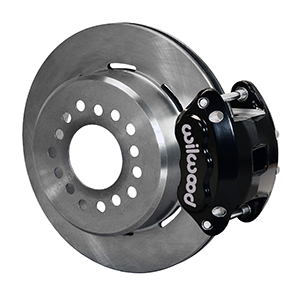

Wilwood D154 Rear Parking Brake Kit - Black Powder Coat Caliper - SRP Drilled & Slotted Rotor Wilwood D154 Rear Parking Brake Kit - Black Powder Coat Caliper - SRP Drilled & Slotted Rotor Zoom Image

Kit Contents

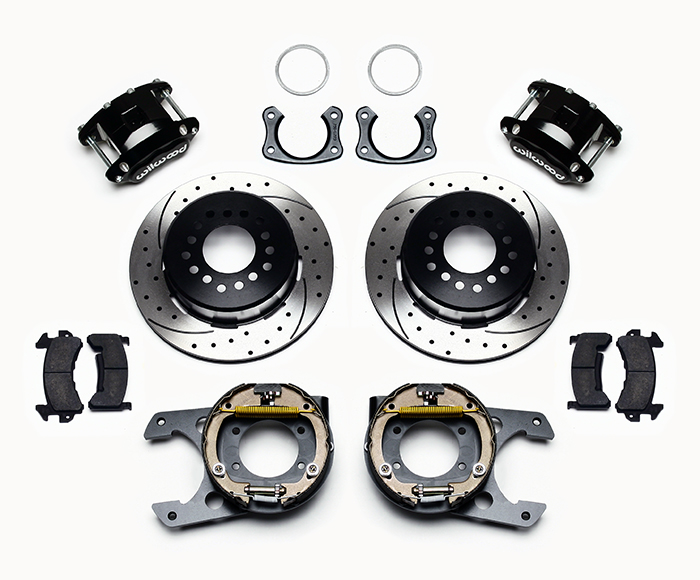

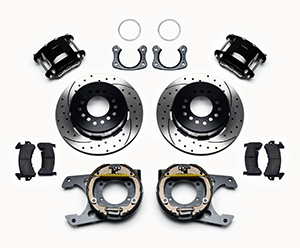

Wilwood D154 Rear Parking Brake Kit Parts Laid Out - Black Powder Coat Caliper - SRP Drilled & Slotted Rotor Wilwood D154 Rear Parking Brake Kit Parts Laid Out - Black Powder Coat Caliper - SRP Drilled & Slotted Rotor Zoom Image



Kit Summary
Rear End Axle: Big Ford New Style
Axle Offset: 2.50
Mount Type: Floating
Caliper Type: 2 - Black Powder Coat
Rotor Diameter: 12.19
Min Wheel Diameter Req'd*: 16
*This Brake Kit may fit 16-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram
UPC Number
UPC 889545015324

WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Applicable to Brake Pads Only


D154 Rear Parking Brake Kit

D154 Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged D154 dual piston calipers, 12.19” one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. D154 rear caliper kits offer a complimentary match to vehicles using Wilwood D52 or D154 calipers on OE spindles. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance.


Fitment & Installation Details

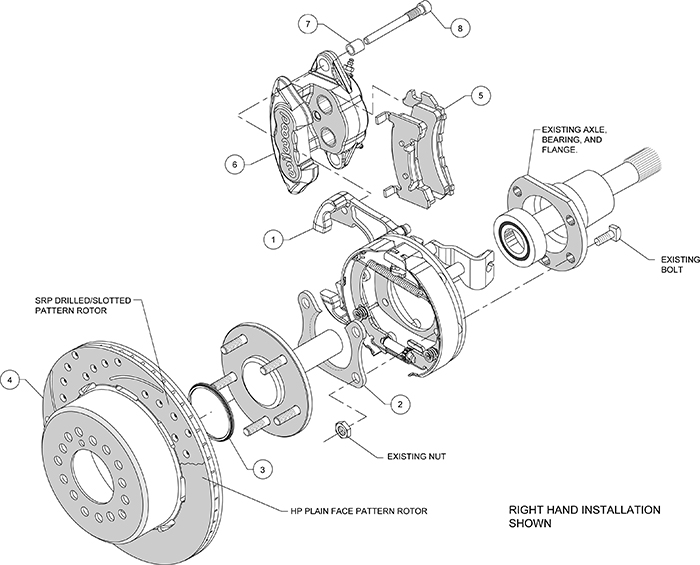

D154 Rear Parking Brake Kit Assembly Schematic

D154 Rear Parking Brake Kit Assembly Schematic D154 Rear Parking Brake Kit Assembly Schematic Zoom Image

Rear End / Axle Housing Flange
Confirm The Configuration!

Big Ford New Style Flange
Confirm Offset Measurement!

Axle Flange Cross-Section
Search Rear Kits By Rear End/Axle Offset
caution AXLE OFFSET: 2.50
Check the diagram above and verify this measurement. This kit may be available in several different offsets.
Please call Wilwood with any questions: (805) 388-1188

Wheel Clearance Assembly Instructions

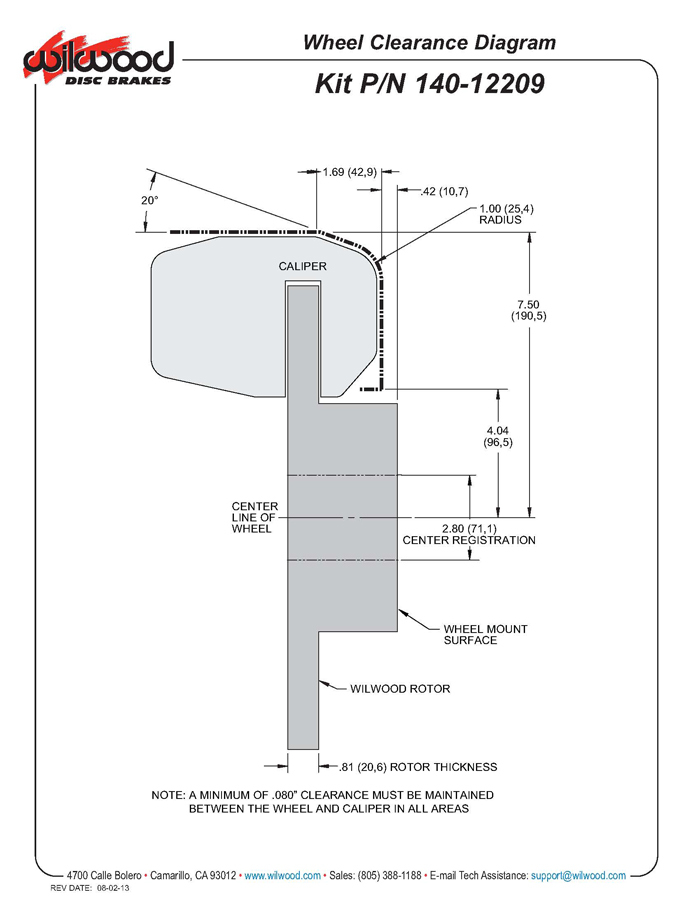

Wheel Clearance Diagram Wheel Clearance Diagram Zoom Image
