D154 Rear Parking Brake Kit
Prod #: 140-12567-DR
Price: $974.39
Rear Brake Kit - Rear Kit

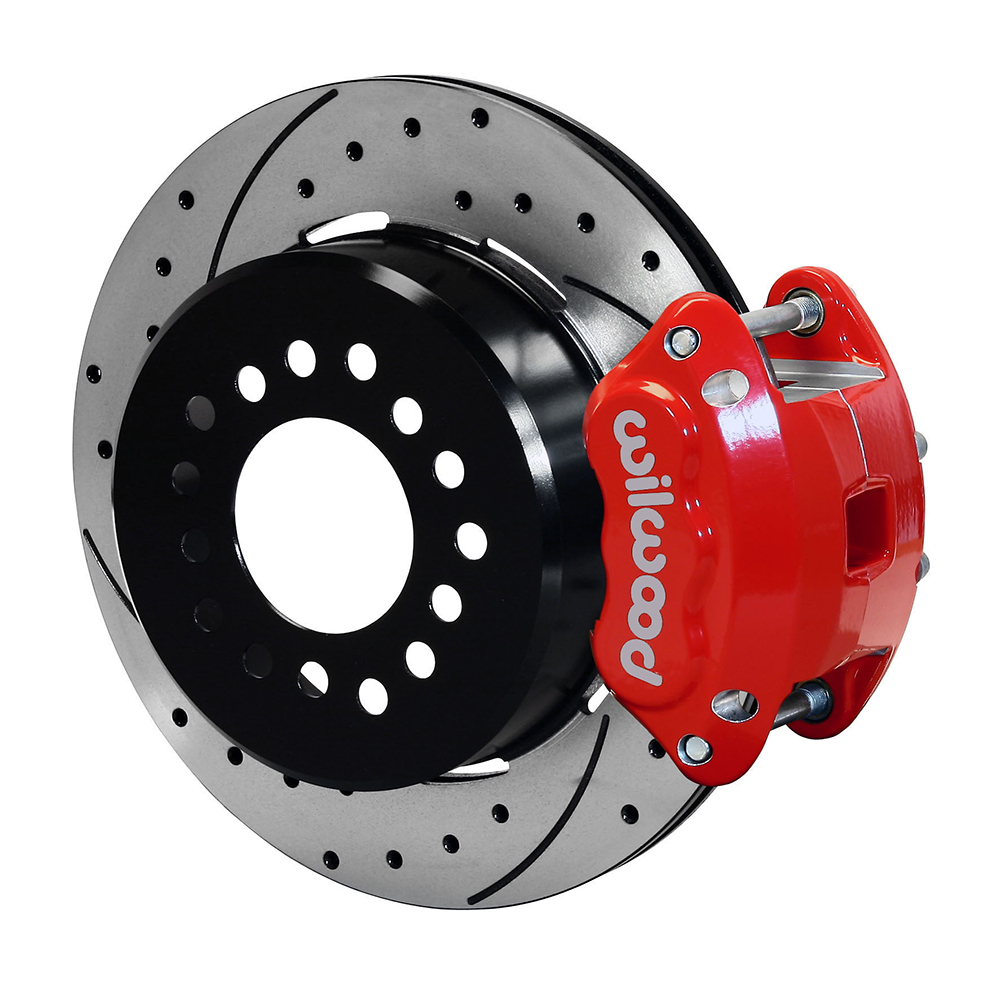

Wilwood D154 Rear Parking Brake Kit - Red Powder Coat Caliper - SRP Drilled & Slotted Rotor Wilwood D154 Rear Parking Brake Kit - Red Powder Coat Caliper - SRP Drilled & Slotted Rotor Zoom Image

Kit Contents

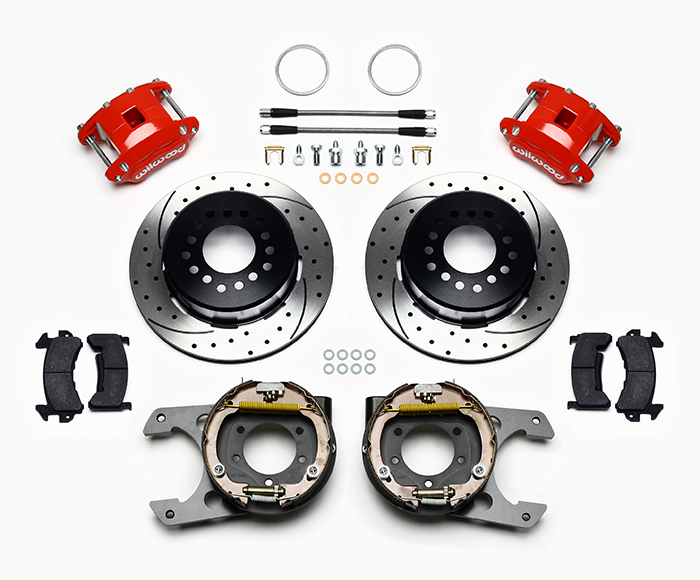

Wilwood D154 Rear Parking Brake Kit Parts Laid Out - Red Powder Coat Caliper - SRP Drilled & Slotted Rotor Wilwood D154 Rear Parking Brake Kit Parts Laid Out - Red Powder Coat Caliper - SRP Drilled & Slotted Rotor Zoom Image



Kit Summary
Rear End Axle: Dana 35
Axle Offset: 2.56
Mount Type: Floating
Caliper Type: 2 - Red Powder Coat
Rotor Diameter: 12.19
Min Wheel Diameter Req'd*: 16
*This Brake Kit may fit 16-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram
UPC Number
UPC 889545016895

WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Applicable to Brake Pads Only


D154 Rear Parking Brake Kit

The D154 Pro Series rear disc conversion kit with integral parking brake provides high-tech styling for the street and rugged durability for the toughest off-road conditions. Experience big brake stopping power from 12.19” diameter rotors and two-piston floating mount calipers for ultimate control with big wheel and tire packages. This kit covers the full range of non-ABS Dana 35 rear axles used over a wide range of Jeep models and feature bolt-on installation and full compatibility with the OE master cylinder output. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. D154 rear caliper kits offer a complimentary match to vehicles using Wilwood D52 or D154 calipers on OE or aftermarket spindles. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance.


Fitment & Installation Details

D154 Rear Parking Brake Kit Assembly Schematic

D154 Rear Parking Brake Kit Assembly Schematic D154 Rear Parking Brake Kit Assembly Schematic Zoom Image

Rear End / Axle Housing Flange
Confirm The Configuration!

Dana 35 Flange
Confirm Offset Measurement!

Axle Flange Cross-Section
Search Rear Kits By Rear End/Axle Offset
caution AXLE OFFSET: 2.56
Check the diagram above and verify this measurement. This kit may be available in several different offsets.
Please call Wilwood with any questions: (805) 388-1188

Wheel Clearance Assembly Instructions

Wheel Clearance Diagram Wheel Clearance Diagram Zoom Image




Assembly Instructions
Notes
1. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.




Compatible Vehicles for this Brake Kit

BRAKE KIT:   D154 Rear Parking Brake Kit

This Brake Kit is Compatible with the Following Vehicle Makes:   Jeep

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.

REAR END:   Dana 35 - Rear Kit

AXLE OFFSET:   2.56

For a Complete Listing including ALL Makes, Models and Years, Please click on the Axle Offset.


Kit Components & Specifications
Calipers
Left Hand - Part No: 120-11875-RD
Right Hand - Part No: 120-11875-RD
Type: D154
Finish Color: Red Powder Coat
Piston Count: 2
Piston 1 Bore (in): 1.12
Piston 2 Bore (in): 1.12
Piston Area (In²): 1.98
Piston Type: Stainless
Mount Type: Floating
Brake Pad Plate: D154
Brake Pad Area (In²): 8.7
Brake Pad Volume (In³): 2.9
Pad Compound: BP-10

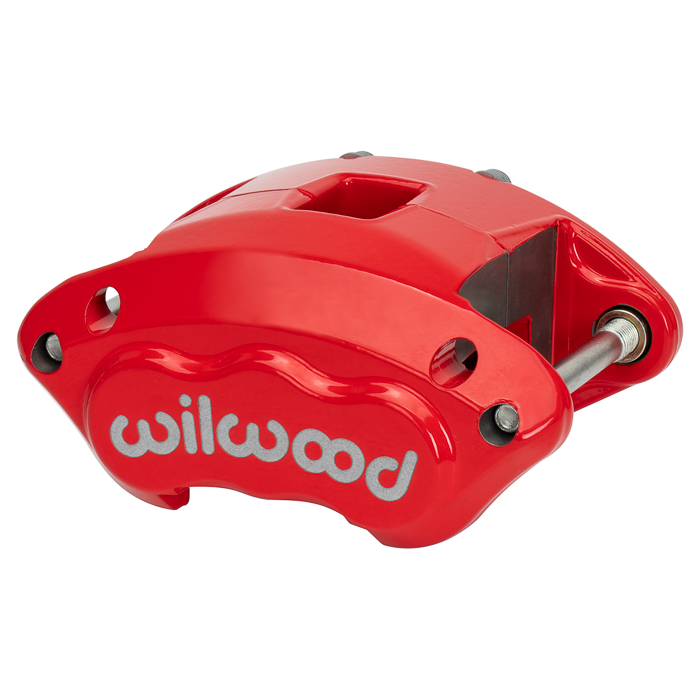

D154 Caliper - Red Powder Coat D154 Caliper - Red Powder Coat Zoom Image
Rotors
Left Hand - Part No: 160-9813-BK
Right Hand - Part No: 160-9812-BK
Type: SRP Drilled Rotor & Hat
Style: SRP Drilled & Slotted
Surface Finish: Black Electro Coat
Material: Iron
Outside Diameter (in): 12.19
Width (in): 0.81
Vane Count: 32 V
Design Type: SRP-BLK
Bedded: No
Dynamically Balanced: No
SRP Drilled Rotor & Hat - Iron - Black Electro Coat SRP Drilled Rotor & Hat - Iron - Black Electro Coat Zoom Image
Rotor Hats
Hat - Part No:
Type:
Material:
Finish Color:
Hat Offset Dimension (in):
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:
Hubs
Hub - Part No:
Type:
Material:
Finish Color:
Mount Style:
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:

Parts & Accessories
Caliper Parts
O-ring Kit: 130-2579
Replacement Dustboot: N-A
Replacement Piston 1: 200-11795
Replacement Piston 2: N-A
Replacement Piston 3: N-A
Replacement Piston 4: N-A
CrossOver O-Ring Kit: N-A
Crossover Tube: N-A
Self-Bleeder Tube: N-A
Bridge Bolt Kit: N-A
Wear Plate - Left Hand: N-A
Wear Plate - Right Hand: N-A
Pad Retainer: N-A
Bleed Screw Kit: 220-0627
Brake Lines
Front Line Kit:
220-12630
Parking Brake Cable: 330-9371
Hat
Bolt Kit:
Hub
Bolt Kit:
Products commonly used with this item:




$129.54
More Details
$147.00
More Details
$166.44
More Details
$66.36
More Details





Additional related products:




More Details
More Details
More Details
More Details
