Rear Brake Kit – Part No: 140-13013-DR
Call (805) 388-1188
Dynapro Radial Rear Brake Kit For OE Parking Brake
Prod #: 140-13013-DR
Price: $1,674.39
Rear Brake Kit - Rear Kit

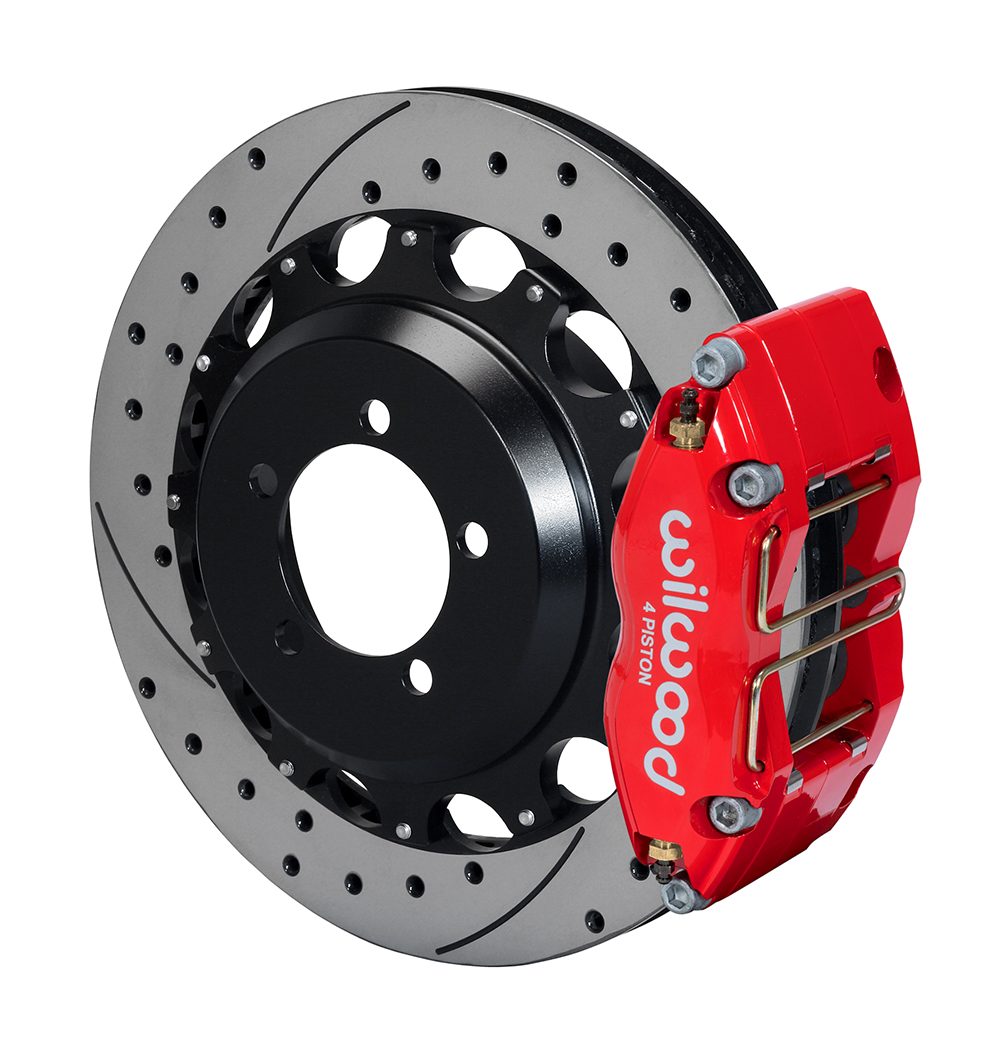

Wilwood Dynapro Radial Rear Brake Kit For OE Parking Brake - Red Powder Coat Caliper - SRP Drilled & Slotted Rotor Wilwood Dynapro Radial Rear Brake Kit For OE Parking Brake - Red Powder Coat Caliper - SRP Drilled & Slotted Rotor Zoom Image

Kit Contents

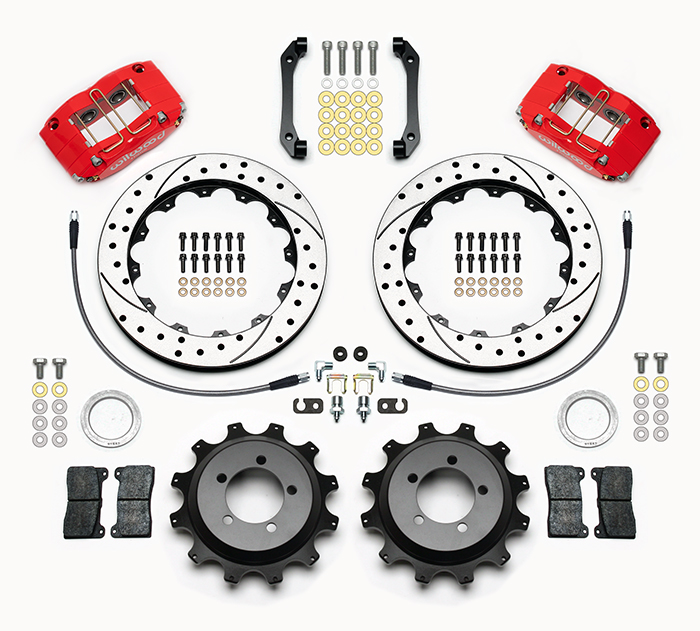

Wilwood Dynapro Radial Rear Brake Kit For OE Parking Brake Parts Laid Out - Red Powder Coat Caliper - SRP Drilled & Slotted Rotor Wilwood Dynapro Radial Rear Brake Kit For OE Parking Brake Parts Laid Out - Red Powder Coat Caliper - SRP Drilled & Slotted Rotor Zoom Image


View Custom Caliper Colors

Kit Summary
Rear End Axle: OEM
Axle Offset: 0.00
Mount Type: Radial
Caliper Type: 4 - Red Powder Coat
Rotor Diameter: 12.88
Min Wheel Diameter Req'd*: 17
*This Brake Kit may fit 17-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram
UPC Number
UPC 889545018516

WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Applicable to Brake Pads Only


Dynapro Radial Rear Brake Kit For OE Parking Brake

Forged billet DynaPro four piston calipers and high performance BP-10 compound pads generate high clamping power with firm pedal response for this group of specialized rear axle brake kits. These kits retain full function of the OE parking brake and provide complimentary performance and style with front big brake upgrades. Caliper piston sizes are selected to provide balanced rear bias ratios using the output from the OE master cylinder. Rear rotor and hat combinations are engineered specific to each vehicle to provide brake performance upgrades and precise fit with the mounting of the DynaPro calipers.


Fitment & Installation Details

Dynapro Radial Rear Brake Kit For OE Parking Brake Assembly Schematic

Dynapro Radial Rear Brake Kit For OE Parking Brake Assembly Schematic Dynapro Radial Rear Brake Kit For OE Parking Brake Assembly Schematic Zoom Image

Rear End / Axle Housing Flange
Confirm The Configuration!

OEM Flange
Confirm Offset Measurement!

Axle Flange Cross-Section
Search Rear Kits By Rear End/Axle Offset
caution AXLE OFFSET: 0.00
Check the diagram above and verify this measurement. This kit may be available in several different offsets.
Please call Wilwood with any questions: (805) 388-1188

Wheel Clearance Assembly Instructions

Wheel Clearance Diagram Wheel Clearance Diagram Zoom Image




Assembly Instructions
Notes





Compatible Vehicles for this Brake Kit

BRAKE KIT:   Dynapro Radial Rear Brake Kit For OE Parking Brake

This Brake Kit is Compatible with the Following Vehicle Makes:   Factory Five Racing Subaru

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.

REAR END:   OEM - Rear Kit

AXLE OFFSET:   0.00

For a Complete Listing including ALL Makes, Models and Years, Please click on the Axle Offset.


Kit Components & Specifications
Calipers
Left Hand - Part No: 120-14697-RD
Right Hand - Part No: 120-14697-RD
Type: Dynapro Dust Seal Radial Mount
Finish Color: Red Powder Coat
Piston Count: 4
Piston 1 Bore (in): 1.00
Piston 2 Bore (in): 1.00
Piston Area (In²): 1.58
Piston Type: Stainless
Mount Type: Radial
Brake Pad Plate: 7816
Brake Pad Area (In²): 6.36
Brake Pad Volume (In³): 3
Pad Compound: BP-10
Dynapro Dust Seal Radial Mount Caliper - Red Powder Coat Dynapro Dust Seal Radial Mount Caliper - Red Powder Coat Zoom Image
Rotors
Left Hand - Part No: 160-13544-BK
Right Hand - Part No: 160-13543-BK
Type: SRP Drilled Rotor
Style: SRP Drilled & Slotted
Surface Finish: Black Electro Coat
Material: Spec-37 Iron
Outside Diameter (in): 12.88
Width (in): 1.10
Vane Count: 48 CV
Design Type: SRP-BLK
Bedded: No
Dynamically Balanced: Yes
SRP Drilled Rotor - Spec-37 Iron - Black Electro Coat SRP Drilled Rotor - Spec-37 Iron - Black Electro Coat Zoom Image
Rotor Hats
Hat - Part No: 170-13017
Type: Parking Brake Hat - Standard
Material: Iron
Finish Color: Black E-Coat
Hat Offset Dimension (in): 1.220
Bolt Circle 1: 5 x 3.93
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1: 0.520
Stud Diameter - BC 2: 0.000
Stud Diameter - BC 3: 0.000
Parking Brake Hat - Standard - Iron - Black E-Coat Parking Brake Hat - Standard - Iron - Black E-Coat Zoom Image
Hubs
Hub - Part No:
Type:
Material:
Finish Color:
Mount Style:
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:

Parts & Accessories
Caliper Parts
O-ring Kit: 130-4320
Replacement Dustboot: 210-14637
Replacement Piston 1: 200-14638
Replacement Piston 2: 200-14638
Replacement Piston 3: N-A
Replacement Piston 4: N-A
CrossOver O-Ring Kit: 130-10540
Crossover Tube: N-A
Self-Bleeder Tube: N-A
Bridge Bolt Kit: N-A
Wear Plate - Left Hand: 300-5876
Wear Plate - Right Hand: 300-5876
Pad Retainer: 300-7316
Bleed Screw Kit: 220-6069
Brake Lines
Front Line Kit:
220-12861
Hat
Bolt Kit: 230-8218
Hub
Bolt Kit:
