Combination Parking Brake Caliper Rear Brake Kit
Prod #: 140-13031-DR
Price: $1,900.90
Rear Brake Kit - Rear Kit


Kit Contents
Wilwood Combination Parking Brake Caliper Rear Brake Kit Parts Laid Out - Red Powder Coat Caliper - SRP Drilled & Slotted Rotor Wilwood Combination Parking Brake Caliper Rear Brake Kit Parts Laid Out - Red Powder Coat Caliper - SRP Drilled & Slotted Rotor Zoom Image


View Custom Caliper Colors

Kit Summary
Rear End Axle: OEM
Axle Offset: 0.00
Mount Type: Radial
Caliper Type: 1 - Red Powder Coat
Rotor Diameter: 12.88
Min Wheel Diameter Req'd*: 17
*This Brake Kit may fit 17-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram
UPC Number
UPC 889545018707

WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Applicable to Brake Pads Only


Combination Parking Brake Caliper Rear Brake Kit

Combination hydro-mechanical Parking Brake calipers use hydraulic pressure from the master cylinder for stopping power, and an internal mechanical lock within the caliper for a parking brake. CPB kits are built primarily for front wheel drive vehicles, and select rear wheel drive axles that are not well suited for internal shoe style parking brakes. The calipers are coupled with oversized two-piece rotor assemblies with aluminum hats and high friction BP-10 compound pads. CPB kits provide the correct balanced brake performance and matching style to compliment front big brake upgrade kits.

Ford Focus ST Brake Install

Fitment & Installation Details

Combination Parking Brake Caliper Rear Brake Kit Assembly Schematic

Combination Parking Brake Caliper Rear Brake Kit Assembly Schematic Combination Parking Brake Caliper Rear Brake Kit Assembly Schematic Zoom Image

Rear End / Axle Housing Flange
Confirm The Configuration!

OEM Flange
Confirm Offset Measurement!

Axle Flange Cross-Section
Search Rear Kits By Rear End/Axle Offset
caution AXLE OFFSET: 0.00
Check the diagram above and verify this measurement. This kit may be available in several different offsets.
Please call Wilwood with any questions: (805) 388-1188

Wheel Clearance Assembly Instructions

Wheel Clearance Diagram Wheel Clearance Diagram Zoom Image
Notes





Compatible Vehicles for this Brake Kit

BRAKE KIT:   Combination Parking Brake Caliper Rear Brake Kit

This Brake Kit is Compatible with the Following Vehicle Makes:   Ford

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.

REAR END:   OEM - Rear Kit

AXLE OFFSET:   0.00

For a Complete Listing including ALL Makes, Models and Years, Please click on the Axle Offset.


Kit Components & Specifications
Calipers
Left Hand - Part No: 120-9808-1-RD
Right Hand - Part No: 120-9809-1-RD
Type: Combination Parking Brake
Finish Color: Red Powder Coat
Piston Count: 1
Piston 1 Bore (in): 1.34
Piston Area (In²): 1.38
Piston Type: Steel
Mount Type: Radial
Brake Pad Plate: D340
Brake Pad Area (In²): 4
Brake Pad Volume (In³): 1.5
Pad Compound: BP-10

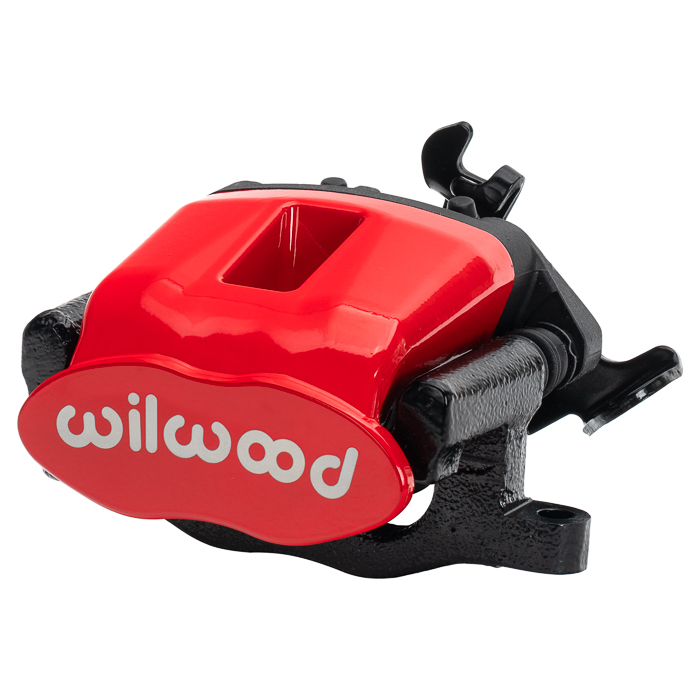

Combination Parking Brake Caliper - Red Powder Coat Combination Parking Brake Caliper - Red Powder Coat Zoom Image
Rotors
Left Hand - Part No: 160-9962-BK
Right Hand - Part No: 160-9961-BK
Type: SRP Drilled Rotor
Style: SRP Drilled & Slotted
Surface Finish: Black Electro Coat
Material: Iron
Outside Diameter (in): 12.88
Width (in): 0.81
Vane Count: 48 CV
Design Type: SRP-BLK
Bedded: No
Dynamically Balanced: No
SRP Drilled Rotor - Iron - Black Electro Coat SRP Drilled Rotor - Iron - Black Electro Coat Zoom Image
Rotor Hats
Hat - Part No: 170-13024
Type: Big Brake Hat - Flared Bell
Material: Aluminum
Finish Color: Black E-Coat
Hat Offset Dimension (in): 0.635
Bolt Circle 1: 5 x 4.25
Bolt Circle 2: 5 x 4.50
Bolt Circle 3:
Stud Diameter - BC 1: 0.580
Stud Diameter - BC 2: 0.520
Stud Diameter - BC 3: 0.000
Big Brake Hat - Flared Bell - Aluminum - Black E-Coat Big Brake Hat - Flared Bell - Aluminum - Black E-Coat Zoom Image
Hubs
Hub - Part No:
Type:
Material:
Finish Color:
Mount Style:
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:

Parts & Accessories
Caliper Parts
O-ring Kit: Call
Replacement Dustboot: N-A
Replacement Piston 1: Call
Replacement Piston 2: N-A
Replacement Piston 3: N-A
Replacement Piston 4: N-A
CrossOver O-Ring Kit: N-A
Crossover Tube: N-A
Self-Bleeder Tube: N-A
Bridge Bolt Kit: N-A
Wear Plate - Left Hand: N-A
Wear Plate - Right Hand: N-A
Pad Retainer: N-A
Bleed Screw Kit: N-A
Brake Lines
Front Line Kit:
220-13039
Hat
Bolt Kit: 230-8008
Hub
