Rear Brake Kit – Part No: 140-13161-CSICR
Call (805) 388-1188
AERO4 WCCB Carbon-Ceramic Big Brake Rear OE Parking Brake Kit
Prod #: 140-13161-CSICR
Price: $7,770.00
Rear Brake Kit - Rear Kit

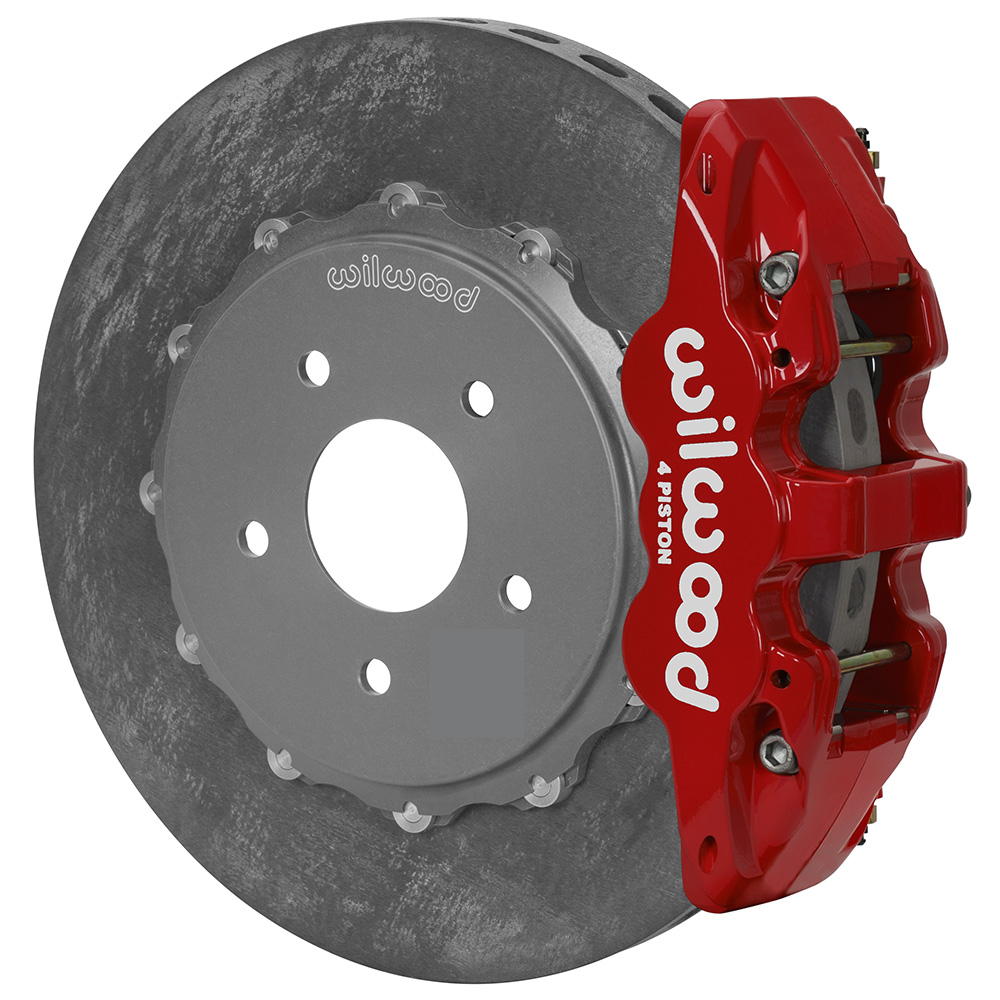

Wilwood AERO4 WCCB Carbon-Ceramic Big Brake Rear OE Parking Brake Kit - Red Powder Coat Caliper - Plain Face Rotor Wilwood AERO4 WCCB Carbon-Ceramic Big Brake Rear OE Parking Brake Kit - Red Powder Coat Caliper - Plain Face Rotor Zoom Image

Kit Contents

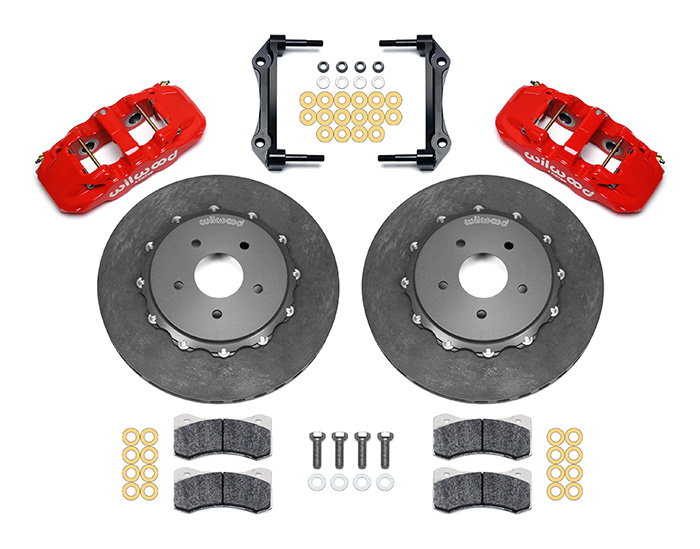

Wilwood AERO4 WCCB Carbon-Ceramic Big Brake Rear OE Parking Brake Kit Parts Laid Out - Red Powder Coat Caliper - Plain Face Rotor Wilwood AERO4 WCCB Carbon-Ceramic Big Brake Rear OE Parking Brake Kit Parts Laid Out - Red Powder Coat Caliper - Plain Face Rotor Zoom Image


View Custom Caliper Colors

Kit Summary
Rear End Axle: OEM
Axle Offset: 0.00
Mount Type: Radial
Caliper Type: 4 - Red Powder Coat
Rotor Diameter: 14.00
Min Wheel Diameter Req'd*: 18
*This Brake Kit may fit 18-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram
UPC Number
UPC 889545019001

WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Applicable to Brake Pads Only


AERO4 WCCB Carbon-Ceramic Big Brake Rear OE Parking Brake Kit

AERO4 WCCB Carbon-Ceramic Rotor Rear OE Parking Brake Kits offer an extreme performance upgrade featuring WCCB Carbon-Ceramic Dynamic Mount Rotors with Wilwood’s exclusive Bobbin Mounting System. AERO4 WCCB kits are engineered to maximize braking capacity inside custom wheels. Rear parking brake kits offer a simple bolt-on installation with OE original internal shoe parking brakes for outstanding holding power and are fully compatible with ABS and OE master cylinder output. AERO4 calipers are a competition proven and offer fully detail machined forged caliper body demonstrates superior strength and resistance to deflection and separation under high load. Black or Red powder coat calipers are available as options. 14.00” WCCB rotors are made from a proprietary blend ceramic matrix composite material commonly known as Carbon-Ceramic and dynamically using Wilwood’s proprietary integrated anti-rattle Bobbin Mounting System. WCCB rotors offer higher thermal conductivity and heat capacity in excess of conventional iron or titanium rotors of similar or even greater weight and have been developed to withstand extreme temperatures with the highest possible degree of resistance against distortion, warping, cracking and wear.


Fitment & Installation Details

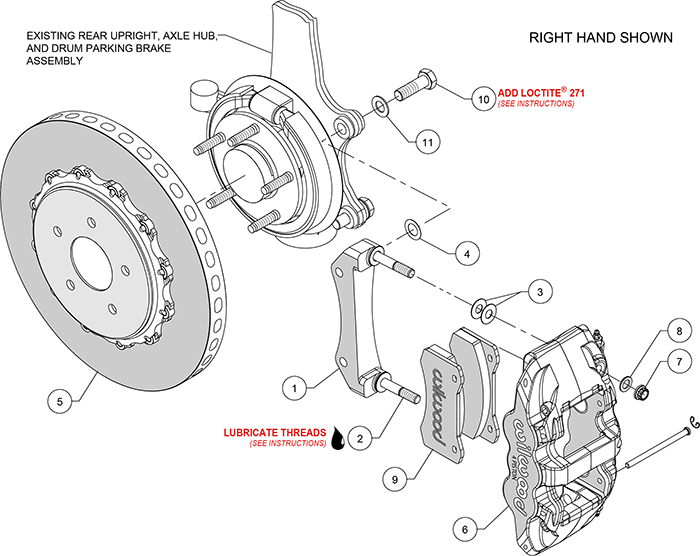

AERO4 WCCB Carbon-Ceramic Big Brake Rear OE Parking Brake Kit Assembly Schematic

AERO4 WCCB Carbon-Ceramic Big Brake Rear OE Parking Brake Kit Assembly Schematic AERO4 WCCB Carbon-Ceramic Big Brake Rear OE Parking Brake Kit Assembly Schematic Zoom Image

Rear End / Axle Housing Flange
Confirm The Configuration!

OEM Flange
Confirm Offset Measurement!

Axle Flange Cross-Section
Search Rear Kits By Rear End/Axle Offset
caution AXLE OFFSET: 0.00
Check the diagram above and verify this measurement. This kit may be available in several different offsets.
Please call Wilwood with any questions: (805) 388-1188

Wheel Clearance Assembly Instructions

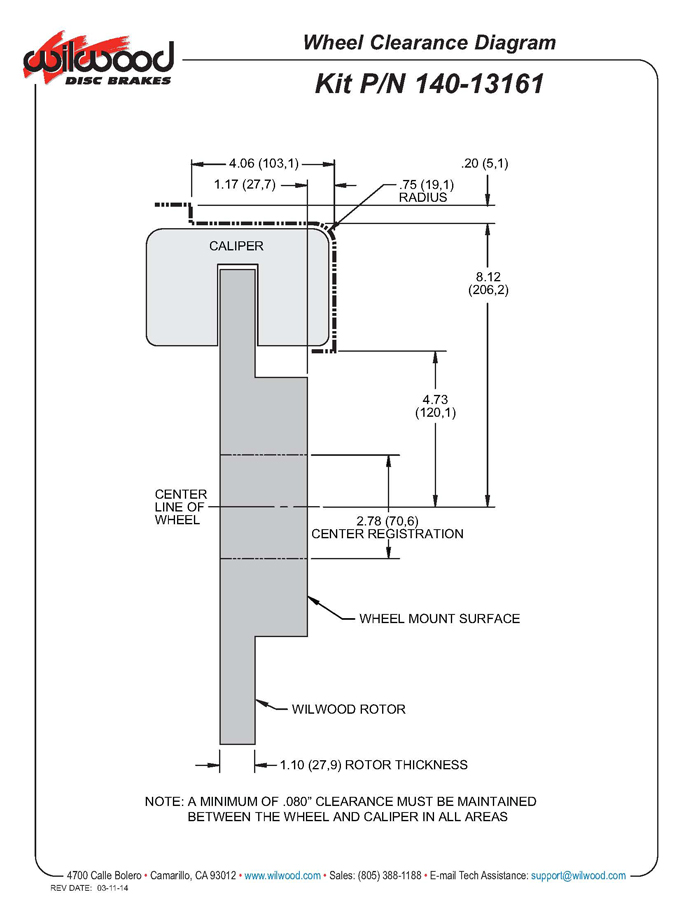

Wheel Clearance Diagram Wheel Clearance Diagram Zoom Image




Assembly Instructions
Notes
1. 14" Rotor
2. Kit will require aftermarket wheel spacers of 1/8th" (not included in kit) for rear kit installation with OE wheels.



Compatible Vehicles for this Brake Kit

BRAKE KIT:   AERO4 WCCB Carbon-Ceramic Big Brake Rear OE Parking Brake Kit

This Brake Kit is Compatible with the Following Vehicle Makes:   Cadillac Chevrolet Factory Five Racing

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.

REAR END:   OEM - Rear Kit

AXLE OFFSET:   0.00

For a Complete Listing including ALL Makes, Models and Years, Please click on the Axle Offset.


Kit Components & Specifications
Calipers
Left Hand - Part No: 120-13338-RD
Right Hand - Part No: 120-13338-RD
Type: AERO4
Finish Color: Red Powder Coat
Piston Count: 4
Piston 1 Bore (in): 1.12
Piston 2 Bore (in): 1.12
Piston Area (In²): 1.98
Piston Type: Stainless
Mount Type: Radial
Brake Pad Plate: 6617
Brake Pad Area (In²): 11.1
Brake Pad Volume (In³): 5.2
Pad Compound: PCM
AERO4 Caliper - Red Powder Coat AERO4 Caliper - Red Powder Coat Zoom Image
Rotors
Left Hand - Part No: 160-12441
Right Hand - Part No: 160-12441
Type: WCCD Carbon-Ceramic
Style: Plain Face
Surface Finish: Plain
Material: C/SiC
Outside Diameter (in): 14.00
Width (in): 1.10
Vane Count: 24 V
Design Type: C/SiC
Bedded: No
Dynamically Balanced: No
WCCD Carbon-Ceramic - C/SiC - Plain WCCD Carbon-Ceramic - C/SiC - Plain Zoom Image
Rotor Hats
Hat - Part No: 170-13160
Type: Parking Brake Hat - Dynamic Bobbin Mount
Material: Aluminum
Finish Color: Type III Anodize
Hat Offset Dimension (in): 0.660
Bolt Circle 1: 5 x 4.75
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1: 0.520
Stud Diameter - BC 2: 0.000
Stud Diameter - BC 3: 0.000

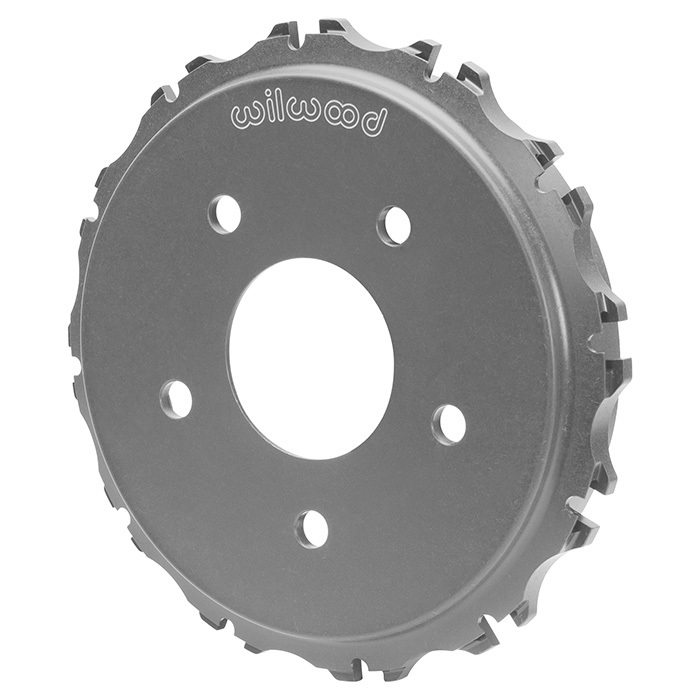

Parking Brake Hat - Dynamic Bobbin Mount - Aluminum - Type III Anodize Parking Brake Hat - Dynamic Bobbin Mount - Aluminum - Type III Anodize Zoom Image
Hubs
Hub - Part No:
Type:
Material:
Finish Color:
Mount Style:
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:

Parts & Accessories
Caliper Parts
O-ring Kit: 130-2579
Replacement Dustboot: N-A
Replacement Piston 1: 200-7513
Replacement Piston 2: 200-7513
Replacement Piston 3: N-A
Replacement Piston 4: N-A
CrossOver O-Ring Kit: N-A
Crossover Tube: N-A
Self-Bleeder Tube: N-A
Bridge Bolt Kit: N-A
Wear Plate - Left Hand: 300-5876
Wear Plate - Right Hand: 300-5876
Pad Retainer: N-A
Bleed Screw Kit: 220-0627
Brake Lines
Front Line Kit:
Front Line Kit:
220-8177
220-9101
Hat
Bolt Kit: Call
Hub
Bolt Kit:

Additional related products:




More Details
More Details
More Details
More Details






All images shown are for illustrative purposes only. Actual product received may be different than what is portrayed on the web site.
