TX6R Big Brake Truck Rear Brake Kit
Prod #: 140-13879
Price: $2,519.94
Rear Brake Kit - Rear Kit

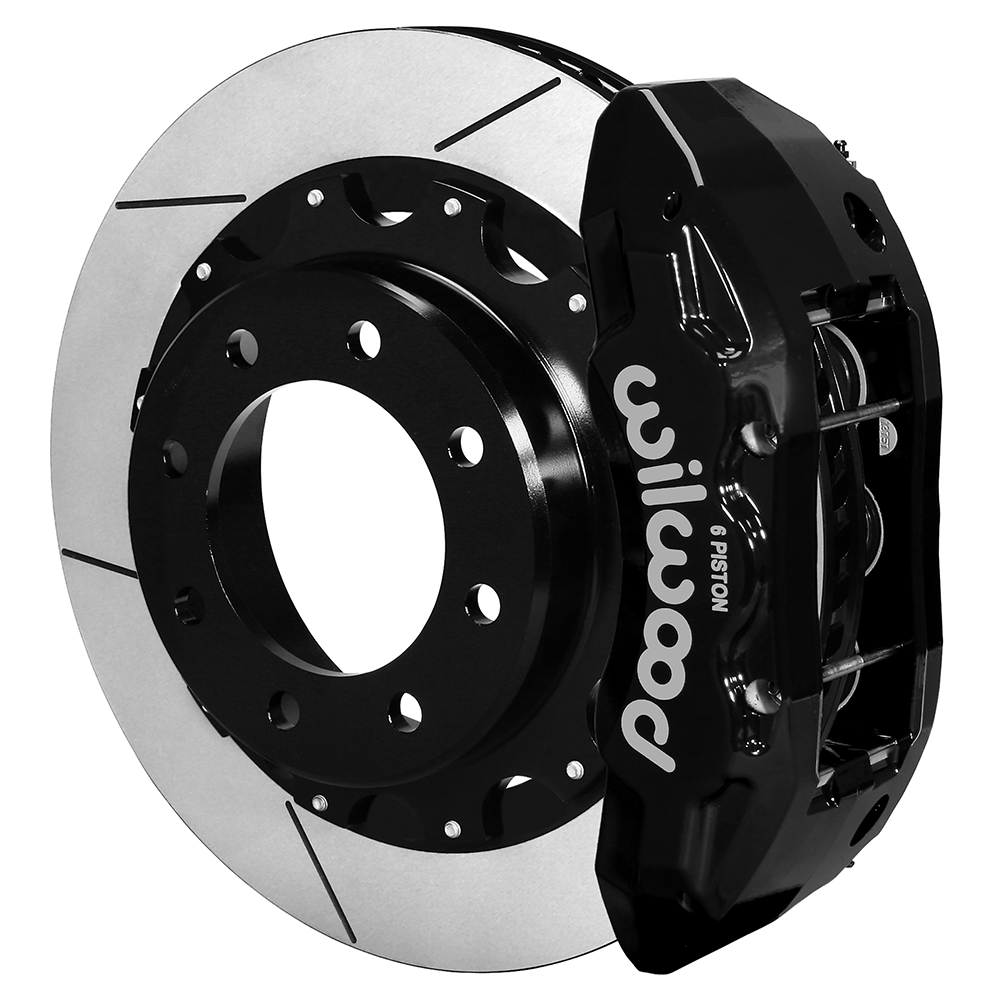

Wilwood TX6R Big Brake Truck Rear Brake Kit - Black Powder Coat Caliper - GT Slotted Rotor Wilwood TX6R Big Brake Truck Rear Brake Kit - Black Powder Coat Caliper - GT Slotted Rotor Zoom Image

Kit Contents
Wilwood TX6R Big Brake Truck Rear Brake Kit Parts Laid Out - Black Powder Coat Caliper - GT Slotted Rotor Wilwood TX6R Big Brake Truck Rear Brake Kit Parts Laid Out - Black Powder Coat Caliper - GT Slotted Rotor Zoom Image


View Custom Caliper Colors

Kit Summary
Rear End Axle: OEM
Axle Offset: 0.00
Mount Type: Radial
Caliper Type: 6 - Black Powder Coat
Rotor Diameter: 16.00
Min Wheel Diameter Req'd*: 20
*This Brake Kit may fit 20-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram
UPC Number
UPC 889545071566

WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Applicable to Brake Pads Only


TX6R Big Brake Truck Rear Brake Kit

Wilwood’s Tactical Extreme TX6R Big Brake rear kits are ultimate in braking performance for Truck, SUV and Armored Vehicles. Using TX6R radial mount six-piston calipers and massive 15.00” to 16.00” GT-60 directional vane Spec-37 alloy rotors, these kits deliver consistent stopping power and extreme duty durability under sustained high heat with this ready to bolt-on kit. The calipers are volume matched for compatibility with original equipment power brake system output. TX6R rear kits replace the factory disc brakes and use the OE parking brake assembly as a compliment to front big brake upgrades. Kits include radial mount caliper brackets, and all the necessary hardware to complete the installation. Braided stainless steel flex lines will need to be purchased for some applications.


Fitment & Installation Details

TX6R Big Brake Truck Rear Brake Kit Assembly Schematic

TX6R Big Brake Truck Rear Brake Kit Assembly Schematic TX6R Big Brake Truck Rear Brake Kit Assembly Schematic Zoom Image

Rear End / Axle Housing Flange
Confirm The Configuration!

OEM Flange
Confirm Offset Measurement!

Axle Flange Cross-Section
Search Rear Kits By Rear End/Axle Offset
caution AXLE OFFSET: 0.00
Check the diagram above and verify this measurement. This kit may be available in several different offsets.
Please call Wilwood with any questions: (805) 388-1188

Wheel Clearance Assembly Instructions

Wheel Clearance Diagram Wheel Clearance Diagram Zoom Image




Assembly Instructions
Notes
1. Fits axle with 4.84 center register only.




Compatible Vehicles for this Brake Kit

BRAKE KIT:   TX6R Big Brake Truck Rear Brake Kit

This Brake Kit is Compatible with the Following Vehicle Makes:   Chevrolet GMC

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.

REAR END:   OEM - Rear Kit

AXLE OFFSET:   0.00

For a Complete Listing including ALL Makes, Models and Years, Please click on the Axle Offset.


Kit Components & Specifications
Calipers
Left Hand - Part No: 120-13818-BK
Right Hand - Part No: 120-13817-BK
Type: TX6R
Finish Color: Black Powder Coat
Piston Count: 6
Piston 1 Bore (in): 1.75
Piston 2 Bore (in): 1.62
Piston 3 Bore (in): 1.62
Piston Area (In²): 6.52
Piston Type: Stainless
Mount Type: Radial
Brake Pad Plate: 10120
Brake Pad Area (In²): 12.69
Brake Pad Volume (In³): 6.81
Pad Compound: BP-20

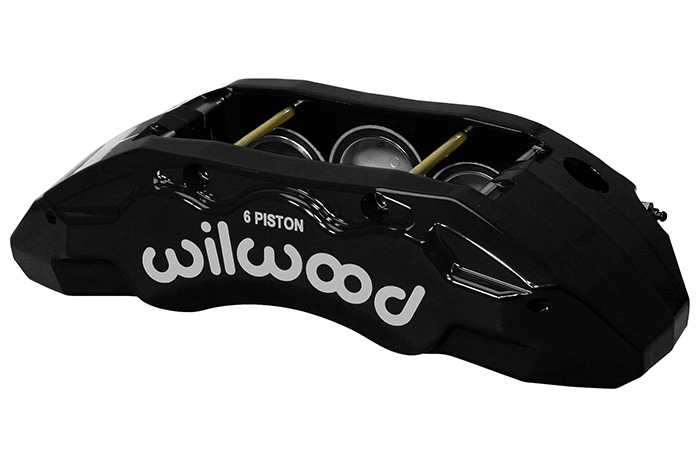

TX6R Caliper - Black Powder Coat TX6R Caliper - Black Powder Coat Zoom Image
