FNSL6R/EPB Big Brake Truck Rear Brake Kit
Prod #: 140-15774
Price: $3,785.54

Rear Brake Kit - Rear Kit

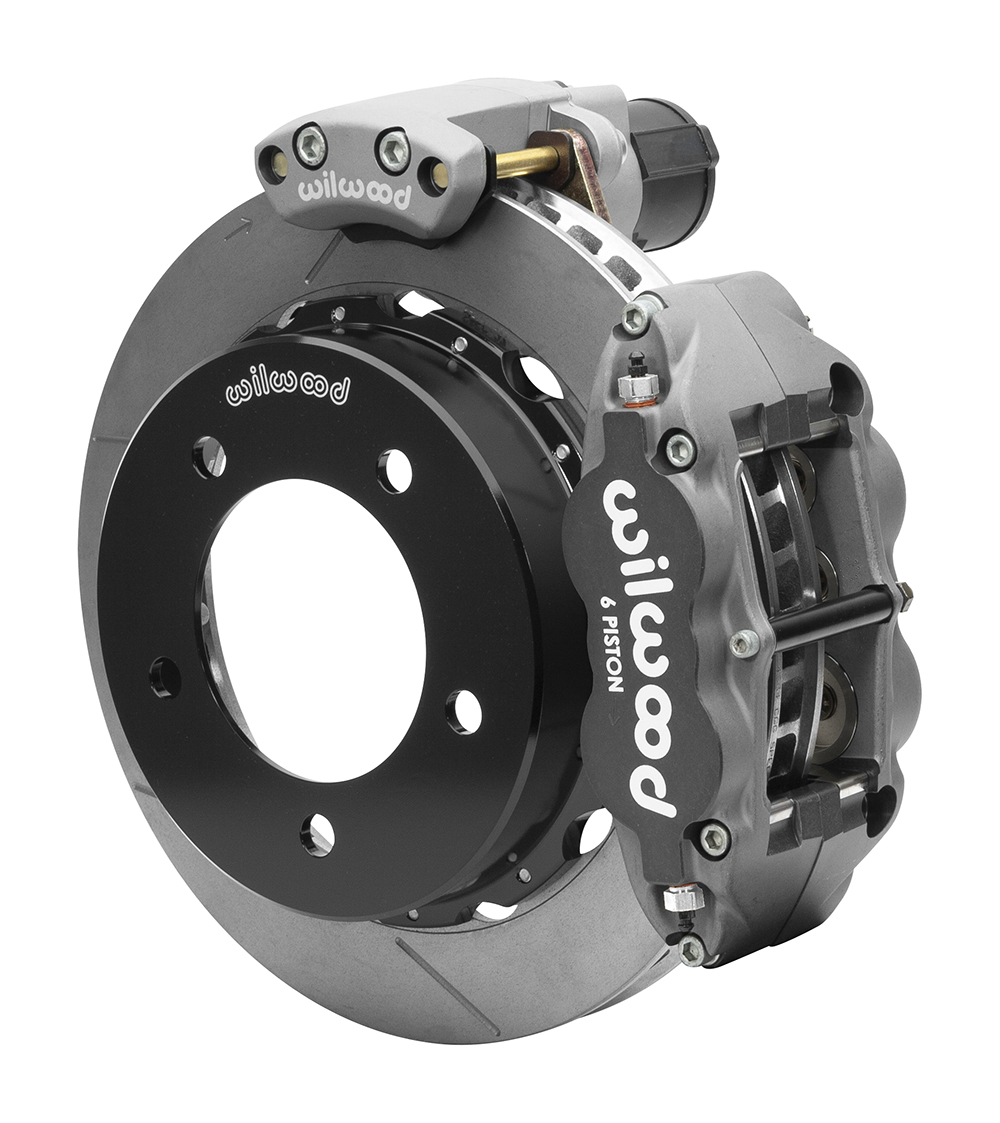

Wilwood FNSL6R/EPB Big Brake Truck Rear Brake Kit - Type III Ano Caliper - GT Slotted Rotor Wilwood FNSL6R/EPB Big Brake Truck Rear Brake Kit - Type III Ano Caliper - GT Slotted Rotor Zoom Image

Kit Contents
Wilwood FNSL6R/EPB Big Brake Truck Rear Brake Kit Parts Laid Out - Type III Ano Caliper - GT Slotted Rotor Wilwood FNSL6R/EPB Big Brake Truck Rear Brake Kit Parts Laid Out - Type III Ano Caliper - GT Slotted Rotor Zoom Image


View Custom Caliper Colors

Kit Summary
Rear End Axle: OEM
Axle Offset: 0.00
Mount Type: Radial
Caliper Type: 6 - Type III Ano
Rotor Diameter: 12.88
Min Wheel Diameter Req'd*: 17
*This Brake Kit may fit 17-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram
UPC Number
UPC 889545092356

WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Applicable to Brake Pads Only


FNSL6R/EPB Big Brake Truck Rear Brake Kit

Wilwood’s 140-15774 FNSL6R/EPB Big Brake Rear Kit for the Toyota Land Cruiser 70 series (LC70) vehicles available in Japan, South America, Africa and the MidEast. Kit combines Type III Anodized FNSL6R calipers, BP-30 SmartPads, and two piece slotted 12.88" rotors. Equipped with our newest Electronic Parking Brake Caliper (EPB). Designed for use with the OE master cylinder output and ABS function, this Wilwood kit provides nearly effortless enhanced brake performance, durability for OE, Enhanced and Up-Armored vehicles. Verify fitment on Wilwood website.


Fitment & Installation Details

FNSL6R/EPB Big Brake Truck Rear Brake Kit Assembly Schematic

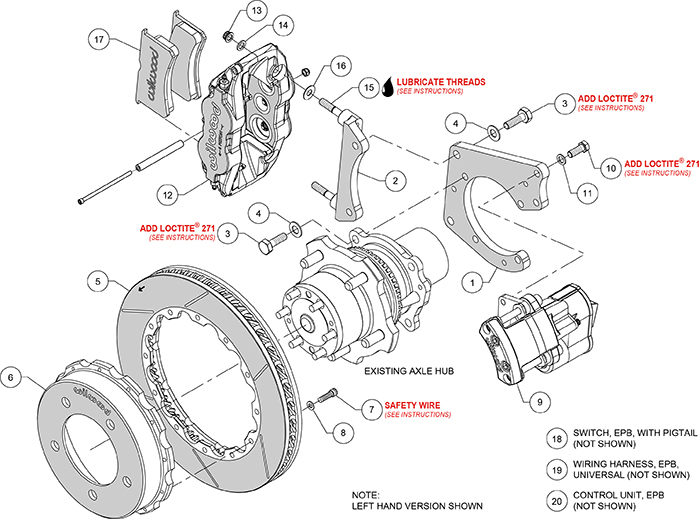

FNSL6R/EPB Big Brake Truck Rear Brake Kit Assembly Schematic FNSL6R/EPB Big Brake Truck Rear Brake Kit Assembly Schematic Zoom Image

Rear End / Axle Housing Flange
Confirm The Configuration!

OEM Flange
Confirm Offset Measurement!

Axle Flange Cross-Section
Search Rear Kits By Rear End/Axle Offset
caution AXLE OFFSET: 0.00
Check the diagram above and verify this measurement. This kit may be available in several different offsets.
Please call Wilwood with any questions: (805) 388-1188

Wheel Clearance Assembly Instructions

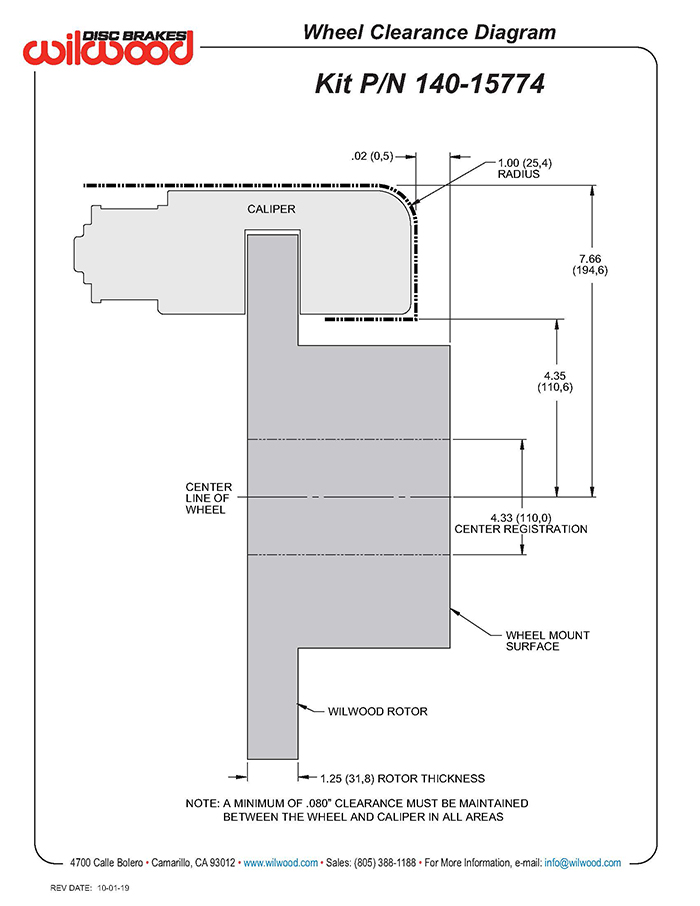

Wheel Clearance Diagram Wheel Clearance Diagram Zoom Image




Assembly Instructions
Notes





Compatible Vehicles for this Brake Kit

BRAKE KIT:   FNSL6R/EPB Big Brake Truck Rear Brake Kit

This Brake Kit is Compatible with the Following Vehicle Makes:   Toyota

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.

REAR END:   OEM - Rear Kit

AXLE OFFSET:   0.00

For a Complete Listing including ALL Makes, Models and Years, Please click on the Axle Offset.


Kit Components & Specifications
Calipers
Left Hand - Part No: 120-15777
Right Hand - Part No: 120-15776
Type: FNSL6R
Finish Color: Type III Ano
Piston Count: 6
Piston 1 Bore (in): 1.75
Piston 2 Bore (in): 1.25
Piston 3 Bore (in): 1.25
Piston Area (In²): 4.86
Piston Type: Thermlock
Mount Type: Radial
Brake Pad Plate: 7416
Brake Pad Area (In²): 8.2
Brake Pad Volume (In³): 3.8
Pad Compound: BP-30
FNSL6R Caliper - Type III Ano FNSL6R Caliper - Type III Ano Zoom Image
Rotors
Left Hand - Part No: 160-4565
Right Hand - Part No: 160-4564
Type: GT 48 Curved Vane
Style: GT Slotted
Surface Finish: Plain
Material: Spec-37 Iron
Outside Diameter (in): 12.88
Width (in): 1.25
Vane Count: 48 CV
Design Type: GT
Bedded: No
Dynamically Balanced: Yes
GT 48 Curved Vane - Spec-37 Iron - Plain GT 48 Curved Vane - Spec-37 Iron - Plain Zoom Image
Rotor Hats
Hat - Part No: 170-15634
Type: Truck Hat - Standard
Material: Aluminum
Finish Color: Black E-Coat
Hat Offset Dimension (in): 1.665
Bolt Circle 1: 5 x 5.91
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1: 0.620
Stud Diameter - BC 2: 0.000
Stud Diameter - BC 3: 0.000

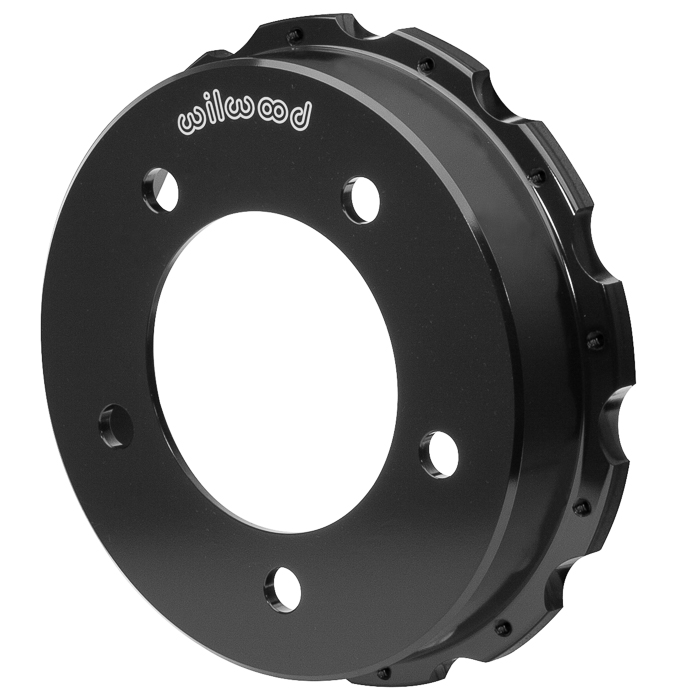

Truck Hat - Standard - Aluminum - Black E-Coat Truck Hat - Standard - Aluminum - Black E-Coat
