Forged Superlite 4 Radial Sprint Inboard Rear Brake Kit
Prod #: 140-15815
Price: $825.71

Rear Brake Kit - Rear Kit

Wilwood Forged Superlite 4 Radial Sprint Inboard Rear Brake Kit - Type III Ano Caliper - Plain Face Rotor Wilwood Forged Superlite 4 Radial Sprint Inboard Rear Brake Kit - Type III Ano Caliper - Plain Face Rotor Zoom Image

Kit Contents
Wilwood Forged Superlite 4 Radial Sprint Inboard Rear Brake Kit Parts Laid Out - Type III Ano Caliper - Plain Face Rotor Wilwood Forged Superlite 4 Radial Sprint Inboard Rear Brake Kit Parts Laid Out - Type III Ano Caliper - Plain Face Rotor Zoom Image


View Custom Caliper Colors

Kit Summary
Rear End Axle: OEM
Axle Offset: 0.00
Mount Type: Radial
Caliper Type: 4 - Type III Ano
Rotor Diameter: 12.19
Min Wheel Diameter Req'd*:
*This Brake Kit may fit -inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram
UPC Number
UPC 889545092448

WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Applicable to Brake Pads Only


Forged Superlite 4 Radial Sprint Inboard Rear Brake Kit

Forged Superlite 4 Radial Sprint Inboard Kit Features: A fully engineered bolt-on brake system for sprint car quick change rears with 3.00 x 46 splined axles. With 12.19" x 1.25" Super Alloy vented rotor and a newly designed dynamic mount rotor axle clamp, offer the lowest rotating weight available for Sprint racing. The lightweight advantages of Wilwood Sprint rotors are fortified with the high durability, long wear, and superior heat control properties of advanced materials. Newly redesigned Type III hard anodize Forged Superlite 4 Radial mount calipers with BP-40 pads, produce superior stopping power and consistent fade-free response. Kit includes Axle Clamp with Dual Mount Rotor Adapter with T-nuts, radial mount bracket assembly and mounting hardware.


Fitment & Installation Details

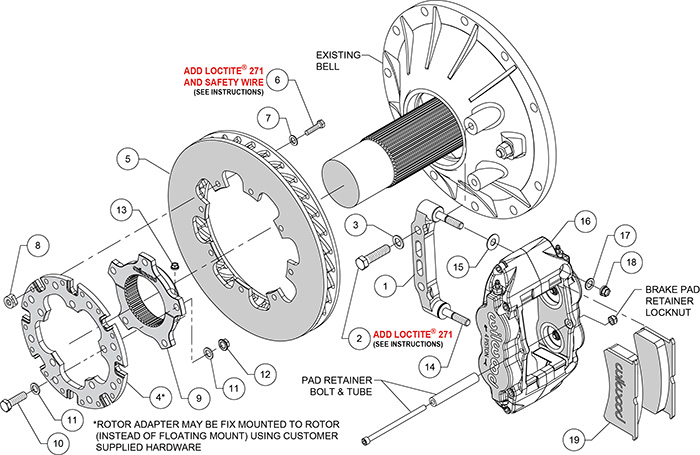

Forged Superlite 4 Radial Sprint Inboard Rear Brake Kit Assembly Schematic
