Forged Dynapro Low-Profile Rear Electronic Parking Brake Kit
Prod #: 140-16163-DR
Price: $2,365.28
Rear Brake Kit - Rear Kit


Kit Contents

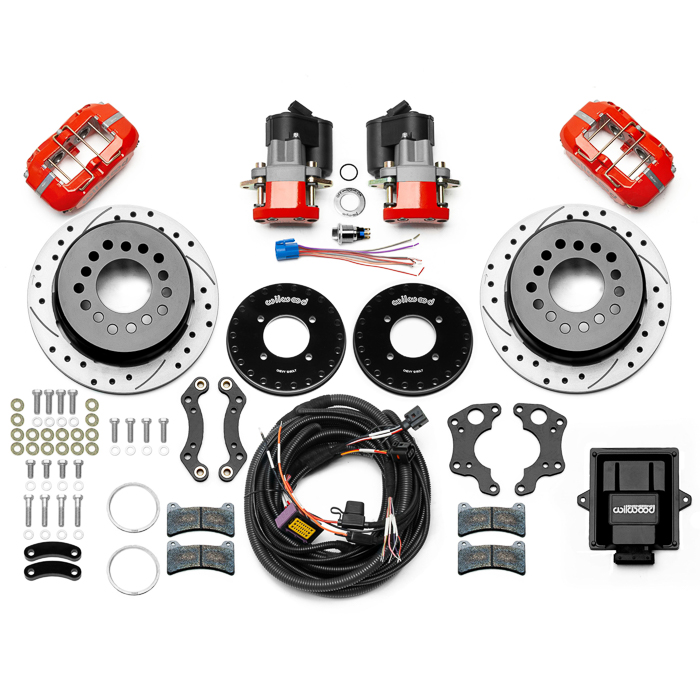

Wilwood Forged Dynapro Low-Profile Rear Electronic Parking Brake Kit Parts Laid Out - Red Powder Coat Caliper - SRP Drilled & Slotted Rotor Wilwood Forged Dynapro Low-Profile Rear Electronic Parking Brake Kit Parts Laid Out - Red Powder Coat Caliper - SRP Drilled & Slotted Rotor Zoom Image


View Custom Caliper Colors

Kit Summary
Rear End Axle: 12 Bolt
Axle Offset: 2.75
Mount Type: Lug
Caliper Type: 4 - Red Powder Coat
Rotor Diameter: 11.00
Min Wheel Diameter Req'd*: 14
*This Brake Kit may fit 14-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram
UPC Number
UPC 889545097658

WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Applicable to Brake Pads Only


Forged Dynapro Low-Profile Rear Electronic Parking Brake Kit

Forged Dynapro Low-Profile Rear Electronic Parking Brake Kits provide a complete solution for popular muscle car rear axles on applications that require a parking brake assembly and extra clearance for 14.00” to 15.00” rim applications. Forged billet Dynapro Low-Profile four-piston calipers 11.00” one-piece hat and rotor assemblies, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The unique Electronic Parking Brake caliper provides a static high torque static holding power for parking without mechanical cabling. Supplied with control unit and harness assembly, it simplifies installation and use. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.


Fitment & Installation Details

Forged Dynapro Low-Profile Rear Electronic Parking Brake Kit Assembly Schematic

Forged Dynapro Low-Profile Rear Electronic Parking Brake Kit Assembly Schematic Forged Dynapro Low-Profile Rear Electronic Parking Brake Kit Assembly Schematic Zoom Image

Rear End / Axle Housing Flange
Confirm The Configuration!

12 Bolt Flange
Confirm Offset Measurement!

Axle Flange Cross-Section
Search Rear Kits By Rear End/Axle Offset
caution AXLE OFFSET: 2.75
Check the diagram above and verify this measurement. This kit may be available in several different offsets.
Please call Wilwood with any questions: (805) 388-1188

Wheel Clearance Assembly Instructions

Wheel Clearance Diagram Wheel Clearance Diagram Zoom Image
Notes
1. Kit may fit some 14" wheels. Check wheel clearance diagram in kit installation instructions before purchase.




Compatible Vehicles for this Brake Kit

BRAKE KIT:   Forged Dynapro Low-Profile Rear Electronic Parking Brake Kit

This Brake Kit is Compatible with the Following Vehicle Makes:

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.

REAR END:   12 Bolt - Rear Kit

AXLE OFFSET:   2.75

For a Complete Listing including ALL Makes, Models and Years, Please click on the Axle Offset.


Kit Components & Specifications
Calipers
Left Hand - Part No: 120-16190-RD
Right Hand - Part No: 120-16190-RD
Type: Forged Dynapro Low Profile
Finish Color: Red Powder Coat
Piston Count: 4
Piston 1 Bore (in): 1.38
Piston 2 Bore (in): 1.38
Piston Area (In²): 3.00
Piston Type: Stainless
Mount Type: Lug
Brake Pad Plate: 4812
Brake Pad Area (In²): 5.1
Brake Pad Volume (In³): 1.71
Pad Compound: BP-10

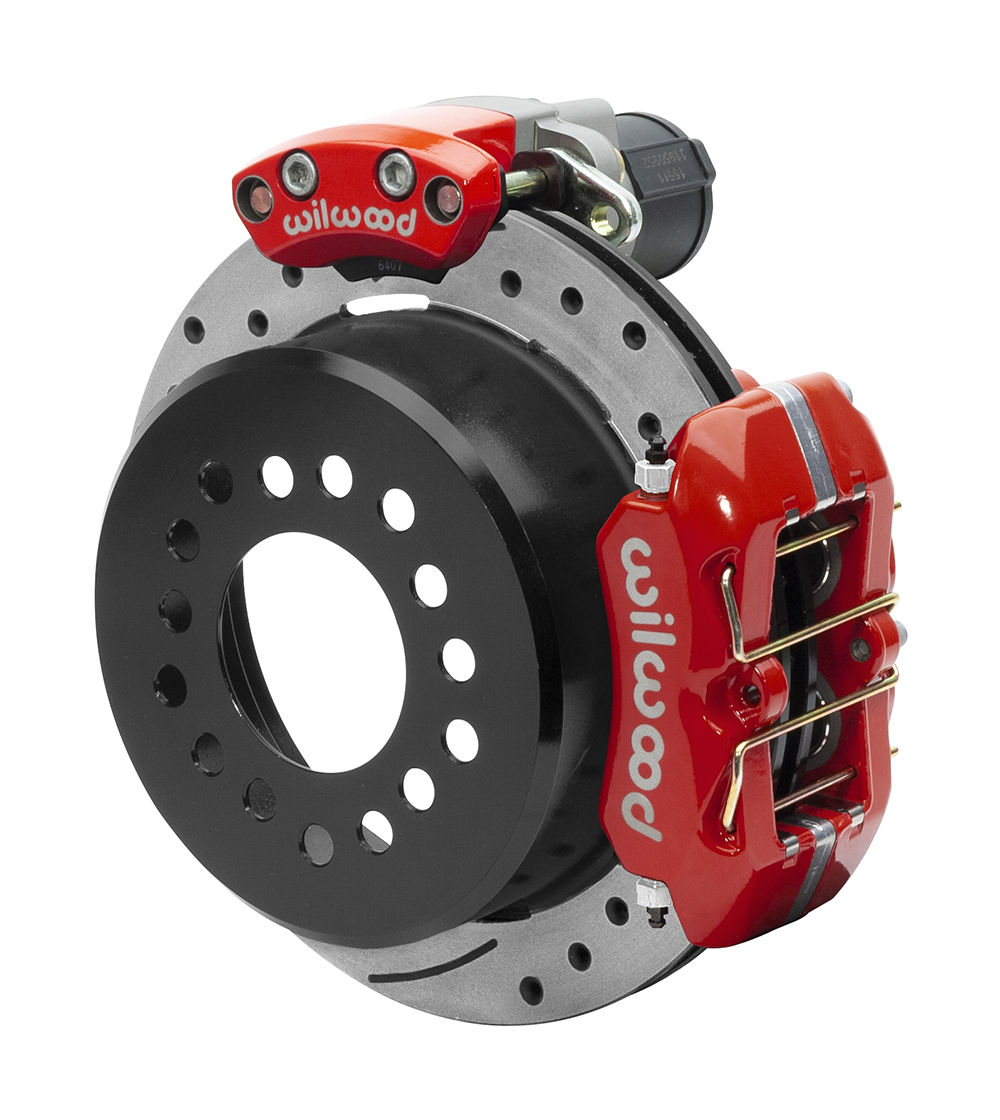

Forged Dynapro Low Profile Caliper - Red Powder Coat Forged Dynapro Low Profile Caliper - Red Powder Coat Zoom Image
