Narrow Dynalite Rear Inboard Rear Brake Kit
Prod #: 140-5335-ZP
Price: $1,140.85
Rear Brake Kit - Rear Kit

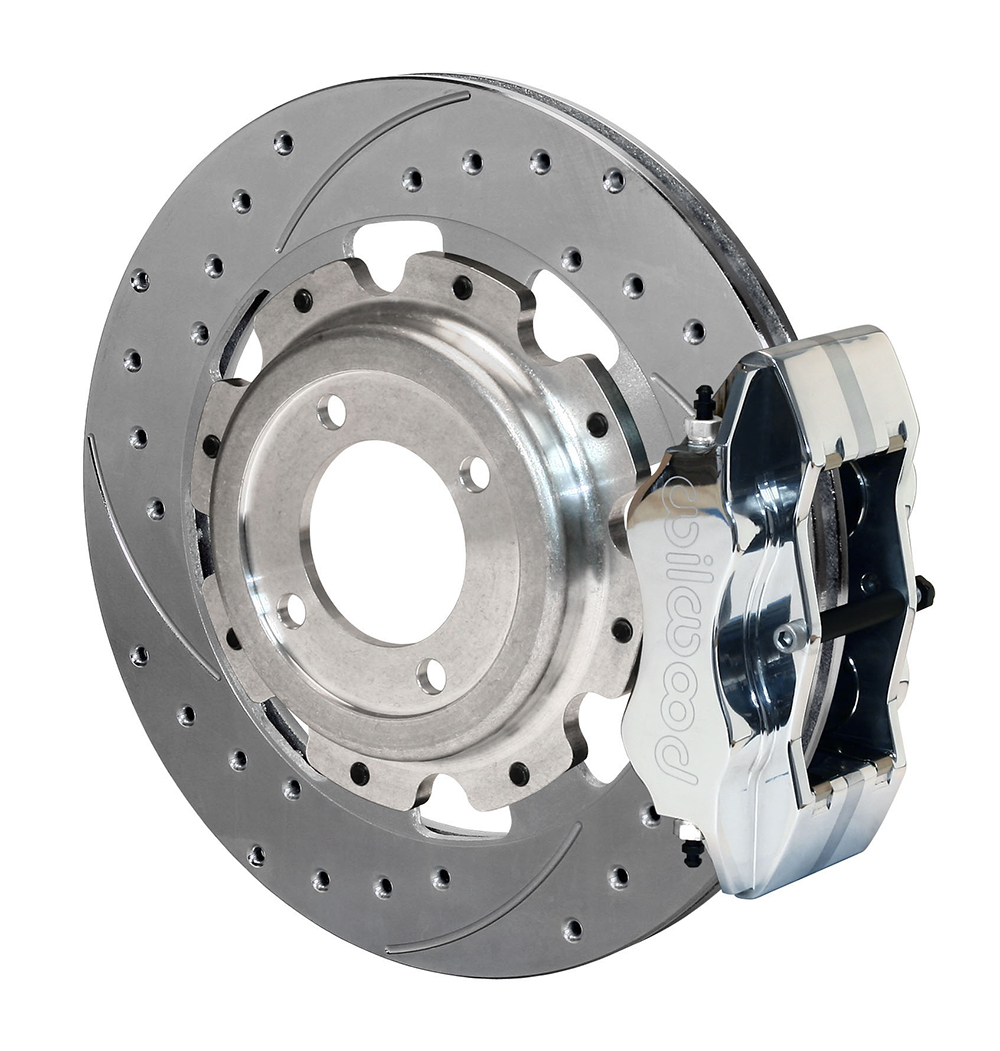

Wilwood Narrow Dynalite Rear Inboard Rear Brake Kit - Polish Caliper - SRP Drilled & Slotted Rotor Wilwood Narrow Dynalite Rear Inboard Rear Brake Kit - Polish Caliper - SRP Drilled & Slotted Rotor Zoom Image

Kit Contents

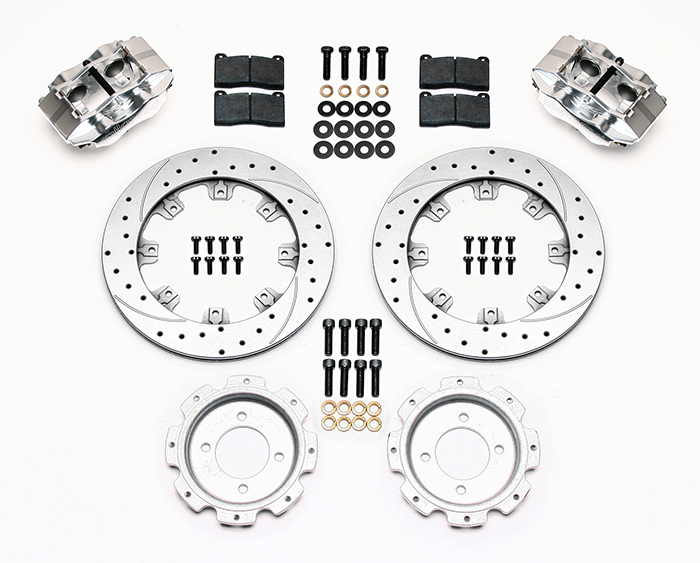

Wilwood Narrow Dynalite Rear Inboard Rear Brake Kit Parts Laid Out - Polish Caliper - SRP Drilled & Slotted Rotor Wilwood Narrow Dynalite Rear Inboard Rear Brake Kit Parts Laid Out - Polish Caliper - SRP Drilled & Slotted Rotor Zoom Image


View Custom Caliper Colors

Kit Summary
Rear End Axle: OEM
Axle Offset: 0.00
Mount Type: Lug
Caliper Type: 4 - Polish
Rotor Diameter: 12.19
Min Wheel Diameter Req'd*:
*This Brake Kit may fit -inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram
UPC Number
UPC 889545022735

WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Applicable to Brake Pads Only


Narrow Dynalite Rear Inboard Rear Brake Kit

Narrow Dynalite Rear Inboard kits offer complete disc brake upgrade solutions for Winters IRS Quick Change applications used on Street Rods. Based on the venerable Styled Billet Narrow Dynalite caliper, these versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver or the most discriminating show enthusiast. kit require no modifications for installation, and contain 12.19 x 0.81 rotors, adapters, bolt kits and BP-10 brake pads.


Fitment & Installation Details

Narrow Dynalite Rear Inboard Rear Brake Kit Assembly Schematic

Narrow Dynalite Rear Inboard Rear Brake Kit Assembly Schematic Narrow Dynalite Rear Inboard Rear Brake Kit Assembly Schematic Zoom Image

Rear End / Axle Housing Flange
Confirm The Configuration!

OEM Flange
Confirm Offset Measurement!

Axle Flange Cross-Section
Search Rear Kits By Rear End/Axle Offset
caution AXLE OFFSET: 0.00
Check the diagram above and verify this measurement. This kit may be available in several different offsets.
Please call Wilwood with any questions: (805) 388-1188

Wheel Clearance Assembly Instructions

Wheel Clearance Diagram Wheel Clearance Diagram Zoom Image




Notes
1. Kit is specific for Winters IRS Quick Change.
2. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.



Compatible Vehicles for this Brake Kit

BRAKE KIT:   Narrow Dynalite Rear Inboard Rear Brake Kit

This Brake Kit is Compatible with the Following Vehicle Makes:

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.

REAR END:   OEM - Rear Kit

AXLE OFFSET:   0.00

For a Complete Listing including ALL Makes, Models and Years, Please click on the Axle Offset.


Kit Components & Specifications
Calipers
Left Hand - Part No: 120-11578-P
Right Hand - Part No: 120-11578-P
Type: Billet Narrow Dynalite
Finish Color: Polish
Piston Count: 4
Piston 1 Bore (in): 1.12
Piston 2 Bore (in): 1.12
Piston Area (In²): 1.98
Piston Type: Stainless
Mount Type: Lug
Brake Pad Plate: 7816
Brake Pad Area (In²): 6.36
Brake Pad Volume (In³): 3
Pad Compound: BP-10
Billet Narrow Dynalite Caliper - Polish Billet Narrow Dynalite Caliper - Polish Zoom Image
Rotors
Left Hand - Part No: 160-7104
Right Hand - Part No: 160-7103
Type: SRP-Z Drilled Rotor
Style: SRP Drilled & Slotted
Surface Finish: Zinc Plate
Material: Iron
Outside Diameter (in): 12.19
Width (in): 0.81
Vane Count: 32 V
Design Type: SRP
Bedded: No
Dynamically Balanced: No
SRP-Z Drilled Rotor - Iron - Zinc Plate SRP-Z Drilled Rotor - Iron - Zinc Plate Zoom Image
Rotor Hats
Hat - Part No: 170-5312
Type: Big Brake Hat - Short Offset
Material: Aluminum
Finish Color: Black E-Coat
Hat Offset Dimension (in): 1.170
Bolt Circle 1: 2.87 x 2.4
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1: 0.450
Stud Diameter - BC 2: 0.450
Stud Diameter - BC 3: 0.000
Big Brake Hat - Short Offset - Aluminum - Black E-Coat Big Brake Hat - Short Offset - Aluminum - Black E-Coat Zoom Image
Hubs
Hub - Part No:
Type:
Material:
Finish Color:
Mount Style:
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:

Parts & Accessories
Caliper Parts
O-ring Kit: 130-2579
Replacement Dustboot: N-A
Replacement Piston 1: 200-7513
Replacement Piston 2: 200-7513
Replacement Piston 3: N-A
Replacement Piston 4: N-A
CrossOver O-Ring Kit: 130-10540
Crossover Tube: N-A
Self-Bleeder Tube: N-A
Bridge Bolt Kit: 230-9983
Wear Plate - Left Hand: 300-5876
Wear Plate - Right Hand: 300-5876
Pad Retainer: N-A
Bleed Screw Kit: 220-0627
Brake Lines
Hat
Bolt Kit: 230-8390
Hub
Bolt Kit:
