Brake Pad Part No: 150-12247K


Call (805) 388-1188
High-Temperature Racing Pads :  Pad#:  7812
Compound:  BP-40
Prod #: 150-12247K
Price: $143.40

Pad#:  7812

Wilwood Brake Pad Plate #7812 Wilwood Brake Pad Plate #7812 Zoom Image

Pad Dimensions
Thickness(in) .49
Area(in²) 6.36
Volume(in³) 2.1
Beded N
UPC Number
UPC 889545033052
Temperature & Friction Ratings
Peak Temperture Rating 1300+ F.
Peak Friction Rating
Dust & Noise Ratings
Dust Production Rating N-A
Pad Noise Rating N-A

WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov

Performance Characteristics
  • A very high friction pad with aggressive initial response.
  • Immediate low tempeature response.
  • Low wear rate
  • A very high friction pad with aggressive initial response.

Compound Characteristics

Use & Caution
  • A very high friction pad with aggressive initial response.
  • Immediate low tempeature response.
  • Low wear rate
  • A very high friction pad with aggressive initial response.
Compound Temperature Range & Torque Values
BP-40 Compound Temperature Range & Torque Values BP-40 Compound Temperature Range & Torque Values Zoom Image

Temperature range and overall friction value are the primary considerations for pad selection. The pads must be capable of maintaining the proper amount of friction for stopping power within the temperatures that will be realized on the track during the event. Then, overall wear rate must be considered. For most asphalt and road race applications, compounds in the high temperature ranges over 1000°F range are usually necessary. Dirt track, drag race, and street performance applications usually operate at temperatures between 500° and 1000°F. Keep in mind that these are general ranges, and not absolute values. Many factors and unforeseen influences can affect brake temperatures. The best indicator for pad selection will always be on track performance. If pad fade (friction loss) due to overheating occurs, then improved cooling, a heavier rotor, or a higher temperature range pad may all become necessary.

Wilwood Compatible Calipers: Pad # 7812

Billet Dynalite - Side Inlet


Caliper Dimensions
Piston Count 4
Piston Area Range (in²) 4.80
Pad Area Range (in²) 6.36
Pad Volume Range (in³) 2.1
Max Rotor Widths (in) 1.27
Max Rotor Diameters (in) 13.06

Billet Dynalite - Side Inlet Calipers

The Billet Dynalite caliper is powerful, compact and super lightweight. Advanced computer engineering keeps this caliper extremely rigid, resulting in incredible brake torque at a bare minimum in weight, starting at 2.66 pounds. Internal fluid crossover eliminates external tubes and the four position, two-piece bleed screws allow for convenient mounting and easy bleeding. The Billet Dynalite uses standard quick change Dynalite pads, deep cup stainless steel pistons and high temperature seals, and has a black anodized finish. The time proven Dynalite caliper design is stronger and lighter than ever - ideal for Late Models, Modifieds, Sprints, Road Racers and Dragsters. View Billet Dynalite Calipers
Dynapro Dust-Boot


Caliper Dimensions
Piston Count 4
Piston Area Range (in²) 3.00 4.80
Pad Area Range (in²) 6.36
Pad Volume Range (in³) 2.1
Max Rotor Widths (in) 1.04
Max Rotor Diameters (in) 13.06

Dynapro Dust-Boot Calipers

The Dynapro Dust-Boot (DP-DB) model of the Dynapro lug mount caliper was developed for applications that require or prefer a dust-booted piston. Dust-booted aluminum pistons provide added protection against road or track born dirt and debris on low to intermediate temperature range applications that may also operate in harsh environments. The pistons are clear anodized to eliminate corrosion while providing added lubricity for drag-free operation within the bores. The dust boots work in conjunction with high-temperature square faced internal seals in the caliper bores to provide optimum performance, ultimate reliability, and quick turn around at pad service intervals. View Dynapro Dust-Boot Calipers
Dynapro Lug Mount


Caliper Dimensions
Piston Count 4
Piston Area Range (in²) 4.80
Pad Area Range (in²) 6.36
Pad Volume Range (in³) 2.1
Max Rotor Widths (in) 0.38
Max Rotor Diameters (in) 13.06

Dynapro Lug Mount Calipers

The DynaPro Lug Mount (DP) forged billet caliper represents the newest generation of calipers available as an upgrade or replacement for applications previously using the long-standing Dynalite model series. DP calipers combine pure race technology with several new exclusive Wilwood performance enhancements. A sleek profile with superior strength and a fully detail machined finish provide the performance and looks for competition or show. View Dynapro Lug Mount Calipers
Dynapro Lug Mount


Caliper Dimensions
Piston Count 4
Piston Area Range (in²) 4.80
Pad Area Range (in²) 6.36
Pad Volume Range (in³) 2.1
Max Rotor Widths (in) 0.38
Max Rotor Diameters (in) 13.06

Dynapro Lug Mount Calipers

The DynaPro Lug Mount (DP) forged billet caliper represents the newest generation of calipers available as an upgrade or replacement for applications previously using the long-standing Dynalite model series. DP calipers combine pure race technology with several new exclusive Wilwood performance enhancements. A sleek profile with superior strength and a fully detail machined finish provide the performance and looks for competition or show. View Dynapro Lug Mount Calipers
Dynapro Lug Mount


Caliper Dimensions
Piston Count 4
Piston Area Range (in²) 3.00
Pad Area Range (in²) 6.36
Pad Volume Range (in³) 2.1
Max Rotor Widths (in) 0.38
Max Rotor Diameters (in) 13.06

Dynapro Lug Mount Calipers

The DynaPro Lug Mount (DP) forged billet caliper represents the newest generation of calipers available as an upgrade or replacement for applications previously using the long-standing Dynalite model series. DP calipers combine pure race technology with several new exclusive Wilwood performance enhancements. A sleek profile with superior strength and a fully detail machined finish provide the performance and looks for competition or show. View Dynapro Lug Mount Calipers
Dynapro Lug Mount


Caliper Dimensions
Piston Count 4
Piston Area Range (in²) 3.00
Pad Area Range (in²) 6.36
Pad Volume Range (in³) 2.1
Max Rotor Widths (in) 0.38
Max Rotor Diameters (in) 13.06

Dynapro Lug Mount Calipers

The DynaPro Lug Mount (DP) forged billet caliper represents the newest generation of calipers available as an upgrade or replacement for applications previously using the long-standing Dynalite model series. DP calipers combine pure race technology with several new exclusive Wilwood performance enhancements. A sleek profile with superior strength and a fully detail machined finish provide the performance and looks for competition or show. View Dynapro Lug Mount Calipers
Dynapro Lug Mount


Caliper Dimensions
Piston Count 4
Piston Area Range (in²) 1.58 4.80
Pad Area Range (in²) 6.36
Pad Volume Range (in³) 2.1
Max Rotor Widths (in) 1.27
Max Rotor Diameters (in) 13.06

Dynapro Lug Mount Calipers

The DynaPro Lug Mount (DP) forged billet caliper represents the newest generation of calipers available as an upgrade or replacement for applications previously using the long-standing Dynalite model series. DP calipers combine pure race technology with several new exclusive Wilwood performance enhancements. A sleek profile with superior strength and a fully detail machined finish provide the performance and looks for competition or show. View Dynapro Lug Mount Calipers
Dynapro Narrow


Caliper Dimensions
Piston Count 4
Piston Area Range (in²) 4.80
Pad Area Range (in²) 6.36
Pad Volume Range (in³) 2.1
Max Rotor Widths (in) 0.42
Max Rotor Diameters (in) 13.06

Dynapro Narrow Calipers

The DynaPro Narrow Lug Mount (DPN) forged billet caliper represents the newest version of calipers available with narrower outboard clearance. DPN calipers combine pure race technology with several new exclusive Wilwood performance enhancements. A sleek profile with superior strength and a fully detail machined finish provide the performance. Available in Wilwood’s Type III anodize or enhanced with black or red powder coat finish. View Dynapro Narrow Calipers
Forged DPHA


Caliper Dimensions
Piston Count 4
Piston Area Range (in²) 4.12
Pad Area Range (in²) 6.36
Pad Volume Range (in³) 2.1
Max Rotor Widths (in) 0.83
Max Rotor Diameters (in) 10.32

Forged DPHA Calipers

The Forged DynaPro Honda/Acura (DPHA) caliper represents the newest generation of calipers designed exclusively as a direct bolt-on for Honda and Acura models originally equipped with 262mm diameter rotors. These calipers bolt directly to the stock mounts on factory spindles, fit over the OE 262mm diameter rotor, accept the OE brake hose, and clear many factory aluminum 15” wheels. Designed around Wilwood’s proven DynaPro series four piston calipers, the forged billet bodied DPHA caliper delivers high-strength clamping force and positive stopping power. Four stainless steel pistons provide fully balanced pad loading, along with the corrosion resistance and thermal retardant qualities of the stainless alloy that will keep your calipers cooler and running trouble free for many more miles. Calipers work perfectly with most OE master cylinders and will maintain ABS function. DPHA calipers are available with either black, red or Competition Blue high-gloss, high-temp, brake fluid resistant sealed powder coat and feature Wilwood’s signature logo. View Forged DPHA Calipers

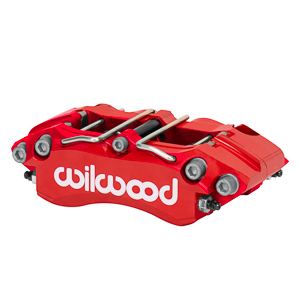

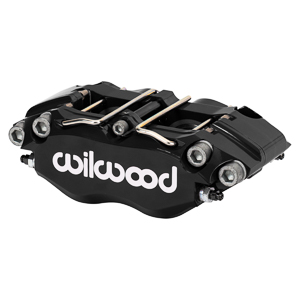

Narrow Dynapro Radial Mount


Caliper Dimensions
Piston Count 4
Piston Area Range (in²) 4.80
Pad Area Range (in²) 6.36
Pad Volume Range (in³) 2.1
Max Rotor Widths (in) 0.86
Max Rotor Diameters (in) 12.19

Narrow Dynapro Radial Mount Calipers

Wilwood Narrow DynaPro four piston radial mount calipers combines the versatility of radial mounting with a sleek profile, superior strength, and extreme durability in adverse conditions. With an overall weight as light as 3.58 pounds, the DynaPro has become a favored choice for a broad range of sports, rally, and off-road driving applications. View Narrow Dynapro 4 Piston Radial Mount Calipers
Narrow Dynapro Radial Mount


Caliper Dimensions
Piston Count 4
Piston Area Range (in²) 1.98
Pad Area Range (in²) 6.36
Pad Volume Range (in³) 2.1
Max Rotor Widths (in) 0.86
Max Rotor Diameters (in) 12.88

Narrow Dynapro Radial Mount Calipers

Wilwood Narrow DynaPro four piston radial mount calipers combines the versatility of radial mounting with a sleek profile, superior strength, and extreme durability in adverse conditions. With an overall weight as light as 3.58 pounds, the DynaPro has become a favored choice for a broad range of sports, rally, and off-road driving applications.Narrow DynaPro four piston radial mount calipers combine pure race technology with a new generation of Wilwood performance enhancements. The Narrow DynaPro combines the versatility of radial mounting with a sleek profile, superior strength, and extreme durability in adverse conditions. View Narrow Dynapro 4 Piston Radial Mount Calipers
Narrow Dynapro Radial Mount


Caliper Dimensions
Piston Count 4
Piston Area Range (in²) 4.80
Pad Area Range (in²) 6.36
Pad Volume Range (in³) 2.1
Max Rotor Widths (in) 0.38
Max Rotor Diameters (in) 12.19

Narrow Dynapro Radial Mount Calipers

Wilwood Narrow DynaPro four piston radial mount calipers combines the versatility of radial mounting with a sleek profile, superior strength, and extreme durability in adverse conditions. With an overall weight as light as 3.58 pounds, the DynaPro has become a favored choice for a broad range of sports, rally, and off-road driving applications.Narrow DynaPro four piston radial mount calipers combine pure race technology with a new generation of Wilwood performance enhancements. The Narrow DynaPro combines the versatility of radial mounting with a sleek profile, superior strength, and extreme durability in adverse conditions. View Narrow Dynapro 4 Piston Radial Mount Calipers
