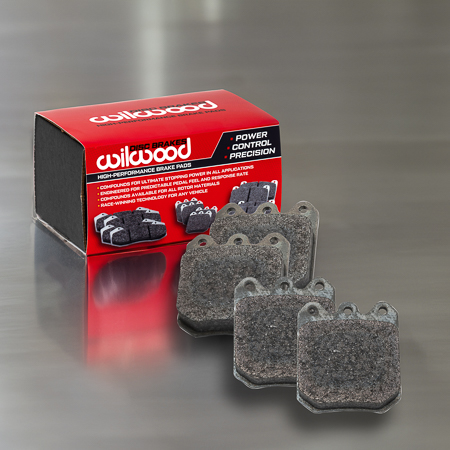

Brake Pad Part No: 150-30-6812K


High-Temperature Racing Pads

Pad#: 6812
Compound: BP-30
Prod #: 150-30-6812K
Price: $122.55
BP-30
BP-30 Brake Pads Plate Type
Pad Dimensions
Thickness(in) .49
Area(in²) 3
Volume(in³) 1.1
Bedded N
UPC Number
UPC 889545118834
Dust & Noise Ratings
Dust Production Rating N-A
Pad Noise Rating N-A
WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov

BP-30 Compound

Pad Characteristics

  • High friction, medium initial response that increases with rotor temp
  • Medium low temperature response
  • Low wear rate during sustained high heat braking
  • Predictible, linear response with excellent modulation
  • Very high heat fade resistance
  • For use with iron or steel rotors

Pad Applications

  • Racing only - Not for street use
  • Off-Road Racing
  • Road course
  • Pavement oval
  • Drag racing - stainless steel
  • Club sport racers
  • Track cars with ABS
  • Dirt Late Model
  • Open Wheel Modified / Stock Car

Rotor Material

  • Iron
  • Steel
BP-30 Performance Stats BP-30 Performance Stats Zoom Image
BP-30 Friction Coefficient and Temperature Values BP-30 Friction Coefficient and Temperature Values Zoom Image

The above friction data (μ) was recorded through braking cycles from 95 mph to 40 mph at a 0.5g deceleration. Snubs were consecutively done until rotor temperature reached 1300°F. This graph represents average data and is for general trend visualisations only comparing Wilwood pads. Chart data should not be used in comparison with other manufacturer's data. Test conditions, variables, and environment can affect test results.

Temperature range and overall friction value are the primary considerations for pad selection. The pads must maintain the proper amount of friction for stopping power within the temperatures that will be realized on the track. Overall wear rate must also be considered. For most asphalt and road race applications, compounds in the high-temperature range over 1000°F are usually necessary. Dirt track, drag race, and street performance applications usually operate at temperatures between 500° and 1000°F. Keep in mind that these are general ranges and not absolute values. Many factors and unforeseen influences can affect brake temperatures. The best indicator for pad selection will always be on-track performance. If pad fade (friction loss) due to overheating occurs, improved cooling, a heavier rotor, or a higher temperature range pad may become necessary.

Wilwood Compatible Caliper(s) for Pad #6812

Billet Dynalite Single
Caliper Dimensions
Piston Count 2
Piston Area Range (in²) 2.40
Pad Area Range (in²) 3
Pad Volume Range (in³) 1.1
Max Rotor Widths (in) 0.38
Max Rotor Diameters (in) 13.00

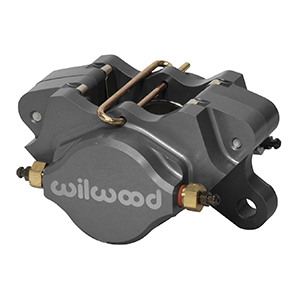

Billet Dynalite Single Calipers

Wilwood’s Billet Dynalite Single utilizes close tolerance design and manufacturing techniques which results in the most rigid, lightweight and attractive caliper in the evolution of the Dynalite Single Series. Starting at 1.58 pounds, the Billet Dynalite Single is perfect for compact high performance braking as required in Open Wheel, Drag, Modified, Kart, Motorcycle and Off Road applications. View Dynalite Single Calipers
Dynalite Single 4
Caliper Dimensions
Piston Count 2
Piston Area Range (in²) 2.40
Pad Area Range (in²) 3
Pad Volume Range (in³) 1.1
Max Rotor Widths (in) 0.19
Max Rotor Diameters (in) 13.00
Dynalite Single Floater
Caliper Dimensions
Piston Count 1
Piston Area Range (in²) 2.40
Pad Area Range (in²) 3
Pad Volume Range (in³) 1.1
Max Rotor Widths (in) 0.38
Max Rotor Diameters (in) 13.00

Dynalite Single Floater Calipers

Wilwood’s Dynalite Single Floater is a single piston billet caliper designed for Open Wheel, Drag Race, Karting and Motorcycle applications. The rigid outboard anvil half’s low profile design allows it to fit in tight clearance situations where opposed piston designs will not. Weighing just 1.40 pounds, the caliper uses the same .49” thick, 1.1 cubic inch Dynalite Single quick change pads. Multiple 1/8-27 NPT inlet and bleed screw locations allow for versatile mounting positions. It comes with precision machined dry lubricated slide pins for bind-free operation. The Dynalite Single Floater is black anodized to resist corrosion and fits rotors from .25” to .38” wide and diameters from 6.00” to 13.00”. View Dynalite Single Floater Calipers
Dynalite Single IIIA
Caliper Dimensions
Piston Count 2
Piston Area Range (in²) 2.40
Pad Area Range (in²) 3
Pad Volume Range (in³) 1.1
Max Rotor Widths (in) 0.25
Max Rotor Diameters (in) 13.00

Dynalite Single IIIA Calipers

Wilwood’s Dynalite Single IIIA utilizes a cost effective permanent mold casting with advanced design and manufacturing techniques which results in the most rigid, lightweight and attractive caliper in the evolution of the Dynalite Single Series. Starting at 1.8 pounds, the Billet Dynalite Single is perfect for compact high performance braking as required in many OEM applications like snowmobile & motorcycle. View Dynalite Single III Calipers
Dynapro Single
Caliper Dimensions
Piston Count 2
Piston Area Range (in²) 1.50 2.40
Pad Area Range (in²) 3
Pad Volume Range (in³) 1.1
Max Rotor Widths (in) 0.38
Max Rotor Diameters (in) 13.00

Dynapro Single Calipers

The DynaPro Single (DPS) billet caliper is the newest generation of calipers available as an upgrade or replacement for applications previously using the Dynalite Single (DLS) series. DPS calipers combine superior strength with performance enhancements to make these the best "Dyna" series calipers ever. View Dynapro Single Calipers
Dynapro Single LW
Caliper Dimensions
Piston Count 2
Piston Area Range (in²) 2.40
Pad Area Range (in²) 3
Pad Volume Range (in³) 1.1
Max Rotor Widths (in) 0.38
Max Rotor Diameters (in) 13.00

Dynapro Single LW Calipers

The DynaPro Single Lightweight (DPS-LW) billet caliper is the newest generation of calipers available as an upgrade or replacement for applications previously using the Dynalite Single (DLS) series. DPS-LW calipers combine superior strength with performance enhancements to make these the best "Dyna" series calipers ever. Lightweight design insures sufficient clearance in tight situations like Sprint Car front ends. View Dynapro Single Calipers
Dynapro Single Polished
Caliper Dimensions
Piston Count 2
Piston Area Range (in²) 2.40
Pad Area Range (in²) 3
Pad Volume Range (in³) 1.1
Max Rotor Widths (in) 0.38
Max Rotor Diameters (in) 13.00

Dynapro Single Polished Calipers

The DynaPro Single (DPS) billet caliper is the newest generation of calipers available as an upgrade or replacement for applications previously using the Dynalite Single (DLS) series. DPS calipers combine superior strength with performance enhancements to make these the best "Dyna" series calipers ever. View Dynapro Single Calipers
Dynapro Single VW
Caliper Dimensions
Piston Count 2
Piston Area Range (in²) 2.06
Pad Area Range (in²) 3
Pad Volume Range (in³) 1.1
Max Rotor Widths (in) 0.38
Max Rotor Diameters (in) 13.00

Dynapro Single VW Calipers

The Wilwood DynaPro Single-VW (DPS-VW) billet caliper is a further enhancement of our newest generation of calipers available as an upgrade or replacement for select VW models. DPS-VW calipers combine superior strength with design and performance enhancements to make these one of the best and lightest OE replacement calipers. Utilizing easily sourced #6812 pads that are available in multiple Street to High-Temperature Racing compounds, further enhance the DPS-VW calipers utility. View Dynapro Single Calipers
