Brake Pad Part No: 150-7644K

Call (805) 388-1188
Power Sports / Industrial Pads :  Pad#:  6407
Compound:  Sintered Metallic
Prod #: 150-7644K
Price: $53.70

Pad Dimensions
Thickness(in) .27
Area(in²) 1.7
Volume(in³) 0.26
Beded N
UPC Number
UPC 889545033281
Temperature & Friction Ratings
Peak Temperture Rating
Peak Friction Rating
Dust & Noise Ratings
Dust Production Rating
Pad Noise Rating

WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov

Performance Characteristics
  • Formulation for Power Sports and Industrial applications. High friction
  • excellent cold torque response, medium temperature range
  • Street Use OK
  • Formulation for Power Sports and Industrial applications. High friction

Compound Characteristics
Use & Caution
  • Formulation for Power Sports and Industrial applications. High friction
  • excellent cold torque response, medium temperature range
  • Street Use OK
  • Formulation for Power Sports and Industrial applications. High friction
Compound Temperature Range & Torque Values
Temperature range and overall friction value are the primary considerations for pad selection. The pads must be capable of maintaining the proper amount of friction for stopping power within the temperatures that will be realized on the track during the event. Then, overall wear rate must be considered. For most asphalt and road race applications, compounds in the high temperature ranges over 1000°F range are usually necessary. Dirt track, drag race, and street performance applications usually operate at temperatures between 500° and 1000°F. Keep in mind that these are general ranges, and not absolute values. Many factors and unforeseen influences can affect brake temperatures. The best indicator for pad selection will always be on track performance. If pad fade (friction loss) due to overheating occurs, then improved cooling, a heavier rotor, or a higher temperature range pad may all become necessary.

Wilwood Compatible Calipers: Pad # 6407

HM1 Hydra-Mechanical

Caliper Dimensions
Piston Count 1
Piston Area Range (in²) 0.79
Pad Area Range (in²) 1.7
Pad Volume Range (in³) 0.26
Max Rotor Widths (in) 0.19
Max Rotor Diameters (in) 9

HM1 Hydra-Mechanical Calipers

Wilwood's HM series Hydra-Mechanical calipers are the perfect rear caliper for utilty vehicles. HM calipers offer options of both left-hand and right-hand units, with piston sizing of either 1.00" or 1.19. HM calipers utilizes a cost effective die cast construction with advanced design and manufacturing techniques which results in a rigid, lightweight and durable caliper. View HM Hydra-Mechanical Calipers
HM2 Hydra-Mechanical

Caliper Dimensions
Piston Count 1
Piston Area Range (in²) 1.06
Pad Area Range (in²) 1.7
Pad Volume Range (in³) 0.26
Max Rotor Widths (in) 0.25
Max Rotor Diameters (in) 11.2

HM2 Hydra-Mechanical Calipers

Wilwood's HM series Hydra-Mechanical calipers are the perfect rear caliper for utilty vehicles. HM calipers offer options of both left-hand and right-hand units, with piston sizing of either 1.00" or 1.19. HM calipers utilizes a cost effective die cast construction with advanced design and manufacturing techniques which results in a rigid, lightweight and durable caliper. View HM Hydra-Mechanical Calipers
HM4 Hydra-Mechanical

Caliper Dimensions
Piston Count 1
Piston Area Range (in²) 0.79
Pad Area Range (in²) 1.7
Pad Volume Range (in³) 0.26
Max Rotor Widths (in) 0.19
Max Rotor Diameters (in) 11.2

HM4 Hydra-Mechanical Calipers

Wilwood's HM series Hydra-Mechanical calipers are the perfect rear caliper for utilty vehicles. HM calipers offer options of both left-hand and right-hand units, with piston sizing of either 1.00" or 1.19. HM calipers utilizes a cost effective die cast construction with advanced design and manufacturing techniques which results in a rigid, lightweight and durable caliper. View HM Hydra-Mechanical Calipers
HM5 Hydra-Mechanical

Caliper Dimensions
Piston Count 1
Piston Area Range (in²) 1.06
Pad Area Range (in²) 1.7
Pad Volume Range (in³) 0.26
Max Rotor Widths (in) 0.19
Max Rotor Diameters (in) 11.2

HM5 Hydra-Mechanical Calipers

Wilwood's HM series Hydra-Mechanical calipers are the perfect rear caliper for utilty vehicles. HM calipers offer options of both left-hand and right-hand units, with piston sizing of either 1.00" or 1.19. HM calipers utilizes a cost effective die cast construction with advanced design and manufacturing techniques which results in a rigid, lightweight and durable caliper. View HM Hydra-Mechanical Calipers
MC3 Mechanical

Caliper Dimensions
Piston Count 0
Piston Area Range (in²) 0.00
Pad Area Range (in²) 1.7
Pad Volume Range (in³) 0.26
Max Rotor Widths (in) 0.25
Max Rotor Diameters (in) 9

MC3 Mechanical Calipers

Wilwood’s innovative MC Series of Mechanical Calipers is an efficient, multi-use cable operated brake caliper which combines high output performance with simplicity in design and construction. This lightweight, high strength die cast caliper operates in a fixed mount position and requires no additional external return springs. Perfect for Yard Karts, Industrial and Commercial applications. View MC2 / MC3 Calipers
MC4 Mechanical

Caliper Dimensions
Piston Count 1
Piston Area Range (in²) 1.19
Pad Area Range (in²) 1.7
Pad Volume Range (in³) 0.26
Max Rotor Widths (in) 0.81
Max Rotor Diameters (in) 12.88

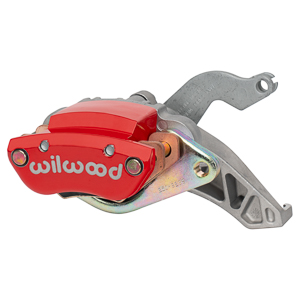

MC4 Mechanical Calipers

Wilwood’s MC4 Mechanical Parking Brake Caliper is a multi-use, cable operated brake caliper that combines high output performance with simplicity in design and construction, and is the perfect solution for vehicle applications requiring a separate, mechanically actuated parking brake caliper. Built to accept rotors that are .810” thick, with 11.00” - 12.88” diameter range, the MC4 combines an efficient die cast body with a forged billet anvil for superior strength under load, yet is lightweight at only 3.30 (2.95 without pads) pounds. Supplied with each caliper are our Composite Metallic (CM) high-friction, high static-hold brake pads, and are pre-fitted with noise cancelling shields. View MC4 Mechanical Calipers
MC4 Mechanical - Less Logo

Caliper Dimensions
Piston Count 1
Piston Area Range (in²) 1.19
Pad Area Range (in²) 1.7
Pad Volume Range (in³) 0.26
Max Rotor Widths (in) 0.81
Max Rotor Diameters (in) 12.88

MC4 Mechanical - Less Logo Calipers

Wilwood’s MC4 Mechanical Parking Brake Caliper (Less Logo)is a multi-use, cable operated brake caliper that combines high output performance with simplicity in design and construction, and is the perfect solution for vehicle applications requiring a separate, mechanically actuated parking brake caliper. Built to accept rotors that are .810” thick, with 11.00” - 12.88” diameter range, the MC4 combines an efficient die cast body with a forged billet anvil for superior strength under load, yet is lightweight at only 3.30 (2.95 without pads) pounds. Supplied with each caliper are our Composite Metallic (CM) high-friction, high static-hold brake pads, and are pre-fitted with noise cancelling shields. View MC4 Mechanical Calipers
SC1 Single Piston

Caliper Dimensions
Piston Count 1
Piston Area Range (in²) 1.23
Pad Area Range (in²) 1.7
Pad Volume Range (in³) 0.26
Max Rotor Widths (in) 0.25
Max Rotor Diameters (in) 9

SC1 Single Piston Calipers

Designed, engineered and manufactured in the U.S.A., this floating die cast aluminum caliper is a strong, compact, inexpensive answer to the braking needs of recreational, agricultural and industrial vehicles. Features of this single piston design include availability of either 1.06”, 1.19” or 1.25” bore size, fitted dust seal to prevent ingress of environmental contamination, dual bleed fittings for versatility in mounting position and fluid inlets in M10 x 1.0 banjo. View SC1 / SC2 / SC3 Calipers
SC2 Single Piston

Caliper Dimensions
Piston Count 1
Piston Area Range (in²) 1.06
Pad Area Range (in²) 1.7
Pad Volume Range (in³) 0.26
Max Rotor Widths (in) 0.25
Max Rotor Diameters (in) 9

SC2 Single Piston Calipers

Designed, engineered and manufactured in the U.S.A., this floating die cast aluminum caliper is a strong, compact, inexpensive answer to the braking needs of recreational, agricultural and industrial vehicles. Features of this single piston design include availability of either 1.06”, 1.19” or 1.25” bore size, fitted dust seal to prevent ingress of environmental contamination, dual bleed fittings for versatility in mounting position and fluid inlets in M10 x 1.0 banjo. View SC1 / SC2 / SC3 Calipers
SC3 Single Piston

Caliper Dimensions
Piston Count 1
Piston Area Range (in²) 0.87
Pad Area Range (in²) 1.7
Pad Volume Range (in³) 0.26
Max Rotor Widths (in) 0.25
Max Rotor Diameters (in) 9

SC3 Single Piston Calipers

Designed, engineered and manufactured in the U.S.A., this floating die cast aluminum caliper is a strong, compact, inexpensive answer to the braking needs of recreational, agricultural and industrial vehicles. Features of this single piston design include availability of either 1.06”, 1.19” or 1.25” bore size, fitted dust seal to prevent ingress of environmental contamination, dual bleed fittings for versatility in mounting position and fluid inlets in M10 x 1.0 banjo. View SC1 / SC2 / SC3 Calipers
