Brake Pad Part No: 150-8733-2


Street Performance / Racing Pads

Pad#: 6208
Compound: BP-10
Prod #: 150-8733-2
Price: $50.79

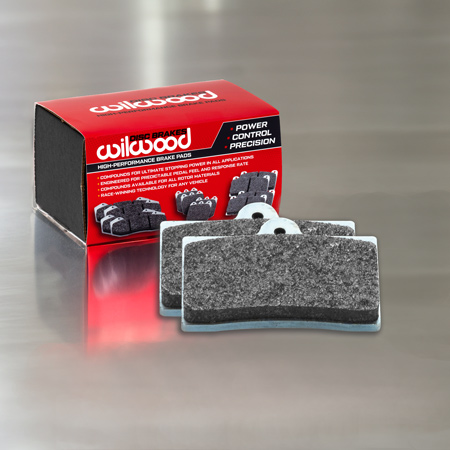

Wilwood Brake Pad Plate #6208 Wilwood Brake Pad Plate #6208 Zoom Image
BP-10

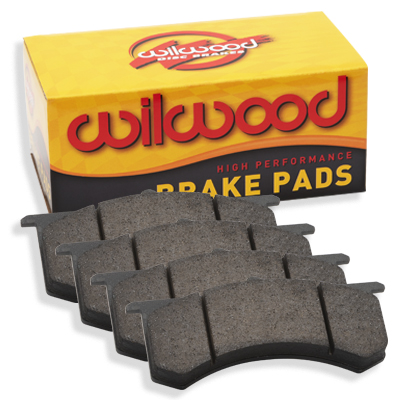

BP-10 Brake Pads and Box
Picture shown is for illustrative purposes only
Pad Dimensions
Thickness(in) .30
Area(in²) 3.65
Volume(in³) 0.63
Bedded N
UPC Number
UPC 889545033304
Dust & Noise Ratings
Dust Production Rating Low
Pad Noise Rating Low
WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
NSF Int’l LeafMark certified friction formulation.Compliant with SAE J661 industry standards.

BP-10 Compound

Pad Characteristics

  • Medium friction pad
  • Smooth engagement, low abrasion on iron rotors
  • Low to medium wear rate at low temperatures
  • Low dust and noise
  • High performance street compound with improved friction, lower wear and lower dust levels than standard replacement pads

Pad Applications

  • Street use okay
  • Street
  • Muscle cars
  • Drag race
  • Light to medium braking on dirt including late models and modified

Rotor Material

  • Steel
  • Iron
BP-10 Performance Stats BP-10 Performance Stats Zoom Image
BP-10 Friction Coefficient and Temperature Values BP-10 Friction Coefficient and Temperature Values Zoom Image

The above friction data (μ) was recorded through braking cycles from 95 mph to 40 mph at a 0.5g deceleration. Snubs were consecutively done until rotor temperature reached 1300°F. This graph represents average data and is for general trend visualisations only comparing Wilwood pads. Chart data should not be used in comparison with other manufacturer's data. Test conditions, variables, and environment can affect test results.

Temperature range and overall friction value are the primary considerations for pad selection. The pads must maintain the proper amount of friction for stopping power within the temperatures that will be realized on the track. Overall wear rate must also be considered. For most asphalt and road race applications, compounds in the high-temperature range over 1000°F are usually necessary. Dirt track, drag race, and street performance applications usually operate at temperatures between 500° and 1000°F. Keep in mind that these are general ranges and not absolute values. Many factors and unforeseen influences can affect brake temperatures. The best indicator for pad selection will always be on-track performance. If pad fade (friction loss) due to overheating occurs, improved cooling, a heavier rotor, or a higher temperature range pad may become necessary.

Wilwood Compatible Caliper(s) for Pad #6208

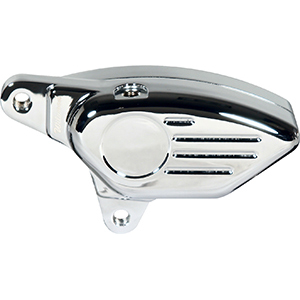

GP300 Motorcycle Front (1984-1999)
Caliper Dimensions
Piston Count 4
Piston Area Range (in²) 2.46
Pad Area Range (in²) 3.65
Pad Volume Range (in³) 0.63
Max Rotor Widths (in) 0.25
Max Rotor Diameters (in) 11.50

GP300 Motorcycle Front (1984-1999) Calipers

Wilwood's GP300 Front motorcycle disc brake caliper has been designed and engineered for use on of 1984 - 1999 Harley-Davidson® Motorcycles. Built around a 4-piston, high performance powerhouse, this billet aluminum caliper brings distinctive, bolt-on styling. Direct leg-mounted calipers are available for all single and dual disc models (except Springer and 4-speed FL models), as well as the 1983 XR 1000. View Motorcycle Calipers
GP300 Motorcycle Rear (1984-1999)
Caliper Dimensions
Piston Count 4
Piston Area Range (in²) 2.46
Pad Area Range (in²) 3.65
Pad Volume Range (in³) 0.63
Max Rotor Widths (in) 0.25
Max Rotor Diameters (in) 11.50

GP300 Motorcycle Rear (1984-1999) Calipers

Wilwood's GP300 Rear motorcycle disc brake caliper has been designed and engineered for use on 1984 - 1999 Harley-Davidson® Motorcycles. Built around a 4-piston, high performance powerhouse, this billet aluminum caliper brings distinctive, bolt-on styling. Bracket mounted calipers and optional bracket assembly are available for all Softail® type rears. View Motorcycle Calipers
GP300RT Motorcycle Front
Caliper Dimensions
Piston Count 4
Piston Area Range (in²) 2.46
Pad Area Range (in²) 3.65
Pad Volume Range (in³) 0.63
Max Rotor Widths (in) 0.25
Max Rotor Diameters (in) 11.50

GP300RT Motorcycle Front Calipers

Wilwood's GP300RT Front motorcycle disc brake caliper has been designed and engineered for use on 2000 - present Harley-Davidson® Motorcycles. Built around a 4-piston, high performance powerhouse, this billet aluminum caliper brings distinctive, bolt-on styling. Direct leg-mounted calipers are available for all single and dual disc models (except Springer and 4-speed FL models). View Motorcycle Calipers
GP300RT Motorcycle Rear
Caliper Dimensions
Piston Count 4
Piston Area Range (in²) 2.46
Pad Area Range (in²) 3.65
Pad Volume Range (in³) 0.63
Max Rotor Widths (in) 0.25
Max Rotor Diameters (in) 11.50

GP300RT Motorcycle Rear Calipers

Wilwood's GP300RT Rear motorcycle disc brake caliper has been designed and engineered for use on 2000 - present Harley-Davidson® Motorcycles. Built around a 4-piston, high performance powerhouse, this billet aluminum caliper brings distinctive, bolt-on styling. Bracket mounted calipers are available for all (except Springer and 4-speed FL models). View Motorcycle Calipers

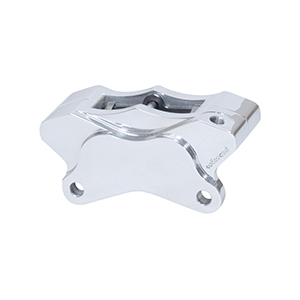

GP310 Motorcycle Front (1984-1999)
Caliper Dimensions
Piston Count 4
Piston Area Range (in²) 2.46
Pad Area Range (in²) 3.65
Pad Volume Range (in³) 0.63
Max Rotor Widths (in) 0.25
Max Rotor Diameters (in) 11.50

GP310 Motorcycle Front (1984-1999) Calipers

Wilwood's GP310 motorcycle disc brake caliper has been designed and engineered for use on 1984 to 1999 Harley-Davidson® Motorcycles. Built around a 4-piston, high performance powerhouse, this billet aluminum caliper brings distinctive, bolt-on styling: Direct leg-mounted calipers are available for all single and dual disc models (except Springer and 4-speed FL models), as well as the 1983 XR 1000. View Motorcycle Calipers
GP310 Motorcycle Front (2000-2007)
Caliper Dimensions
Piston Count 4
Piston Area Range (in²) 2.46
Pad Area Range (in²) 3.65
Pad Volume Range (in³) 0.63
Max Rotor Widths (in) 0.25
Max Rotor Diameters (in) 11.50

GP310 Motorcycle Front (2000-2007) Calipers

Wilwood's GP310 Motorcycle disc brake caliper has been designed and engineered for use on 2000 - 2007 Harley-Davidson® Motorcycles. Built around a 4-piston, high performance powerhouse, this billet aluminum caliper brings distinctive, bolt-on styling: Direct leg-mounted calipers are available for all single and dual disc models (except Springer and 4-speed FL models.) View Motorcycle Calipers

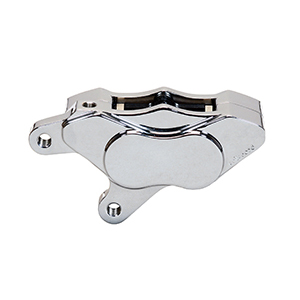

GP310 Motorcycle Front (2008-UP)
Caliper Dimensions
Piston Count 4
Piston Area Range (in²) 2.46
Pad Area Range (in²) 3.65
Pad Volume Range (in³) 0.63
Max Rotor Widths (in) 0.25
Max Rotor Diameters (in) 11.80

GP310 Motorcycle Front (2008-UP) Calipers

Wilwood's GP310 motorcycle disc brake caliper has been designed and engineered for use on 2008 to Present Harley-Davidson® Motorcycles. Built around a 4-piston, high performance powerhouse, this billet aluminum caliper brings distinctive, bolt-on styling: Direct leg-mounted calipers are available for all single and dual disc models View Motorcycle Calipers
GP310 Motorcycle Rear (1984-UP)
Caliper Dimensions
Piston Count 4
Piston Area Range (in²) 2.46
Pad Area Range (in²) 3.65
Pad Volume Range (in³) 0.63
Max Rotor Widths (in) 0.25
Max Rotor Diameters (in) 11.50

GP310 Motorcycle Rear (1984-UP) Calipers

Wilwood's GP310 Rear motorcycle disc brake caliper has been designed and engineered for use on 1984 - present Harley-Davidson® Motorcycles. Built around a 4-piston, high performance powerhouse, this billet aluminum caliper brings distinctive, bolt-on styling: Bracket-mounted calipers with a standard 3.50" mount spacing are available for all most models (except Springer and 4-speed FL models). View Motorcycle Calipers
GP310 Motorcycle Rear (Sprocket Brake)
Caliper Dimensions
Piston Count 4
Piston Area Range (in²) 2.46
Pad Area Range (in²) 3.65
Pad Volume Range (in³) 0.63
Max Rotor Widths (in) 0.35
Max Rotor Diameters (in) 11.50

GP310 Motorcycle Rear (Sprocket Brake) Calipers

Wilwood's GP310 Motorcycle Rear Sprocket brake caliper has been designed and engineered for use on Custom Harley-Davidson® Motorcycles. Built around a 4-piston, high performance powerhouse, this billet aluminum caliper brings distinctive, bolt-on styling: Bracket-mounted calipers are available for 48 and 51 tooth applications View Motorcycle Calipers
GP340 Motorcycle Front
Caliper Dimensions
Piston Count 4
Piston Area Range (in²) 2.46
Pad Area Range (in²) 3.65
Pad Volume Range (in³) 0.63
Max Rotor Widths (in) 0.25
Max Rotor Diameters (in) 11.50

GP340 Motorcycle Front Calipers

Wilwood's GP340 motorcycle disc brake caliper has been designed and engineered for use on 1984 - present Harley-Davidson® Motorcycles. Built around a 4-piston, high performance powerhouse, this billet aluminum caliper brings distinctive, bolt-on styling. Direct leg-mounted calipers are available for all single and dual disc models (except Springer and 4-speed FL models), as well as the 1983 XR 1000. View Motorcycle Calipers
GP340 Motorcycle Front
Caliper Dimensions
Piston Count 4
Piston Area Range (in²) 2.46
Pad Area Range (in²) 3.65
Pad Volume Range (in³) 0.63
Max Rotor Widths (in) 0.25
Max Rotor Diameters (in) 11.50

GP340 Motorcycle Front Calipers

Wilwood's GP340 motorcycle disc brake caliper has been designed and engineered for use on 1984 - present Harley-Davidson® Motorcycles. Built around a 4-piston, high performance powerhouse, this billet aluminum caliper brings distinctive, bolt-on styling: Direct leg-mounted calipers are available for all single and dual disc models (except Springer and 4-speed FL models), as well as the 1983 XR 1000. View Motorcycle Calipers
GP340 Motorcycle Rear
Caliper Dimensions
Piston Count 4
Piston Area Range (in²) 2.46
Pad Area Range (in²) 3.65
Pad Volume Range (in³) 0.63
Max Rotor Widths (in) 0.25
Max Rotor Diameters (in) 11.50

GP340 Motorcycle Rear Calipers

Wilwood's GP340 motorcycle disc brake caliper has been designed and engineered for use on 1984 - present Harley-Davidson® Motorcycles. Built around a 4-piston, high performance powerhouse, this billet aluminum caliper brings distinctive, bolt-on styling. Direct leg-mounted calipers are available for all single and dual disc models (except Springer and 4-speed FL models), as well as the 1983 XR 1000. View Motorcycle Calipers
