Brake Pad Part No: 150-9184K


Street Performance / Racing Pads

Pad#: D340
Compound: BP-10
Prod #: 150-9184K
Price: $60.29

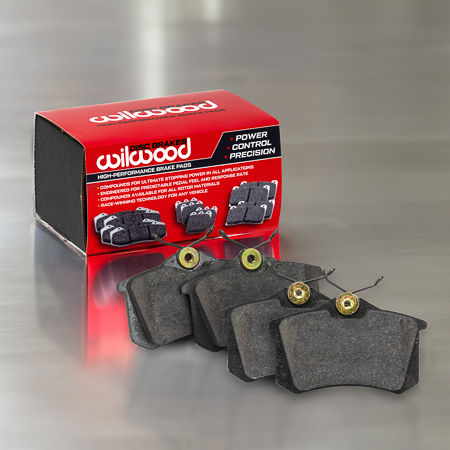

Wilwood Brake Pad Plate #D340 Wilwood Brake Pad Plate #D340 Zoom Image
BP-10 BP-10

Picture shown is for illustrative purposes only

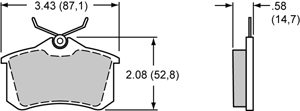

Pad Dimensions
Thickness(in) .58
Area(in²) 4
Volume(in³) 1.5
Bedded N
UPC Number
UPC 889545033441
Temperature & Friction Ratings
Peak Temperture Rating 800 to 900 F.
Peak Friction Rating 0.46
Dust & Noise Ratings
Dust Production Rating Low
Pad Noise Rating Low
WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov

BP-10 Compound

Pad Characteristics

  • Medium friction pad
  • Smooth engagement, low abrasion on iron rotors
  • Low to medium wear rate at low temperatures
  • Low dust and noise
  • High performance street compound with improved friction, lower wear and lower dust levels than standard replacement pads

Pad Applications

  • Street use okay
  • Street
  • Muscle cars
  • Drag race
  • Light to medium braking on dirt including late models and modified

Rotor Material

  • Steel
  • Iron
BP-10 Performance Stats BP-10 Performance Stats Zoom Image
BP-10 Friction Coefficient and Temperature Values BP-10 Friction Coefficient and Temperature Values Zoom Image

The above friction data (μ) was recorded through braking cycles from 95 mph to 40 mph at a 0.5g deceleration. Snubs were consecutively done until rotor temperature reached 1300°F. This graph represents average data and is for general trend visualisations only comparing Wilwood pads. Chart data should not be used in comparison with other manufacturer's data. Test conditions, variables, and environment can affect test results.

Temperature range and overall friction value are the primary considerations for pad selection. The pads must maintain the proper amount of friction for stopping power within the temperatures that will be realized on the track. Overall wear rate must also be considered. For most asphalt and road race applications, compounds in the high-temperature range over 1000°F are usually necessary. Dirt track, drag race, and street performance applications usually operate at temperatures between 500° and 1000°F. Keep in mind that these are general ranges and not absolute values. Many factors and unforeseen influences can affect brake temperatures. The best indicator for pad selection will always be on-track performance. If pad fade (friction loss) due to overheating occurs, improved cooling, a heavier rotor, or a higher temperature range pad may become necessary.

Wilwood Compatible Caliper(s) for Pad #D340

Combination Parking Brake
Caliper Dimensions
Piston Count 1
Piston Area Range (in²) 1.38 2.06
Pad Area Range (in²) 4
Pad Volume Range (in³) 1.5
Max Rotor Widths (in) 1.00
Max Rotor Diameters (in) 13.00

Combination Parking Brake Calipers

Wilwood's Combination Parking Brake (CPB) Hydra-Mechanical Caliper uses hydraulic pressure for stopping and a mechanical locking mechanism for a parking brake. This redesigned unit provides new options for drum brake conversions and disc upgrades on rear axles that are not conducive to internal shoe systems. This caliper, when matched with the correctly proportionate rotor diameter, provides balanced bias and brake performance for use in conjunction with front wheel brake upgrades. View Combination P-Brake Calipers



All images shown are for illustrative purposes only. Actual product received may be different than what is portrayed on the web site.
Wilwood makes every effort to maintain our web site to ensure the accuracy of prices and product information. However, product information and prices are subject to change without notice. Please call (805) 388-1188 before ordering to verify current prices and product information.
