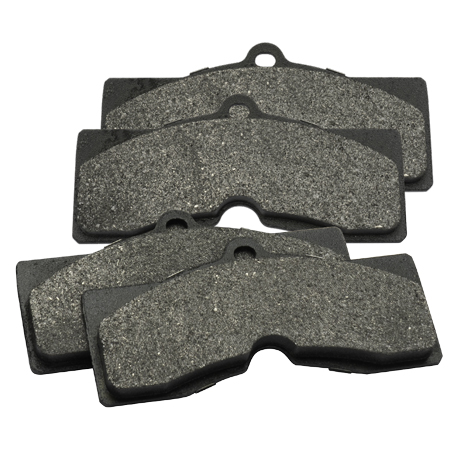

Brake Pad Part No: 150-D0008K

Call (805) 388-1188
Street Performance / Racing Pads :  Pad#:  D8
Compound:  PM - ProMatrix
Prod #: 150-D0008K
Price: $104.49

Pad Dimensions
Thickness(in) .49
Area(in²)
Volume(in³) 3.9
Beded N
UPC Number
UPC 889545033779
Temperature & Friction Ratings
Peak Temperture Rating 800 to 900 F.
Peak Friction Rating 0.48
Dust & Noise Ratings
Dust Production Rating Low to Moderate
Pad Noise Rating Low

WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov

Performance Characteristics
  • Medium friction, moderate temperarture.
  • Smooth, but aggressive initial response
  • Low wear rate
  • Medium friction, moderate temperarture.

Compound Characteristics
Use & Caution
  • Medium friction, moderate temperarture.
  • Smooth, but aggressive initial response
  • Low wear rate
  • Medium friction, moderate temperarture.
Compound Temperature Range & Torque Values
Temperature range and overall friction value are the primary considerations for pad selection. The pads must be capable of maintaining the proper amount of friction for stopping power within the temperatures that will be realized on the track during the event. Then, overall wear rate must be considered. For most asphalt and road race applications, compounds in the high temperature ranges over 1000°F range are usually necessary. Dirt track, drag race, and street performance applications usually operate at temperatures between 500° and 1000°F. Keep in mind that these are general ranges, and not absolute values. Many factors and unforeseen influences can affect brake temperatures. The best indicator for pad selection will always be on track performance. If pad fade (friction loss) due to overheating occurs, then improved cooling, a heavier rotor, or a higher temperature range pad may all become necessary.

Wilwood Compatible Calipers: Pad # D8

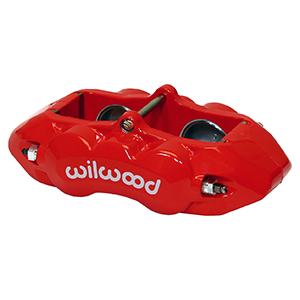

D8-4 Caliper Front

Caliper Dimensions
Piston Count 4
Piston Area Range (in²) 5.56
Pad Area Range (in²) 0
Pad Volume Range (in³) 3.9
Max Rotor Widths (in) 1.25
Max Rotor Diameters (in) 11.75

D8-4 Caliper Front Calipers

D8-4 front calipers are a direct bolt-on replacement for the OE factory front calipers on all 1965-82 Corvettes. Forged billet aluminum bodies, stainless steel pistons, and high temperature seals put an end to the rust, bore pitting, and seal failures that plague the original cast iron caliper design. View D8-4 Calipers

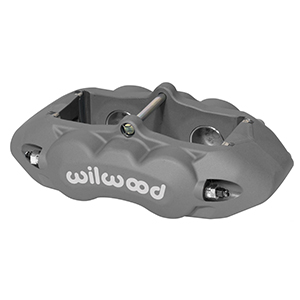

D8-4 Caliper Rear

Caliper Dimensions
Piston Count 4
Piston Area Range (in²) 3.00
Pad Area Range (in²) 0
Pad Volume Range (in³) 3.9
Max Rotor Widths (in) 1.25
Max Rotor Diameters (in) 11.75

D8-4 Caliper Rear Calipers

D8-4 rear calipers are a direct bolt-on replacement for the OE factory rear calipers on all 1965-82 Corvettes. Forged billet aluminum bodies, stainless steel pistons, and high temperature seals put an end to the rust, bore pitting, and seal failures that plague the original cast iron caliper design. View D8-4 Calipers
D8-6 Caliper Front

Caliper Dimensions
Piston Count 6
Piston Area Range (in²) 5.51
Pad Area Range (in²) 0
Pad Volume Range (in³) 3.9
Max Rotor Widths (in) 1.25
Max Rotor Diameters (in) 11.75

D8-6 Caliper Front Calipers

D8-6 front calipers are a direct bolt-on 6 piston replacement for the OE factory 4 piston front calipers on all 1965-82 Corvettes. Forged billet aluminum bodies, stainless steel pistons, and high temperature seals put an end to the rust, bore pitting, and seal failures that plague the original cast iron caliper design. View D8-6 Calipers
