Brake Pad Part No: 15E-8810K


Street Performance / Racing Pads

Pad#: 7912
Compound: PolyMatrix E
Prod #: 15E-8810K
Price: $89.57
Wilwood Brake Pad Plate #7912 Wilwood Brake Pad Plate #7912 Zoom Image
PolyMatrix E PolyMatrix E

Picture shown is for illustrative purposes only
Pad Dimensions
Thickness(in) .49
Area(in²) 5
Volume(in³) 1.8
Bedded N
UPC Number
UPC 889545036534
Temperature & Friction Ratings
Peak Temperture Rating 1000+ F.
Peak Friction Rating 0.48
Dust & Noise Ratings
Dust Production Rating Moderate
Pad Noise Rating Moderate
WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov

PolyMatrix E Compound

Pad Characteristics

  • Medium friction pad, medium effective temperature range in medium temperature pad group
  • Good initial bite, smooth engagement, low abrasion on iron rotors
  • Medium wear rate at high temperature
  • Consistent, linear response through temperature range

Pad Applications

  • Street use okay
  • Performance street
  • Autocross
  • Track day
  • Low temp drag racing with steel rotors
  • Off road

Rotor Material

  • Steel
  • Iron

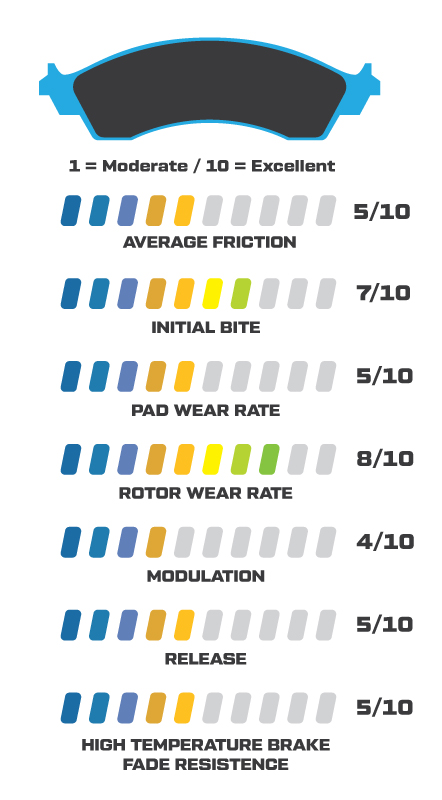

PolyMatrix E Performance Stats PolyMatrix E Performance Stats Zoom Image

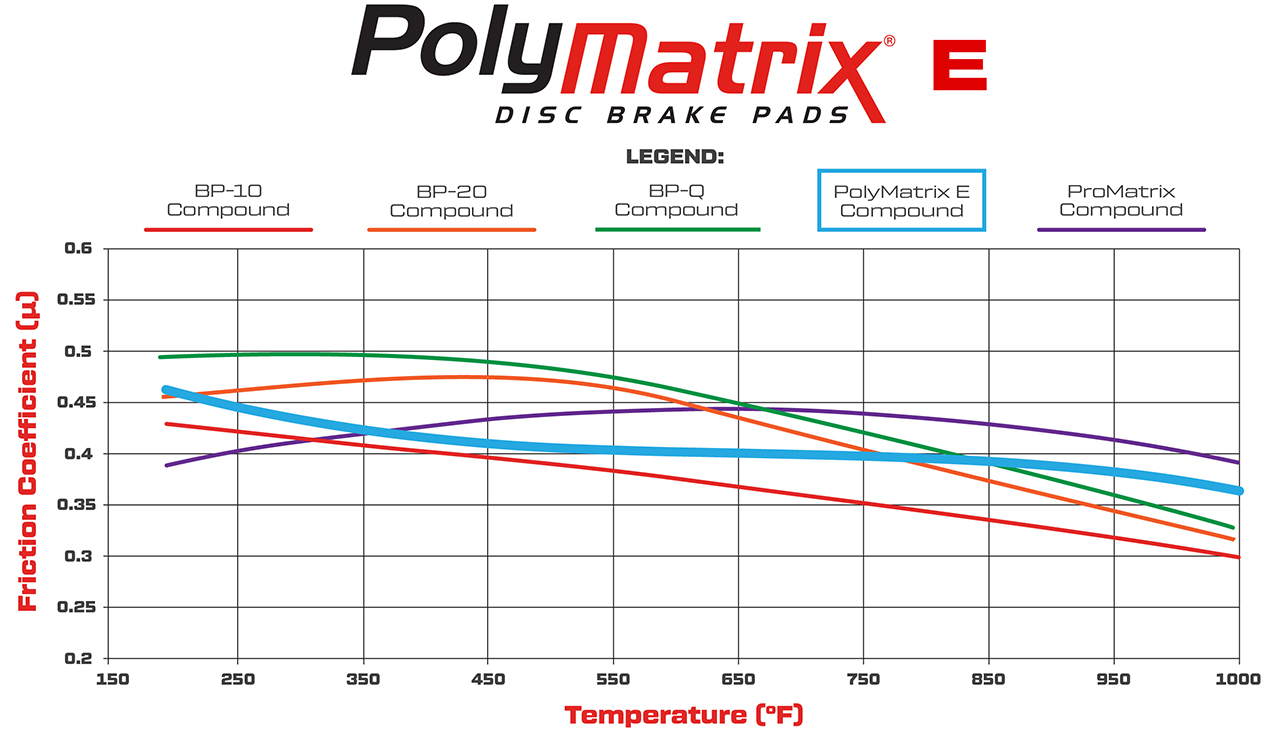

PolyMatrix E Friction Coefficient and Temperature Values PolyMatrix E Friction Coefficient and Temperature Values Zoom Image

The above friction data (μ) was recorded through braking cycles from 95 mph to 40 mph at a 0.5g deceleration. Snubs were consecutively done until rotor temperature reached 1300°F. This graph represents average data and is for general trend visualisations only comparing Wilwood pads. Chart data should not be used in comparison with other manufacturer's data. Test conditions, variables, and environment can affect test results.

Temperature range and overall friction value are the primary considerations for pad selection. The pads must maintain the proper amount of friction for stopping power within the temperatures that will be realized on the track. Overall wear rate must also be considered. For most asphalt and road race applications, compounds in the high-temperature range over 1000°F are usually necessary. Dirt track, drag race, and street performance applications usually operate at temperatures between 500° and 1000°F. Keep in mind that these are general ranges and not absolute values. Many factors and unforeseen influences can affect brake temperatures. The best indicator for pad selection will always be on-track performance. If pad fade (friction loss) due to overheating occurs, improved cooling, a heavier rotor, or a higher temperature range pad may become necessary.

Wilwood Compatible Caliper(s) for Pad #7912

Powerlite 2R Radial Mount
Caliper Dimensions
Piston Count 2
Piston Area Range (in²) 2.40
Pad Area Range (in²) 5
Pad Volume Range (in³) 1.8
Max Rotor Widths (in) 0.50
Max Rotor Diameters (in) 11.00

Powerlite 2R Radial Mount Calipers

Powerlite PL2R/ST radial mount calipers provide a high strength, lightweight,two-piston option for open wheel, formula car road racing and other similar types of competition, where high clamping efficiency within a limited wheel space and optimized rotor diameter are Required. Designed with Machined billet aluminum body with offset 1.75” piston bores and Common radial stud spacing and mounting offsets. The PL2R series uses Top-loading quick-access type 7912 pads in a variety of compounds. PL2R/ST caliper feature: Nickel plated or Type III hard anodize body finish with Thermlock pistons. View Powerlite 2R Radial Mount Calipers
Powerlite Radial Mount
Caliper Dimensions
Piston Count 4
Piston Area Range (in²) 1.58 3.00
Pad Area Range (in²) 5
Pad Volume Range (in³) 1.8
Max Rotor Widths (in) 0.86
Max Rotor Diameters (in) 11.00

Powerlite Radial Mount Calipers

The Powerlite four piston radial mount caliper starts at 2.26 pounds with a sleek profile, superior strength, lightweight and durable in higher temperature situations. Easily adapted to a wide range of sports, rally, and off road driving applications. View Powerlite Calipers
Powerlite Radial Mount
Caliper Dimensions
Piston Count 4
Piston Area Range (in²) 2.46 3.00
Pad Area Range (in²) 5
Pad Volume Range (in³) 1.8
Max Rotor Widths (in) 0.86
Max Rotor Diameters (in) 11.00

Powerlite Radial Mount Calipers

The Wilwood Powerlite-ST four piston radial mount caliper starts at 2.5 pounds with a sleek profile, superior strength, lightweight and durable in higher temperature situations. Easily adapted to a wide range of rally, circle track and off road driving applications. The addition of Wilwood's exclusive Thermlock pistons further insulate the caliper from high rotor temperatures. View Powerlite Calipers



All images shown are for illustrative purposes only. Actual product received may be different than what is portrayed on the web site.
Wilwood makes every effort to maintain our web site to ensure the accuracy of prices and product information. However, product information and prices are subject to change without notice. Please call (805) 388-1188 before ordering to verify current prices and product information.
