Billet Spot Caliper Caliper – Part No: 120-1064
Call (805) 388-1188

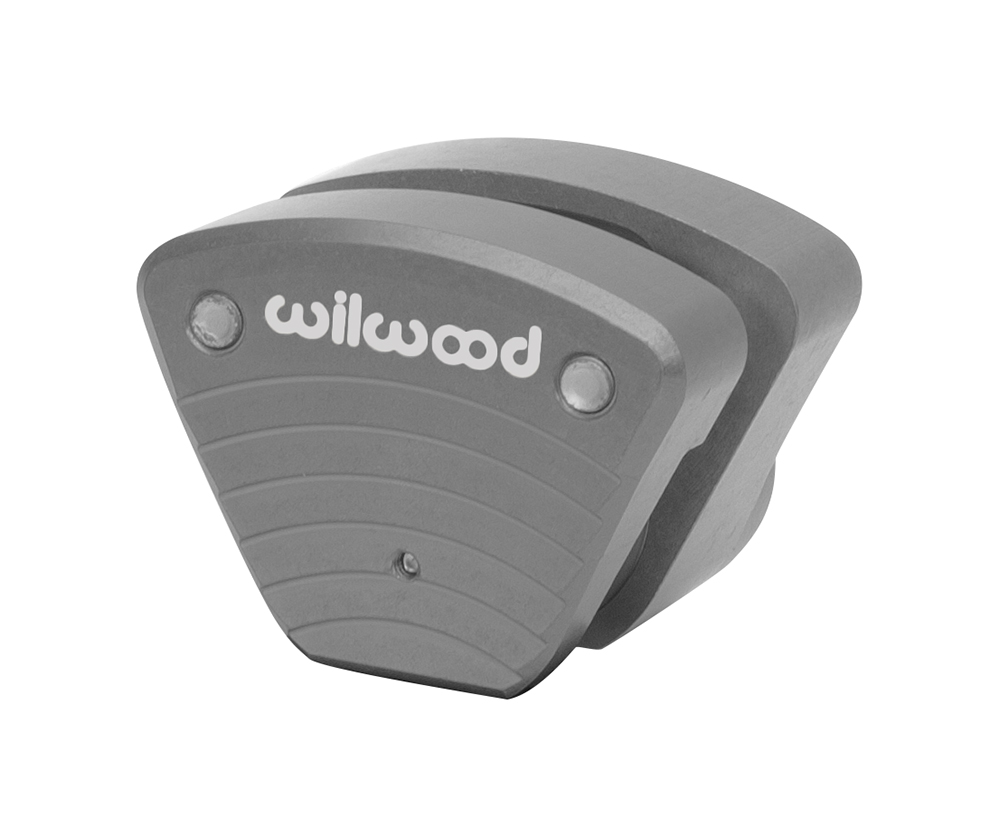

Billet Spot Caliper
Prod #: 120-1064
Price: $149.92

Billet Spot Caliper - Product Summary
Caliper No: 120-1064
Billet Spot Caliper

Pistons
Piston Count 1
Piston Area (in²) 2.40
Piston Type Aluminum
Dust Boot No
Rotor Dimensions
Rotor Width (in) 0.25
Rotor Diameter(in) 13.00
Pad Dimensions
Pad Area (in²) 2
Pad Volume (in³) 0.7
Duty Rating & Material
Material Billet Aluminium
Weight(Lbs) 1.5
Colors & Finish
Color Anodize
Finish Type III Anodize

Mounting
Mount Center(in) 2.31
Mount Position
Mount Side Universal
Mount Type Floating
UPC Number
UPC 889545000900
Product Documents
Product Data Sheet

Installation Instructions




WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Applicable to Brake Pads Only

120-1064 - Product Description

Billet Spot Caliper

Wilwood’s 1.75” diameter single piston Billet Spot Caliper is ideal for Micro and Mini Sprint, Kart, Off Road, Motorcycle, Drag Race Spindle Mount and industrial applications. Designed for light duty use, this floating caliper weighs just 1.20 pounds and holds a round .25” thick, .7 cubic inch brake pad, and accommodates rotors from 6.00” to 13.00” diameter and widths starting at .12”. Maximum rotor width can be adjusted by specific bracket and spacer dimensions. The pads are held in place by stainless steel 10-24 x .38” long flat head cap screw (screws are included), and the caliper is available black anodized.


Vehicle Applications
Driving Environment Junior Dragster
Vehicle Sub-Types
Application Duty Light Duty
Driving Environment Motorcycles
Vehicle Sub-Types
Application Duty Light Duty
Driving Environment Drag Racing
Vehicle Sub-Types
Application Duty Light Duty
Driving Environment Kart
Vehicle Sub-Types
Application Duty Light Duty
Driving Environment Power Sports
Vehicle Sub-Types ATV, Snowmobile
Application Duty Light Duty
Driving Environment Industrial
Vehicle Sub-Types
Application Duty Light Duty

Product Specifications

Rotor Compatibility
Rotor Width (in) 0.25
Maximum Rotor Width (in) 0.25
Minimum Rotor Width (in) 0.18
Maximum Rotor Diameter(in) 13.00
Minimum Rotor Diameter(in) 6.00

Brake Pad Specifications
Brake Pad Type 1 4009
Brake Pad Type 2 N-A
Brake Pad Type 3 N-A
Total Pad Area (in²) 2
Total Pad Volume (in³) 0.7
Mount
Piston Specifications
Piston 1 Bore (in) 1.75
Piston 2 Bore (in)
Piston 3 Bore (in)
Total Piston Area (in²) 2.40

Mounting Specifications
Mount Type Floating
Mount Side Universal
Mount Center(in) 2.31
Mount Hole Size(in) 0.35
Mount Height(in)
Inlet Thread Size 1/8-27 NPT
Pad Dimensions & Part Numbers
Pad Dimensions for the Billet Spot Caliper Pad Dimensions for the Billet Spot Caliper Zoom Image
Axle Set P/N
Pad Type
Compound
Non-Bedded Pads - by Compounds
150-1251K
4009
BP-10
Mount Dimensions & Part Numbers

Dimensions for the Billet Spot Caliper Dimensions for the Billet Spot Caliper Zoom Image

Additional Notes


Parts & Accessories

O-Ring Kit 130-0047
Replacement Dust Boot N-A
Replacement Piston 1 200-0300
Replacement Piston 2 N-A
Replacement Piston 3 N-A
Replacement Piston 4 N-A
Cross-Over O-Ring Kit N-A
Bridge Bolt Kit N-A
Wear Plate L/H N-A
Wear Plate R/H N-A
Pad Retainer 230-1112
Bleed Screw Kit 220-0627
Self Bleeder Tube N-A
Cross-Over Tube N-A
