Forged Dynalite Caliper – Part No: 120-14303
Call (805) 388-1188
Forged Dynalite-ST
Prod #: 120-14303
Price: $299.94

Forged Dynalite-ST - Product Summary
Caliper No: 120-14303

Pistons
Piston Count 4
Piston Area (in²) 4.12
Piston Type Thermlock
Dust Boot No
Rotor Dimensions
Rotor Width(in) 0.81
Rotor Diameter(in) 13.06
Pad Dimensions
Pad Area (in²) 6.36
Pad Volume (in³) 2.1
Duty Rating & Material
Material Aluminum
Weight(Lbs) 3.4
Colors & Finish
Color Ano
Finish Type III Ano

Mounting
Mount Center(in) 5.25
Mount Position
Mount Side Universal
Mount Type Lug
UPC Number
UPC 889545078961
Product Documents
Product Data Sheet

Click To Download
Installation Instructions


WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Applicable to Brake Pads Only

120-14303 - Product Description

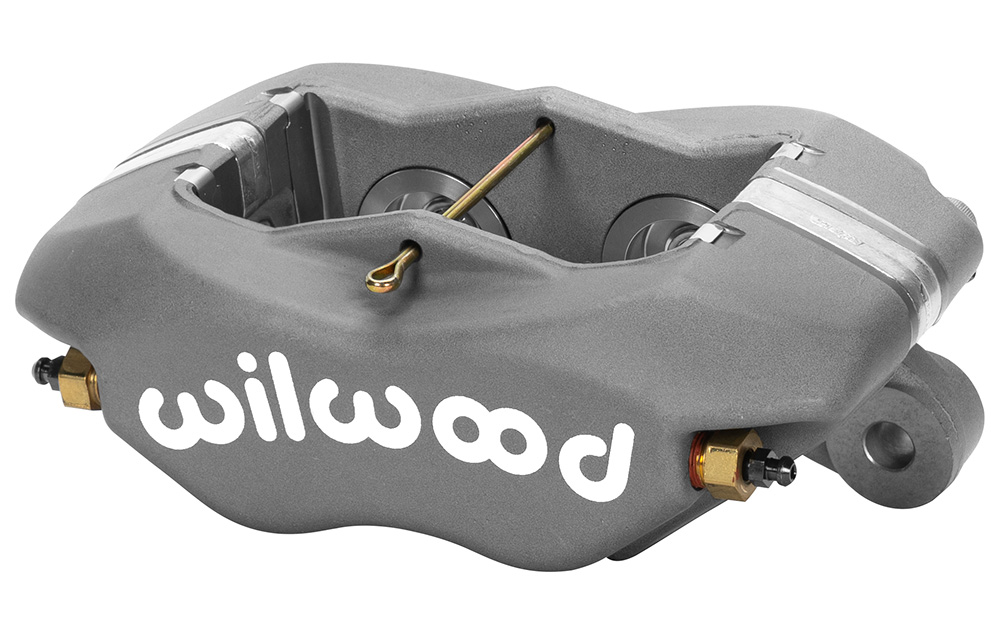

Forged Dynalite-ST

The Forged Billet Dynalite/ST has been specifically designed for high temperature road racing series compact cars. Teamed with Wilwood’s exclusive Thermlock insulated pistons, it gives a small size, high temperature solution for rotors in the 12.19” to 11.00” ranges. The Forged Dynalite are the strongest calipers in the class, with weights starting at 2.90 pounds. The process of stress-flow forging re-aligns the metal's grain structure within the contour of the caliper body. This process eliminates the breaks and interruptions to the internal grain structure that occur when machining a straight block billet. The FEA generated radial transition design eliminates steps and shoulders in the area between the piston housing body and the caliper bridges. With the overall greater strength and reliability of the forging, the reduced deflection tendencies and the resulting decrease in fluid volume displacement translate to increased clamping efficiency with less pedal travel. The bottom line is a taller pedal and better stopping power.



Product Specifications

Rotor Compatibility
Rotor Width(in) 0.81
Maximum Rotor Width(in) 0.83
Minimum Rotor Width(in) 0.75
Maximum Rotor Diameter(in) 13.06
Minimum Rotor Diameter(in) 10

Brake Pad Specifications
Brake Pad Type 1 7112
Brake Pad Type 2 N-A
Brake Pad Type 3 N-A
Total Pad Area (in²) 6.36
Total Pad Volume (in³) 2.1
Mount
Piston Specifications
Piston 1 Bore(in) 1.62
Piston 2 Bore(in 1.62
Piston 3 Bore(in)
Piston 4 Bore(in)
Total Piston Area (in²) 4.12

Mounting Specifications
Mount Type Lug
Mount Side Universal
Mount Center(in) 5.25
Mount Hole Size(in) 0.39
Mount Height(in) 2.03
Inlet Thread Size 1/8-27 NPT
Pad Dimensions & Part Numbers
Mount Dimensions & Part Numbers

Additional Notes


Parts & Accessories

O-Ring Kit 130-4346
Replacement Dust Boot N-A
Replacement Piston 1 200-9615
Replacement Piston 2 200-9615
Replacement Piston 3 N-A
Replacement Piston 4 N-A
Cross-Over O-Ring Kit 130-10540
Bridge Bolt Kit N-A
Wear Plate L/H 300-5875
Wear Plate R/H 300-5875
Pad Retainer 180-0055
Bleed Screw Kit 220-0627
Self Bleeder Tube N-A
Cross-Over Tube N-A
